TG58SA

تحت الطلب

WIKA · قياس درجة الحرارة · العائلة TG58

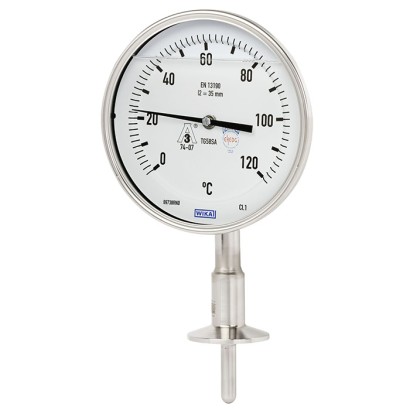

ترمومتر ثنائي المعدن

Name: ترمومتر ثنائي المعدن
Brand: WIKA
SKU: TG58SA

ترمومتر ثنائي المعدن للتطبيقات الصحية في صناعات الأغذية والبيوتكنولوجيا والأدوية ومستحضرات التجميل بتصميم صحي، مناسب لعمليات CIP وSIP.

النطاق

-40…180 °C

الدقة

Class 1 per EN 13190

الحماية

IP66

3-AEHEDG Class I

السعر

حسب الطلب

يعتمد على التكوين

طلب عرض سعر

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

الوصف

تم تصميم مقياس الحرارة ثنائي المعدن طراز TG58SA خصيصًا لتلبية متطلبات التطبيقات الصحية.

تتم وظيفة نقل درجة الحرارة بشكل ميكانيكي بحت عبر ملف ثنائي المعدن داخل الساق. ولل تطبيقات التي تتطلب قياسًا لا يحتاج إلى طاقة مساعدة، مثلًا مع الوعاء/الناقلات المتنقلة، فإن TG58SA مع السائل (الهيكل) مناسب بشكل خاص.

على الجزء الخلفي من الهيكل، يمكن تصحيح نقطة الصفر بسهولة.

تتيح الساق ذات القاعدة شبه الكروية، بالاقتران مع وصلات عمليات التعقيم (مثل المشبك، VARINLINE ® )، إجراء توصيل خالٍ من المساحة الميتة مع العملية.

للموافقات الإضافية، راجع الصفحة 7

المزايا

الأمان من خلال الإشارة إلى درجة الحرارة ميكانيكياً
سهولة التنظيف بفضل التصميم الصحي لعلبة الجهاز والأجزاء الملامسة للمائع
ضبط سهل لنقطة الصفر
مقاومة عالية لارتفاع درجة الحرارة

الأسئلة والأجوبة

ما هي نطاقات القياس المتاحة للطراز TG58SA؟

يتوفر الطراز بعدة نطاقات قياس تتراوح بين ‎-40 … +40 °C‎ و‎20 … 180 °C‎، مثل ‎0 … 100 °C‎ و‎10 … 90 °C‎ و‎20 … 130 °C‎.

ما مدى دقة القياس؟

الدقة هي Class 1 وفقًا للمعيار EN 13190.

ما هي وصلات العملية المتاحة؟

تتوفر وصلات Clamp connection وDIN 11864-1 وDIN 11864-2 وDIN 11864-3 وVARINLINE®، مما يتيح توصيلًا خاليًا من المساحة الميتة مع العملية.

هل يمكن استخدامه مع وسائط عند درجات حرارة مرتفعة؟

نعم، يتحمل الوسط درجات حرارة من ‎-50 … +150 °C‎، كما يتميز الطراز بمقاومة عالية لارتفاع درجة الحرارة.

ما هي شهادات النظافة التي يحملها؟

الطراز معتمد وفق 3-A وEHEDG Class I، وهو مصمم لتطبيقات صحية مناسبة لعمليات CIP وSIP.

هل يناسب المناطق الخطرة؟

نعم، لديه موافقات انفجار: II 2G Ex h IIC T6 … T1 Gb X للمنطقة 1 (غاز) وII 2D Ex h IIIC T85 … T450 °C Db X للمنطقة 21 (غبار).

ما الذي يميز TG58SA عن غيره من الترمومترات ثنائية المعدن؟

تصميمه الصحي بأجزاء ملامسة من Stainless steel 316L وقطر ساق 6.35 mm، مع وصلات تعقيم خالية من المساحة الميتة، وإمكانية ضبط نقطة الصفر بسهولة من الجزء الخلفي للهيكل — وهو مناسب بشكل خاص للتطبيقات التي لا تحتاج إلى طاقة مساعدة مثل الوعاءات المتنقلة. ---

التعريف

الطراز	TG58SA
السلسلة	TG58
النوع الفرعي	Bimetal thermometer

نطاق القياس

نطاق درجة الحرارة

−40…+40 °C · +0…+100 °C · +0…+40 °C · +0…+90 °C · +10…+50 °C · +10…+70 °C · +10…+90 °C · +10…+110 °C · +20…+130 °C · +20…+180 °C

دقة القياس

فئة الدقة

Class 1 per EN 13190

ظروف العملية

وصلة العملية	Clamp connectionDIN 11864-1DIN 11864-2DIN 11864-3VARINLINEVARINLINE ®
درجة حرارة العملية	−50…+150 °C

المواد

مادة المجس

Stainless steel 316L

بيئة التشغيل

حرارة المحيط	−20…+60 °C
تصنيف IP	IP66

الشهادات والموافقات

الشهادات	3-AEHEDG Class I
حماية الانفجار	Ex h Zone 1 gas II 2G Ex h IIC T6 ... T1 Gb XZone 21 dust II 2D Ex h IIIC T85 ... T450 °C Db X

تفاصيل إضافية

نوع المستشعر	bimetal
قطر المجس	6.35 mm
جراب الحرارة	لا

جداول من ورقة البيانات

Basic information

Standard	EN 13190 or ASME B40.200
Nominal size (NS) in mm["]	■ 63 [2.5] ■ 80 [3] ■ 100 [4] ■ 130 [6]
Window	■ UV-resistant polycarbonate (shatterproof) ■ Instrument glass
Connection location	■ Back mount (axial) ■ Lower mount (radial)
Damping, case filling	■ Without ■ FDA-approved silicone oil (see 21 CFR 173.340 and 177.1210)
Material (in contact with the environment)
Case, ring	Stainless steel 304
Elbow behind the case (only with lower mount)	Stainless steel 304
Wetted parts
Material	Stainless steel 1.4404 (316L):UNS S31603; welding filler: 1.4576 (318L): UNS S31803
Surface finish quality	■ Ra ≤ 0.51 μm [20 μin] per ASME BPE SF1 ■ Ra ≤ 0.38 μm [15 μin], electropolished, per ASME BPE SF4

Measuring element

Type of measurement principle	Bimetal coil → See technical information IN 00.07
Nominal effective range
Constant loading (1 year)	Measuring range (EN 13190)
	After the specified constant loading, a calibration is recommended

Accuracy specifications

Accuracy	■ Class 1 per EN 13190 ■ Grade A per ASME B40.200

Scale range in °C	Measuring range 1) in °C	Scale interval in °C	Error limit per EN13190 Cl.1	Error limit per ASME B40.200 Grade A	Overtemper- ature resist- ance (only in non-hazard- ous areas)	CIP- and SIP-compatible (cleaning at 150 °C)
-50 ... +50	-40 ...+40	1	± 1 °C	± 1°C	Max. 100 °C	-
-20 ... +120	0 ... 100	2	± 2 °C	± 1.4 °C	Max. 240 °C	x
-10 ... +50	0 ... 40	1	± 1 °C	± 0.6 °C	Max. 100 °C	-
-10 ... +100	0 ... 90	1	± 1 °C	± 1.1 °C	Max. 100 °C	-
0 ... 60	10 ... 50	1	± 1 °C	± 0.6 °C	Max. 120 °C	-
0 ... 80	10 ... 70	1	± 1 °C	± 0.8 °C	Max. 160 °C	x
0 ... 100	10 ... 90	1	± 1 °C	± 1 °C	Max.200°C	x
0 ... 120	10 ... 110	2	± 2 °C	± 1.2 °C	Max. 240 °C	x
0 ... 150	20 ... 130	2	± 2 °C	± 1.5 °C	Max. 225 °C	x
0 ... 200	20 ... 180	2	± 2 °C	± 2 °C	Max. 300 °C	x

عرض الكل (20)

Scale range in °F	Measuring range 1) in °F	Scale interval in °F	Error limit per EN13190 Cl.1	Error limit per ASME B40.200 Grade A	Overtemper- ature resist- ance (only in non-hazard- ous areas)	CIP- and SIP-compatible (cleaning at 150 °C)
-40 ... +120	-20 ...+100	2	±2 °F	±1.6 °F	Max. 180 °F	-
0 ... 140	20 ... 120	2	±2 °F	±1.4 °F	Max. 210 °F	-
0 ... 200	20 ... 180	2	±2 °F	±2 °F	Max. 300 °F	x
0 ... 250	30 ... 220	5	±2 °F	±2.5 °F	Max. 375 °F	x
20 ... 240	0 ... 190	2	±2 °F	±2.6 °F	Max. 360 °F	x
30 ... 400	80 ... 350	5	±2 °F	±2.7 °F	Max. 600 °F	x
50 ... 300	100 ... 250	5	±2 °F	±2.5 °F	Max. 450 °F	x

Process connection
DIN 11864-1, liner with grooved union nut	■ DN 25 ■ DN 32 ■ DN 40 ■ DN 26.9 ■ DN 33.7 ■ DN 42.4 ■ DN 48.3 ■ DN 1" ■ DN 1 ½"
DIN 11864-2, aseptic flange with notch	■ DN 15 ■ DN 20 ■ DN 25 ■ DN 32 ■ DN 40 ■ DN 50 ■ DN 17.2 ■ DN 21.3 ■ DN 26.9 ■ DN 33.7 ■ DN 42.4 ■ DN 48.3
DIN 11864-3, clamp with notch	■ DN 15 ■ DN 20 ■ DN 25 ■ DN 32 ■ DN 40 ■ DN 50 ■ DN 65 ■ DN 17.2 ■ DN 21.3 ■ DN 26.9 ■ DN 33.7 ■ DN 42.4 ■ DN 48.3 ■ DN 60.3 ■ DN ¾" ■ DN 1" ■ DN 1 ½"
VARINLINE ®	■ Form F ■ Form N
Stem
Diameter	■ 9.53 mm[3/8 in] ■ 6.35 mm[1/4 in]
Material (wetted)	Stainless steel 316L

Operating conditions

Ambient temperature range (at the case)	-20 ...+60 °C [-4 ...+140 °F]
Storage temperature range	-50 ...+70 °C [-60 ...+160 °F]
Cleaning and sterilisation (CIP and SIP)	150 °C [302 °F] continuously for wetted parts
Max. operating pressure at stem	16 bar [232 psi] to max. 40 bar [580 psi], dependent on process connection
Ingress protection (IP code) per IEC/EN 60529	■ IP66 ■ IP67 ■ NEMA 4X/6
Insertion length l 1	30 ... 300 mm[1.18 ... 11.81 in]
	Minimum insertion length is dependent upon scale range, connection location and diameter → See table on page 6

Minimum insertion length l 1 in mm[in]

Scale range in °C	Back mount	Lower mount
Ø 6.35 [1/4]	Ø 9.52 [3/8]	Ø 6.35 [1/4]	Ø 9.52 [3/8]
-50 ... +50	60 [2.36]	50 [1.97]	60 [2.17]	50 [1.97]
-20 ... +120	45 [1.77]	40 [1.57]	45 [1.77]	40 [1.57]
-10 ... +50	95 [3.74]	70 [2.76]	95 [3.74]	70 [2.76]
-10 ... +100	55 [2.17]	40 [1.57]	55 [2.17]	40 [1.57]
0 ... 60	90 [3.54]	75 [2.96]	90 [3.54]	75 [2.96]
0 ... 80	70 [2.76]	60 [2.36]	70 [2.76]	60 [2.36]
0 ... 100	60 [2.36]	50 [1.97]	60 [2.36]	45 [1.77]
0 ... 120	50 [1.97]	45 [1.77]	50 [1.97]	45 [1.77]
0 ... 150	40 [1.57]	40 [1.57]	40 [1.57]	40 [1.57]
0 ... 200	35 [1.38]	30 [1.18]	35 [1.38]	30 [1.18]

Minimum insertion length l 1 in mm[in]

Scale range in °F	Back mount	Lower mount
Ø 6.35 [1/4]	Ø 9.52 [3/8]	Ø 6.35 [1/4]	Ø 9.52 [3/8]
-40 ... +120	65 [2.56]	55 [2.17]	65 [2.56]	55 [2.17]
0 ... 140	70 [2.76]	60 [2.36]	70 [2.76]	60 [2.36]
0 ... 200	50 [1.97]	45 [1.77]	50 [1.97]	45 [1.77]
0 ... 250	45 [1.77]	40 [1.57]	45 [1.77]	40 [1.57]
20 ... 240	55 [2.17]	40 [1.57]	55 [2.17]	40 [1.57]
30 ... 400	35 [1.38]	30 [1.18]	35 [1.38]	30 [1.18]
50 ... 300	45 [1.77]	40 [1.57]	45 [1.77]	40 [1.57]

Logo	Description	Region
®	3-A Hygienic design This instrument is 3-A marked, based on a third party verification for conformance to the 3-A standard 74.	USA
OCTOBER 2022 TYPE EL CLASS I	EHEDG Hygienic design EL Class I Closed equipment, wet in place cleaning (CIP) without dismantling	International

Description	Region
EU declaration of conformity ATEX directive areas	European Union
Hazardous - Ex h	Zone 1 gas	II 2G Ex h IIC T6 ...T1 Gb X
	Zone 21 dust	II 2D Ex h IIIC T85 ...T450 °C Db X

Logo	Description
-	Manufacturer's declaration regarding regulation (EC) no. 1935/2004;Good Manufacturing Practice (EC) no. 2023/2006 (GMP)
-	Manufacturer's declaration GB 4806.1-2016 China National Food Safety Standard - Good Manufacturing Practice GB 31603- 2015 (GMP)

Certificates

Certificates	■ 2.2 test report per EN 10204 (e.g. state-of-the-art manufacturing, material proof, indication accuracy, free from substances of animal origin) ■ 3.1 inspection certificate per EN 10204 (e.g. material proof for wetted metal parts, indication accuracy)
Certification packages
Food	■ 2.2 confirmation of the class and indication accuracy ■ 2.2 Confirmation of EC no. 1935/2004 ■ 3.1 inspection certificate for wetted metal parts
Pharma	■ 3.1 inspection certificate with 3 test points ■ 3.1 inspection certificate for wetted metal parts ■ 2.2 Confirmation of EC no. 1935/2004 ■ 2.2 Confirmation of ADI conformity (free from substances of animal origin)

Size	Dimensions in mm[in]	Matched to clamp connection in accordance with	Max. operat- ing pressure at stem up to 200°C [392 °F]
D	R	DIN 32676 row A	DIN 32676 row B	ASME BPE, DIN 32676 row C	ISO 2852 1)
TC50	50.5 [1.99]	3.2 [0.13]	-	21.3	-	-	25 bar [362 psi]
TC50	50.5 [1.99]	6.4 [0.25]	■ DN 25 ■ DN 32 ■ DN 40	■ DN 21.3 ■ DN 26.9 ■ DN 33.7	■ DN 1" 2) ■ DN 1 ½ "	■ DN 25 ■ DN 33.7 ■ DN 38	25 bar [362 psi]
TC64	64 [2.52]	6.4 [0.25]	DN 50	■ DN 42.4 ■ DN 48.3	DN 2"	■ DN 40 ■ DN 51	16 bar [232 psi]
TC77	77.5 [3.16]	6.4 [0.25]	-	DN 60.3	DN 2 ½ "	DN 63.5	16 bar [232 psi]

NS in mm["]	Dimensions in mm[in]
	d 6	F	H	b	b 1
63 [2]	69.7 [2.74]	102.1 [4.02]	136.9 [5.39]	26.95 [1.06]	74.75 [2.94]
80 [3]	83.5 [3.29]	108.95 [4.29]	150.7 [5.93]	26.2 [1.03]	74 [2.91]
100 [4]	106.9 [4.21]	120.65 [4.75]	174.1 [6.85]	26.83 [1.06]	74.63 [2.94]
130 [5]	134.1 [5.28]	134.25 [5.29]	201.3 [7.93]	26 [1.02]	73.8 [2.91]

Size	Dimensions in mm["]	Max. operating pressure at stem up to 200 °C [392 °F]
	d	d 1	D	R
Form F	■ 6.35 [1/4] ■ 9.52 [3/8]	49.95 [1.97]	66 [2.60]	6.4 [0.25]	25 bar [362 psi]
Form N	■ 6.35 [1/4] ■ 9.52 [3/8]	67.95 [2.68]	84 [3.31]	6.4 [0.25]	25 bar [362 psi]

NS in mm["]	Dimensions in mm[in]
	d 6	F	H	b	b 1	b 2
63 [2]	69.7 [2.74]	102.1 [4.02]	136.9 [5.39]	26.95 [1.06]	-	38.39 [1.51]
80 [3]	83.5 [3.29]	108.95 [4.29]	150.7 [5.93]	26.2 [1.03]	74 [2.91]	37.64 [1.48]
100 [4]	106.9 [4.21]	120.65 [4.75]	174.1 [6.85]	26.83 [1.06]	74.63 [2.94]	38.27 [1.51]
130 [5]	134.1 [5.28]	134.25 [5.29]	201.3 [7.93]	26 [1.02]	73.8 [2.91]	37.36 [1.47]

Size	Dimensions in mm[in]	Max. operat- ing pressure
d	D	h	d 3	d 4	K		R	at stem up to
DN 15	6.35 [1/4] or 9.52 [3/8]	59 [2.32]	10 [0.39]	28.4 [1.12]	9 [0.35]	42 [1.65]		3.2 [0.13]	25 bar [362 psi]
DN 20	6.35 [1/4] or 9.52 [3/8]	64 [2.52]	10 [0.39]	32.4 [1.28]	9 [0.35]	47 [1.85]		6.4 [0.25]	25 bar [362 psi]
DN 25	6.35 [1/4] or 9.52 [3/8]	70 [2.76]	10 [0.39]	38.4 [1.51]	9 [0.35]	53 [2.09]		6.4 [0.25]	25 bar [362 psi]
DN 32	6.35 [1/4] or 9.52 [3/8]	76 [2.99]	10 [0.39]	47.7 [1.88]	9 [0.35]	59 [2.32]		6.4 [0.25]	25 bar [362 psi]
DN 40	6.35 [1/4] or 9.52 [3/8]	82 [3.23]	10 [0.39]	53.7 [2.11]	9 [0.35]	65 [2.56]		6.4 [0.25]	25 bar [362 psi]
DN 50	6.35 [1/4] or 9.52 [3/8]	94 [3.70]	10 [0.39]	65.7 [2.59]	9 [0.35]	77 [3.03]		6.4 [0.25]	16 bar [232 psi]
DN 17.2	6.35 [1/4] or 9.52 [3/8]	59 [2.32]	10 [0.39]	26.4 [1.04]	9 [0.35]	42 [1.65]		3.2 [0.13]	25 bar [362 psi]
DN 21.3	6.35 [1/4] or 9.52 [3/8]	62 [2.44]	10 [0.39]	30.4 [1.20]	9 [0.35]	45 [1.77]		3.2 [0.13]	25 bar [362 psi]
DN 26.9	6.35 [1/4] or 9.52 [3/8]	69 [2.72]	10 [0.39]	36.1 [1.42]	9 [0.35]	52 [2.05]		6.4 [0.25]	25 bar [362 psi]
DN 33.7	6.35 [1/4] or 9.52 [3/8]	74 [2.91]	10 [0.39]	45.4 [1.79]	9 [0.35]	57 [2.24]		6.4 [0.25]	25 bar [362 psi]
DN 42.4	6.35 [1/4] or 9.52 [3/8]	82 [3.23]	10 [0.39]	54.1 [2.13]	9 [0.35]	65 [2.56]		6.4 [0.25]	16 bar [232 psi]
DN 48.3	6.35 [1/4] or 9.52 [3/8]	88 [3.46]	10 [0.39]	60.0 [2.36]	9 [0.35]	71 [2.80]		6.4 [0.25]	16 bar [232 psi]
DN¾	6.35 [1/4] or 9.52 [3/8]	59 [2.32]	10 [0.39]	28.4 [1.12]	9 [0.35]	42 [1.65]		3.2 [0.13]	25 bar [362 psi]
DN 1"	6.35 [1/4] or 9.52 [3/8]	66 [2.60]	10 [0.39]	34.4 [1.35]	9 [0.35]	49 [1.93]		6.4 [0.25]	25 bar [362 psi]
DN 1 ½"	6.35 [1/4] or 9.52 [3/8]	79 [3.11]	10 [0.39]	50.5 [1.99]	9 [0.35]	62	[2.44]	6.4 [0.25]	25 bar [362 psi]
DN 2"	6.35 [1/4] or 9.52 [3/8]	92 [3.62]	10 [0.39]	63.5 [2.50]	9 [0.35]	75 [2.95]		6.4 [0.25]	16 bar [232 psi]
		NS in mm["] Dimensions in mm[in]
	d 6		F		H	b		b	b 2
63 [2]	69.7 [2.74]	102.1 [4.02]	136.9 [5.39]	1 26.95 [1.06] 74.75 [2.94]	38.39 [1.51]
80 [3]	83.5 [3.29]	108.95 [4.29]	150.7 [5.93]	26.2 [1.03] 74 [2.91]	37.64 [1.48]
100 [4]	106.9 [4.21]	120.65 [4.75]	174.1 [6.85]	26.83 [1.06] 74.63 [2.94]	38.27 [1.51]
130 [5]	134.1 [5.28]	134.25 [5.29]	201.3 [7.93]	26 [1.02] 73.8 [2.91]	37.36 [1.47]

Size	Dimensions in mm[in]	Max. operat- ing pressure
d	D	F 1	k	G 1	h	d 2	h 1	R	at stem up to
DN 25	■ 6.35 [1/4] ■ 9.52 [3/8]	63 [2.48]	DN 25	21 [0.83]	Rd 52 x 1/6	15.0 [0.59]	42.9 [1.69]	27 [1.06]	6.4 [0.25]	40 bar [580 psi]
DN 32	■ 6.35 [1/4] ■ 9.52 [3/8]	70 [2.76]	DN 32	21 [0.83]	Rd 58 x 1/6	17.8 [0.70]	48.9 [1.92]	28 [1.10]	6.4 [0.25]	40 bar [580 psi]
DN 40	■ 6.35 [1/4] ■ 9.52 [3/8]	78 [3.07]	DN 40	21 [0.83]	Rd 65 x 1/6	19.8 [0.78]	54.9 [2.16]	28 [1.10]	6.4 [0.25]	40 bar [580 psi]
DN 26.9	■ 6.35 [1/4] ■ 9.52 [3/8]	63 [2.48]	DN 25	21 [0.83]	Rd 52 x 1/6	15.0 [0.59]	42.9 [1.69]	27 [1.06]	6.4 [0.25]	40 bar [580 psi]
DN 33.7	■ 6.35 [1/4] ■ 9.52 [3/8]	70 [2.76]	DN 32	21 [0.83]	Rd 58 x 1/6	17.8 [0.70]	48.9 [1.92]	28 [1.10]	6.4 [0.25]	40 bar [580 psi]
DN 42.4	■ 6.35 [1/4] ■ 9.52 [3/8]	78 [3.07]	DN 40	21 [0.83]	Rd 65 x 1/6	19.8 [0.78]	54.9 [2.16]	28 [1.10]	6.4 [0.25]	25 bar [362 psi]
DN 48.3	■ 6.35 [1/4] ■ 9.52 [3/8]	92 [3.62]	DN 50	22 [0.87]	Rd 78 x 1/6	24.5 [0.96]	66.9 [2.63]	30 [1.18]	6.4 [0.25]	25 bar [362 psi]
DN 1"	■ 6.35 [1/4] ■ 9.52 [3/8]	63 [2.48]	DN 25	21 [0.83]	Rd 52 x 1/6	15.0 [0.59]	42.9 [1.69]	27 [1.06]	6.4 [0.25]	40 bar [580 psi]
DN 1 ½"	■ 6.35 [1/4] ■ 9.52 [3/8]	78 [3.07]	DN 40	21 [0.83]	Rd 65 x 1/6	19.8 [0.78]	54.9 [2.16]	28 [1.10]	6.4 [0.25]	40 bar [580 psi]
DN 2"	■ 6.35 [1/4] ■ 9.52 [3/8]	92 [3.62]	DN 50	22 [0.87]	Rd 78 x 1/6	24.5 [0.96]	66.9 [2.63]	30 [1.18]	6.4 [0.25]	25 bar [362 psi]

NS in mm["]	Dimensions in mm[in]
	d 6	F	H	b	b 1	b 2
63 [2]	69.7 [2.74]	108.05 [4.25]	142.9 [5.63]	26.95 [1.06]	-	38.39 [1.51]
80 [3]	83.5 [3.29]	114.95 [4.53]	156.7 [6.17]	26.2 [1.03]	76 [2.99]	37.64 [1.48]
100 [4]	106.9 [4.21]	126.65 [4.99]	180.1 [7.09]	26.83 [1.06]	76.63 [3.02]	38.27 [1.51]
130 [5]	134.1 [5.28]	140.25 [5.52]	207.3 [8.16]	26 [1.02]	75.8 [2.98]	37.36 [1.47]
