WIKA · قياس المستوى · العائلة LGG

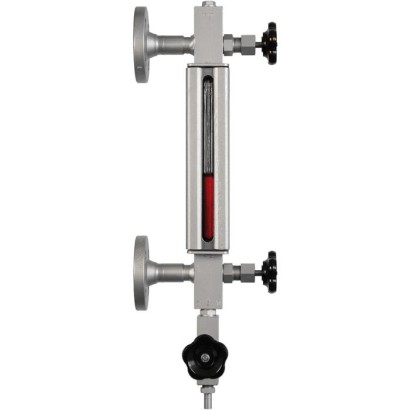

مقياس مستوى زجاجي
للدلالة المباشرة على مستويات القياس
النطاق
0.12…3.8 m
السعر
حسب الطلب
يعتمد على التكوين
الوصف
العنصر الرئيسي لقياس مستوى الزجاج هو جسم مقياس المستوى. تم دمج قناة السائل (إذا لزم الأمر قناة التسخين) وأسطح التثبيت الخاصة بالوصلات/الحشيات المحفظة وواجهات/زجاجات المشاهدة داخل جسم المقياس هذا.
يتم تركيب رؤوس الصمامات ووصلات العملية على جسم المقياس، أو تكون مدمجة فيه بالفعل. كما يمكن توفير فتحات التصريف أو التهوية.
نسخة مدمجة مع قطع جانبية، الطراز LGG-E
يتم تركيب الزجاج و/أو دروع الميكا وكذلك الحشيات وتثبيتها وإحكام إغلاقها بمساعدة مسامير U (على شكل U) وغطاءات أو إطارات ضغط. يتم استخدام زجاج بوروسيليكات وفقًا لـ DIN 7081.
للبخار، يمكن استخدام الزجاج حتى 243 °C [469.4 °F]، مع تصميم الميكا حتى 300 °C [572 °F]. بالنسبة للوسائط الأخرى، تكون درجات الحرارة حتى 300 °C ممكنة، وفي حالات خاصة حتى 374 °C [705.2 °F]. يلزم استخدام الميكا لتطبيقات محددة.
المزايا
- إنتاج خاص بالعملية والإجراء
- حدود التشغيل: درجة حرارة التشغيل: -196 ... +374 °C [-320.8 ... +705.2 °F] ضغط التشغيل: تفريغ إلى 250 bar [3,625.9 psi]
- درجة حرارة التشغيل: -196 ... +374 °C [-320.8 ... +705.2 °F]
- ضغط التشغيل: تفريغ حتى 250 bar [3,625.9 psi]
- تشكيلة واسعة من وصلات العمليات والمواد المختلفة
- إضاءة اختيارية
- التسخين و/أو العزل اختياريان
الأسئلة والأجوبة
ما هو نطاق درجة حرارة التشغيل لـ LGG؟
درجة حرارة التشغيل هي -196 … +374 °C [-320.8 … +705.2 °F]. بالنسبة للبخار يمكن استخدام الزجاج حتى 243 °C، ومع تصميم الميكا حتى 300 °C، وفي حالات خاصة حتى 374 °C.
ما هو أقصى ضغط تشغيل يتحمله الجهاز؟
يعمل الجهاز عند ضغط يتراوح من التفريغ (Vacuum) حتى 250 bar [3,625.9 psi].
ما هي وصلات العملية المتاحة؟
تشمل الخيوط الذكرية 1/2 NPT و3/4 NPT، وصلات اللحام 1/2" و3/4"، وفلنجات DIN EN 1092-1 بمقاسات DN 15 ... 50 وفئات ضغط PN 16 ... 250، وفلنجات ASME 16.5 بمقاسات 1/2 ... 2" وفئات Class 150 ... 1500.
من أي مواد تُصنع الأجزاء الملامسة للوسط؟
تشمل المواد Steel A350LF2، والفولاذ المقاوم للصدأ 1.4404 (316L) و1.4571 (316Ti)، وSteel 1.0460/1.0570، وSteel 1.5415 (15Mo3)، والنحاس الأصفر، بالإضافة إلى الزجاج البوروسيليكات وفقًا لـ DIN 7081 والميكا.
هل يحتاج الجهاز إلى مصدر طاقة؟
لا، يوفر LGG دلالة مستمرة على المستوى دون طاقة مساعدة، حيث تتم القراءة بصريًا بشكل مباشر. الإضاءة متاحة كخيار اختياري فقط.
ما الفرق بين أنواع LGG الفرعية؟
يتوفر الجهاز بأنواع انعكاسية (reflex) وشفافة (transparent) وبانكسار الضوء مع الميكا. يلزم استخدام الميكا لتطبيقات محددة مثل البخار عند درجات حرارة أعلى.
هل تتوفر خيارات للتسخين أو العزل؟
نعم، يمكن توفير التسخين و/أو العزل الحراري كخيارات، كما تتوفر الإضاءة اختياريًا.
التعريف
| الطراز | LGG |
| النوع الفرعي | reflex, transparent, refraction with mica |
نطاق القياس
| نطاق المستوى | 0.12…2.93 m · 0.12…3.8 m |
ظروف العملية
| وصلة العملية | Male thread 1/2 NPT, 3/4 NPTWeld stub 1/2", 3/4"Flange DIN EN 1092-1: DN 15 ... 50, PN 16 ... 250Flange ASME 16.5: 1/2 ... 2", Class 150 ... 1500Flange DIN EN 1092-1:DN 15 ... 50, PNMale thread ½NPT, ¾NPTWeld stub ½", ¾"Flange DIN EN 1092-1: DN15...50, PN16...100Flange ASME 16.5: 1/2...2", Class 150...600 |
| درجة حرارة العملية | −196…+374 °C |
| أقصى ضغط للعملية | 250 bar |
| تقنية القياس | vibration_fork |
المواد
| مادة الأجزاء الملامسة | Steel A350LF2, Stainless steel 1.4404 (316L), Steel 1.0460/1.0570, Steel 1.5415 (15Mo3), Brass, Stainless steel 1.4571 (316Ti), Borosilicate glass, Mica |
بيئة التشغيل
| حرارة المحيط | −40…+300 °C |
تفاصيل إضافية
| لغات ورقة البيانات | EN |
جداول من ورقة البيانات
| Length in mm[in] | Glass size | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | |
| L | 140 [5.5] | 165 [6.5] | 190 [7.5] | 220 [8.7] | 250 [9.8] | 280 [11.0] | 320 [12.6] | 340 [13.4] | 370 [14.6] | 400 [15.7] |
| ESL | 120 [4.7] | 145 [5.7] | 170 [6.7] | 200 [7.9] | 230 [9.1] | 260 [10.2] | 300 [11.8] | 320 [12.6] | 350 [13.8] | 380 [15.0] |
| Number of segments | Visible length SL in mm[in] | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 120 [4.7] | 145 [5.7] | 170 [6.7] | 200 [7.9] | 230 [9.1] | 260 [10.2] | 300 [11.8] | 320 [12.6] | 350 [13.8] | 380 [15.0] |
| 2 | 285 [11.2] | 335 [13.2] | 385 [15.2] | 445 [17.5] | 505 [19.9] | 565 [22.2] | 645 [25.4] | 685 [27.0] | 745 [29.3] | 805 [31.7] |
| 3 | 450 [17.7] | 525 [20.7] | 600 [23.6] | 690 [27.2] | 780 [30.7] | 870 [34.3] | 990 [39.0] | 1,050 [41.3] | 1,140 [44.9] | 1,230 [48.4] |
| 4 | 615 [24.2] | 715 [28.1] | 815 [32.1] | 935 [36.8] | 1,055 [41.5] | 1,175 [46.3] | 1,335 [52.6] | 1,415 [55.7] | 1,535 [60.4] | 1,655 [65.2] |
| 5 | 780 [30.7] | 905 [35.6] | 1,030 [40.6] | 1,180 [46.5] | 1,330 [52.4] | 1,480 [58.3] | 1,680 [66.1] | 1,780 [70.1] | 1,930 [76.0] | 2,080 [81.9] |
| 6 | 945 [37.2] | 1,095 [43.1] | 1,245 [49.0] | 1,425 [56.1] | 1,605 [63.2] | 1,785 [70.3] | 2,025 [79.7] | 2,145 [84.4] | 2,325 [91.5] | 2,505 [98.6] |
| 7 | 1,110 [43.7] | 1,285 [50.6] | 1,460 [57.5] | 1,670 [65.7] | 1,880 [74.0] | 2,090 [82.3] | 2,370 [93.3] | 2,510 [98.8] | 2,720 [107.1] | 2,930 [115.4] |
| Glass level gauges | Material | Indica - tion | Max. pres - sure in bar [psi] | Temperature range in °C [°F] | Glass size inmm | Number of segments |
|---|---|---|---|---|---|---|
| Reflex indicator | ||||||
| 'Carbon-Line' version, model LGG-RP | Steel A350LF2 | Sight glass | 100 [1,450.4] | -40 ...+300 [-40 …+572] | 4 ... 9 | 1 ... 5 |
| Compact version with side pieces, model LGG-E | Steel 1.0460/1.0570 | Sight glass | 40 [580.2] | -10 ...+300 [+14 …+572] | 2 ... 11 | 1 ... 3 |
| Standard version, model LGG-RE | Steel 1.0570 (A350LF2) Stainless steel 1.4404 (316L) | Sight glass | 160 [2320.6] | -10 ...+300 [+14 …+572] -196 ...+300 [-320.8 …+572] | 2 ... 11 | 1 ... 5 |
| High-pressure version, model LGG-RI | Steel 1.5415 (15Mo3) Stainless steel 1.4404 | Sight glass | 250 [3625.9] | -10 ...+100 [+14 …+212] -196 ...+100 [-320.8 …+212] | 2 ... 9 | 1 ... 5 |
| Weld-in version, model LGG-WR | (316L) Steel 1.0570 (A350LF2) Stainless steel 1.4404 (316L) | Sight glass | 40 [580.2] | -10 ...+300 [+14 …+572] -196 ...+300 [-320.8 …+572] | 2 ... 9 | 1 |
| Transparent indicator | ||||||
| 'Carbon-Line' version, model LGG-TP | Steel A350LF2 | Glass (mica) | 100 [1,450.4] | -40 ...+300 [-40 …+572] | 4 ... 9 | 1 ... 5 |
| Standard version, model LGG-TE | Steel 1.0570 (A350LF2) Stainless steel 1.4404 (316L) | Glass (mica) | 160 [2320.6] | -10 ...+300 [+14 …+572] -196 ...+300 [-320.8 …+572] | 2 ... 11 | 1 ... 5 |
| High-pressure version, model LGG-TI | Steel 1.5415 (15Mo3) Stainless steel 1.4404 (316L) | Glass (mica) | 250 [3625.9] | -10 ...+100 [+14 …+212] -196 ...+100 [-320.8 …+212] | 2 ... 9 | 1 ... 5 |
| Superheated steam version, model LGG-T3 | Steel 1.5415 (15Mo3) Stainless steel 1.4404 (316L) | Glass + mica | 160 [2320.6] | -10 ...+100 [+14 …+212] -196 ...+300 [-320.8 …+572] | 2 ... 9 | 1 ... 5 |
| Weld-in version, model LGG-WT | Steel 1.0570 (A350LF2) Stainless steel 1.4404 (316L) | Glass (mica) | 40 [580.2] | -10 ...+300 [+14 …+572] -196 ...+300 [-320.8 …+572] | 2 ... 9 | 1 |
| Glass tube, standard, Model LGG-GA | Brass Stainless steel 1.4571 (316Ti) | Glass tube 13mm [0.51 in] | 10 [145] | -10 ...+120 [+14 …+248] -10 ...+200 [+14 …+392] | 110 ...1,200mm [4.3 …47.2 in] | 1 |
| Glass tube, for large lengths with interposing glass-holder, model LGG- GB | Stainless steel 1.4404 (316L) | Glass tube 16mm [0.63 in] | 25 [362.6] | -10 ...+200 [+14 …+392] | 150 ...4,500mm [5.9 …177.2 in] | 1 ... 3 |
| Refraction indicator | ||||||
| Highest-pressure version, model LGG-M | Steel 1.5415 (15Mo3) | Mica | 160/250 [2320.6/ 3625.9] | -10 ...+374 [+14 …+705.2] | 2 ... 11 | 1 ... 9 |
| Valve head | Material | Max. pres - sure in bar | Operation | Ball-check valve | Mount | Thru- way | |
|---|---|---|---|---|---|---|---|
| Valve body | Head piece | ||||||
| Glass tube fitting with handwheel, model LGV-01 | Stainless steel | Stainless steel | PN 250 | Handwheel | Yes | Top, bottom | Offset |
| Glass tube fitting with quick closing lever, model LGV-03 | Stainless steel | Stainless steel | PN 100 | Quick closing lever | Yes | Top, bottom | Offset |
| Compact glass tube fitting without valve, model LGV-04 | Stainless steel | Stainless steel | PN 10 | Without | No | Top, bottom | Angled |
| Glass tube fitting com - pact with handwheel, model LGV-05 | ■ Brass ■ Stainless steel | Without | PN 10 | Handwheel | No | Top, bottom | Angled |
| Double valve, model LGV-18 | Steel 15Mo3 | Stainless steel | PN 160 | Double handwheel/dou - ble lever | Yes | Lateral | Angled |
| Double valve, high pressure, model LGV- 19 | Steel 15Mo3 | Stainless steel | PN 250 | Double handwheel/dou - ble lever | Yes | Lateral | Angled |
| Forged valve with handwheel, model LGV-33 | Steel A350LF2, nitrocarburised | Stainless steel | PN 250 | Handwheel | Yes | Top, bottom | Offset |
| Straight valve with handwheel, model LGV-51, LGV-71 | ■ Steel ■ Stainless steel | Stainless steel | PN 250 | Handwheel | Yes | Lateral, back | Straight |
| Angled valve with handwheel, model LGV-52, LGV-72 | ■ Steel ■ Stainless steel | Stainless steel | PN 250 | Handwheel | Yes | Lateral | Angled |
| Offset valve with handwheel, model LGV-53, LGV-73 | ■ Steel ■ Stainless steel | Stainless steel | PN 250 | Handwheel | Yes | Top, bottom | Offset |
| Straight valve with quick closing lever, model LGV-56 | ■ Steel ■ Stainless steel | Stainless steel | PN 100 | Quick closing lever | Yes | Lateral, back | Straight |
| Angled valve with quick closing lever, model LGV-57 | ■ Steel ■ Stainless steel | Stainless steel | PN 100 | Quick closing lever | Yes | Lateral | Angled |
| Offset valve with quick closing lever, model LGV-58 | ■ Steel ■ Stainless steel | Stainless steel | PN 100 | Quick closing lever | Yes | Top, bottom | Offset |
عرض الكل (20)
Specifications
| Material | Steel A350 LF2, nitrocarburised |
|---|---|
| Gauge body | 40 x 40 mm[1.6 x 1.6 in] |
| Cover | 80 x 30 mm[3.1 x 1.2 in] |
| Sight glass | Borosilicate, reflex per DIN 7081 |
| Max. operating pressure | 100 bar [1,450.4 psi] 1) |
| Temperature range | -40 ...+243 °C [-40 …+469.4 °F] (steam) -40 ...+300 °C [-40 …+572 °F] |
| Process connections | ■ Male thread 1/2 NPT, 3/4 NPT ■ Weld stub 1/2", 3/4" ■ Flange DIN EN 1092-1:DN 15 ... 50, PN 16 ... 100 ■ Flange ASME 16.5: 1/2 ... 2", Class 150 ... 600 |
| Centre-to-centre dis- tanceM | Freely selectable, min. visible length SL + 180 mm[7 in] |
| Vent | Plug 1/2 NPT (option:Valve) |
| Drain | Plug 1/2 NPT (option:Valve) |
| Glass size | 4 ... 9 |
| Number of segments | 1 ... 5 |
| Suitable valve heads | |
| Handwheel | Model LGV-33 (PN 250) |
Specifications
| Material | Steel 1.0460, 1.0570 |
|---|---|
| Gauge body | 40 x 30 mm[1.6 x 1.2 in] |
| Cover | Clamping through side components, hinged |
| Sight glass | Borosilicate, reflex per DIN 7081 |
| Max. operating pres - sure | 40 bar [580.2 psi] 1) |
| Temperature range | -10 ...+243 °C [+14 …469.4 °F] (steam) |
| Process connections | ■ Flange DIN EN 1092-1:DN 15 ... 50, PN 16 ... 40 ■ Flange ASME 16.5: 1/2 ... 2", Class 150 ... 300 |
| Centre-to-centre dis- tanceM | Freely selectable, min. visible length SL + 80 mm[3.1 in] |
| Vent | Plug G3/8 (option:Valve, ball valve) |
| Drain | Plug G3/8 (option:Valve, ball valve) |
| Glass size | 2 ... 11 |
| Number of segments | 1 ... 3 |
| Suitable valve heads | Integrated, with ball-check valve, mounting components from stainless steel |
| Specifications | Steel version | Stainless steel version |
|---|---|---|
| Material | Steel 1.0570, A350 LF2 | Stainless steel 1.4404 (316L) |
| Other materials on request | ||
| Gauge body | 40 x 40 mm[1.6 x 1.6 in], machined | |
| Cover | ■ 80 x 30 mm[3.1 x 1.2 in], (PN 40) ■ 80 x 40 mm[3.1 x 1.6 in], (PN 100, PN 160) | ■ 80 x 30 mm[3.1 x 1.2 in], (PN 40) ■ 80 x 40 mm[3.1 x 1.6 in], (PN 100, PN 160) |
| Sight glass | Borosilicate, reflex per DIN 7081 | |
| Max. operating pres - sure | 40 bar [580.2 psi], 100 bar [1,450.4 psi], 160 bar [2,320.6 psi] 1) | |
| Temperature range | -10 ...+243 °C [+14 …469.4 °F] (steam) -10 ...+300 °C [+14 …572 °F] | -196 ...+243 °C [-320.8 …+469.4 °F] (steam) -196 ...+300 °C [-320.8 …+572 °F] |
| Process connections | ■ Male thread 1/2 NPT, 3/4 NPT ■ Weld stub 1/2", 3/4" ■ Flange DIN EN 1092-1:DN 15 ... 50, PN 16 ... 160 ■ Flange ASME 16.5: 1/2 ... 2", Class 150 ... 900 | |
| Centre-to-centre distanceM | ■ Freely selectable, min. visible length SL + 180 mm[7 in] (with mounted valve heads model LGV-53, LGV-58, LGV-73) ■ Freely selectable, min. visible length SL + 80 mm[3.1 in] (with mounted valve heads model LGV-51, -52, -56, -57, -71, -72) ■ Special version, visible length = M(with mounted valve heads model LGV-51, -52, -56, -57, -71, -72) | |
| Vent | Plug G3/8 (option:Weld stub, flange, valve or ball valve) | |
| Drain | Plug G3/8 (option:Weld stub, flange, valve or ball valve) | |
| Glass size | 2 ... 11 | |
| Number of segments | 1 ... 5 (more on request) | |
| Suitable valve heads | ||
| Handwheel | Model LGV-51, -52, -53, -71, -72, -73 (PN 250) | Model LGV-51, -52, -53, -71, -72, -73 (PN 250) |
| Quick closing lever | Model LGV-56, LGV-57, LGV-58 (PN 100) | Model LGV-56, LGV-57, LGV-58 (PN 100) |
| Specifications | Steel version | Stainless steel version |
|---|---|---|
| Material | Steel 1.5415 (15Mo3) | Stainless steel 1.4404 (316L) |
| Other materials on request | ||
| Gauge body | 200 x 40 mm[5.5 x 1.6 in] | |
| Cover | Pressure frame | |
| Sight glass | Borosilicate, reflex per DIN 7081 | |
| Max. operating pres - sure | 250 bar [3625.9 psi] 1) | |
| Temperature range | -10 ...+100 °C [+14 …212 °F] | -196 ...+100 °C [-320.8 …+212 °F] |
| Process connections | ■ Male thread 1/2 NPT, 3/4 NPT ■ Weld stub 1/2", 3/4" ■ Flange DIN EN 1092-1:DN 15 ... 50, PN 16 ... 250 ■ Flange ASME 16.5: 1/2 ... 2", Class 150 ... 1,500 | |
| Centre-to-centre dis- tanceM | ■ Freely selectable, min. visible length SL + 180 mm[7 in] (with mounted valve head model LGV-53) ■ Freely selectable, visible length SL ≤ M(with mounted valve heads model LGV-51, LGV-52) | |
| Vent | Plug G3/8 (option:Weld stub, flange, valve or ball valve) | |
| Drain | Plug G3/8 (option:Weld stub, flange, valve or ball valve) | |
| Glass size | 2 ... 9 | |
| Number of segments | 1 ... 5 | |
| Suitable valve heads | ||
| Handwheel | Model LGV-51, LGV-52, LGV-53 |
| Specifications | Steel version | Stainless steel version |
|---|---|---|
| Material | Steel 1.0570 | Stainless steel 1.4404 (316L) |
| Other materials on request | ||
| Gauge body | 80 x 40 mm[3.1 x 1.6 in] | |
| Cover | 80 x 30 mm[3.1 x 1.2 in] | 80 x 30 mm[3.1 x 1.2 in] |
| Sight glass | Borosilicate, reflex per DIN 7081 | |
| Max. operating pres - sure | 40 bar [580.2 psi] 1) (indicator must be included in the pressure test for the vessel) | |
| Temperature range | -10 ...+243 °C [+14 …469.4 °F] (steam) -10 ...+300 °C [+14 …572 °F] | -196 ...+243 °C [-320.8 …+469.4 °F] (steam) -196 ...+300 °C [-320.8 …+572 °F] |
| Overall length GL | Visible length SL + 43 mm[1.7 in] | |
| Glass size | 2 ... 9 (larger on request) | |
| Number of segments | 1 |
Specifications
| Material | Steel A350 LF2, nitrocarburised |
|---|---|
| Gauge body | 40 x 40 mm[1.6 x 1.6 in] |
| Cover | 80 x 34 mm[3.1 x 1.2 in] |
| Sight glass | Borosilicate, transparent per DIN 7081 (option: Mica design) |
| Max. operating pres - sure | 100 bar [1,450.4 psi] 1) |
| Temperature range | -40 ...+243 °C [-40 …+469.4 °F] (steam, without mica design) -40 ...+300 °C [-40 …+572 °F] (steam, with mica design) -40 ...+300 °C [-40 …+572 °F] |
| Process connections | ■ Male thread 1/2 NPT, 3/4 NPT ■ Weld stub 1/2", 3/4" ■ Flange DIN EN 1092-1:DN 15 ... 50, PN 16 ... 100 ■ Flange ASME 16.5: 1/2 ... 2", Class 150 ... 600 |
| Centre-to-centre dis- tanceM | Freely selectable, min. visible length SL + 180 mm[7 in] |
| Vent | Plug 1/2 NPT (option:Valve) |
| Drain | Plug 1/2 NPT (option:Valve) |
| Glass size | 4 ... 9 |
| Number of segments | 1 ... 5 |
| Suitable valve heads | |
| Handwheel | Model LGV-33 (PN 250) |
| Specifications | Steel version | Stainless steel version |
|---|---|---|
| Material | Steel 1.5415 (15Mo3) | Stainless steel 1.4404 (316L) |
| Other materials on request | ||
| Gauge body | 200 x 40 mm[5.5 x 1.6 in] | |
| Cover | Pressure frame | |
| Sight glass | Borosilicate, transparent per DIN 7081 | |
| Max. operating pres - sure | 250 bar [3625.9 psi] 1) | |
| Temperature range | -10 ...+100 °C [+14 …212 °F] | -196 ...+100 °C [-320.8 …+212 °F] |
| Process connections | ■ Male thread 1/2 NPT, 3/4 NPT ■ Weld stub 1/2", 3/4" ■ Flange DIN EN 1092-1:DN 15 ... 50, PN 16 ... 250 ■ Flange ASME 16.5: 1/2 ... 2", Class 150 ... 1,500 | |
| Centre-to-centre dis- tanceM | ■ Freely selectable, min. visible length SL + 180 mm[7 in] (with mounted valve head model LGV-53) ■ Freely selectable, visible length SL ≤ M(with mounted valve heads model LGV-51, LGV-52) | |
| Vent | Plug G3/8 (option:Weld stub, flange, valve or ball valve) | |
| Drain | Plug G3/8 (option:Weld stub, flange, valve or ball valve) | |
| Glass size | 2 ... 9 | |
| Number of segments | 1 ... 5 | |
| Suitable valve heads | ||
| Handwheel | Model LGV-51, LGV-52, LGV-53 |
| Specifications | Steel version | Stainless steel version |
|---|---|---|
| Material | Steel 1.0570, A350 LF2 | Stainless steel 1.4404 (316L) |
| Other materials on request | ||
| Gauge body | 80 x 40 mm[3.1 x 1.6 in] | |
| Cover | 80 x 30 mm[3.1 x 1.2 in] | 80 x 30 mm[3.1 x 1.2 in] |
| Sight glass | Borosilicate, transparent per DIN 7081 (option: Mica design) | |
| Max. operating pressure | 40 bar [580.2 psi] 1) (indicator must be included in the pressure test for the vessel) | |
| Temperature range | -10 ...+243 °C [-14 …+469.4 °F] 2) -10 ...+300 °C [-14 …+572 °F] 3) -10 ...+300 °C [-14 …+572 °F] | -196 ...+243 °C [-320.8 …+469.4 °F] 2) -196 ...+300 °C [-320.8 …+572 °F] 3) -196 ...+300 °C [-320.8 …+572 °F] |
| Overall length GL | Visible length SL + 43 mm[1.7 in] | |
| Glass size | 2 ... 9 (larger on request) | |
| Number of segments | 1 |
| Specifications | Version without valve | Version with valve |
|---|---|---|
| Material | Stainless steel 1.4571 | Stainless steel 1.4571 or brass 2.0401 |
| Other materials on request | ||
| Sight glass | Glass tube, borosilicate, diameter 13 mm[0.5 in] | |
| Max. operating pressure | 10 bar [145 psi] 1) | |
| Temperature range | -10 ...+80 °C [+14 …176 °F] (with plexi protective cover) -10 ...+150 °C [+14 …302 °F] | -10 ...+200 °C [+14 …392 °F] |
| Process connections | ■ Male thread G1/2 ■ Flange DIN EN 1092-1 DN 15 ...DN 50, PN 16 ... 40 ■ Flange ASME 16.5: 1/2 ... 2 " , Class 150 ... 300 | |
| Centre-to-centre distance M | 110 ... 1,200 mm[4.3 …47.2 in] Visible length SL + 70 mm[2.8 in] | 150 ... 1,200 mm[5.9 …47.2 in] Visible length SL + 110 mm[4.3 in] |
| Vent | Plug G3/8 | Plug G3/8 |
| Drain | Plug G3/8 | 1.4571: Plug G3/8 , 2.0401: Plug G1/4 |
| Glass size | Centre-to-centre distance M- 20 mm[0.78 in] | Centre-to-centre distance M- 65 mm[2.6 in] |
| Number of segments | 1 | |
| Suitable valve heads | ||
| Glass tube fitting | Model LGV-04 | Model LGV-05 |
Specifications
| Material | Stainless steel 1.4571(316Ti) |
|---|---|
| Other materials on request | |
| Sight glass | Glass tube, borosilicate, diameter 16 mm[0.6 in] |
| Max. operating pressure | 25 bar [362.6 psi] 1) |
| Temperature range | -10 ...+200 °C [+14 …392 °F] |
| Process connections | ■ Male thread G1/2, 1/2 NPT ■ Flange DIN EN 1092-1 DN 15 ...DN 50, PN 16 ... 40 ■ Flange ASME 16.5: 1/2 ... 2 " , Class 150 ... 300 |
| Centre-to-centre distance M | 150 ... 4,500 mm[5.9 …177.2 in], visible length SL + 130 mm[5.1 in] |
| Vent | Plug |
| Drain | Plug |
| Glass size | 150 ... 4,500 mm[5.9 …177.2 in] (use interposing gauge body from 1,500 mm[59.1 in]) |
| Number of segments | 1 ... 3 |
| Suitable valve heads | |
| Handwheel | Model LGV-01 |
| Quick closing lever | Model LGV-03 |
Specifications
| Material | Steel 1.5415 (15Mo3) |
|---|---|
| Other materials on request | |
| Gauge body | 200 x 40 mm[5.5 x 1.6 in] |
| Cover | Pressure frame |
| Sight glass | Mica package (sight glass separation 120 mm[4.7 in]) |
| Max. operating pres - sure | 250 bar [3625.9 psi] 1) |
| Temperature range | -10 ...+374 °C [+14 …705.2 °F] |
| Process connections | ■ Flange DIN EN 1092-1:DN 15 ... 50, PN 16 ... 250 ■ Flange ASME 16.5: 1/2 ... 2", Class 150 ... 2,500 |
| Centre-to-centre dis- tanceM | Freely selectable, min. visible length SL + 80 mm[3.1 in] |
| Vent | Plug G1/2 (option:Weld stub, flange, valve or ball valve) |
| Drain | Plug G1/2 (option:Weld stub, flange, valve or ball valve) |
| Glass size | 2 ... 11 |
| Number of segments | 1 ... 9 |
| Suitable valve heads | |
| Handwheel and quick closing lever | ■ Model LGV-18 (PN 160) ■ Model LGV-19 (PN 250) |
| Specifications | |
|---|---|
| Materials | |
| Valve body | Stainless steel |
| Head piece | Stainless steel |
| Construction | Machined |
| Pressure range | PN 25 |
| Operation | Handwheel |
| Mount | Top/bottom |
| Connection to gauge body | Glass tube 16 |
| Rotatable | Yes |
| Thruway | Offset |
| Seat position | Inline |
| Valve stem thread | Internal |
| Drain | Yes |
| Ball-check valve | Yes |
| Specifications | |
|---|---|
| Materials | |
| Valve body | Stainless steel |
| Head piece | Stainless steel |
| Construction | Machined |
| Pressure range | PN 25 |
| Operation | Quick closing lever |
| Mount | Top/bottom |
| Connection to gauge body | Glass tube 16 |
| Rotatable | Yes |
| Thruway | Offset |
| Seat position | Inline |
| Valve stem thread | Internal |
| Drain | Yes |
| Ball-check valve | Yes |
| Specifications | |
|---|---|
| Valve body material | Stainless steel 1.4571 |
| Construction | Weld-in |
| Pressure range | PN 25 |
| Operation | Without |
| Mount | Top/bottom |
| Connection to gauge body | Glass tube 13.5 |
| Rotatable | Yes |
| Thruway | Angled |
| Seat position | Without |
| Valve stem thread | Without |
| Drain | Yes, G3/8 |
| Ball-check valve | No |
| Specifications | |
|---|---|
| Materials | |
| Valve body | ■ Brass 2.0401 ■ Stainless steel 1.4571 |
| Head piece | Stainless steel |
| Construction | Machined |
| Pressure range | PN 10 |
| Operation | Handwheel |
| Mount | Top/bottom |
| Connection to gauge body | Glass tube 13.5 |
| Rotatable | Yes |
| Thruway | Angled |
| Seat position | Inline |
| Valve stem thread | Internal |
| Drain | Yes, 1.4571: G3/8, 2.0401: G1/4 |
| Ball-check valve | No |
| Specifications | |
|---|---|
| Materials | |
| Valve body | Steel 15Mo3 |
| Head piece | Stainless steel |
| Construction | Forged |
| Pressure range | PN 160 |
| Operation | Double handwheel/double lever |
| Mount | Lateral |
| Connection to gauge body | Flanged |
| Rotatable | No |
| Thruway | Angled |
| Seat position | Inline |
| Valve stem thread | Internal |
| Drain | No |
| Ball-check valve | Yes |
القطاع
النفط والغاز
الصناعة الكيميائية، الصناعة البتروكيماوية، استخراج النفط والغاز الطبيعي (براً وبحراً)، بناء السفن، بناء الآلات، معدات توليد الطاقة، محطات الطاقة · النفط والغاز، أنظمة نقل الحرارة والتبريد، منشآت التبريد العميق (الكريوجينيك)
لم تجد الإجابة في الوثائق؟ سيرد المهندس خلال يوم عمل.
اسأل المهندس →
