WIKA · מדידת טמפרטורה · משפחה 73
מדחום המופעל באמצעות גז
מדחום המופעל באמצעות גז עם בית וגבעול מנירוסטה, מתאים לתעשיות תהליכיות עם טווחי סולם מ- -200 עד +700 °C ובעל הגנת IP65/66.
טווח
-200…700 °C
דיוק
Class 1 per EN 13190
הגנה
IP65
CERoHSEACEx
מחיר
לפי דרישה
תלוי בתצורה
תיאור
המדחום המופעל בגז מדגם 73 פותח ומיוצר בהתאם לתקן EN 13190. מדחום איכותי זה תוכנן במיוחד בהתאם לדרישות תעשיית התהליכים. המדחום, המיוצר כולו מפלדת אל-חלד, נמצא בשימוש מוצלח במיוחד בתעשיות הכימיה והפטרוכימיה, נפט וגז, והנדסת חשמל.
כדי לאפשר התאמה אופטימלית לתהליך, זמינים אורכי החדרה בודדים וחיבורי תהליך. למדחומים דרגת אטימות גבוהה של IP65 וניתן להשתמש בהם ביישומים חיצוניים גם בטמפרטורות שליליות. ניתן לבצע פעולה עם דיכוי נוזלי בתנאי רטט גבוהים. הודות למגוון הרחב של אפשרויות תכנון, ניתן להתאים באופן מושלם את מדחומי הגז המופעלים מדגם 73 לכל חיבור תהליך או מיקום.
לאישורים נוספים, ראה עמוד 10
איור משמאל: בסיס תחתון (רדיאלי), דגם R73.100

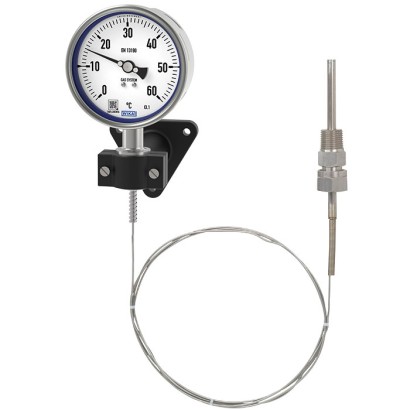

איור במרכז: עם קפילרה ועם סוגר להרכבת המכשיר, דגם F73.100
איור מימין: בסיס אחורי (צירי), דגם A73.100
בגרסת נורת מגע ניתן לבצע מדידות טמפרטורה ללא כל מגע עם המדיום, גם כאשר קוטר הצינור קטן במיוחד. נורת המגע מיועדת להרכבה חיצונית על צינורות ומכלים.
כאשר מדובר בתנאי אקלים קשים במקום השימוש, מדגם 73 הוא הבחירה הנכונה, שכן ניתן להשתמש בו בטמפרטורות בטווח שבין -40 °C [-40 °F] ... +60 °C [+140 °F] (בגרסת POLARgauge ® גם עד -50 °C [-58 °F] של -70 °C [-94 °F]).
קוד ה-QR על החוגה מאפשר לאחזר בקלות ובטווח הארוך מידע ייעודי למכשיר כגון מספר סידורי, מספר הזמנה, תעודות ונתוני מוצר נוספים מהאינטרנט.
תזכורת: לשמור בדיוק 10 פסקאות המופרדות בשורה ריקה אחת, לא למזג או לפצל פסקאות
תכונות מיוחדות
- טווחי סקאלה מ- -200 ... +700 °C [-328 ... +1,292 °F]
- תגובה מהירה
- גוף ותווך מפלדת אל-חלד 316
- מגוון סוגי חיבור והרכבה לדיור
- קוד QR על השעונית המקשר למידע ייחודי למכשיר
שאלות ותשובות
מהו טווח המדידה של המדחום?
טווחי הסולם נעים מ- -200 ... +700 °C, עם מגוון טווחי ביניים כגון -50 ... +50 °C, 0 ... +100 °C, 0 ... +300 °C ו-0 ... +600 °C.
מהי דיוק המדידה?
המדחום עומד בדרגת Class 1 per EN 13190.
אילו חיבורי תהליך זמינים?
זמינים G ½ B, ½ NPT, G ½ female, ½ NPT female, M20 x 1.5, M24 x 1.5 female, G ¾ B ו-M18 x 1.5.
מהי דרגת ההגנה מפני חדירה?
המדחום מדורג IP65, ולפי תיאור המוצר זמינה גם הגנת IP66.
האם המדחום מתאים לאזורים מסוכנים?
כן — קיים אישור ATEX ל-Zone 1 gas II 2G Ex h IIC T6 ...T1 Gb X ול-Zone 21 dust II 2D Ex h IIC T85 ...T450℃ Db X.
באילו טמפרטורות סביבה ניתן להשתמש במדחום?
טווח הסביבה הוא -70 ... +60 °C; בגרסת POLARgauge® ניתן להשתמש גם בטמפרטורות נמוכות עד -70 °C.
מה מבדיל את מדגם 73 ממדחומים אחרים?
הוא מיוצר כולו מנירוסטה 316, כולל קוד QR על החוגה לאחזור מידע ייעודי למכשיר, ומאפשר מדידה ללא מגע עם המדיום באמצעות נורת מגע להרכבה חיצונית על צינורות ומכלים.
האם ניתן להשתמש במדחום בתנאי רעידות?
כן, ניתן לבצע פעולה עם דיכוי נוזלי בתנאי רטט גבוהים.
זיהוי
| דגם | 73 |
| תת-קטגוריה | gas-actuated thermometer |
טווח מדידה
| טווח טמפרטורה | −200…+700 °C · −200…+50 °C · −200…+100 °C · −110…+50 °C · −80…+60 °C · −60…+40 °C · −50…+50 °C · −50…+100 °C · −50…+150 °C · −40…+60 °C · −30…+50 °C · −20…+40 °C · −20…+60 °C · −20…+80 °C · −20…+180 °C · −10…+100 °C · +0…+60 °C · +0…+80 °C · +0…+100 °C · +0…+120 °C · +0…+160 °C · +0…+200 °C · +0…+250 °C · +0…+300 °C · +0…+400 °C · +0…+500 °C · +0…+600 °C · +0…+700 °C · +50…+650 °C |
דיוק מדידה
| מחלקת דיוק | Class 1 per EN 13190 |
תנאי תהליך
| חיבור תהליך | G ½ B½ NPTG ½ female½ NPT femaleM20 x 1.5M24 x 1.5 femaleG ¾ BM18 x 1.5 |
| טמפ׳ תהליך | −200…+700 °C |
חומרים
| חומר גשש | stainless steel 316 |
| חומר תרמופור | stainless steel 316 |
סביבת הפעלה
| טמפ׳ סביבה | −70…+60 °C |
| דרגת הגנה IP | IP65 |
תקנים ואישורים
| תקנים | CERoHSEACEx |
| הגנת התפוצצות | ATEX directive Hazardous areas Zone 1 gas II 2G Ex h IIC T6 ...T1 Gb X Zone 21 dust II 2D Ex h IIC T85 ...T450℃ Db XEMC directive Hazardous areas Zone 1 gas I Ex h IIC T6 ...T1 Gb X Zone 21 dust Ex h T85℃ ...T450℃ Db X |
פרטים נוספים
| סוג חיישן | bimetal |
| אורך גשש | 200 mm |
| קוטר גשש | 6 mm |
| תרמופור | כן |
| שפות גיליון נתונים | EN, DE |
טבלאות מגיליון הנתונים
| Basic information | |
|---|---|
| Standard | EN 13190 |
| Nominal size | ■ 100 mm[4 " ] ■ 160 mm[6 " ] |
| Window | ■ Laminated safety glass ■ Polycarbonate |
| Connection location | |
| A73.1x0 | Back mount (axial) |
| R73.1x0 | Lower mount (radial) |
| S73.1x0 | Back mount, adjustable stem and dial |
| F73.1x0 | Version with capillary |
| Connection designs | |
| S | Standard (threaded connection) 1) |
| 1 | Plain stem (without thread) |
| 2 | Rotatable connection |
| 3 | Union nut |
| 4 | Compression fitting (sliding on stem) |
| 5 | Union nut and loose threaded connection |
| 6 | Compression fitting (can be adjusted on either capillary or spiral protective sleeve) |
| 7 | Compression fitting on the case 1) |
| 'Adjustable stem and dial' case version | Swivelling 90° and rotatable 360° |
| Damping | ■ With liquid damping (silicone oil) ■ With food-compatible liquid damping |
| Materials (non-wetted) | |
| Case, bayonet bezel | Stainless steel 304 |
| Pointer | Aluminium, black, micro adjustment |
| Articulated joint 'adjustable stem and dial' | Stainless steel 304 |
| Dial | Aluminium (white) |
Measuring element
| Type of measuring element | Gas-pressure inert gas filling, physiologically safe | |
|---|---|---|
| Working range | ||
| Constant loading (1 year) | Measuring range per EN 13190 | |
| Short time (max. 24 h) | Scale range per EN 13190 | |
| Movement materials | ■ Combination of brass and stainless steel ■ Completely from stainless steel | |
| Capillary | ||
| Diameter | ∅2mm[0.08 in] | |
| Spiral protective sleeve | ∅7mm[0.28 in] | |
| Length | Capillary without spiral protective sleeve | Max. 60 m[197 ft] |
| Capillary with spiral protective sleeve | Max. 40 m[131 ft] | |
| Capillary with spiral protective sleeve and PVC coating | Max. 20 m[66 ft] | |
| Minimum bending radius | Capillary without spiral protective sleeve | 6 mm[0.24 in] |
| Capillary with spiral protective sleeve | 20 mm[0.79 in] | |
| Capillary with spiral protective sleeve and PVC coating | 30 mm[1.18 in] | |
| Material | Stainless steel 316 |
Measuring element
| Mounting options for instruments with capillary | ■ Surface mounting flange, stainless steel ■ Instrument mounting bracket, aluminium die-casting ■ Panel mounting flange, stainless steel ■ Triangular profile ring with clamp, stainless steel |
|---|---|
| Contact bulb | |
| Dimensions | 120 x 22 x 12 mm[4.72 x 4.8 x 0.47 in] |
| Mounting types | ■ Mounting on pipes ■ Mounting on tanks |
| Material | Stainless steel 316 |
Accuracy specifications
| Accuracy class | Class 1 per EN 13190 at 23 °C ±10 °C ambient temperature |
|---|
הצגת הכול (20)
| Scale range in °C | Measuring range in °C 1) | Scale interval in °C | Error limit in accordance with EN 13190 ±°C |
|---|---|---|---|
| -200 ... +50 | -170 ...+20 | 5 | 5 |
| -200 ... +100 | -170 ...+70 | 5 | 5 |
| -110 ... +50 | -90 ...+30 | 2 | 2 |
| -80 ... +60 | -60 ...+40 | 2 | 2 |
| -60 ... +40 | -50 ...+30 | 1 | 1 |
| -50 ... +50 | -40 ...+40 | 1 | 1 |
| -50 ... +100 | -30 ...+80 | 2 | 2 |
| -50 ... +150 | -30 ...+130 | 2 | 2 |
| -40 ... +60 | -30 ...+50 | 1 | 1 |
| -30 ... +50 | -20 ...+40 | 1 | 1 |
| -20 ... +40 | -10 ...+30 | 1 | 1 |
| -20 ... +60 | -10 ...+50 | 1 | 1 |
| -20 ... +80 | -10 ...+70 | 1 | 1 |
| -20 ... +180 | 0 ...+160 | 2 | 2 |
| -10 ... +100 | 0 ...+90 | 1 | 1 |
| 0 ... 60 | 10 ... 50 | 1 | 1 |
| 0 ... 80 | 10 ... 70 | 1 | 1 |
| 0 ... 100 | 10 ... 90 | 1 | 1 |
| 0 ... 120 | 10 ... 110 | 2 | 2 |
| 0 ... 160 | 20 ... 140 | 2 | 2 |
| 0 ... 200 | 20 ... 180 | 2 | 2 |
| 0 ... 250 | 30 ... 220 | 5 | 2.5 |
| 0 ... 300 | 30 ... 270 | 5 | 5 |
| 0 ... 400 | 50 ... 350 | 5 | 5 |
| 0 ... 500 | 50 ... 450 | 5 | 5 |
| 0 ... 600 | 100 ... 500 | 10 | 10 |
| 0 ... 700 | 100 ... 600 | 10 | 10 |
| 50 ... 650 | 150 ... 550 | 10 | 10 |
| Design | 1 | 2 and | 3 | 4 and 5 | S | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stem diameter in mm[in] | 6 [0.24] | 8 [0.32] | ≥ 10 [0.40] | 6 [0.24] | 8 [0.32] | ≥ 10 [0.40] | 6 [0.24] | 8 [0.32] | ≥ 10 [0.40] | 6 [0.24] | 8 [0.32] | ≥ 10 [0.40] |
| Scale range in °C Minimum insertion length in mm[in] | ||||||||||||
| Models A73 (back mount) and R73 (lower mount) | ||||||||||||
| -200 ...+50 | 80 [3.15] | 80 [3.15] | 80 [3.15] | 70 [2.76] | 70 [2.76] | 70 [2.76] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 75 [2.95] | 75 [2.95] | 75 [2.95] |
| -200 ...+100 | 80 [3.15] | 80 [3.15] | 80 [3.15] | 70 [2.76] | 70 [2.76] | 70 [2.76] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 75 [2.95] | 75 [2.95] | 75 [2.95] |
| -110 …+50 | 75 [2.95] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] |
| -80 ...+60 | 95 [3.74] | 60 [2.36] | 60 [2.36] | 95 [3.74] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 60 [2.36] | 60 [2.36] | 110 [4.33] | 75 [2.95] | 75 [2.95] |
| -60 ...+40 | 105 [4.13] | 70 [2.76] | 60 [2.36] | 105 [4.13] | 70 [2.76] | 60 [2.36] | 100 [3.94] | 65 [2.56] | 60 [2.36] | 120 [4.72] | 85 [3.35] | 75 [2.95] |
| -50 …+50 | 100 [3.94] | 70 [2.76] | 60 [2.36] | 80 [3.15] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 60 [2.36] | 60 [2.36] |
| -50 …+100 | 85 [3.35] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 75 [2.95] | 60 [2.36] | 60 [2.36] | 75 [2.95] | 60 [2.36] | 60 [2.36] |
| -50 …+150 | 75 [2.95] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] |
| -40 ...+60 | 105 [4.13] | 70 [2.76] | 60 [2.36] | 105 [4.13] | 70 [2.76] | 60 [2.36] | 100 [3.94] | 65 [2.56] | 60 [2.36] | 120 [4.72] | 85 [3.35] | 75 [2.95] |
| -30 ...+50 | 125 [4.92] | 75 [2.95] | 60 [2.36] | 125 [4.92] | 75 [2.95] | 60 [2.36] | 120 [4.72] | 70 [2.76] | 60 [2.36] | 140 [5.51] | 90 [3.54] | 75 [2.95] |
| -20 ...+40 | 135 [5.31] | 90 [3.54] | 65 [2.56] | 115 [4.53] | 65 [2.56] | 60 [2.36] | 125 [4.92] | 75 [2.95] | 60 [2.36] | 125 [4.92] | 80 [3.15] | 60 [2.36] |
| -20 ...+60 | 125 [4.92] | 85 [3.35] | 60 [2.36] | 125 [4.92] | 85 [3.35] | 60 [2.36] | 120 [4.72] | 80 [3.15] | 60 [2.36] | 140 [5.51] | 100 [3.94] | 75 [2.95] |
| -20 ...+80 | 105 [4.13] | 70 [2.76] | 60 [2.36] | 105 [4.13] | 70 [2.76] | 60 [2.36] | 100 [3.94] | 65 [2.56] | 60 [2.36] | 120 [4.72] | 85 [3.35] | 75 [2.95] |
| -20 …+180 | 75 [2.95] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 65 [2.56] | 60 [2.36] | 60 [2.36] |
| -10 …+100 | 100 [3.74] | 70 [2.76] | 60 [2.36] | 80 [3.15] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 60 [2.36] | 60 [2.36] |
| 0 ... 60 | 145 [5.71] | 95 [3.74] | 70 [2.76] | 120 [4.72] | 70 [2.76] | 60 [2.36] | 130 [5.12] | 80 [3.15] | 60 [2.36] | 135 [5.31] | 85 [3.35] | 60 [2.36] |
| 0 ... 80 | 125 [4.92] | 85 [3.35] | 60 [2.36] | 125 [4.92] | 85 [3.35] | 60 [2.36] | 120 [4.72] | 80 [3.15] | 60 [2.36] | 140 [5.51] | 100 [3.94] | 75 [2.95] |
| 0 ... 100 | 115 [4.53] | 75 [2.95] | 60 [2.36] | 115 [4.53] | 75 [2.95] | 60 [2.36] | 110 [4.33] | 70 [2.76] | 60 [2.36] | 130 [5.12] | 90 [3.54] | 75 [2.95] |
| 0 ... 120 | 95 [3.74] | 70 [2.76] | 60 [2.36] | 95 [3.74] | 70 [2.76] | 60 [2.36] | 90 [3.54] | 65 [2.56] | 60 [2.36] | 110 [4.33] | 85 [3.35] | 75 [2.95] |
| 0 ... 160 | 95 [3.74] | 60 [2.36] | 60 [2.36] | 95 [3.74] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 60 [2.36] | 60 [2.36] | 110 [4.33] | 75 [2.95] | 75 [2.95] |
| 0 ... 200 | 95 [3.74] | 60 [2.36] | 60 [2.36] | 95 [3.74] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 60 [2.36] | 60 [2.36] | 110 [4.33] | 75 [2.95] | 75 [2.95] |
| 0 ... 250 | 75 [2.95] | 60 [2.36] | 60 [2.36] | 75 [2.95] | 60 [2.36] | 60 [2.36] | 70 [2.76] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 75 [2.95] | 75 [2.95] |
| 0 ... 300 | 105 [4.13] | 90 [3.54] | 90 [3.54] | 95 [3.74] | 80 [3.15] | 80 [3.15] | 70 [2.76] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 75 [2.95] | 75 [2.95] |
| 0 ... 400 | 105 [4.13] | 90 [3.54] | 90 [3.54] | 95 [3.74] | 80 [3.15] | 80 [3.15] | 70 [2.76] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 75 [2.95] | 75 [2.95] |
| 0 ... 500 | 165 [6.50] | 130 [5.12] | 130 [5.12] | 155 [6.10] | 120 [4.72] | 120 [4.72] | 125 [4.92] | 90 [3.54] | 90 [3.54] | 150 [5.91] | 115 [4.53] | 115 [4.53] |
| 0 ... 600 | 145 [5.71] | 130 [5.12] | 130 [5.12] | 135 [5.31] | 120 [4.72] | 120 [4.72] | 105 [4.13] | 90 [3.54] | 90 [3.54] | 130 [5.12] | 115 [4.53] | 115 [4.53] |
| 0 ... 700 | 155 [6.10] | 135 [5.31] | 130 [5.12] | 125 [4.92] | 105 [4.13] | 105 [4.13] | 115 [4.53] | 95 [3.74] | 95 [3.74] | 140 [5.51] | 120 [4.72] | 120 [4.72] |
| 50 ... 650 | 155 [6.10] | 130 [5.12] | 130 [5.12] | 125 [4.92] | 100 [3.94] | 100 [3.94] | 115 [4.53] | 90 [3.54] | 90 [3.54] | 140 [5.51] | 115 [4.53] | 115 [4.53] |
| Design | 1 | 2 and 3 | 4 and 5 | S | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stem diameter in mm[in] | 6 [0.24] | 8 [0.32] | ≥ 10 [0.40] | 6 [0.24] | 8 [0.32] | ≥ 10 [0.40] | 6 [0.24] | 8 [0.32] | ≥ 10 [0.40] | 6 [0.24] | 8 [0.32] | ≥ 10 [0.40] |
| Scale range in °C Minimum insertion length in mm[in] | ||||||||||||
| Model S73 (back mount, adjustable stem and dial) | ||||||||||||
| -200 ...+50 | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 65 [2.56] | 65 [2.56] | 65 [2.56] |
| -200 ...+100 | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 65 [2.56] | 65 [2.56] | 65 [2.56] |
| -110 …+50 | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 75 [2.95] | 60 [2.36] | 60 [2.36] |
| -80 ...+60 | 80 [3.15] | 60 [2.36] | 60 [2.36] | 80 [3.15] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 60 [2.36] | 60 [2.36] | 100 [3.94] | 65 [2.56] | 65 [2.56] |
| -60 ...+40 | 90 [3.54] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 60 [2.36] | 60 [2.36] | 100 [3.94] | 65 [2.56] | 60 [2.36] | 110 [4.33] | 75 [2.95] | 65 [2.56] |
| -50 …+50 | 85 [3.35] | 60 [2.36] | 60 [2.36] | 85 [3.35] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 60 [2.36] | 60 [2.36] | 100 [3.94] | 70 [2.76] | 60 [2.36] |
| -50 …+100 | 70 [2.76] | 60 [2.36] | 60 [2.36] | 70 [2.76] | 60 [2.36] | 60 [2.36] | 75 [2.95] | 60 [2.36] | 60 [2.36] | 85 [3.35] | 60 [2.36] | 60 [2.36] |
| -50 …+150 | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 70 [2.76] | 60 [2.36] | 60 [2.36] |
| -40 ...+60 | 90 [3.54] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 60 [2.36] | 60 [2.36] | 100 [3.94] | 65 [2.56] | 60 [2.36] | 110 [4.33] | 75 [2.95] | 65 [2.56] |
| -30 ...+50 | 110 [4.33] | 60 [2.36] | 60 [2.36] | 110 [4.33] | 60 [2.36] | 60 [2.36] | 120 [4.72] | 70 [2.76] | 60 [2.36] | 130 [5.12] | 80 [3.15] | 65 [2.56] |
| -20 ...+40 | 120 [4.72] | 75 [2.95] | 60 [2.36] | 120 [4.72] | 75 [2.95] | 60 [2.36] | 125 [4.92] | 75 [2.95] | 60 [2.36] | 135 [5.31] | 85 [3.35] | 60 [2.36] |
| -20 ...+60 | 110 [4.33] | 70 [2.76] | 60 [2.36] | 110 [4.33] | 70 [2.76] | 60 [2.36] | 120 [4.72] | 80 [3.15] | 60 [2.36] | 130 [5.12] | 90 [3.54] | 65 [2.56] |
| -20 ...+80 | 90 [3.54] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 60 [2.36] | 60 [2.36] | 100 [3.94] | 65 [2.56] | 60 [2.36] | 110 [4.33] | 75 [2.95] | 65 [2.56] |
| -20 …+180 | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 75 [2.95] | 60 [2.36] | 60 [2.36] |
| -10 …+100 | 85 [3.35] | 60 [2.36] | 60 [2.36] | 85 [3.35] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 60 [2.36] | 60 [2.36] | 100 [3.94] | 70 [2.76] | 60 [2.36] |
| 0 ... 60 | 130 [5.12] | 80 [3.15] | 60 [2.36] | 130 [5.12] | 80 [3.15] | 60 [2.36] | 130 [5.12] | 80 [3.15] | 60 [2.36] | 140 [5.51] | 90 [3.54] | 65 [2.56] |
| 0 ... 80 | 110 [4.33] | 70 [2.76] | 60 [2.36] | 110 [4.33] | 70 [2.76] | 60 [2.36] | 120 [4.72] | 80 [3.15] | 60 [2.36] | 130 [5.12] | 90 [3.54] | 65 [2.56] |
| 0 ... 100 | 100 [3.94] | 60 [2.36] | 60 [2.36] | 100 [3.94] | 60 [2.36] | 60 [2.36] | 110 [4.33] | 70 [2.76] | 60 [2.36] | 120 [4.72] | 80 [3.15] | 65 [2.56] |
| 0 ... 120 | 80 [3.15] | 60 [2.36] | 60 [2.36] | 80 | 60 [2.36] | 60 [2.36] | 90 [3.54] | 65 [2.56] | 60 [2.36] | 100 [3.94] | 75 [2.95] | 65 [2.56] |
| 0 ... 160 | 80 [3.15] | 60 [2.36] | 60 [2.36] | [3.15] 80 [3.15] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 60 [2.36] | 60 [2.36] | 100 [3.94] | 65 [2.56] | 65 [2.56] |
| 0 ... 200 | 80 [3.15] | 60 [2.36] | 60 [2.36] | 80 [3.15] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 60 [2.36] | 60 [2.36] | 100 [3.94] | 65 [2.56] | 65 [2.56] |
| 0 ... 250 | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 70 [2.76] | 60 [2.36] | 60 [2.36] | 80 [3.15] | 65 [2.56] | 65 [2.56] |
| 0 ... 300 | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] 60 | 60 [2.36] | 60 [2.36] | 70 [2.76] | 60 [2.36] | 60 [2.36] | 80 [3.15] 80 | 65 [2.56] 65 | 65 [2.56] |
| 0 ... 500 | 120 | 85 | 85 [3.35] | 120 [4.72] | 85 [3.35] | 85 [3.35] | 90 | 60 | 60 [2.36] | 135 [5.31] | 100 [3.94] | 100 [3.94] |
| 0 ... 400 | 60 [2.36] | 60 [2.36] | 60 [2.36] | [2.36] | 60 [2.36] | 60 [2.36] | 70 [2.76] | 60 [2.36] | 60 [2.36] | [3.15] | [2.56] | 65 [2.56] |
| [4.72] | [3.35] | [3.54] | [2.36] | |||||||||
| [4.53] | [3.54] | 85 [3.35] | [3.94] | 75 | 75 | [2.95] 75 | [2.36] | 60 | 125 | 100 | 100 | |
| 0 ... 700 | 115 | 90 | 100 | 80 [3.15] | 80 [3.15] | 75 | 60 | 60 [2.36] | 125 [4.92] | 115 [4.53] | 100 [3.94] | |
| 50 ... 650 | 110 [4.33] | 85 [3.35] | 85 [3.35] | 100 [3.94] | [2.95] | [2.95] | [2.95] | 60 [2.36] | [2.36] | [4.92] | [3.94] | [3.94] |
| Design | 1 | 2 and 3 | 4 and 5 | S | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stem diameter in mm[in] | 6 [0.24] | 8 [0.32] | ≥ 10 [0.40] | 6 [0.24] | 8 [0.32] | ≥ 10 [0.40] | 6 [0.24] | 8 [0.32] | ≥ 10 [0.40] | 6 [0.24] | 8 [0.32] | ≥ 10 [0.40] |
| Scale range in °C Minimum insertion length in mm[in] | ||||||||||||
| Model F73 (capillary ≤ 5 m[16 ft]) | ||||||||||||
| -200 ...+50 | 95 [3.74] | 70 [2.76] | 70 [2.76] | 90 [3.54] | 65 [2.56] | 65 [2.56] | 80 [3.15] | 60 [2.36] | 60 [2.36] | - | - | - |
| -200 ...+100 | 95 [3.74] | 70 [2.76] | 70 [2.76] | 90 [3.54] | 65 [2.56] | 65 [2.56] | 80 [3.15] | 60 [2.36] | 60 [2.36] | - | - | - |
| -110 …+50 | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 75 [2.95] | 60 [2.36] | 60 [2.36] | - | - | - |
| -80 …+60 | 115 [4.53] | 80 [3.15] | 70 [2.76] | 110 [4.33] | 75 [2.95] | 65 [2.56] | 100 [3.94] | 65 [2.56] | 60 [2.36] | - | - | - |
| -60 …+40 | 135 [5.31] | 95 [3.74] | 70 [2.76] | 130 [5.12] | 90 [3.54] | 65 [2.56] | 120 [4.72] | 80 [3.15] | 60 [2.36] | - | - | - |
| -50 …+50 | 70 [2.76] | 60 [2.36] | 60 [2.36] | 70 [2.76] | 60 [2.36] | 60 [2.36] | 80 [3.15] | 60 [2.36] | 60 [2.36] | - | - | - |
| -50 …+100 | 70 [2.76] | 60 [2.36] | 60 [2.36] | 70 [2.76] | 60 [2.36] | 60 [2.36] | 80 [3.15] | 60 [2.36] | 60 [2.36] | - | - | - |
| -50 …+150 | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 70 [2.76] | 60 [2.36] | 60 [2.36] | - | - | - |
| -40 …+60 | 135 [5.31] | 95 [3.74] | 70 [2.76] | 130 [5.12] | 90 [3.54] | 65 [2.56] | 120 [4.72] | 80 [3.15] | 60 [2.36] | - | - | - |
| -30 …+50 | 145 [5.71] | 105 [4.13] | 75 [2.95] | 140 [5.51] | 100 [3.94] | 70 [2.76] | 130 [5.12] | 90 [3.54] | 60 [2.36] | - | - | - |
| -20 ...+40 | 140 [5.51] | 80 [3.15] | 60 [2.36] | 140 [5.51] | 80 [3.15] | 60 [2.36] | 150 [5.91] | 90 [3.54] | 60 [2.36] | - | - | - |
| -20 …+60 | 145 [5.71] | 105 [4.13] | 75 [2.95] | 140 [5.51] | 100 [3.94] | 70 [2.76] | 130 [5.12] | 90 [3.54] | 60 [2.36] | - | - | - |
| -20 …+80 | 135 [5.31] | 95 [3.74] | 70 [2.76] | 130 [5.12] | 90 [3.54] | 65 [2.56] | 120 [4.72] | 80 [3.15] | 60 [2.36] | - | - | - |
| -20 …+180 | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 60 [2.36] | 75 [2.95] | 60 [2.36] | 60 [2.36] | - | - | - |
| -10 …+100 | 85 [3.35] | 60 [2.36] | 60 [2.36] | 85 [3.35] | 60 [2.36] | 60 [2.36] | 95 [3.74] | 60 [2.36] | 60 [2.36] | - | - | - |
| 0…60 | 125 [4.92] | 70 [2.76] | 60 [2.36] | 125 [4.92] | 75 [2.95] | 60 [2.36] | 135 [5.31] | 85 [3.35] | 60 [2.36] | - | - | - |
| 0…80 | 155 [6.10] | 105 [4.13] | 75 [2.95] | 150 [5.91] | 100 [3.94] | 70 [2.76] | 140 [5.51] | 90 [3.54] | 60 [2.36] | - | - | - |
| 0 …100 | 135 [5.31] | 95 [3.74] | 70 [2.76] | 130 [5.12] | 90 [3.54] | 65 [2.56] | 120 [4.72] | 80 [3.15] | 60 [2.36] | - | - | - |
| 0 …120 | 125 [4.92] | 85 [3.35] | 70 [2.76] | 120 | 80 | 65 [2.56] | 110 [4.33] | 70 [2.76] | 60 [2.36] | - | - | - |
| 0 …160 | 115 [4.53] | 80 [3.15] | 70 [2.76] | [4.72] 110 [4.33] | [3.15] 75 [2.95] | 65 [2.56] | 100 [3.94] | 65 [2.56] | 60 [2.36] | - | - | - |
| 0 …200 | 105 [4.13] | 80 [3.15] | 70 [2.76] | 100 [3.94] | 75 [2.95] | 65 [2.56] | 90 [3.54] | 65 [2.56] | 60 [2.36] | - | - | - |
| 0 …250 | 105 [4.13] | 70 [2.76] | 70 [2.76] | 100 [3.94] | 65 [2.56] | 65 [2.56] | 90 [3.54] | 60 [2.36] | 60 [2.36] | - | - | - |
| 0 ... 300 | 95 [3.74] | 70 [2.76] | 70 [2.76] | 90 [3.54] | 65 [2.56] | 65 [2.56] | 80 [3.15] | 60 [2.36] | 60 [2.36] | - | - | - |
| 0 ... 400 | 95 [3.74] 115 | 70 [2.76] 70 | 70 [2.76] | 90 [3.54] | 65 [2.56] | 65 [2.56] | 80 [3.15] | 60 [2.36] | 60 [2.36] | - | - - | - - |
| 0 ... 500 | [4.53] | [2.76] | 70 [2.76] | 110 [4.33] | 65 [2.56] | 65 [2.56] | 100 [3.94] | 60 [2.36] | 60 [2.36] | - | ||
| 0 ... 600 | 95 [3.74] 70 [2.76] | 70 [2.76] 60 | 70 [2.76] | 90 [3.54] | 65 [2.56] 60 | 65 [2.56] | 80 [3.15] | 60 [2.36] | 60 [2.36] 60 | - - | - - | - - |
| 0 ... 700 50 ... 650 | 70 | [2.36] 60 | 60 [2.36] | 75 [2.95] | 60 [2.36] | 60 [2.36] | 85 [3.35] | 60 [2.36] | 60 [2.36] | - | - | |
| [2.76] | [2.36] | 60 [2.36] | 70 [2.76] | [2.36] | 60 [2.36] | 80 [3.15] | 60 [2.36] | [2.36] | - |
| Design | 1 | 2 and 3 | 4 and 5 | S | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stem diameter in mm[in] | 6 [0.24] | 8 [0.32] | ≥ 10 [0.40] | 6 [0.24] | 8 [0.32] | ≥ 10 [0.40] | 6 [0.24] | 8 [0.32] | ≥ 10 [0.40] | 6 [0.24] | 8 [0.32] | ≥ 10 [0.40] |
| Scale range in °C Minimum insertion length in mm[in] | ||||||||||||
| Model F73 (capillary > 5 ... 10 m[16 ... 33 ft]) | ||||||||||||
| -200 ...+50 | 115 [4.53] | 80 [3.15] | 70 [2.76] | 110 [4.33] | 75 [2.95] | 65 [2.56] | 100 [3.94] | 65 [2.56] | 60 [2.36] | - | - | - |
| -200 ...+100 | 115 [4.53] | 80 [3.15] | 70 [2.76] | 110 [4.33] | 75 [2.95] | 65 [2.56] | 100 [3.94] | 65 [2.56] | 60 [2.36] | - | - | - |
| -110 …+50 | 80 [3.15] | 60 [2.36] | 60 [2.36] | 80 [3.15] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 60 [2.36] | 60 [2.36] | - | - | - |
| -80 …+60 | 135 [5.31] | 95 [3.74] | 70 [2.76] | 130 [5.12] | 90 [3.54] | 65 [2.56] | 120 [4.72] | 80 [3.15] | 60 [2.36] | - | - | - |
| -60 …+40 | 155 [6.10] | 105 [4.13] | 75 [2.95] | 150 [5.91] | 100 [3.94] | 70 [2.76] | 140 [5.51] | 90 [3.54] | 60 [2.36] | - | - | - |
| -50 …+50 | 105 [4.13] | 60 [2.36] | 60 [2.36] | 105 [4.13] | 60 [2.36] | 60 [2.36] | 115 [4.53] | 75 [2.95] | 60 [2.36] | - | - | - |
| -50 …+100 | 90 [3.54] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 60 [2.36] | 60 [2.36] | 100 [3.94] | 60 [2.36] | 60 [2.36] | - | - | - |
| -50 …+150 | 75 [2.95] | 60 [2.36] | 60 [2.36] | 80 [3.15] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 60 [2.36] | 60 [2.36] | - | - | - |
| -40 …+60 | 155 [6.10] | 105 [4.13] | 75 [2.95] | 150 [5.91] | 100 [3.94] | 70 [2.76] | 140 [5.51] | 90 [3.54] | 60 [2.36] | - | - | - |
| -30 …+50 | 165 [6.50] | 115 [4.53] | 85 [3.35] | 160 [6.30] | 110 [4.33] | 80 [3.15] | 150 [5.91] | 100 [3.94] | 70 [2.76] | - | - | - |
| -20 ...+40 | 140 [5.51] | 80 [3.15] | 60 [2.36] | 140 [5.51] | 80 [3.15] | 60 [2.36] | 150 [5.91] | 90 [3.54] | 60 [2.36] | |||
| -20 …+60 | 175 [6.89] | 115 [4.53] | 85 [3.35] | 170 [6.69] | 110 [4.33] | 80 [3.15] | 160 [6.30] | 100 [3.94] | 70 [2.76] | - | - | - |
| -20 …+80 | 155 [6.10] | 105 [4.13] | 75 [2.95] | 150 [5.91] | 100 [3.94] | 70 [2.76] | 140 [5.51] | 90 [3.54] | 60 [2.36] | - | - | - |
| -20 …+180 | 80 [3.15] | 60 [2.36] | 60 [2.36] | 85 [3.35] | 60 [2.36] | 60 [2.36] | 90 [3.54] | 60 [2.36] | 60 [2.36] | - | - | - |
| -10 …+100 | 105 [4.13] | 60 [2.36] | 60 [2.36] | 105 [4.13] | 60 [2.36] | 60 [2.36] | 115 [4.53] | 75 [2.95] | 60 [2.36] | - | - | - |
| 0…60 | 140 [5.51] | 80 [3.15] | 60 [2.36] | 140 [5.51] | 85 [3.35] | 60 [2.36] | 155 [6.10] | 95 [3.74] | 60 [2.36] | - | - | - |
| 0…80 | 175 [6.89] | 115 [4.53] | 85 [3.35] | 170 [6.69] | 110 [4.33] | 80 [3.15] | 160 [6.30] | 100 [3.94] | 70 [2.76] | - | - | - |
| 0 …100 | 155 [6.10] | 105 [4.13] | 85 [3.35] | 150 [5.91] | 100 [3.94] | 80 [3.15] | 140 [5.51] | 90 [3.54] | 70 [2.76] | - | - | - |
| 0 …120 | 145 [5.71] | 105 [4.13] | 75 [2.95] | 140 [5.51] | 100 [3.94] | 70 [2.76] | 130 [5.12] | 90 [3.54] | 60 [2.36] | - | - | - |
| 0 …160 | 135 [5.31] | 95 [3.74] | 70 [2.76] | 130 [5.12] | 90 [3.54] | 65 [2.56] | 120 [4.72] | 80 [3.15] | 60 [2.36] | - | - | - |
| 0 …200 | 125 [4.92] | 85 [3.35] | 70 [2.76] | 120 [4.72] | 80 [3.15] | 65 [2.56] | 110 [4.33] | 70 [2.76] | 60 [2.36] | - | - | - |
| 0 …250 | 125 [4.92] | 85 [3.35] | 70 [2.76] | 120 [4.72] | 80 [3.15] | 65 [2.56] | 110 [4.33] | 70 [2.76] | 60 [2.36] | - | - | - |
| 0 ... 300 | 115 [4.53] | 80 [3.15] | 70 [2.76] | 110 [4.33] | 75 [2.95] | 65 [2.56] | 100 [3.94] | 65 [2.56] | 60 [2.36] | - | - | - |
| 0 ... 400 | 115 [4.53] | 80 [3.15] | 70 [2.76] | 110 [4.33] | 75 [2.95] | 65 [2.56] | 100 [3.94] | 65 [2.56] | 60 [2.36] | - | - | - |
| 0 ... 500 | 135 [5.31] | 95 [3.74] | 70 [2.76] | 130 [5.12] | 90 [3.54] | 65 [2.56] | 120 [4.72] | 80 [3.15] | 60 [2.36] | - | - | - |
| 0 ... 600 | 115 [4.53] | 80 [3.15] | 70 [2.76] | 110 [4.33] | 75 [2.95] | 65 [2.56] | 100 [3.94] | 65 [2.56] | 60 [2.36] | - | - | - |
| 0 ... 700 | 95 [3.74] | 60 [2.36] | 60 [2.36] | 95 | 60 | 60 | 105 | 60 [2.36] | 60 [2.36] | - | - | - |
| 50 ... 650 | 100 [3.94] | 60 [2.36] | 60 [2.36] | [3.74] 100 [3.94] | [2.36] 60 [2.36] | [2.36] 60 [2.36] | [4.13] 110 [4.33] | 65 [2.56] | 60 [2.36] | - | - | - |
| Design | 1 2 and | 3 | 4 and 5 | S | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stem diameter in mm[in] | 6 [0.24] | 8 [0.32] | ≥ 10 [0.40] | 6 [0.24] | 8 [0.32] | ≥ 10 [0.40] | 6 [0.24] | 8 [0.32] | ≥ 10 [0.40] | 6 [0.24] | 8 [0.32] | ≥ 10 [0.40] |
| Scale range in °C Minimum insertion length in mm[in] | ||||||||||||
| Model F73 (capillary > 10 ... 15 m[33 ... 49 ft]) | ||||||||||||
| -200 ...+50 | 135 [5.31] | 95 [3.74] | 70 [2.76] | 130 [5.12] | 90 [3.54] | 65 [2.56] | 120 [4.72] | 80 [3.15] | 60 [2.36] | - | - | - |
| -200 ...+100 | 135 [5.31] | 95 [3.74] | 70 [2.76] | 130 [5.12] | 90 [3.54] | 65 [2.56] | 120 [4.72] | 80 [3.15] | 60 [2.36] | - | - | - |
| -110 …+50 | 105 [4.13] | 60 [2.36] | 60 [2.36] | 105 [4.13] | 60 [2.36] | 60 [2.36] | 115 [4.53] | 75 [2.95] | 60 [2.36] | - | - | - |
| -80 …+60 | 155 [6.10] | 105 [4.13] | 85 [3.35] | 150 [5.91] | 100 [3.94] | 80 [3.15] | 140 [5.51] | 90 [3.54] | 70 [2.76] | - | - | - |
| -60 …+40 | 175 [6.89] | 115 [4.53] | 85 [3.35] | 170 [6.69] | 110 [4.33] | 80 [3.15] | 160 [6.30] | 100 [3.94] | 70 [2.76] | - | - | - |
| -50 …+50 | 130 [5.12] | 75 [2.95] | 60 [2.36] | 130 [5.12] | 75 [2.95] | 60 [2.36] | 140 [5.51] | 85 [3.35] | 60 [2.36] | - | - | - |
| -50 …+100 | 115 [4.53] | 65 [2.56] | 60 [2.36] | 115 [4.53] | 70 [2.76] | 60 [2.36] | 125 [4.92] | 80 [3.15] | 60 [2.36] | - | - | - |
| -50 …+150 | 100 [3.94] | 60 [2.36] | 60 [2.36] | 105 [4.13] | 60 [2.36] | 60 [2.36] | 115 [4.53] | 70 [2.76] | 60 [2.36] | - | - | - |
| -30 …+50 | 185 [7.28] | 125 [4.92] | 95 [3.74] | 180 [7.09] | 120 [4.72] | 90 [3.54] | 170 [6.69] | 110 [4.33] | 80 [3.15] | - | - | - |
| -20 ...+40 | 160 [6.30] | 95 [3.74] | 60 [2.36] | 165 [6.50] | 95 [3.74] | 60 [2.36] | 175 [6.89] | 105 [4.13] | 70 [2.76] | - | - | - |
| -20 …+60 | 185 [7.28] | 125 [4.92] | 95 [3.74] | 180 [7.09] | 120 [4.72] | 90 [3.54] | 170 [6.69] | 110 [4.33] | 80 [3.15] | - | - | - |
| -20 …+80 | 175 [6.89] | 115 [4.53] | 85 [3.35] | 170 [6.69] | 110 [4.33] | 80 [3.15] | 160 [6.30] | 100 [3.94] | 70 [2.76] | - | - | - |
| -20 …+180 | 105 [4.13] | 60 [2.36] | 60 [2.36] | 105 [4.13] | 60 [2.36] | 60 [2.36] | 115 [4.53] | 75 [2.95] | 60 [2.36] | - | - | - |
| -10 …+100 | 125 [4.92] | 75 [2.95] | 60 [2.36] | 130 [5.12] | 75 [2.95] | 60 [2.36] | 140 [5.51] | 85 [3.35] | 60 [2.36] | - | - | - |
| 0…60 | 165 [6.50] | 95 [3.74] | 60 [2.36] | 165 [6.50] | 95 [3.74] | 60 [2.36] | 175 [6.89] | 105 [4.13] | 70 [2.76] | - | - | - |
| 0…80 | 195 [7.68] | 125 [4.92] | 95 [3.74] | 190 [7.48] | 120 [4.72] | 90 [3.54] | 180 [7.09] | 110 [4.33] | 80 [3.15] | - | - | - |
| 0 …100 | 175 [6.89] | 115 [4.53] | 85 [3.35] | 170 [6.69] | 110 [4.33] | 80 [3.15] | 160 [6.30] | 100 [3.94] | 70 [2.76] | - | - | - |
| 0 …120 | 165 [6.50] | 115 [4.53] | 85 [3.35] | 160 [6.30] | 110 [4.33] | 80 [3.15] | 150 [5.91] | 100 [3.94] | 70 [2.76] | - | - | - |
| 0 …160 | 155 [6.10] | 105 [4.13] | 85 [3.35] | 150 [5.91] | 100 [3.94] | 80 [3.15] | 140 [5.51] | 90 [3.54] | 70 [2.76] | - | - | - |
| 0 …200 | 145 [5.71] | 105 [4.13] | 75 [2.95] | 140 [5.51] | 100 [3.94] | 70 [2.76] | 130 [5.12] | 90 [3.54] | 60 [2.36] | - | - | - |
| 0 …250 | 145 [5.71] | 95 [3.74] | 75 [2.95] | 140 [5.51] | 90 [3.54] | 70 [2.76] | 130 [5.12] | 80 [3.15] | 60 [2.36] | - | - | - |
| 0 ... 300 | 135 [5.31] | 95 [3.74] | 70 [2.76] | 130 [5.12] | 90 [3.54] | 65 [2.56] | 120 [4.72] | 80 [3.15] | 60 [2.36] | - | - | - |
| 0 ... 400 | 135 [5.31] | 95 [3.74] | 70 [2.76] | 130 [5.12] | 90 [3.54] | 65 [2.56] | 120 [4.72] | 80 [3.15] | 60 [2.36] | - | - | - |
| 0 ... 500 | 135 [5.31] | 95 [3.74] | 70 [2.76] | 130 [5.12] | 90 [3.54] | 65 [2.56] | 120 [4.72] | 80 [3.15] | 60 [2.36] | - | - | - |
| 0 ... 600 | 135 [5.31] | 95 [3.74] | 70 [2.76] | 130 [5.12] | 90 [3.54] | 65 [2.56] | 120 [4.72] | 80 [3.15] | 60 [2.36] | - | - | - |
| 0 ... 700 | 130 [5.12] | 60 [2.36] | 60 [2.36] | 130 [5.12] | 70 [2.76] | 60 [2.36] | 140 [5.51] | 75 [2.95] | 60 [2.36] | - | - | - |
| 50 ... 650 | 135 [5.31] | 65 [2.56] | 60 [2.36] | 135 [5.31] | 70 [2.76] | 60 [2.36] | 145 [5.71] | 80 [3.15] | 60 [2.36] | - | - | - |
| Logo | Description | Country |
|---|---|---|
| EU declaration of conformity ATEX directive | European Union | |
| EAC EMCdirective | Eurasian Economic Community | |
| - | MChS Permission for commissioning | Kazakhstan |
| - | PAC Ukraine Metrology, measurement technology | Ukraine |
Certificates
| Certificates | ■ 2.2 test report ■ 3.1 inspection certificate |
|---|---|
| Calibration | DAkkS calibration certificate |
| NS | ∅D 1 in mm[in] |
|---|---|
| 100 | 101 [3.98] |
| 160 | 161 [6.34] |
| Design | F BM 1) | Connection |
|---|---|---|
| S | 30 [1.18] | G½-male |
| 1 | 13 [0.51] | ∅ 18 |
| 2 | 35 [1.38] | G½-male |
| 3 | 15 [0.59] | G½-female |
| 4 | 53 [2.09] | G½-male |
| 5 | 50 [1.97] | G½-male |
| 7 | 53 [2.09] | G½-male |
| NS | ∅D 1 in mm[in] |
|---|---|
| 100 | 101 [3.98] |
| 160 | 161 [6.34] |
| Design | F LM 1) | Connection |
|---|---|---|
| S | 30 [1.18] | G½-male |
| 1 | 13 [0.51] | ∅ 18 |
| 2 | 35 [1.38] | G½-male |
| 3 | 15 [0.59] | G½-female |
| 4 | 53 [2.09] | G½-male |
| 5 | 50 [1.97] | G½-male |
| 7 | 53 [2.09] | G½-male |
| NS | ∅D 1 in mm[in] | |
|---|---|---|
| 100 | 101 [3.98] | |
| 160 | 161 [6.34] | |
| Design | F DS | Connection |
| S | 17.5 [0.69] | G½-male |
| 1 | 28 [1.10] | ∅ 18 |
| 2 | 38 [1.50] | G½-male |
| 3 | 30 [1.18] | G½-female |
| 4 | 68 [2.68] | G½-male |
| 68 [2.68] | G½-male | |
| 5 | 55 [2.17] | G½-male |
| 7 | 68 [2.68] | G½-male |
| Process connection | Dimensions in mm[in] | ||
|---|---|---|---|
| G | i | SW | d 4 |
| G½B | 14 [0.55] | 27 [1.06] | 26 [1.02] |
| G¾B | 16 [0.63] | 32 [1.26] | 32 [1.26] |
| ½NPT | 19 [0.75] | 22 [0.87] | - |
| ¾NPT | 20 [0.79] | 30 [1.18] | - |
| Process connection | Dimensions in mm[in] | |
|---|---|---|
| G | i | SW |
| G½B | 20 [0.79] | 27 [1.06] |
| M18 x 1.5 | 15 [0.59] | 22 [0.89] |
| Process connec- tion | Dimensions in mm[in] | |
|---|---|---|
| G | i | SW |
| G½B | 14 [0.55] | 27 [1.06] |
| G¾B | 16 [0.63] | 32 [1.26] |
| M24 x 1.5 | 13.5 [0.53] | 32 [1.26] |
ענף
נפט וגז
אינסטרומנטציית תהליך כללית בתעשיות הכימיה והפטרוכימיה, נפט וגז, אנרגיה ומים/שפכים
ענף
מכונאות
מתאים באופן אוניברסלי לבניית מכונות, מתקנים, מיכלים וציוד ולתעשיית המזון
לא מצאתם תשובה בתיעוד? מהנדס יענה במהלך יום עסקים.
שאלו מהנדס →כל הווריאציות · טבלת מק״טים
1 מק״טים סטנדרטיים של משפחת 73
אם ידוע הקוד — בחרו ישירות. אם לא — השתמשו בתצורה במצב «01».
מלאי:
SKUתצורהמחירמלאיפעולה
מוצגים 1 מתוך 1. מחיר לפי דרישה — מהנדס יחשב עבור התצורה שלכם.
