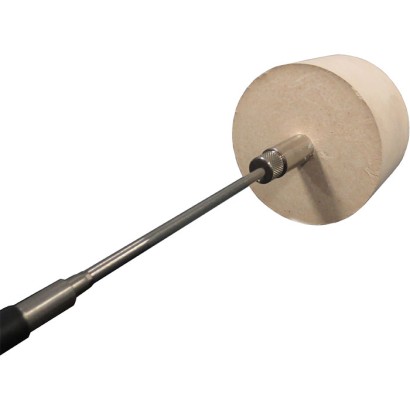

Magnetic surface thermocouple

Name: Magnetic surface thermocouple
Brand: WIKA

Magnetic surface thermocouple for high-temperature applications up to 540 °C, with spring-loaded magnetic bushing for non-welded vessel wall temperature measurement.

Range

-40…1260 °C

Output

4-20mA · HART

Protection

IP54

CEEACRoHSREACHATEXIECEx

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The magnetic thermocouple is designed as a non-welded option for vessel wall temperature measurement. The circular magnet design incorporates an insulation barrier from radiant heat along with a sensor tip designed to maximise surface contact to ensure accurate temperature measurement.

The neck extension can be manufactured to length based on insulation thickness. The spring-loaded neck extension ensures sensor contact with the vessel wall and allows for maintenance without the use of tools above the insulation/ cladding of the vessel.

Special features

Simplified maintenance and sensor removal without the use of specialised tools
Maximum surface contact tip design
High-temperature applications (up to 540 °C [1,000 °F])

Identification

Model	TC52-M
Product family	TC52
Subcategory	Surface thermocouple

Measuring range

Temperature ranges

−40…+1200 °C · −40…+750 °C · −40…+350 °C · −40…+1000 °C · +0…+1260 °C · −40…+800 °C · +0…+870 °C · −40…+900 °C

Process conditions

Process connection	Spring-loaded magnetic bushing
Process temperature	−40…+1200 °C

Electrical characteristics

Output signal	4-20mA · HART
Electrical connection	Flying leads, spade lugs, end splices, connectors (Lemosa, Binder, Harting, Thermo-connector)

Materials

Probe material

Alloy 600, 316SS, Stainless steel

Operating environment

Ambient temperature	−40…+85 °C
IP rating	IP54

Certifications and approvals

Certifications	CEEACRoHSREACH
Explosion protection	ATEXIECEx

Additional details

Sensor type	Type K/J/E/N/T
Sensor class	Class 1, Class 2
Thermowell	No
Datasheet languages	EN, DE

Tables from datasheet

Type	Validity limits of the class accuracy
	IEC 60584-1	ASTM E230
	Class 2	Class 1	Standard / special
K	-40 ... +1,200 °C [-40 ... +2,192 °F]	-40 ... +1,000 °C [-40 ... +1,832 °F]	0 ... 1,260 °C [0 ... 2,300 °F]
J	-40 ...+750 °C [-40 ... +1,382 °F]	-40 ...+750 °C [-40 ... +1,382 °F]	0 ... 760 °C [0 ... 1,400 °F]
E	-40 ...+900 °C [-40 ... +1,652 °F]	-40 ...+800 °C [-40 ... +1,472 °F]	0 ... 870 °C [0 ... 1,598 °F]
N	-40 ... +1,200 °C [-40 ... +2,192 °F]	-40 ... +1,000 °C [-40 ... +1,832 °F]	0 ... 1,260 °C [0 ... 2,300 °F]
T	-40 ...+350 °C [-40 ...+662 °F]	-40 ...+350 °C [-40 ...+662 °F]	0 ... 370 °C [0 ... 698 °F]

Specifications

Applications	■ Refinery and chemical industries ■ Oil and gas industries ■ Offshore exploration and drilling ■ Pulp and paper ■ Gas plants
Special features	■ High-temperature magnetic material for removable installation of a thermocouple or RTD sensor ■ Various neck lengths available on request
Materials
Spring-loaded neck assembly	316SS
Insulation material	High temperatures > 600 °C [1,100 °F] MgO base fibre-reinforced Thermal conductivity = 4 BTU-in/°FHr.Ft 2
Spring material	High-temperature alloy 600
Magnet material	Alnico 5
Magnet properties
Holding force (under ambient conditions)	150 lbs [650 N] approximately
Density	0.265 lb/in 3
Curie temperature	840 °C [1,544 °F]
Maximum practical operating temperature	540 °C [1,000 °F]
Rockwell hardness	Rc50

Cable jacket	Application range 1)
PTFE/PFA	-60 ...+250 °C [-76 ...+482 °F]
PTFE/PFA, shielded (see standard versions below)	-60 ...+250 °C [-76 ...+482 °F]
Single wires, PTFE/PFA	-60 ...+250 °C [-76 ...+482 °F]
Stainless steel braid over PTFE/PFA	-60 ...+250 °C [-76 ...+482 °F]
Silicone	-50 ...+180 °C [-58 ...+356 °F]
Silicone, shielded (see standard versions below)	-50 ...+180 °C [-58 ...+356 °F]
PVC	-20 ...+100 °C [-4 ...+212 °F]
Fibreglass	-50 ...+400 °C [-58 ...+752 °F]
Stainless steel braid over fibreglass	-50 ...+400 °C [-58 ...+752 °F]
Protective metal armouring over PTFE/PFA	-60 ...+250 °C [-76 ...+482 °F]
Protective metal armouring with PTFE/PFA sheath over PTFE/PFA	-60 ...+250 °C [-76 ...+482 °F]
Protective metal armouring with PVC sheath over PVC	-20 ...+100 °C [-4 ...+212 °F]
Protective metal armouring with PE sheath over PTFE/PFA	-50 ...+250 °C [-58 ...+482 °F]

Sensor type	Standard	Thermocouple cable, compensating cable
Outer sheath	Positive	Negative
K	IEC 60584-3	Green	Green	White
J	IEC 60584-3	Black	Black	White
E	IEC 60584-3	Violet	Violet	White
T	IEC 60584-3	Brown	Brown	White
N	IEC 60584-3	Pink	Pink	White

View all (17)

Sensor type	Standard	Thermocouple cable	Compensating cable
Outer sheath	Positive	Negative	Outer sheath	Positive	Negative
K	ASTM E230	Brown	Yellow	Red	Yellow	Yellow	Red
J	ASTM E230	Brown	White	Red	Black	White	Red
E	ASTM E230	Brown	Violet	Red	Violet	Violet	Red
T	ASTM E230	Brown	Blue	Red	Blue	Blue	Red
N	ASTM E230	Brown	Orange	Red	Orange	Orange	Red

Illustration	Model	Material	Cable entry thread size	Cover	Surface	Other
	Field case	Plastic (ABS) ■ M12 x 1.5 ■ 1/2 NPT	■ M16 x 1.5	Flat cover with 4 plug screws	Grey	■ 82 x 80x55mm [3.2 x 3.1 x 2.2 in] (LxWxH) ■ Inputs on one side
	Field case	Aluminium	■ M12 x 1.5 ■ 1/2 NPT ■ M16 x 1.5	Flat cover with 4 plug screws	Natural finish	■ 80 x 75x57mm [3.1 x 2.9 x 2.3 in] (LxWxH) ■ Inputs on one side
	Field case	Plastic (ABS)	■ M12 x 1.5 ■ 1/2 NPT ■ M16 x 1.5	Flat cover with 4 plug screws	Grey	■ 82 x 80x55mm [3.2 x 3.1 x 2.2 in] (LxWxH) ■ Inputs opposite each other
	Field case	Aluminium	■ M12 x 1.5 ■ 1/2 NPT ■ M16 x 1.5	Flat cover with 4 plug screws	Natural finish	■ 80 x 75x57mm [3.1 x 2.9 x 2.3 in] (LxWxH) ■ Inputs opposite each other
1/4000	1/4000	Aluminium	■ M20 x 1.5 ■ 1/2 NPT ■ 3/4 NPT	Screw-on lid	Blue, painted 1)	-
1/4000 5/6000	Stainless steel 7/8000	■ M20 x 1.5 ■ 1/2 NPT ■ 3/4 NPT 7/8000 DIH50	Screw-on lid KN4-P andere Anschlussgehäuse	Natural finish	- BVC
	7/8000	Aluminium	■ M20 x 1.5 ■ 1/2 NPT ■ 3/4 NPT	Screw-on lid	Blue, painted 1)	-
7/8000	7/8000 7/8000 DIH50	Stainless steel andere Anschlussgehäuse	■ M20 x 1.5 ■ 1/2 NPT ■ 3/4 NPT KN4-P	Screw-on lid BVC	Natural finish	-
	7/8000	Aluminium	■ M20 x 1.5 ■ 1/2 NPT ■ 3/4 NPT	Screw-on lid, with digital temperature display, model DIH50-B	Blue, painted 1)	-
7/8000 DIH50	7/8000 andere Anschlussgehäuse	Stainless steel KN4-P	■ M20 x 1.5 ■ 1/2 NPT ■ 3/4 NPT BVC	Screw-on lid, with digital temperature display, model DIH50-B	Natural finish	-
5/6000	5/6000	Aluminium	■ 2 x M20 x 1.5 ■ 2 x 1/2 NPT ■ 2 x 3/4 NPT	Screw-on lid	Blue, painted 1)	-
5/6000 7/8000	Stainless steel 7/8000 DIH50	■ 2 x M20 x 1.5 ■ 2 x 1/2 NPT ■ 2 x 3/4 NPT andere Anschlussgehäuse	Screw-on lid KN4-P BVC	Natural finish	-
	5/6000	Aluminium	■ 2 x M20 x 1.5 ■ 2 x 1/2 NPT ■ 2 x 3/4 NPT	Screw-on lid, with digital temperature display, model DIH50-B	Blue, painted 1)	-
	5/6000	Stainless steel	■ 2 x M20 x 1.5 ■ 2 x 1/2 NPT ■ 2 x 3/4 NPT	Screw-on lid, with digital temperature display, model DIH50-B	Natural finish	-

Illustration	Model	Material	Cable entry thread size	Cover	Surface	Other
	Field transmitter TIF50	Aluminium	■ 2 x M20 x 1.5 ■ 2 x 1/2 NPT ■ 2 x 3/4 NPT	Screw-on lid, with digital temperature display, model DIH50-B	Blue, painted 1)	-
	Field transmitter TIF50	Stainless steel	■ 2 x M20 x 1.5 ■ 2 x 1/2 NPT ■ 2 x 3/4 NPT	-	Natural finish	-
	Field transmitter TIF52	Aluminium	■ 2 x M20 x 1.5 ■ 2 x 1/2 NPT ■ 2 x 3/4 NPT	-	-	-
	Field transmitter TIF52	Stainless steel	■ 2 x M20 x 1.5 ■ 2 x 1/2 NPT ■ 2 x 3/4 NPT	-	-	-
KN4-P	KN4-A	Aluminium	■ M20 x 1.5 ■ 1/2 NPT ■ 3/4 NPT	Screw-on lid	Blue, painted 1)	-
KN4-P BVC	Polypropylene	■ M20 x 1.5 ■ 1/2 NPT ■ 3/4 NPT	Screw-on lid	White	-
	BSZ	Aluminium	■ M20 x 1.5 ■ 1/2 NPT	Spherical, hinged cover with plug screw	Blue, painted 1)	-
BSZ, BSZ-K	BSZ-H BSZ-H, BSZ-HK	Aluminium BSS	■ M20 x 1.5 ■ 1/2 NPT	High hinged cover with plug screw BVS BSS-H	Blue, painted 1) BVS (NuG)	-

Illustration	Connection housing
A C	Field case with inputs on either side
A	Field case with inputs on opposite sides
A	Connection housing 1/4000
1/4000 A	7/8000 DIH50 7/8000 5/6000 Connection housing 7/8000
7/8000 A B	Connection housing 5/6000 7/8000 DIH50 KN4-P andere Anschlussgehäuse
5/6000	Connection housing 5/6000 with DIH50-B 7/8000 DIH50 7/8000 andere Anschlussgehäuse
A B	Field transmitter TIF50/TIF52
	Connection head KN4-A
KN4-P A	Connection head BSZ BVC
C BSZ, BSZ-K	Connection head BSZ-H BSZ-H, BSZ-HK BSS BSS-H

Cable entry	Colour Ingress protection (max.)		Cable entry thread size	Min./max. ambient temperature
Standard cable entry	Natural finish	IP65	■ M20 x 1.5 ■ ½NPT -40 ...+80 °C [-40 ...+176	°F]
Plastic cable gland (cable Ø6...10 mm)	Black or grey	IP66 1)	■ M20 x 1.5 ■ ½NPT	-40 ...+80 °C [-40 ...+176 °F]
Plastic cable gland (cable Ø 6 ... 10 mm), Ex e	Light blue or black	IP66 1)	■ M20 x 1.5 ■ ½NPT	■ -20 ...+80 °C [-4 ...+176 °F] ■ -40 ...+70 °C [-40 ...+158 °F]
Nickel-plated brass cable gland (cable Ø 6 ... 12 mm)	Natural finish	IP66 1)	■ M20 x 1.5 ■ ½NPT	-60 2) / -40 ...+80 °C [-76 2) / -40 ...+176 °F]
Nickel-plated brass cable gland (cable Ø 6 ... 12 mm), Ex e	Natural finish	IP66 1)	■ M20 x 1.5 ■ ½NPT	-60 2) / -40 ...+80 °C [-76 2) / -40 ...+176 °F]
Stainless steel cable gland (cable Ø 7 ... 12 mm)	Natural finish	IP66 1)	■ M20 x 1.5 ■ ½NPT	-60 2) / -40 ...+80 °C [-76 2) / -40 ...+176 °F]
Stainless steel cable gland (cable Ø 7 ... 12 mm), Ex e	Natural finish	IP66 1)	■ M20 x 1.5 ■ ½NPT	-60 2) / -40 ...+80 °C [-76 2) / -40 ...+176 °F]
Plain threaded	-	IP00	■ M20 x 1.5 ■ ½NPT	-
2 x plain threaded 3)	-	IP00	■ 2 x M20 x 1.5 ■ 2x½NPT	-
Junction box M12 x 1 (4-pin) 4)	-	IP65	M20 x 1.5	-40 ...+80 °C [-40 ...+176 °F]
Sealing plugs for shipping	Transparent	-	■ M20 x 1.5 ■ ½NPT	-40 ...+80 °C [-40 ...+176 °F]

Output signal 4 ... 20 mA and HART ® protocol

Transmitter (selectable versions)	Model T16	Model T32
Data sheet	TE 16.01	TE 32.04
Output
4 ...20mA	x	x
HART ® protocol	-	x
Explosion protection	Optional	Optional

Illustration	Model
	Lemosa connector (male)
	Binder/Amphenol screw/plug-in connector (male)
Schraub-/Steckverbinder Serie 713 M12x1	Harting connector (male)
	Binder screw/plug-in connector, M12 x 1 (male)
Ansicht auf Steckerkontakte	Thermo-connector (male)

First index number	Short description	Test parameters
5	Dust-protected	per IEC/EN 60529
6	Dust-tight	per IEC/EN 60529

Second index number	Short description	Test parameters
4	Protected against splash water	per IEC/EN 60529
5	Protected against water jets	per IEC/EN 60529
6	Protected against strong water jets	per IEC/EN 60529
7	Protected against the effects of temporary immersion in water	per IEC/EN 60529
8	Protected against the effects of permanent immersion in water	as agreed upon

Connection housing	Version	IP ingress protection
Field case	Plastic (ABS) / aluminium	IP65
Connection head	KN4-A	IP65
	KN4-P
	BSZ
	BSZ-H
	1/4000	IP66
	5/6000
	5/6000 with DIH50
	7/8000
	7/8000 with DIH50
Field transmitter	TIF50/TIF52	IP66

Connector	Version	IP ingress protection
Binder	Series 680	IP40
	Series 692
	Series 423
Amphenol	C16-3	IP40
Lemosa	Size 0 S	IP50
	Size 1 S
	Size 2 S
	Size 1 E	IP65
Harting	7D	IP65
	8D
	8U
M12 x 1	4-pin	IP65
Thermo-connector	2-pin, standard/miniature	IP00
	3-pin, standard/miniature

Version

Standard	max. 50 g peak-to-peak, 10 ... 500 Hz

Certification type	Measurement accuracy	Material certificate
2.2 test report	x	x
3.1 inspection certificate	x	x
DAkkS calibration certificate	x	-
