WIKA · تقنية المعايرة · العائلة CPB

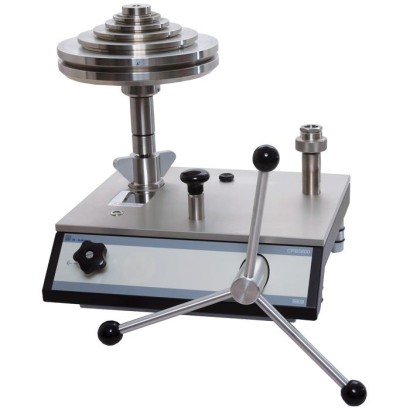

مختبر/جهاز اختبار الأوزان الميتة
النسخة الهيدروليكية حتى 1,400 بار [20,000 رطل/بوصة²]
النطاق
1…1400 bar
الحماية
-
CEEACGOSTUkrSEPROMTSCHS
السعر
حسب الطلب
يعتمد على التكوين
الوصف
يُعد جهاز اختبار الأوزان الميتة CPB5800 من WIKA معياراً أولياً هيدروليكياً لمعايرة الضغط حتى 1,400 بار [20,000 رطل/بوصة²]، ويعمل على مبدأ موازنة الضغط بأوزان معلقة على نظام مكبس-أسطوانة. يُختار هذا الجهاز كمقياس مرجعي لمختبرات المصانع ومختبرات المعايرة عند اختبار وضبط ومعايرة أجهزة قياس الضغط، وهو نظام مستقل كامل يمكن استخدامه أيضاً في الموقع.
المزايا
- عدم اليقين الكلي للقياس حتى 0.006 % من القراءة
- جهاز مرن للغاية مع مجموعة واسعة من أنظمة المكبس-الأسطوانة أحادية ومزدوجة النطاق
- أنظمة مكبس-أسطوانة ذات مدى مزدوج مع تبديل مؤتمت بالكامل بين المدىين
- تشمل معايرة المصنع القابلية للتتبع إلى المعايير الوطنية كمعيار، مع إمكانية معايرة UKAS كخيار
- استبدال سريع وآمن لنظام المكبس-الأسطوانة عبر نظام الفصل السريع ConTect الحاصل على براءة اختراع كخيار
الأسئلة والأجوبة
ما هو أقصى ضغط يمكن معايرته باستخدام CPB5800؟
الحد الأقصى هو 1,400 بار [20,000 رطل/بوصة²] في النسخة الهيدروليكية، مع مدى أدنى يصل إلى 1 بار حسب نظام المكبس-أسطوانة المختار.
ما دقة الجهاز؟
عدم يقين القياس الكلي يبلغ 0.006 % من القراءة.
ما هي مدى الضغط المتاحة؟
المدى المتاحة: 1 … 120 bar، 2 … 300 bar، 1 … 700 bar، 1 … 1,200 bar، 1 … 1,400 bar، بالإضافة إلى مدى ثنائية: 10 … 700 bar، 20 … 1,200 bar، 20 … 1,400 bar.
ما الوسط المستخدم؟
الوسط هو الزيت (oil)، حيث يعمل الجهاز بنسخته الهيدروليكية.
هل يمكن استخدام الجهاز خارج المختبر؟
نعم، فهو نظام مستقل كامل ومناسب أيضاً للاستخدام في الموقع، وقابل للنقل بوزن 18.0 kg.
ما شهادات وإمكانية التتبع المتوفرة؟
الشهادات: CE, EAC, GOST, UkrSEPRO, MTSCHS. وتشمل معايرة المصنع إمكانية التتبع إلى المعايير الوطنية (UKAS, NIST)، مع إمكانية معايرة UKAS كخيار.
ما درجات الحرارة المناسبة للتشغيل؟
درجة حرارة التشغيل +15 … +35 °C، ودرجة الحرارة المحيطة الموصى بها +18 … +28 °C.
ما الذي يميز CPB5800 عن الأجهزة المجاورة؟
يتميز بأنظمة مكبس-أسطوانة ثنائية المدى مع تبديل مؤتمت بالكامل بين المدى، ونظام ConTect الحاصل على براءة اختراع للاستبدال السريع والآمن لنظام المكبس-أسطوانة (كخيار). ---
التعريف
| الطراز | CPB5800 |
| السلسلة | CPB |
| النوع الفرعي | hydraulic pressure balance |
نطاق القياس
| نطاق الضغط | 1…120 bar · 2…300 bar · 1…700 bar · 1…1200 bar · 1…1400 bar · 10…700 bar · 20…1200 bar · 20…1400 bar |
| نطاق درجة الحرارة | +15…+35 °C |
دقة القياس
| عدم اليقين | 0.006 % of reading |
ظروف العملية
| وسيط التشغيل | oil |
| نوع المعايرة | deadweight |
بيئة التشغيل
| حرارة المحيط | +18…+28 °C |
| الوزن | 18 kg |
الشهادات والموافقات
| الشهادات | CEEACGOSTUkrSEPROMTSCHS |
| إمكانية التتبع | UKAS · NIST |
تفاصيل إضافية
| محمول | نعم |
| لغات ورقة البيانات | DE, EN |
جداول من ورقة البيانات
| Measuring range [bar] or [kg/cm²] | Single-piston measuring ranges | Dual-piston measuring ranges | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 …120 | 2 …300 | 1 …700 | 1 …1,200 | 1 …1,400 | |||||||||
| 1…60 | 10 …700 | 1…60 | 20 ... 1,200 | 1…60 | 20 …1,400 | ||||||||
| Quantity | Nominal pressure per piece [bar] [kg/cm²] | Quantity | Nominal pressure per piece [bar] [kg/cm²] | Quantity | Nominal pressure per piece [bar] [kg/cm²] | Nominal pressure per piece [bar] [kg/cm²] | Quantity | Nominal pressure per piece [bar] [kg/cm²] | Nominal pressure per piece [bar] [kg/cm²] | Quantity | Nominal pressure per piece [bar] [kg/cm²] | Nominal pressure per piece [bar] [kg/cm²] | |
| Piston and make-up weight | 1 | 1 | 1 | 2 | 1 | 1 | 10 | 1 | 1 | 20 | 1 | 1 | 20 |
| Standard mass set | 4 | 20 | 4 | 50 | 5 | 10 | 100 | 4 | 10 | 200 | 5 | 10 | 200 |
| 1 | 18 | 1 | 45 | 1 | 9 | 90 | 1 | 9 | 180 | 1 | 9 | 180 | |
| 1 | 10 | 1 | 25 | 1 | 5 | 50 | 1 | 5 | 100 | 1 | 5 | 100 | |
| 2 | 4 | 2 | 10 | 2 | 2 | 20 | 2 | 2 | 40 | 2 | 2 | 40 | |
| 1 | 2 | 1 | 5 | 1 | 1 | 10 | 1 | 1 | 20 | 1 | 1 | 20 | |
| 2 | 1 | 1 | 3 | 1 | 0.5 | 5 | 1 | 0.5 | 10 | 1 | 0.5 | 10 | |
| 1 | 0.5 | 1 | 2.5 | -- | -- | -- | -- | -- | -- | -- | -- | -- | |
| Set of fine increment masses (optional) | 1 | 0.4 | 2 | 1 | 2 | 0.2 | 2 | 2 | 0.2 | 4 | 2 | 0.2 | 4 |
| 1 | 0.2 | 1 | 0.5 | 1 | 0.1 | 1 | 1 | 0.1 | 2 | 1 | 0.1 | 2 | |
| 1 | 0.1 | 1 | 0.25 | 1 | 0.05 | 0.5 | 1 | 0.05 | 1 | 1 | 0.05 | 1 | |
| 2 | 0.04 | 2 | 0.1 | 2 | 0.02 | 0.2 | 2 | 0.02 | 0.4 | 2 | 0.02 | 0.4 | |
| 1 | 0.02 | 1 | 0.05 | 1 | 0.01 | 0.1 | 1 | 0.01 | 0.2 | 1 | 0.01 | 0.2 |
| Measuring range [lb/in²] | Single-piston measuring ranges | Dual-piston measuring ranges | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 …1,600 | 30 …4,000 | 10 …10,000 | 10 …16,000 | 10 …20,000 | |||||||||
| 10 …800 | 100… 10,000 | 10 …800 | 200… 16,000 | 10 …800 | 200… 20,000 | ||||||||
| Quantity | Nominal pressure per piece [lb/in²] | Quantity | Nominal pressure per piece [lb/in²] | Quantity | Nominal pressure per piece [lb/in²] | Nominal pressure per piece [lb/in²] | Quantity | Nominal pressure per piece [lb/in²] | Nominal pressure per piece [lb/in²] | Quantity | Nominal pressure per piece [lb/in²] | Nominal pressure per piece [lb/in²] | |
| Piston | 1 | 10 | -- | -- | 1 | 10 | 100 | 1 | 10 | 200 | 1 | 10 | 200 |
| Piston and make-up weight | -- | -- | 1 | 30 | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| Standard mass set | 6 | 200 | 6 | 500 | 8 | 100 | 1,000 | 6 | 100 | 2,000 | 8 | 100 | 2,000 |
| 1 | 180 | 1 | 450 | 1 | 90 | 900 | 1 | 90 | 1,800 | 1 | 90 | 1,800 | |
| 1 | 100 | 1 | 250 | 1 | 50 | 500 | 1 | 50 | 1,000 | 1 | 50 | 1,000 | |
| 2 | 40 | 2 | 100 | 2 | 20 | 200 | 2 | 20 | 400 | 2 | 20 | 400 | |
| 1 | 20 | 1 | 50 | 1 | 10 | 100 | 1 | 10 | 200 | 1 | 10 | 200 | |
| 2 | 10 | 1 | 25 | 1 | 5 | 50 | 1 | 5 | 100 | 1 | 5 | 100 | |
| 1 | 5 | 1 | 20 | -- | -- | -- | -- | -- | -- | -- | -- | -- | |
| Set of fine increment masses (optional) | 1 | 4 | 2 | 10 | 2 | 2 | 20 | 2 | 2 | 40 | 2 | 2 | 40 |
| 1 | 2 | 1 | 5 | 1 | 1 | 10 | 1 | 1 | 20 | 1 | 1 | 20 | |
| 1 | 1 | 1 | 2.5 | 1 | 0.5 | 5 | 1 | 0.5 | 10 | 1 | 0.5 | 10 | |
| 2 | 0.4 | 2 | 1 | 2 | 0.2 | 2 | 2 | 0.2 | 4 | 2 | 0.2 | 4 | |
| 1 | 0.2 | 1 | 0.5 | 1 | 0.1 | 1 | 1 | 0.1 | 2 | 1 | 0.1 | 2 |
| Measuring range [kPa] | Single-piston measuring ranges | Dual-piston measuring ranges | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 …12,000 | 200 …30,000 | 100 …70,000 | 100 …120,000 | 100 …140,000 | |||||||||
| per | 100… 6,000 | 1,000… 70,000 | 100… 6,000 | 2,000… 120,000 | 100… 6,000 | 2,000… 140,000 | |||||||
| Quantity | Nominal pressure piece [kPa] | Quantity | Nominal pressure per piece [kPa] | Quantity | Nominal pressure per piece [kPa] | Nominal pressure per piece [kPa] | Quantity | Nominal pressure per piece [kPa] | Nominal pressure per piece [kPa] | Quantity | Nominal pressure per piece [kPa] | Nominal pressure per piece [kPa] | |
| Piston and make-up weight | 1 | 100 | 1 | 200 | 1 | 100 | 1,000 | 1 | 100 | 2,000 | 1 | 100 | 2,000 |
| Standard mass set | 4 | 2,000 | 4 | 5,000 | 5 | 1,000 | 10,000 | 4 | 1,000 | 20,000 | 5 | 1,000 | 20,000 |
| 1 | 1,800 | 1 | 4,500 | 1 | 900 | 9,000 | 1 | 900 | 18,000 | 1 | 900 | 18,000 | |
| 1 | 1,000 | 1 | 2,500 | 1 | 500 | 5,000 | 1 | 500 | 10,000 | 1 | 500 | 10,000 | |
| 2 | 400 | 2 | 1,000 | 2 | 200 | 2,000 | 2 | 200 | 4,000 | 2 | 200 | 4,000 | |
| 1 | 200 | 1 | 500 | 1 | 100 | 1,000 | 1 | 100 | 2,000 | 1 | 100 | 2,000 | |
| 2 | 100 | 1 | 300 | 1 | 50 | 500 | 1 | 50 | 1,000 | 1 | 50 | 1,000 | |
| 1 | 50 | 1 | 250 | -- | -- | -- | -- | -- | -- | -- | -- | -- | |
| Set of fine increment masses (optional) | 1 | 40 | 2 | 100 | 2 | 20 | 200 | 2 | 20 | 400 | 2 | 20 | 400 |
| 1 | 20 | 1 | 50 | 1 | 10 | 100 | 1 | 10 | 200 | 1 | 10 | 200 | |
| 1 | 10 | 1 | 25 | 1 | 5 | 50 | 1 | 5 | 100 | 1 | 5 | 100 | |
| 2 | 4 | 2 | 10 | 2 | 2 | 20 | 2 | 2 | 40 | 2 | 2 | 40 | |
| 1 | 2 | 1 | 5 | 1 | 1 | 10 | 1 | 1 | 20 | 1 | 1 | 20 |
Piston-cylinder systems model CPS5800
| Version | Single-piston measuring ranges | Dual-piston measuring ranges | |||
|---|---|---|---|---|---|
| Measuring ranges in bar or kg/cm² 1) | 1 …120 | 2 …300 | 1 …60/ 10 ... 700 | 1 …60/ 20 …1,200 | 1 …60/ 20 …1,400 |
| Required masses | 49.7 kg | 49.6 kg | 57.4 kg | 49.2 kg | 57.4 kg |
| Smallest step 2) (Standard mass set) | 0.5 bar | 2.5 bar | 0.5 bar / 5.0 bar | 0.5 bar / 10 bar | |
| Smallest step 3) (Set of fine increment masses) | 0.02 bar | 0.05 bar | 0.01 bar / 0.1 bar | 0.01 bar / 0.2 bar | |
| Nominal effective area of the piston | 0.4032 cm² | 0.1613 cm² | 0.8065 cm² / 0.0807 cm² | 0.8065 cm² / 0.0403 cm² | |
| Measuring ranges in lb/in² 1) | 10 …1,600 | 30 …4,000 | 10 …800 / 100 …10,000 | 10 …800 / 200 …16,000 | 10 …800 / 200 …20,000 |
| Required masses | 45.5 kg | 45.3 kg | 56.4 kg | 45 kg | 56.4 kg |
| Smallest step 2) (Standard mass set) | 5 lb/in² | 20 lb/in² | 5 lb/in² / 50 lb/in² | 5 lb/in² / 100 lb/in² | |
| Smallest step 3) (Set of fine increment masses) | 0.2 lb/in² | 0.5 lb/in² | 0.1 lb/in² / 1 lb/in² | 0.1 lb/in² / 2 lb/in² | |
| Nominal effective area of the piston | 0.4032 cm² | 0.1613 cm² | 0.8065 cm² / 0.0807 cm² | 0.8065 cm² / 0.0403 cm² | |
| Measuring ranges in kPa 1) | 100 …12,000 | 200 …30,000 | 100 …6,000 / 1.000 …70,000 | 100 …6,000 / 2.000 …120,000 | 100 …6,000 / 2.000 …140,000 |
| Required masses | 49.7 kg | 49.6 kg | 57.4 kg | 49.2 kg | 57.4 kg |
| Smallest step 2) (Standard mass set) | 50 kPa | 250 kPa | 50 kPa / 500 kPa | 50 kPa / 1,000 kPa | |
| Smallest step 3) (Set of fine increment masses) | 2 kPa | 5 kPa | 1 kPa / 10 kPa | 1 kPa / 20 kPa | |
| Nominal effective area of the piston | 0.4032 cm² | 0.1613 cm² | 0.8065 cm² / 0.0807 cm² | 0.8065 cm² / 0.0403 cm² | |
| Accuracies | |||||
| Standard 4) 5) 6) | 0.015 %of reading | 0.025 %of reading | |||
| Premium 4) 5) 7) | 0.007 %of reading | 0.006 %of reading | 0.007 %of reading | 0.008 %of reading | |
| Pressure transmission medium | |||||
| Standard | Hydraulic fluid based onVG22 | mineral oil | |||
| Optional | Sebacate oil Brake fluid Skydrol Fomblin oil | Sebacate oil | |||
| Material | |||||
| Piston | Steel | Tungsten carbide / steel | |||
| Cylinder | Bronze | Steel | Steel / tungsten carbide | ||
| Mass set | Stainless steel, non-magnetic |
عرض الكل (11)
Piston-cylinder systems model CPS5800
| Version | Single-piston measuring ranges | Dual-piston measuring ranges | |||
|---|---|---|---|---|---|
| Weight | |||||
| Piston-cylinder system | 1 kg [2.2 lbs] | 0.8 kg [1.8 lbs) | 2 kg [4.4 lbs] | 2 kg [4.4 lbs] | 2 kg [4.4 lbs] |
| Storage case for the piston- cylinder system | 3.1 kg [6.8 lbs] | ||||
| bar standard mass sets (in 2 wooden cases) | 61.3 kg [135.2 lbs] | 61.2 kg [134.9 lbs] | 69 kg [152.1 lbs] | 60.8 kg [134.1 lbs] | 69 kg [152.1 lbs] |
| lb/in² standard mass sets (in 2 wooden cases) | 57.1 kg [125.9 lbs] | 56.9 kg [125.5 lbs] | 68 kg [149.9 lbs] | 56.6 kg [124.8 lbs] | 68 kg [149.9 lbs] |
| bar set of fine increment masses | 0.33 kg [0.73 lbs] | 0.5 kg [1.10 lbs] | 0.5 kg [1.10 lbs] | 0.5 kg [1.10 lbs] | 0.5 kg [1.10 lbs] |
| lb/in² set of fine increment masses | 0.23 kg [0.51 lbs] | 0.34 kg [0.75 lbs] | 0.34 kg [0.75 lbs] | 0.34 kg [0.75 lbs] | 0.34 kg [0.75 lbs] |
| Dimensions (W x D x H) | |||||
| Carrying case for standard mass sets | 400 x 310 x 310 mm[15.7 x 12.2 x 12.2 in] | ||||
| Storage case for the piston- cylinder system (optional) | 300 x 265 x 205 mm[11.8 x 10.4 x 8.1 in] |
Base, model CPB5800
| Base version | |
|---|---|
| Hydraulic standard | up to max. 1,200 bar [16,000 lb/in²]; with internal pressure generation |
| Hydraulic high pressure | up to max. 1,400 bar [20,000 lb/in²]; with internal pressure generation |
| Connections | |
| Connection for piston-cylinder system | G¾Bmale/ optional: ConTect quick-release connector (not for 1,400 bar version [20,000 lb/in² version]) |
| Test connection | G½female threaded quick-connectors, freely rotating, exchangeable for other threaded inserts, see Accessories |
| Material | |
| Piping in base | 1.4404 stainless steel, 6 x 1.5mm |
| Pressure transmission medium | |
| Standard | Hydraulic fluid based onVG22 mineral oil |
| Optional | Sebacate oil, brake fluid, Skydrol or Fomblin oil (dependent on measuring range) |
| Reservoir | 250 cm³ |
| Weight | |
| Standard hydraulic base | 18.0 kg / 19.0 kg [39.7 lbs / 41.9 lbs] (incl. optional ConTect quick-release connector) |
| Hydraulic high-pressure base | 18.0 kg [39.7 lbs] |
| Storage case for the base | 8.5 kg [18.7 lbs] |
| Permissible ambient conditions | |
| Operating temperature | 18 ... 28 °C [64 ... 82 °F] |
| Dimensions (W x D x H) | |
| Base | 401 x 375 x 265 mm[15.7 x 14.8 x 10.4 in], for details, see technical drawings |
| Logo | Description | Country |
|---|---|---|
| EU declaration of conformity Pressure equipment directive;PS > 1,000 bar, module A, pressure accessories | European Union | |
| EAC (option) ■ EMCdirective ■ Pressure equipment directive ■ Low voltage directive ■ Machinery directive | Eurasian Economic Community | |
| GOST (option) Metrology, measurement technology | Russia | |
| UkrSEPRO (option) Metrology, measurement technology | Ukraine | |
| - | MTSCHS (option) Permission for commissioning | Kazakhstan |
Certificate
| Calibration | |
|---|---|
| CPB5800 | Standard: Calibration certificate Option:UKAS calibration certificate (pressure calibration with a mass set) |
| CPS5800 | Standard: Calibration certificate Option 1:UKAS calibration certificate (pressure calibration with a mass set) Option 2:UKAS calibration certificate (area calibration) |
| CPM5800 | Standard: without Option 1: Calibration certificate Option 2:UKAS calibration certificate (mass calibration) Option 3:UKAS calibration certificate (pressure calibration with a piston-cylinder system) |
| Recommended recalibration interval | 2 to 5 years (dependent on conditions of use) |
| Version | Weight | |
|---|---|---|
| net | gross | |
| Single-piston measuring ranges | ||
| 1 …120 bar | 81.5 kg [179.7 lbs] | 100 kg [220.5 lbs] |
| 2 …300 bar | 81.5 kg [179.7 lbs] | 100 kg [220.5 lbs] |
| Dual-piston measuring ranges | ||
| 1 …60bar / 10 …700 bar | 90 kg [195.5 lbs] | 108.5 kg [239.2 lbs] |
| 1 …60bar / 20 …1,200 bar | 82 kg [180.8 lbs] | 100.5 kg [221.6 lbs] |
| 1 …60bar / 20 …1,400 bar | 90 kg [195.5 lbs] | 108.5 kg [239.2 lbs] |
| Version | Weight | |
|---|---|---|
| net | gross | |
| Single-piston measuring ranges | ||
| 10 …1,600 lb/in² | 77.5 kg [170.9 lbs] | 96 kg [211.7 lbs] |
| 30 …4,000 lb/in² | 77 kg [169.8 lbs] | 95.5 kg [210.6 lbs] |
| Dual-piston measuring ranges | ||
| 10 …800 lb/in² / 100 …10,000 lb/in² | 89 kg [196.2 lbs] | 107.5 kg [237.0 lbs] |
| 10 …800 lb/in² / 200 …16,000 lb/in² | 77.5 kg [170.9 lbs] | 96 kg [211.7 lbs] |
| 10 …800 lb/in² / 200 …20,000 lb/in² | 89 kg [196.2 lbs] | 107.5 kg [237.0 lbs] |
| Special features | Order code | |
|---|---|---|
| CPB-A-EE- | ||
| Set of fine increment masses 1 mg up to 50 g, class F1 | -A- | |
| 1 mg up to 50 g, class M1 | -C- | |
| Storage case for instrument base and the piston-cylinder system | -B- | |
| 90° angle connection for test items with back mounting connection Threaded insert G½(½" BSP) | -D- | |
| Separator without diaphragm, max. 1,000 bar [14,500 lb/in²] | -E- | |
| O-ring set consisting of 5 pcs. 8 x 2 and 5 pcs. 4 x 2.2 | -F- | |
| Operating fluid for CPB series up to max. 4,000 bar [60,000 lb/in²], 1 litre | -G- | |
| Test item connection G¾female to G½female, rotating, operation as a comparison test pump is possible | -H- | |
| Electrical piston drive unit AC 110 V/50 Hz for industrial power plug, 3 pole only for measuring ranges 700 bar and 1,200 bar [10,000 lb/in² and 16,000 lb/in²] | -I- | |
| Electrical piston drive unit AC 230 V/50 Hz for industrial power plug, 3 pole only for measuring ranges 700 bar and 1,200 bar [10,000 lb/in² and 16,000 lb/in²] | -J- | |
| Adapter set for quick connector in case with G¼, G⅜, ½NPT, ¼NPTand M20 x 1.5 threaded inserts for insertion in the knurled nut on the test item connector | -K- | |
| 'NPT' in case with ⅛NPT, ¼NPT, ⅜NPTand ½NPTthreaded inserts for insertion in the knurled nut on the test item connector | -L- | |
| Ordering information for your request | ||
| 1. Order code: CPB-A-EE- 2. Option: | ⇓ [ ] |
القطاع
الصناعات الميكانيكية
معيار أساسي لمعايرة مقياس الضغط في المدى الهيدروليكي حتى 1,400 bar [20,000 lb/in 2] · جهاز مرجعي لمصانع ومعامل المعايرة لاختبار وضبط ومعايرة أجهزة قياس الضغط
لم تجد الإجابة في الوثائق؟ سيرد المهندس خلال يوم عمل.
اسأل المهندس →
