Pistol-grip meter with inspection glass
The pistol-grip meter is for connecting to filling hoses. These pistol-grip meters have been granted official approval for custody transfer in the European Union and in other countries.
The pistol-grip meter is designed for lubricating oils or other liquids with a viscosity range from 8 to 2000 mPa s (cp), excluding liquid food.
Дизайн
The pistol-grip meter has a rotary-piston mechanism. The measuring chamber and the casing are made of zinc die-cast alloy, the rotary-piston is made of light alloy.
The register with an inspection glass required for custody transfer use has a resettable double-pointer dial and a 4-digit, non-resettable totalizer. The scale diameter equals 80 mm (3.15 inch)
The pistol-grip meter has a built-in shut-off valve.
Технические данные
| Valid for custody transfer according to European Union approval: | |
|---|---|
| Liquids | Lubricating oils or other liquids with viscosity range 8 ... 2000 mPa·s, excluding liquid food |
| Permissible flow rate | |
| - qmin | 1.0 or 1.5 l/min (0.26 or 0.4 USgpm) |
| - qmax | 10 or 15 l/min (2.6 or 4 USgpm) |
| Flow rate ratio (qmin : qmax) | 1:10 |
| Minimum delivery quantity | 0.2 l (0.05 USgpm) |
| Error limits | |
| - for preliminary official calibration tests in the European Union | 0.3 % of the actual value |
| - for other countries | According to the relevant regulations |
| Nom. press. | PN 40 (MWP 580 psi) |
| Max. permissible pressure loss | 7 bar (102 psi); at qmax and 100 mPa s (cp) the pressure loss is approx. 1 bar (14.5 psi) |
| Max. permissible liquid temperature | 40 °C (104 °F) |
| Permissible ambient temperature | 10 ... 50 °C (50 ... 102 °F) |
| Hose connection for liquid | Female thread G½ to DIN ISO 228‑1 |
| Double-pointer dial Values per revolution | |
| - Large/small pointer | 1 l/20 l |
| - Smallest Scale division | 0.01 l |
| Totalizer | |
| - End value | 9,999 l |
| - Minimum flow rate | 1 l |
| Certificate and approvals | |
| Classification according to pressure equipment directive (DRGL 97/23/EC) | For liquids of fluid gas group 1; complies with requirements of article 3, paragraph 3 (sound engineering practice SEP) |
Чертеж

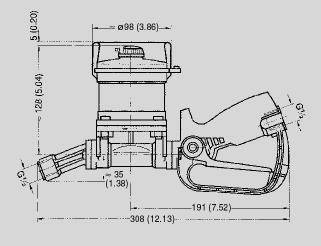

Pistol-grip meter with inspection glass, dimensions in mm (inch)
Заказные данные
| Заказной № | Описание | Вес (кг) | Доставка | Мин. зак. (шт) |
|---|---|---|---|---|
| 7MS1111-1A | РУЧНОЙ СЧЕТЧИК МАКС.РАСХОД 15 L/MIN | 1.9 | по запросу (D) | 1 |
| 7MS1111-1B | РУЧНОЙ СЧЕТЧИК МАКС.РАСХОД 10 L/MIN | 1.9 | по запросу (D) | 1 |
Аксессуары
| Заказной № | Описание | Вес (кг) | Доставка | Мин. зак. (шт) |
|---|---|---|---|---|
| C73000-B5174-C21 | РУКОВОДСТВО, GERMAN/ENGLISH FOR PISTOL-GRIP METERS | 0.1 | по запросу (D) | 1 |
