Pistol-grip meter
For applications other than for custody transfer the meter can be employed for flow rates up to max. 40 l/min depending on the viscosity of the liquid. The tolerance is 2% of the actual value.
Область применения
- Lubricating oils, paraffin oil, hydraulic oils, silicon fluids, flushing oils, cutting oils etc.
- Alcohols (96 ... 98 v/v, water-free), aromatic hydrocarbons, aliphatic hydrocarbons (mineral oil derivatives), chlorinated hydrocarbons (anhydrous)
- Fuels for internal combustion engines, heating fuel, petroleum.
Технические данные
| Liquids | Lubricating oils or other liquids with viscosity range 0.4 … 200 mPa·s, excluding liquid food |
|---|---|
| Min. flow rate | 2 l/min (0.5 USgpm) |
| Max. flow rate | 40 l/min (11 USgpm) |
| Flow rate ratio (qmin : qmax) | 1 : 20 |
| Minimum delivery quantity e | 3.0 l (0.79 USg) |
| Error limits | 2% of the actual value |
| Nominal pressure | PN 40 ((MWP 580 psi) |
| Max. permissible pressure loss | 7 bar (102 psi); bei qmax and 100 mPa·s (cp) the pressure loss is approx. 1 bar (14.5 psi) |
| Max. permissible liquid temperature | 60 °C (140 °F) |
| Permissible ambient temperature | 10 ... 60 °C (50 ... 140 °F) |
| Hose connection for liquid | |
| - Input | Female thread G½ DIN ISO 228/1 |
| - Output | Female thread G¾ DIN ISO 228/1 |
| Double-pointer dial | |
| Values per revolution Large/small pointer | 1 l/20 l |
| Totalizer | |
| - End value | 9999 l |
| - Minimum flow rate | 1 l |
| Certificate and approvals | |
| Classification according to pressure equipment directive (DRGL 97/23/EC) | For liquids of fluid gas group 1; complies with requirements of article 3, paragraph 3 (sound engineering practice SEP) |
Чертеж

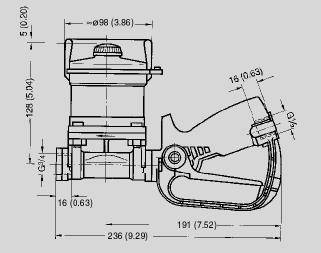

Handzähler, Maße in mm (inch)
Заказные данные
| Заказной № | Описание | Вес (кг) | Доставка | Мин. зак. (шт) |
|---|---|---|---|---|
| 7MS1122-2A | РУЧНОЙ СЧЕТЧИК БЕЗ КЛАПАНА С ДВОЙНЫМ ИНДИКАТОРОМ | 1.8 | по запросу (D) | 1 |
Заказные данные [PDF]
.
Для просмотра информации в формате PDF необходимо установить Adobe Acrobat Reader.
Аксессуары
| Заказной № | Описание | Вес (кг) | Доставка | Мин. зак. (шт) |
|---|---|---|---|---|
| C73000-B5174-C21 | РУКОВОДСТВО, GERMAN/ENGLISH FOR PISTOL-GRIP METERS | 0.1 | по запросу (D) | 1 |
