WIKA · Temperature measurement · Family TC59
Tubeskin thermocouple assembly
Tubeskin thermocouple assembly with proprietary thermal shield design for high-temperature applications in chemical, refinery, and furnace industries.
Range
-40…1260 °C
Output
4-20mA · HART
Accuracy
Per EN 60584-1 and ASTM E230 standards (Class 1
Protection
IP65
CERoHS
Price
On request
Depends on configuration
Description
The TEFRACTO-PAD ® model TC59-T is the first development in the WIKA Houston R&D center. Taking into account the knowledge of customer applications, needs and requirements the product addresses proven accuracy and ease of installation. The proprietary thermal shield design of the TEFRACTO-PAD ® is a patent-pending WIKA innovation in several countries (patent pending, property right: US 17/554,754, EP 21215402.5 and CN 202111548816.4).

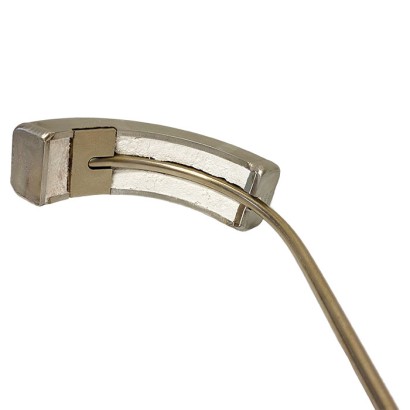

The TEFRACTO-PAD ® sensor hot end is a contoured weld-pad and optimised heat shield attached to a mineralinsulated cable (sheathed cable). It consists of a metal outer sheath, which contains the insulated internal leads, compressed within a high-density ceramic composition. The material of the outer sheath can be selected to match the application. At the hot end of the sheathed cable, the internal leads are welded together to form an insulated (ungrounded) or non-insulated (grounded) measuring location.
A proprietary moldable shield is placed over the thermopad and sheathed cable. This shield and insulation is a key component for the TEFRACTO-PAD ® , providing accurate
Special features
- Proprietary thermal shield design, integrated one-step installation
- Application ranges from 0 ... 1,260 °C [32 ... 2,300 °F]
- Flexible sheathed cable, mineral-insulated internal leads
- High mechanical strength, shock-resistant
Identification
| Model | TC59-T |
| Product family | TC59 |
| Subcategory | Tubeskin thermocouple |
Measuring range
| Temperature ranges | +0…+1260 °C · −40…+1200 °C · −40…+1000 °C · −40…+900 °C · −40…+800 °C · +0…+870 °C · +0…+760 °C · −40…+750 °C |
Accuracy
| Accuracy class | Per EN 60584-1 and ASTM E230 standards (Class 1, Class 2, Standard, Special) |
Process conditions
| Process connection | Strong welded connection on three sides of the heat shieldTEFRACTO-PAD ®Compression fittingSliding connectionTEFRACTO-PAD® weld padCompression fitting (fixed connection)Sliding connection (piston/spring) |
| Process temperature | +0…+1260 °C |
Electrical characteristics
| Output signal | 4-20mA · HART · HART® |
| Power supply | Not specified |
| Electrical connection | Compression fitting, cable gland |
Materials
| Probe material | 1.4841 (310), 1.4401 (316), 1.4749 (446), 2.4665 (Hastelloy X), 2.4816 (Inconel 600), Haynes HR 160, Pyrosil D, 2.4665 (Hastelloy X®), 2.4816 (Inconel 600®), Haynes HR 160®, Pyrosil D® |
Operating environment
| Ambient temperature | −40…+400 °C |
| IP rating | IP65 |
Certifications and approvals
| Certifications | CERoHS |
| Explosion protection | Option available (specific approvals required) |
Additional details
| Sensor type | Type K/J/E/N |
| Sensor class | Class 1, Class 2, Standard, Special |
| Probe diameter | 6 mm |
| Thermowell | No |
| Datasheet languages | EN |
Tables from datasheet
| Measuring element | |
|---|---|
| Type of measuring element | Thermocouple per IEC 60584-1 or ASTM E230 Types K, J, E, N |
| Measuring point | ■ Ungrounded welded (standard) ■ Welded to the bottom (grounded) |
| Marking of the polarity | The colour coding at the positive poles of the instrument decides the correlation of polarity and terminal |
| Ceramic terminal block | Single thermocouple |
| Crastin terminal block | Single thermocouple + + |
| Cable connection | Single thermocouple |
| Validity limits of the class accuracy per EN 60584-1 | |
| Type K | Class 2 -40 ... +1,200 °C [-40 ... +2,192 °F] Class 1 -40 ... +1,000 °C [-40 ... +1,832 °F] |
| Type J | Class 2 -40 ...+750 °C [-40 ... +1,382 °F] Class 1 -40 ...+750 °C [-40 ... +1,382 °F] |
| Type E | Class 2 -40 ...+900 °C [-40 ... +1,652 °F] Class 1 -40 ...+800 °C [-40 ... +1,472 °F] |
| Type N | Class 2 -40 ... +1,200 °C [-40 ... +2,192 °F] Class 1 -40 ... +1,000 °C [-40 ... +1,832 °F] |
| Validity limits of the class accuracy per ASTM-E230 Type K | Standard 0 ... 1,260 °C [32 ... 2,300 °F] |
Measuring element
| Type E | Standard | 0 ... 870 °C [32 ... 1,598 °F] |
|---|---|---|
| Special | 0 ... 870 °C [32 ... 1,598 °F] | |
| Type N | Standard | 0 ... 1,260 °C [32 ... 2,300 °F] |
| Special | 0 ... 1,260 °C [32 ... 2,300 °F] |
| Thermocouple type | Positive leg | Negative leg |
|---|---|---|
| K | Green | White |
| J | Black | White |
| E | Violet | White |
| N | Pink | White |
| Thermocouple type | Positive leg | Negative leg |
|---|---|---|
| K | Yellow | Red |
| J | White | Red |
| E | Violet | Red |
| N | Orange | Red |
View all (13)
| Model | Material | Cable entry thread size | Ingress protection (max.) 1) IEC/EN 60529 | Cap | Surface | Connection to neck tube | |
|---|---|---|---|---|---|---|---|
| 1/4000 F | Aluminium | ■ ½NPT ■ ¾NPT ■ M20 x 1.5 | IP66 2) | Screw-on lid | Blue, painted (RAL 5022) | ½NPT | |
| 5/6000 1/4000 S | 7/8000 Stainless steel | 7/8000 DIH50 andere ■ ½NPT ■ ¾NPT ■ M20 x 1.5 | KN4-P Anschlussgehäuse IP66 2) | BVC Screw-on lid | Natural finish | ½NPT | |
| 5/6000 F | Aluminium | 3x½NPT | IP66 2) | Screw-on lid | Blue, painted | ½NPT | |
| 7/8000W | Aluminium | ½NPT | IP66 2) | Screw-on lid | Blue, painted | ½NPT | |
| 7/8000 7/8000W | 7/8000 DIH50 Aluminium | andere Anschlussgehäuse ■ ½NPT ■ ¾NPT ■ M20 x 1.5 | KN4-P BVC IP66 2) | Screw-on lid | Blue, painted (RAL 5022) | ½NPT | |
| 7/8000 DIH50 7/8000 S | andere Anschlussgehäuse Stainless steel | KN4-P ■ ½NPT ■ ¾NPT ■ M20 x 1.5 | BVC IP66 2) | Screw-on lid | Natural finish | ½NPT |
| Transmitter models | Model T16 | Model T32 | Model TIF50 |
|---|---|---|---|
| Transmitter data sheet | TE 16.01 | TE 32.04 | TE 62.01 |
| Figure | |||
| Output | |||
| 4 ...20mA | x | x | x |
| HART ® protocol | - | x | x |
| Input | ■ Type K ■ Type J ■ Type E ■ Type N ■ TypeT | ■ Type K ■ Type J ■ Type E ■ Type N ■ TypeT | ■ Type K ■ Type J ■ Type E ■ Type N ■ TypeT ■ Type U ■ Type R ■ Type S ■ Type B ■ Type L |
| Explosion protection | Option | Option | Option |
| Possible mounting positions for transmitters | Model T16 | Model T32 |
|---|---|---|
| 1/4000 | ○ | ○ |
| 5/6000 | ○ | ○ |
| 7/8000 | ○ | ○ |
Process connection
| Design | TEFRACTO-PAD ® |
|---|---|
| Material (weldable) | Stainless steel 1.4841 (310) |
Sheathed cable (MI cable)
| Design | ■ Fixed connection (compression fitting) to the furnace ■ Sliding connection (piston/spring) to the furnace | ||
|---|---|---|---|
| Bending radius | Five times the sheath diameter | ||
| Cable length | Fixed connection | 150mm | |
| Other lengths on request | |||
| Sliding connection | User specifications | ||
| Sheath diameter | ■ 6.0 mm[0.24 in] ■ 6.4 mm[0.25 in] ■ 7.9 mm[0.31 in] ■ 9.5 mm[0.37 in] | ||
| Other diameters on request | |||
| Compression fitting | Fixed connection | The sealing from the process is performed by the compression fitting. It can be supplied in most common thread sizes. | |
| Sliding connection | - | ||
| Compensating cable | Fixed connection | Type depending on the sensor type, PTFE-insulated | |
| Sliding connection | User specifications | ||
| Wire ends | Fixed connection | - | |
| Sliding connection | User specifications | ||
| Sheath material | Resistance in sulphurous ambient | Resistance in max. temperature | |
| 2.4665 (Hastelloy X ® ) | Medium | 1,150 °C [2,102 °F] | |
| 2.4816 (Inconel 600 ® ) | Low | 1,150 °C [2,102 °F] | |
| Stainless steel 1.4841 (310) | Medium | 1,150 °C [2,102 °F] | |
| Stainless steel 1.4749 (446) 1) | High | 1,150 °C [2,102 °F] | |
| Haynes HR 160 ® | Very high | 1,200 °C [2,192 °F] | |
| Pyrosil D ® | High | 1,250 °C [2,282 °F] | |
| Stainless steel 1.4401 (316) | Medium | 850 °C [1,562 °F] | |
| Other materials on request |
Operating conditions
| Ambient and storage temperature | |
|---|---|
| PVC | 105 °C [221 °F] |
| PTFE | 250 °C [482 °F] |
| Fibreglass | 400 °C [752 °F] |
| Vibration resistance | 50 g (probe tip) |
| First index number | Degree of protection / Short description | Test parameters |
|---|---|---|
| Degrees of protection against solid foreign bodies (defined by the 1st index number) | ||
| 5 | Dust-protected | Per IEC/EN 60529 |
| 6 | Dust-tight | Per IEC/EN 60529 |
| Degrees of protection against water (defined by the 2nd index number) | ||
| 4 | Protected against splash water | Per IEC/EN 60529 |
| 5 | Protected against water jets | Per IEC/EN 60529 |
| 6 | Protected against strong water jets | Per IEC/EN 60529 |
| 7 2) | Protected against the effects of temporary immersion in water | Per IEC/EN 60529 |
| 8 2) | Protected against the effects of permanent immersion in water | By agreement |
| Patent number | Description |
|---|---|
| US17/554,754 EP21215402.5 CN202111548816.4 | Thermocouple sensor assembly (patent pending) |
| Model | Description | Order number |
|---|---|---|
| Tube clips | Material: Stainless steel 310 | |
| MI cable ∅6.0 ... 6.4 mm[0.24 ... 0.25 in] | 55984088 | |
| MI cable ∅7.9 ... 9.5 | mm[0.31 ... 0.37 in] | 55984095 |
