WIKA · Pressure measurement · Family PG

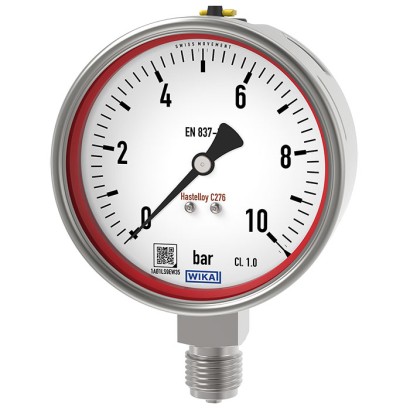

Bourdon tube pressure gauge, Hastelloy

Name: Bourdon tube pressure gauge, Hastelloy
Brand: WIKA
SKU: PG28

For the process industry, high corrosion resistance, NS 100 [4"] and 160 [6"]

Range

-1…700 bar

Accuracy

1.0

Protection

IP65

UKCACECRNNACE MR0175 / ISO 15156NACE MR0103 / ISO 17945PEDATEX II 2G Ex h IIC T6...T1 Gb XUKCA for explosive atmospheresPAC KazakhstanPAC UzbekistanII 2G Ex h IIC T6 ...T1 Gb XATEX: Ex h IIC T6 ... T1 Gb X

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The model PG28 Bourdon tube pressure gauge with wetted parts from Hastelloy C276 is particularly suitable for applications with aggressive media.

Hastelloy C276 belongs to the group of highly corrosion-resistant nickel-chromium-molybdenum-tungsten alloys and is notable for its high resistance to crevice corrosion, pitting and stress corrosion cracking in corrosive, oxidising and reducing media.

WIKA also produces the model PG28 in a particularly safe version with a solid baffle wall (Solidfront). This safety version is made up of a non-splintering window, a solid baffle wall between measuring system and dial and a blow-out back.

In the event of a failure, the user is protected at the front side, as media or components can only be ejected via the rear of the case.

As an alternative, WIKA offers diaphragm seals of models 990.34 and 990.10 as well as model 4 diaphragm pressure gauges in a Hastelloy version. Diaphragm seals are always the first choice for safety-relevant applications.

The QR code on the dial allows instrument-specific information such as the serial number, the order number, certificates and other product data to be retrieved from the internet easily and in the long term.

Special features

Wetted parts from Hastelloy C276
Excellent resistance against corrosive media such as sulphuric acid, nitric acid, chlorine gas etc.
Safety version with solid baffle wall (Solidfront) available
Scale ranges from 0 … 0.6 to 0 … 700 bar [0 … 10 to 0 … 10,000 psi]
QR code on dial links to instrument-specific information

Configurator · Step by step

Build a PG28 for your task

The article number is assembled automatically. If unsure — ask an engineer; we'll match the line's parameters.

Step 1 of 4

Configuration structure· click a highlighted segment to jump to that parameter

lower mountlower back mount

Your configuration

Measuring systemHastelloy
Liquid Damping (case filling)without filling
Casesolid front design EN837 "S3"
Nominal size100
Unit of outer Scalebar
Measuring rangegauge pressure range
Scale range0...0.6 bar
2nd Scale or Special Scalewithout
Process connectionG 1/2 B
Connection location—
Mounting flange/bracketwithout
Windowlaminated safety glass
Restrictorwithout
Pointerstandard pointer
Set / drag pointerwithout
Special design featureswithout
Explosion protection—
Ignition protection type—
Zone—
Certificateswithout
Approvalswithout
Assembly accessorywithout
Additional ordering informationWithout

AI suggestion by parameters

Finish your configuration

Select every option to submit the request.

Send request

Your configuration

Measuring systemHastelloy
Liquid Damping (case filling)without filling
Casesolid front design EN837 "S3"
Nominal size100
Unit of outer Scalebar
Measuring rangegauge pressure range
Scale range0...0.6 bar
2nd Scale or Special Scalewithout
Process connectionG 1/2 B
Connection location—
Mounting flange/bracketwithout
Windowlaminated safety glass
Restrictorwithout
Pointerstandard pointer
Set / drag pointerwithout
Special design featureswithout
Explosion protection—
Ignition protection type—
Zone—
Certificateswithout
Approvalswithout
Assembly accessorywithout
Additional ordering informationWithout

Send request

Identification

Model	PG28
Product family	PG
Subcategory	Bourdon tube pressure gauge

Measuring range

Pressure ranges

-1…3 bar · 0…0.6 bar · 0…40 bar · 0…1 bar · 0…60 bar · 0…1.6 bar · 0…100 bar · 0…2.5 bar · 0…160 bar · 0…4 bar · 0…250 bar · 0…6 bar · 0…400 bar · 0…10 bar · 0…16 bar · 0…700 bar · 0…25 bar · 0…60 psi · -1…0 bar · -1…0.6 bar · -1…1.5 bar · 0…600 bar · 0…10 psi · 0…800 psi · 0…15 psi · 0…1000 psi · 0…30 psi · 0…1500 psi · 0…2000 psi · 0…100 psi · 0…3000 psi · 0…160 psi · 0…4000 psi · 0…200 psi · 0…5000 psi · 0…300 psi · 0…6000 psi · 0…400 psi · 0…7500 psi · 0…600 psi · 0…10000 psi · 0…60 kPa · 0…100 kPa · 0…160 kPa · 0…250 kPa · 0…400 kPa · 0…600 kPa · 0…1000 kPa · 0…1600 kPa · 0…2500 kPa · 0…0.06 MPa · 0…0.1 MPa · 0…0.16 MPa · 0…0.25 MPa · 0…0.4 MPa · 0…0.6 MPa · 0…1 MPa · 0…1.6 MPa · 0…2.5 MPa · -100…0 kPa · -100…60 kPa · -100…150 kPa · -100…300 kPa · -60…0 kPa · -30…0 inHg · -30…100 inHg · -30…160 inHg · -30…200 inHg · -30…300 inHg · 0…4000 kPa · 0…6000 kPa · 0…10000 kPa · 0…16000 kPa · 0…25000 kPa · 0…40000 kPa · 0…60000 kPa · 0…70000 kPa · 0…4 MPa · 0…6 MPa · 0…10 MPa · 0…16 MPa · 0…25 MPa · 0…40 MPa · 0…60 MPa · 0…70 MPa · -1…9 bar · -100…900 kPa · -1…5 bar · -1…15 bar · -1…24 bar · -30…15 inHg · -30…30 inHg · -30…60 inHg · -0.6…0 bar

Accuracy

Accuracy class	1.0
Accuracy standard	EN 837-1

Process conditions

Process connection	M20 x 1.5R ½G ½ B½ NPTG 1/2 BR 1/21/2 NPT
Process temperature	−40…+200 °C

Materials

Case material	Stainless steel 1.4301 (304), Stainless steel 1.4571 (316Ti)
Wetted parts material	Hastelloy C276

Operating environment

Ambient temperature	−40…+60 °C
IP rating	IP65
Weight	0.9 kg

Certifications and approvals

Certifications	UKCACECRNNACE MR0175 / ISO 15156NACE MR0103 / ISO 17945PED
Explosion protection	ATEX II 2G Ex h IIC T6...T1 Gb XATEX II 2D Ex h IIIC T85°C...T450°C Db XUKCA for explosive atmospheresPAC KazakhstanPAC UzbekistanII 2G Ex h IIC T6 ...T1 Gb XII 2D Ex h IIIC T85°C ...T450°C Db XATEX: Ex h IIC T6 ... T1 Gb XDust II 2D Ex h IIC T85℃ ... T450℃ Db X

Additional details

Dial size	100 mm
Datasheet languages	EN

Tables from datasheet

Accuracy specifications

Accuracy class
EN 837-1	Class 1.0
ASME B40.100	±1 %of measuring span (grade 1A)
Temperature error	On deviation from the reference conditions at the measuring system: ≤ ±0.4 %per 10 °C [≤ ±0.4 %per 18 °F] of full scale value
Reference conditions
Ambient temperature	+20 °C [+68 °F]

bar
0 ... 0.6	0 ... 40
0 ... 1	0 ... 60
0 ... 1.6	0 ... 100
0 ... 2.5	0 ... 160
0 ... 4	0 ... 250
0 ... 6	0 ... 400
0 ... 10	0 ... 600
0 ... 16	0 ... 700
0 ... 25	-

kPa

0 ... 60	0 ... 4,000
0 ... 100	0 ... 6,000
0 ... 160	0 ... 10,000
0 ... 250	0 ... 16,000
0 ... 400	0 ... 25,000
0 ... 600	0 ... 40,000
0 ... 1,000	0 ... 60,000
0 ... 1,600	0 ... 70,000
0 ... 2,500	-

psi
0 ... 10	0 ... 800
0 ... 15	0 ... 1,000
0 ... 30	0 ... 1,500
0 ... 60	0 ... 2,000
0 ... 100	0 ... 3,000
0 ... 160	0 ... 4,000
0 ... 200	0 ... 5,000
0 ... 300	0 ... 6,000
0 ... 400	0 ... 7,500
0 ... 600	0 ... 10,000

View all (20)

kg/cm 2

0 ... 0.6	0 ... 40
0 ... 1	0 ... 60
0 ... 1.6	0 ... 100
0 ... 2.5	0 ... 160
0 ... 4	0 ... 250
0 ... 6	0 ... 400
0 ... 10	0 ... 600
0 ... 16	0 ... 700
0 ... 25	-

MPa

0 ... 0.06	0 ... 4
0 ... 0.1	0 ... 6
0 ... 0.16	0 ... 10
0 ... 0.25	0 ... 16
0 ... 0.4	0 ... 25
0 ... 0.6	0 ... 40
0 ... 1	0 ... 60
0 ... 1.6	0 ... 70
0 ... 2.5	-

bar
-0.6 ... 0	-1 ...+5
-1 ... 0	-1 ...+9
-1 ... +0.6	-1 ...+15
-1 ... +1.5	-1 ...+24
-1 ...+3	-

kPa

-60 ... 0	-100 ...+500
-100 ... 0	-100 ...+900
-100 ...+60	-100 ... +1,500
-100 ...+150	-100 ... +2,400
-100 ...+300	-

MPa

-0.06 ... 0	-0.1 ... +0.5
-0.1 ... 0	-0.1 ... +0.9
-0.1 ... +0.06	-0.1 ... +1.5
-0.1 ... +0.15	-0.1 ... +2.4
-0.1 ... +0.3	-

psi

-30 inHg ... 0	-30 inHg ...+100
-30 inHg ...+15	-30 inHg ...+160
-30 inHg ...+30	-30 inHg ...+200
-30 inHg ...+60	-30 inHg ...+300

Further details on: scale ranges
Special scale ranges	→ Other scale ranges on request
Unit	■ bar ■ psi ■ kg/cm² ■ kPa ■ MPa
Increased overload safety	■ Without ■ 2 times
	The possibility of selection depends on scale range and nominal size
Vacuum resistance	■ Without ■ Vacuum-resistant to -1 bar
Dial
Scale colour	Black
Material	Aluminium
Special scale	→ Other scales or customised dials, e.g. with red mark, circular arcs or circular sectors, on request
Pointer
Instrument pointer	Aluminium, black
Mark pointer / Drag pointer	■ Without ■ Red mark pointer on dial, fixed ■ Red mark pointer on window, adjustable ■ Mark pointer on bayonet bezel, adjustable ■ Red drag pointer on window, adjustable
Pointer stop pin	■ Without ■ At 6 o'clock

Process connection
Standard	■ EN 837-1 ■ ISO 7 ■ ANSI/B1.20.1
Size
EN 837-1	■ G½B,male thread ■ M20 x 1.5, male thread
ISO 7	R ½, male thread
ANSI/B1.20.1	½NPT, male thread
Restrictor	■ Without ■ ∅0.6 mm[0.024"], stainless steel ■ ∅0.3 mm[0.012"], stainless steel
Material (wetted)
Process connection	Hastelloy C276
Bourdon tube	Hastelloy C276

Operating conditions

Medium temperature
Instruments without filling	≤ 200 °C [392 °F]
Instruments with filling	≤ 100 °C [212 °F]
Ambient temperature
Instruments without filling	-40 ...+60 °C [-40 ...+140 °F]
Instruments with glycerine filling	-20 ...+60 °C [-4 ...+140 °F]
Instruments with silicone oil filling	-40 ...+60 °C [-40 ...+140 °F]
Pressure limitation
Steady	Full scale value
Fluctuating	0.9 x full scale value
Short time	1.3 x full scale value
Ingress protection per IEC/EN 60529	IP65 1)

Logo	Description	Region
	EU declaration of conformity Pressure Equipment Directive PS > 200 bar, module A, pressure accessory	European Union
	UKCA Pressure equipment (safety) regulations	United Kingdom
-	CRN Safety (e.g. electr. safety, overpressure, ...) For full scale value ≤ 1,000 bar	Canada

Logo	Description	Region
EU declaration of conformity ATEX directive Hazardous areas	European Union
	Gas Dust	II 2G Ex h IIC T6 ...T1 Gb X II 2D Ex h IIIC T85°C ...T450°C Db X
UKCA Equipment and protective systems intended for use in potentially explosive atmospheres regulations	United Kingdom
PAC Kazakhstan Metrology, measurement technology	Kazakhstan
PAC Uzbekistan Metrology, measurement technology	Uzbekistan

Logo	Description
-	Pressure Equipment Directive (PED) for maximum allowable pressure PS ≤ 200 bar

Certificates

■ 2.2 test report per EN 10204 (e.g. state-of-the-art manufacturing, indication accuracy) ■ 3.1 inspection certificate per EN 10204 (e.g. material proof for wetted metal parts, indication accuracy) ■ PCA calibration certificate, traceable and accredited in accordance with ISO/IEC 17025 ■ Calibration certificate by a national accreditation body, traceable and accredit - ed in accordance with ISO/IEC 17025 on request

Recommended calibration interval

1 year (dependent on conditions of use)

NS	G	100 [4] 15,5 [0.61] 49 [1.93] 101 [3.97] 96 [3.78] 17 [0.67] 14,5 [0.57] 22,5 [0.89] 0,60 NS b [ ± 0.02] D1 D2 f e j 100 49 101 96 17 14,5 NS100 mm [inch] G1/2B [3.26] Dimensions in mm[in]
		h ±1	160 [6] h1 ±1	15,5 [0.61] 51 1/2NPT a	161 [6.33] 83 82 [3.23] b	156 [6.14] 20 [0.79] 19 [0.75] D1	17,5 [0.69] 14,5 D2	15 [4] e	1,10 [1.93] [3.97] i	[3.78] y	30 k	[0.67] [0.57] S3
100 [4"]	G½B M20 x 1.5	87 [3.43]	83 [3.27]	[2.01] M20x1,5 15.5 [0.61]	83 [3.26] 49.5 [1.95]	20 [0.79] 101 [3.98]	[0.57] 99 [3.90]	[0.59] 30 [1.18]	6.5 [0.26]	14.5 [0.57]	22.5 [0.89]	20 [0.79]
160 [6"]	G½B M20 x 1.5	118 [4.65]	-	15.5 [0.61]	49.5 [1.95]	161 [6.34]	159 [6.26]	-	6.5 [0.26]	14.5 [0.57]	15 [0.59]	20 [0.79]

NS	G	Dimensions in mm[in]
		h ±1	h1 ±1	a	b	D1	D2	e	i	y	k	S3
100 [4"]	½NPT	86 [3.39]	82 [3.23]	15.5 [0.61]	49.5 [1.95]	101 [3.98]	99 [3.90]	30 [1.18]	6.5 [0.26]	14.5 [0.57]	22.5 [0.89]	19 [0.75]
160 [6"]	½NPT	117 [4.61]	-	15.5 [0.61]	49.5 [1.95]	161 [6.34]	159 [6.26]	-	6.5 [0.26]	14.5 [0.57]	15 [0.59]	19 [0.75]

NS	Weight in kg [lb]
	Without filling	With filling
100 [4"]	Approx. 0.6 [1.32]	Approx. 0.9 kg [1.98]
160 [6"]	Approx. 1.1 [2.43]	Approx. 2.1 kg [4.63]
