WIKA · Pressure measurement · Family IV3, IV5

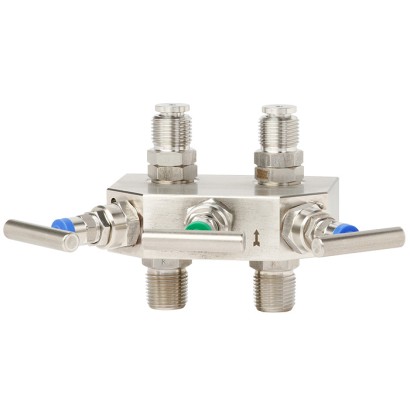

Valve manifold for differential pressure measuring instruments
Valve manifold for differential pressure measuring instruments, 3- and 5-valve manifold for gaseous and liquid aggressive media in oil and gas, petrochemical, chemical, power generation, water and wastewater industries.
Range
0…690 bar
Output
—
Accuracy
—
Protection
—
EACCRNPEDNACE MR0175 / ISO 15156ASME B31.1ISO 10497API 6FAAPI 607TA-Luft (VDI 2440)ISO 15848-1API 598ISO 5208
Price
From €353
Confirm at order time
Special features
- Low-wear design due to non-rotating spindle tip in the bonnet
- Low torque and smooth operation of valve handle even at high pressure
- Standardised centre distances of 37 mm and 54 mm, suitable for WIKA differential pressure gauges and commonly used process transmitters
- Valve seat tested for leak tightness per ISO 5208 leak rate A
- Enhanced working safety due to blow-out proof bonnet design, especially in applications with high pressure loading
