Industrial analogue measuring instruments

Name: Industrial analogue measuring instruments
Brand: WIKA

Industrial analogue measuring instruments with multi-function display for precision scales, industrial scales, and machine building applications.

Output

0/4 ... 20 mA, DC 0 ... 10 V

Accuracy

0.03 % of reading +2 µA or +2 mV

Protection

IP65/IP20

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

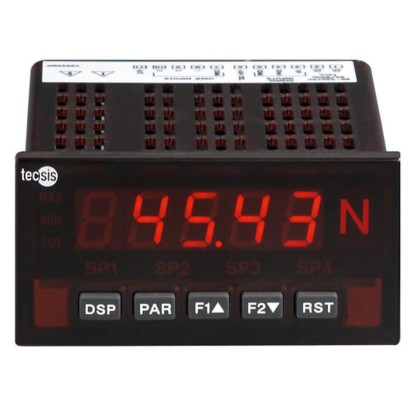

Analogue measuring instruments as a display for the panel mounting or as a large display E1930 are well suited for numerous applications because of their accuracy and being easy to read. Measured values and the status of the relay outputs are shown on the 5-digit digital multi-function display. The measuring instruments also offer a totalizer as well as Min/Max memory.

The connection to the corresponding force transducer and the parameterisation are usually performed by the customer for this model. Programming the instrument is menu-driven. All force transducers with an output signal of 0/4 ... 20 mA 2- or 3-wire as well as 0 ... 10 V can be connected. Up to two different sensors can be connected at a time. The internal sensor supply is DC 24 V.

Industrial mV/V measuring instruments, large display or display model E1931

Requests and parameterisation of different values are possible by way of the optional serial interface. The optional 2 or 4 relays allow the monitoring of falling below or exceeding limit values. In addition, a 0/4 ... 20 mA output signal is available for analogue evaluation. Interference signals can be eliminated by filter setting options.

Special features

5-digit digital display, easy to read up to 50 m
High accuracy: 0.03 % of reading +2 μA or +2 mV
Extensive functions easy to set on the instrument or via PC
Plug-in expansion cards, analogue output, 2 or 4 limit values, serial interface
Ingress protection IP65

Identification

Model	E1931
Product family	E1930
Subcategory	Display instrument

Accuracy

Accuracy class

0.03 % of reading +2 µA or +2 mV

Process conditions

Process temperature

−40…+60 °C

Electrical characteristics

Output signal

0/4 ... 20 mA, DC 0 ... 10 V

Operating environment

Ambient temperature	+0…+50 °C
IP rating	IP65/IP20
Weight	2.25 kg

Certifications and approvals

Certifications

Additional details

Datasheet languages

Tables from datasheet

Model E1930
Measuring range	0/4 ... 20 mA2- or 3-wire as well as DC 0 ...10V Option: 2 inputs ■ -2…26mA ■ DC -1…13V
Display	5-digit, red, LED display readable in sunlight, 14 or 100 mmhigh Output max. -19,999 to +99,999 digits Refresh rate: 1 to 20 updates/s. Min/Max display Relay status display
Sensor supply	DC 24 V, ±5 %, controlled, max.50mA
Accuracy	20 mA:0.03 %of reading +2 μA DC 10 V: 0.03 %of reading +2mV
Linearisation	Number of linearisation steps: Selectable from 2 to 16 Scale range: -19,999 to 99,999 Decimal point: 0 to 0.0000
Rated temperature range	18…28°C
Service temperature B T, G	0 …50°C(with all 3 cards inserted 0 …45°C)
Storage temperature range	-40…60°C
Output signal (option)	2 or 4 relay outputs (transistor outputs available as an alternative) Analogue output 0 ... 20 mAand DC 0 ...10V RS-232 interface RS-485 interface Profi-DP interface
Digital input	3 programmable user inputs Maximum voltage:DC 30V Maximum step response time: 50 ms Selectable by jumper: ■ NPN:Active Vin < DC 0.9 V, inactive Vin > DC 3.6V ■ PNP: Active Vin > DC 3.6 V, inactive Vin < DC 0.9V
Resolution	16-bit A/D converter
Sampling rate	20 Hz
Supply voltage ■ Standard ■ Option	AC 85 …250V, 50/60 Hz, 15VA DC 11 …36V, 11W/ AC 24 V, 15VA
Response time	< 200 ms for displaying 99 %of the final reading value without zero adjustment < 700 ms for displaying 99 %of the final reading value with zero adjustment The response time changes with setting digital n-stage filtering
Ingress protection (per IEC/EN 60529)	IP65 (front only) IP20 (rear of unit)
Interference emission	CISPR 11 class A
Immunity	EN 61326-1 immunity for industrial areas
Common-mode rejection (CMR)	> 100 dB, DC to 120 Hz
Relative humidity	max. 85 %r.h., non-condensing
Approvals	UL approval (Underwriters Laboratories) for the USA and Canada
Weight	Display: approx. 300 g (without plug-in options) Large display: approx. 2.25 kg (including measurement module)

Version with 1 analogue input

Pin	Connections
1	AC	AC 85 - 250V 50/60 Hz
2	AC	AC 85 - 250V 50/60 Hz
3	10 V	Voltage connection
4	20 mA	Power connection
5	COMM.	Ground signal input
6	DC +24 V	Sensor supply
7	COMM	Ground user input
8	USER1	User input 1
9	USER2	User input 2
10	USER3	User input 3
11	N/C	Not assigned

Version with 2 analogue inputs

Pin	Connections
1	AC	AC 85 - 250V 50/60 Hz
2	AC	AC 85 - 250V 50/60 Hz
3	+18 V EXC A	Sensor supply channel A
4	20 mA	Power connection
5	Input A	Input channel A
6	+18 V EXC B	Sensor supply channel B
7	COMM B	Ground channel B
8	Input B	Input channel B
9	USER1	User input 1
10	USER2	User input 2
11	USER COMM	Ground user inputs
