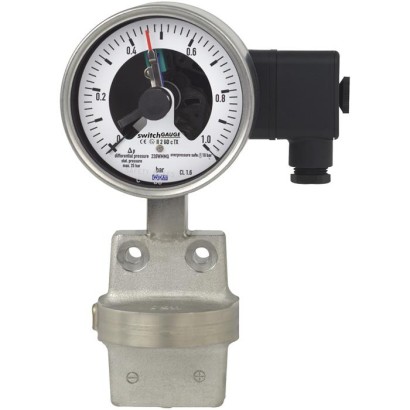

WIKA · Pressure measurement · Family DPGS43
Differential pressure gauge with switch contacts
For the process industry, all-metal media chamber
Range
0…400 mbar
Output
Reed switch
Accuracy
1.6
Protection
IP54
CELow voltage directiveEMCRoHSREACHPressure Equipment DirectiveEMC directivePressure equipmentLow voltageGOSTKazInMetrBelGIMUkrSEPROUzstandardPressure equipment directiveATEXIECExEACNEPSIEx UkraineII2G Ex ia IIC T6/T5/T4 GbII2D Ex ia IIIB T135℃ DbEx ia IIC T6/T5/T4 GbEx ia IIIB T135℃ Db
Price
On request
Depends on configuration
Description
Wherever the process pressure has to be indicated locally and, at the same time, circuits need to be switched, the model DPGS43.1x0 switchGAUGE finds its use.
Switch contacts (electrical alarm contacts) make or break circuits dependent upon the pointer position of the pressure gauge. The switch contacts are adjustable over the full extent of the scale range (see DIN 16085), and are mounted predominantly below the dial, though also partly on top of the dial. The instrument pointer (actual value pointer) moves freely across the entire scale range, independent of the setting.
The set pointer can be adjusted using a removable adjustment key in the window.
Special features
- Differential pressure measuring ranges from 0 ... 16 mbar
- High working pressure (static pressure) and high overload safety up to 40 bar
- Also available with liquid-filled case for high dynamic pressure loads or vibrations
- Instruments with inductive contacts for use in hazardous areas
- Instruments with switch contact for PLC applications
Identification
| Model | DPGS43.100 |
| Product family | DPGS43 |
| Subcategory | Differential pressure gauge with switch |
Measuring range
| Pressure ranges | 0…16 mbar · 0…250 mbar · 0…400 mbar · 0…40 bar |
Accuracy
| Accuracy class | 1.6 |
| Accuracy standard | EN 837-3 |
Process conditions
| Process connection | G ¼ B femaleG ½ B male½ NPT maleG1/2B femaleG1/2B male1/2NPT male |
| Process temperature | −20…+100 °C |
Electrical characteristics
| Output signal | Reed switch · Inductive contact · Electronic contact · Magnetic snap-action contact · PNP transistor |
| Power supply | DC 10...30V |
| Electrical connection | Cable socket PA 6, black, M20 x 1.5 |
| Switching function | Normally open (clockwise pointer motion), Normally closed (clockwise pointer motion), Change-over |
| Switching contacts | 4 |
Materials
| Case material | Stainless steel |
| Wetted parts material | Stainless steel 316Ti (1.4571), NiCr alloy (Inconel), Stainless steel 316L, Bellows: Stainless steel 316Ti (1.4571) |
Operating environment
| Ambient temperature | −20…+80 °C |
| IP rating | IP54 |
Certifications and approvals
| Certifications | CELow voltage directiveEMCRoHSREACHPressure Equipment DirectiveEMC directiveMetrology, measurement technologyPressure equipmentLow voltageGOSTKazInMetrBelGIMUkrSEPROUzstandard |
| Explosion protection | [II 2G Ex ia IIC T6/T5/T4 Gb] [II 2D Ex ia IIIB T135°C Db][Ex ia IIC T6/T5/T4 Gb] [Ex ia IIIB T135°C Db]ATEXIECExEACNEPSIEx UkraineII2G Ex ia IIC T6/T5/T4 GbII2D Ex ia IIIB T135℃ DbEx ia IIC T6/T5/T4 GbEx ia IIIB T135℃ Db |
Additional details
| Dial size | 100 mm |
| Datasheet languages | EN, DE |
Tables from datasheet
Models DPGS43.100, DPGS43.160
| Version | Process connections lower mount or lateral (option), highly corrosion-resistant solid metal design, measuring cell protected against unauthorised access. Overload resistance per EN 837-3 |
|---|---|
| Nominal size inmm | ■ 100 ■ 160 |
| Accuracy class | 1.6 Option: 1.0 on request |
| Scale ranges | 0 ... 16 mbar to 0 ... 250 mbar 0 ... 400 mbar to 0 ... 40 bar other units (e.g. psi, kPa) available or all other equivalent vacuum or combined pressure and vacuum ranges |
| Scale | Single scale Option: ■ Dual scale ■ Scale layout (e.g. linear pressure or square root incrementation) |
| Zero point setting | Without Option: Zero point adjustment appliance |
| Pressure limitation | |
| Steady | Full scale value |
| Fluctuating | 0.9 x full scale value Observe the recommendations for the use of mechanical pressure measuring systems in accord- ance with EN 837-2 |
| Overpressure safety and max. working pressure (static pressure) | see table on page 3 |
| Connection location | Lower mount (radial) Option: lateral (right, left, front or back) |
| Process connection | ■ G¼Bfemale ■ G½Bmale ■ ½NPTmale Other process connections via female or male threads on request |
| Restrictor | Without Option: Restrictor in the pressure port |
| Permissible temperature 1) | |
| Medium | -20 ...+100 °C Option: Medium temperature > 100 °C on request |
| Ambient | -20 ...+60 °C (with window from polycarbonate max. 80 °C) |
| Temperature effect | When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.5 %/10 K of full scale value |
| Case | ■ Version S1 per EN 837:With blow-out device in case back ■ Safety version S3 per EN 837:With solid baffle wall (Solidfront) and blow-out back |
| Case filling | Without Option: With case filling |
| Venting of the media chamber | With scale ranges ≤ 0.25 bar Option: With scale ranges ≥ 0.4 bar |
Models DPGS43.100, DPGS43.160
| Wetted materials | |
|---|---|
| Media chamber with process connection | Stainless steel 316Ti (1.4571) Lower mount 2 x G¼female |
| Pressure elements | ≤ 0.25 bar: Stainless steel 316L > 0.25 bar: NiCr alloy (Inconel) |
| Venting of the media chamber | Stainless steel 316Ti (1.4571) for scale ranges ≤ 0.25 bar Option: with scale ranges ≥ 0.4 bar |
| Bellows | Stainless steel 316Ti (1.4571) |
| Non-wetted materials | |
| Movement | Brass |
| Dial | Aluminium, white, black lettering |
| Pointer | Aluminium, black |
| Case | Stainless steel, with blow-out device |
| Window | Laminated safety glass |
| Ring | Bayonet ring, stainless steel |
| Ingress protection per IEC/EN 60529 | IP54 1 ) Option: IP65 with liquid filling |
| Installation | according to affixed symbols:⊕high pressure, ⊖low pressure |
| Mounting | ■ Rigid measuring lines ■ Mounting holes in measuring flange Option: ■ Panel mounting flange ■ Instrument mounting bracket for wall or pipe mounting |
| Electrical connection | Cable socket PA 6, black PerVDE 0110 insulation group C/250V Cable gland M20 x 1.5 Strain relief 6 screw terminals + PE for conductor cross-section 2.5 mm² For dimensions see page 10 others on request |
| Scale ranges | Overload safety in bar either side max. | Max. working pressure in bar (static pressure) | ||
|---|---|---|---|---|
| Standard | Option | Standard | Option | |
| 0 ... 16 to 0 ... 40 mbar | 2.5 | - | 2.5 | 6 2) |
| 0 ... 60 to 0 ... 250 mbar | 2.5 | 6 | 6 | 10 |
| 0 ... 400 mbar | 4 | 40 | 25 | 40 |
| 0 ... 0.6 bar | 6 | 40 | 25 | 40 |
| 0 ... 1 bar | 10 | 40 | 25 | 40 |
| 0 ... 1.6 bar | 16 | 40 | 25 | 40 |
| 0 ... 2.5 to 0 ... 25 bar | 25 | 40 | 25 | 40 |
| Measuring span | Nominal size | Max. number of contacts | Switching current range I | Switch version 1) |
|---|---|---|---|---|
| ≤ 1.0 bar | 100, 160 | 1 | 0.02 ... 0.3 A | L |
| > 1.0 bar | 100, 160 | 1 | 0.02 ... 0.6 A | S |
| ≤ 1.6 bar | 100, 160 | 2 | 0.02 ... 0.3 A | L |
| > 1.6 bar | 100, 160 | 2 | 0.02 ... 0.6 A | S |
| ≤ 4.0 bar | 100 | 4 | 0.02 ... 0.3 A | L |
| > 4.0 bar | 100 | 4 | 0.02 ... 0.6 A | S |
| ≤ 2.5 bar | 160 | 4 | 0.02 ... 0.3 A | L |
| > 2.5 bar | 160 | 4 | 0.02 ... 0.6 A | S |
View all (20)
| Characteristics | Unfilled instruments | Filled instruments | ||
|---|---|---|---|---|
| Resistive load | Resistive load | |||
| Switch version 'S' | Switch version 'L' | Switch version 'S' | Switch version 'L' | |
| Rated operating voltage U eff | ≤ 250V | ≤ 250V | ||
| Rated operating current | ||||
| Switch-on current | ≤ 1.0 A | ≤ 0.5 A | ≤ 1.0 A | ≤ 0.5 A |
| Switch-off current | ≤ 1.0 A | ≤ 0.5 A | ≤ 1.0 A | ≤ 0.5 A |
| Continuous current | ≤ 0.6 A | ≤ 0.3 A | ≤ 0.6 A | ≤ 0.3 A |
| Switching power | ≤ 30W/ ≤ 50VA | ≤ 20W/ ≤ 20VA |
| Operating voltage | Unfilled instruments | Filled instruments | ||||
|---|---|---|---|---|---|---|
| Resistive load | Inductive load | Resistive load | Inductive load | |||
| Direct current | Alter - nating current | cos ϕ>0.7 | Direct current | Alter - nating current | cos ϕ>0.7 | |
| DC 220 V / AC 230 V | 100mA | 120mA | 65mA | 65mA | 90mA | 40mA |
| DC 110 V / AC 110 V | 200mA | 240mA | 130mA | 130mA | 180mA | 85mA |
| DC 48 V / AC 48 V | 300mA | 450mA | 200mA | 190mA | 330mA | 130mA |
| DC 24 V / AC 24 V | 400mA | 600mA | 250mA | 250mA | 450mA | 150mA |
| Measuring span | Nominal size | Case version | Max. number of contacts |
|---|---|---|---|
| 0.6 bar | 100, 160 | S1 | 1 |
| 0.6 bar | 160 | S3 | 1 |
| 1.0 bar | 100, 160 | S1 | 2 |
| 1.0 bar | 100 | S3 | 1 |
| 1.0 bar | 160 | S3 | 2 |
| ≥ 1.6 bar | 100, 160 | S1, S3 | 3 |
| T6 | T5 ...T1 | T135°C |
|---|---|---|
| -20 ...+60 °C | -20 ...+70 °C | -20 ...+70 °C |
| Model | Version | Ex version |
|---|---|---|
| 904.28 KFA6 - SR2 - Ex1.W | 1 contact | yes |
| 904.29 KFA6 - SR2 - Ex2.W | 2 contacts | yes |
| 904.30 KHA6 - SH - Ex1 | 1 contact | yes - safety equipment |
| 904.33 KFD2 - SH - Ex1 | 1 contact | yes - safety equipment |
| 904.25 MSR 010-I | 1 contact | no |
| 904.26 MSR 020-I | 2 contacts | no |
| 904.27 MSR 011-I | Two-point control | no |
| Measuring span | Nominal size | Case version | Max. number of contacts |
|---|---|---|---|
| 0.6 bar | 100, 160 | S1 | 1 |
| 0.6 bar | 160 | S3 | 1 |
| 1.0 bar | 100, 160 | S1 | 2 |
| 1.0 bar | 100 | S3 | 1 |
| 1.0 bar | 160 | S3 | 2 |
| ≥ 1.6 bar | 100, 160 | S1, S3 | 2 |
Characteristics
| Contact version | Normally open, normally closed |
|---|---|
| Type of output | PNP transistor |
| Operating voltage | DC 10 ...30V |
| Residual ripple | max.10% |
| No-load current | ≤ 10mA |
| Switching current | ≤ 100mA |
| Residual current | ≤ 100 µA |
| Voltage drop (with I max. ) | ≤ 0.7V |
| Reverse polarity protection | Conditional U B (the switched output 3 or 4 must never be set directly to minus) |
| Anti-inductive protection | 1 kV, 0.1 ms, 1 kΩ |
| Oscillator frequency | approx. 1,000 kHz |
| EMC | per EN 60947-5-2 |
| Measuring span | Nominal size | Max. number of contacts |
|---|---|---|
| ≥ 16 mbar | 100, 160 | 2 |
| Characteristics | |
|---|---|
| Contact version | Change-over contact |
| Type of contact | Bistable |
| Max. switching voltage | AC/DC 250V |
| Min. switching voltage | Not required |
| Switching current | AC/DC 1 A |
| Min. switching current | Not required |
| Transport current | AC/DC 2 A |
| cosϕ | 1 |
| Switching power | 60W/VA |
| Contact resistance (static) | 100mΩ |
| Insulation resistance | 10 9 Ω |
| Breakdown voltage | DC 1,000V |
| Switching time incl. contact chatter | 4.5 ms |
| Contact material | Rhodium |
| Switch hysteresis | 3 ...5% |
| Logo | Description | Country |
|---|---|---|
| EU declaration of conformity ■ EMCdirective ■ Pressure equipment directive ■ ATEX directive (option) 1) Hazardous areas | European Union | |
| IECEx (option) 1) Hazardous areas Ex ia Gas [Ex ia IIC T6/T5/T4 Gb] Dust [Ex ia IIIB T135°C Db] | International | |
| EAC (option) ■ EMCdirective ■ Pressure equipment directive ■ Low voltage directive ■ Hazardous areas 1) | Eurasian Economic Community | |
| GOST (option) Metrology, measurement technology | Russia | |
| KazInMetr (option) Metrology, measurement technology | Kazakhstan | |
| - | MTSCHS (option) Permission for commissioning | Kazakhstan |
| BelGIM (option) Metrology, measurement technology | Belarus | |
| UkrSEPRO (option) Metrology, measurement technology | Ukraine | |
| Ex Ukraine (option) 1) Hazardous areas | Ukraine | |
| Uzstandard (option) Metrology, measurement technology | Uzbekistan | |
| NEPSI (option) 1) Hazardous areas | China | |
| - | CRN Safety (e.g. electr. safety, overpressure, ...) | Canada |
| Type of contact | Dimensions inmm | |
|---|---|---|
| X | Y | |
| Single or double contact | 88 | 55 |
| Double (change-over) contact | 113 | 80 |
| Triple contact | 96 | 63 |
| Quadruple contact | 113 | 80 |
| Process connection | Dimensions inmm | |||||
|---|---|---|---|---|---|---|
| h ±1 | S2 | S3 | S4 | S5 | S6 | |
| G½B | 203 | 6 | 20 | 3 | 17 | 17.5 |
| ½NPT | 201 | - | 19 | - | - | - |
| Type of contact | Dimensions inmm X |
|---|---|
| Single or double contact | 102 |
| Double (change-over) contact | 116 |
| Triple contact | 102 |
| Quadruple contact | 116 |
| Process connection | Dimensions inmm | |||||
|---|---|---|---|---|---|---|
| h ±1 | S2 | S3 | S4 | S5 | S6 | |
| G½B | 233 | 6 | 20 | 3 | 17 | 17.5 |
| ½NPT | 231 | - | 19 | - | - | - |
| Scale range | Dimensions inmm | ||
|---|---|---|---|
| Ø d | h ±1 | H ±1 | |
| ≤ 0.25 bar | 140 | 161 | 90 |
| > 0.25 bar | 78 | 171 | 87 |
| Scale range | Dimensions inmm | ||
|---|---|---|---|
| Ø d | h ±1 | H ±1 | |
| ≤ 0.25 bar | 140 | 201 | 117 |
| > 0.25 bar | 78 | 190 | 120 |
Industry
Machinery
For measuring points with increased differential overpressure
