WIKA · Pressure measurement · Family 632

Capsule pressure gauge with switch contacts

Name: Capsule pressure gauge with switch contacts
Brand: WIKA

For the process industry, high overload safety

Range

0…100 mbar

Output

2-wire system · 3-wire system

Accuracy

1.6

Protection

IP54

RoHSEACGOSTKazInMetrUzstandardBelGIMUkrSEPROEMCLow voltagePressure equipmentCEATEXIECExCRN[II 2G Ex ia IIC T6/T5/T4 Gb][II 2D Ex ia IIIB T135 °C Db][Ex ia IIC T6/T5/T4 Gb][Ex ia IIIB T135°C Db]II 2G Ex ia IIC T6/T5/T4 GbII 2D Ex ia IIIB T135 °C DbEx ia IIC T6/T5/T4 GbEx ia IIIB T135°C DbDust [II 2D Exia IIIB T135℃ Db]

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

Wherever the process pressure has to be indicated locally and, at the same time, circuits need to be switched, the model 632.51 switchGAUGE finds its use.

Switch contacts (electrical alarm contacts) make or break circuits dependent upon the pointer position of the indicating measuring instruments. The switch contacts are adjustable over the full extent of the scale range (see DIN 16085), and are mounted predominantly below the dial, though also partly on top of the dial. The instrument pointer (actual value pointer) moves freely across the entire scale range, independent of the setting.

The set pointer can be adjusted using a removable adjustment key in the window.

for further approvals see page 8

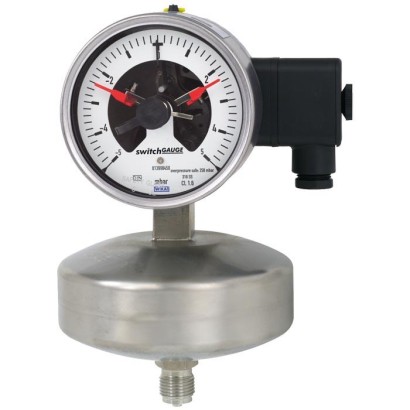

Capsule pressure gauge model 632.51.100, with switch contact model 821.12

Switch contacts consisting of several contacts can also be set to a single set point. Contact actuation is made when the actual value pointer travels beyond or below the desired set point.

The pressure measuring instrument is manufactured in accordance with DIN 16085 and fulfils all requirements of the relevant standards (EN 837-3) and regulations for the on-site display of the working pressure of pressure vessels. As switch contacts, magnetic snap-action contacts, reed switches, inductive contacts and electronic contacts are available. Inductive contacts can be used in hazardous areas. For triggering programmable logic controllers (PLC), electronic contacts and reed switches can be used.

Special features

High overload safety up to 50 x full scale value
High reliability and long service life
Up to 4 switch contacts per instrument
Instruments with inductive contacts for use in hazardous areas
Instruments with switch contact for PLC applications

Identification

Model	632.51
Product family	632
Subcategory	Capsule pressure gauge with switch contacts

Measuring range

Pressure ranges

0…2.5 mbar · 0…100 mbar

Accuracy

Accuracy class	1.6
Accuracy standard	EN 837-3

Process conditions

Process connection	M20 x 1.5G ½ B½ NPTG1/2B1/2NPT
Process temperature	−20…+100 °C

Electrical characteristics

Output signal	2-wire system · 3-wire system
Power supply	DC 10 ... 30 V
Electrical connection	Cable socket PA 6, black, M20 x 1.5
Switching function	Normally open (clockwise pointer motion), Normally closed (clockwise pointer motion), Change-over
Switching contacts	4

Materials

Case material	Stainless steel
Wetted parts material	Stainless steel 316Ti
Sealing material	PTFE

Operating environment

Ambient temperature	−20…+60 °C
IP rating	IP54

Certifications and approvals

Certifications	RoHSEACGOSTKazInMetrUzstandardBelGIMUkrSEPROEMCLow voltagePressure equipmentCEATEXIECExCRN
Explosion protection	[II 2G Ex ia IIC T6/T5/T4 Gb][II 2D Ex ia IIIB T135 °C Db][Ex ia IIC T6/T5/T4 Gb][Ex ia IIIB T135°C Db]II 2G Ex ia IIC T6/T5/T4 GbII 2D Ex ia IIIB T135 °C DbEx ia IIC T6/T5/T4 GbEx ia IIIB T135°C DbExia Gas [II 2G Exia IIC T6/T5/T4 Gb]Dust [II 2D Exia IIIB T135℃ Db]

Additional details

Dial size	100 mm
Datasheet languages	EN

Tables from datasheet

Model 632.51
Nominal size inmm	■ 100 ■ 160
Accuracy class	1.6 1) Option: ■ 1.0 2 ⁾ ■ 0.6 2 ⁾
Scale ranges	0 ... 2.5 mbar to 0 ... 100 mbar other units (e.g. psi, kPa) available or all other equivalent vacuum or combined pressure and vacuum ranges
Scale	Single scale Option: Dual scale
Pressure limitation
Steady	Full scale value
Fluctuating	0.9 x full scale value
Overload safety	50 x full scale value Higher overload safety on request 2 ⁾
Process connection with lower measuring flange	■ G½B ■ ½NPT ■ M20 x 1.5 others on request
Permissible temperature 3)
Medium	+100 °C [+212 °F] maximum
Ambient	-20 ...+60 °C [-4 ... 140 °F]
Temperature effect	When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.6 %/10 K of full scale value
Case	Version S1 per EN 837:With blow-out device in case back
Case filling	Without
Zero point setting	By means of adjustment appliance
Wetted materials
Process connection, media chamber, capsule element (pressure element)	Stainless steel 316Ti
Sealing	PTFE
Non-wetted materials
Case, movement, bayonet ring	Stainless steel
Dial	Aluminium, white, black lettering
Instrument pointer	Aluminium, black
Set pointer	Aluminium, red
Window	Laminated safety glass
Ingress protection per IEC/EN 60529	IP54
Mounting	Rigid measuring line Option: ■ Instrument mounting bracket for wall or pipe mounting ■ Mounting flange

Measuring span 1)	Max. number of con- tacts	Switching current range I	Switch version 2)
≥ 2.5 mbar	2	0.02 ... 0.3 A	L

Characteristics	Unfilled instruments Resistive load	Filled instruments
Rated operating voltage U eff	≤ 250V	≤ 250V
Rated operating current
Switch-on current	≤ 0.5 A	≤ 0.5 A
Switch-off current	≤ 0.5 A	≤ 0.5 A
Continuous current	≤ 0.3 A	≤ 0.3 A
Switching power	≤ 30W/ ≤ 50VA	≤ 20W/ ≤ 20VA

Operating voltage	Unfilled instruments	Filled instruments
	Resistive load	Inductive load	Resistive load	Inductive load
	Direct current	Alter- nating current	cos ϕ>0.7	Direct current	Alter- nating current	cos ϕ>0.7
DC 220 V / AC 230 V	100mA	120mA	65mA	65mA	90mA	40mA
DC 110 V / AC 110 V	200mA	240mA	130mA	130mA	180mA	85mA
DC 48 V / AC 48 V	300mA	450mA	200mA	190mA	330mA	130mA
DC 24 V / AC 24 V	400mA	600mA	250mA	250mA	450mA	150mA

View all (15)

Measuring span 1)	Max. number of contacts
≥ 2.5 mbar	3

Model	Version	Ex version
904.28 KFA6 - SR2 - Ex1.W	1 contact	yes
904.29 KFA6 - SR2 - Ex2.W	2 contacts	yes
904.30 KHA6 - SH - Ex1	1 contact	yes - safety equipment
904.33 KFD2 - SH - Ex1	1 contact	yes - safety equipment
904.25 MSR 010-I	1 contact	no
904.26 MSR 020-I	2 contacts	no
904.27 MSR 011-I	Two-point control	no

Measuring span	Max. number of contacts
≥ 2.5 mbar	3

Characteristics

Contact version	Normally open, normally closed
Type of output	PNP transistor
Operating voltage	DC 10 ...30V
Residual ripple	max.10%
No-load current	≤ 10mA
Switching current	≤ 100mA
Residual current	≤ 100 µA
Voltage drop (with I max. )	≤ 0.7V
Reverse polarity protection	Conditional U B (the switched output 3 or 4 must never be set directly to minus)
Anti-inductive protection	1 kV, 0.1 ms, 1 kΩ
Oscillator frequency	approx. 1,000 kHz
EMC	per EN 60947-5-2

Measuring span 1)	Max. number of contacts
≥ 2.5 mbar	2

Characteristics

Contact version	Change-over contact
Type of contact	Bistable
Max. switching voltage	AC/DC 250V
Min. switching voltage	Not required
Switching current	AC/DC 1 A
Min. switching current	Not required
Transport current	AC/DC 2 A
cosϕ	1
Switching power	60W/VA
Contact resistance (static)	100mΩ
Insulation resistance	10 9 Ω
Breakdown voltage	DC 1,000V
Switching time incl. contact chatter	4.5 ms
Contact material	Rhodium
Switch hysteresis	3 ...5%

Logo	Description	Country
	EU declaration of conformity ■ EMCdirective ■ Low voltage directive ■ RoHS directive ■ ATEX directive (option) 1) Hazardous areas - Ex ia Gas [II 2G Ex ia IIC T6/T5/T4 Gb] Dust [II 2D Ex ia IIIB T135 °C Db]	European Union
	IECEx (option) 1) Hazardous areas - Ex ia Gas [Ex ia IIC T6/T5/T4 Gb] Dust [Ex ia IIIB T135°C Db]	International
	EAC (option) ■ EMCdirective ■ Pressure equipment directive ■ Low voltage directive ■ Hazardous areas 1)	Eurasian Economic Community
	GOST (option) Metrology, measurement technology	Russia
	KazInMetr (option) Metrology, measurement technology	Kazakhstan
	Uzstandard (option) Metrology, measurement technology	Uzbekistan
	BelGIM (option) Metrology, measurement technology	Belarus
	UkrSEPRO (option) Metrology, measurement technology	Ukraine
-	CRN Safety (e.g. electr. safety, overpressure, ...)	Canada

Scale range	Dimensions inmm
	H	h	S2	S3	S4	S5	S6
≤ 250 mbar	30	175	6	20	3	17	17.5
> 250 mbar	29	174	-	19	-	-	-

Type of contact	Dimensions inmm
X	Y
Single or double contact	88	55
Double (change-over) contact	113	80
Triple contact	96	63
Quadruple contact	113	80

Scale range	Dimensions inmm
	H	h	S2	S3	S4	S5	S6
≤ 250 mbar	30	205	6	20	3	17	17.5
> 250 mbar	29	204	-	19	-	-	-

Type of contact	Dimensions inmm
X	Y
Single or double contact	88	55
Double (change-over) contact	113	80
Triple contact	96	63
Quadruple contact	113	80
