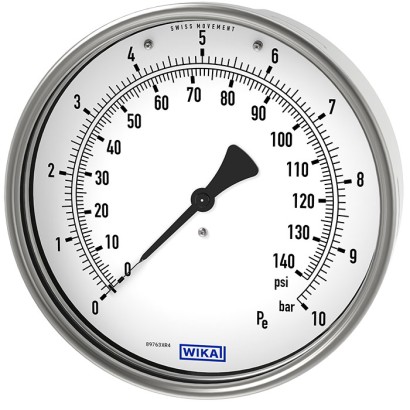

Bourdon tube pressure gauge, copper alloy

Name: Bourdon tube pressure gauge, copper alloy
Brand: WIKA

For tyre pressure measuring instruments per EN 12645

Range

0…30 bar

Accuracy

±0.08 bar (0...4 bar)

Protection

IP54

PEDEN 12645EN 837-1

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The model 211.00.160 has been developed specifically to monitor the tyre pressure of vehicles.

This pressure gauge is particularly suited to be integrated in tyre pressure measuring instruments specified in EN 12645. The advantage of this mechanical Bourdon tube pressure gauge is its reliability and long-term stability without the need for auxiliary power.

Special features

Design per EN 12645
Scale ranges: 0 ... 10 bar and 0 ... 30 bar
Nominal size NS 160 [6"]

Identification

Model	211.00.160
Product family	211
Subcategory	Mechanical pressure gauge

Measuring range

Pressure ranges

0…10 bar · 0…1000 kPa · 0…30 bar · 0…3000 kPa

Accuracy

Accuracy class	±0.08 bar (0...4 bar), ±0.16 bar (>4...≤10 bar), ±0.25 bar (>10 bar)
Accuracy standard	EN 12645

Process conditions

Process connection	G ½ B, male threadG ⅛, female threadG1/2BG1/8
Process temperature	−20…+60 °C

Materials

Case material	Stainless steel, 1.4301 (304), Stainless steel, 1.4301 (304)
Wetted parts material	Copper alloy

Operating environment

Ambient temperature	−20…+60 °C
IP rating	IP54

Certifications and approvals

Certifications

PEDEN 12645EN 837-1

Additional details

Dial size

160 mm

Tables from datasheet

Basic information

Standard	EN 12645
Nominal size (NS)	Ø 160 mm [6"]
Connection location	■ Lower back mount ■ Upper back mount
Window	■ Instrument glass ■ Polycarbonate
Case	Stainless steel, 1.4301 (304)
Ring	Bayonet bezel, stainless steel
Slip-on bezel, steel, black painted
Mounting	Without
Panel mounting flange, stainless steel
Movement	Copper alloy

Measuring element

Type of measuring element	Bourdon tube, C-type
Material	Copper alloy

Accuracy specifications 1)

Reference conditions
Ambient temperature t amb	15 ... 25 °C [59 ... 77 °F]
Maximum permissible error	Error limits when complying with the reference conditions at the measuring system.
0 ... 4 bar	±0.08 bar
> 4 ... ≤ 10 bar	±0.16 bar
> 10 bar	±0.25 bar
Temperature error	Error limits on deviation from the reference conditions at the measuring system. Formulas below only apply to entries in °C for t amb . → For permissible ambient temperatures t amb see 'Operating conditions'.
0 ... 4 bar	t amb < 15 °C	±│0.005 * (15 - t amb ) + 0.08│bar
t amb > 25 °C	±│0.005 * ( t amb - 25) + 0.08│bar
> 4 ... ≤ 10 bar	t amb < 15 °C	±│0.005 * (15 - t amb ) + 0.16│bar
t amb > 25 °C	±│0.005 * ( t amb - 25) + 0.16│bar
> 10 bar	t amb < 15 °C	±│0.005 * (15 - t amb ) + 0.25│bar
t amb > 25 °C	±│0.005 * ( t amb - 25) + 0.25│bar

Logo	Description
-	Pressure Equipment Directive (PED) for maximum allowable pressure PS ≤ 200 bar

View all (6)

Certificates

Certificates	■ 2.2 test report per EN 10204 (e.g. state-of-the-art manufacturing, indication accuracy) ■ 3.1 inspection certificate per EN 10204 (e.g. indication accuracy)
Recommended calibration interval	1 year (dependent on conditions of use)

Model	Description	Order number
	Seals → See data sheet AC 09.08	-
