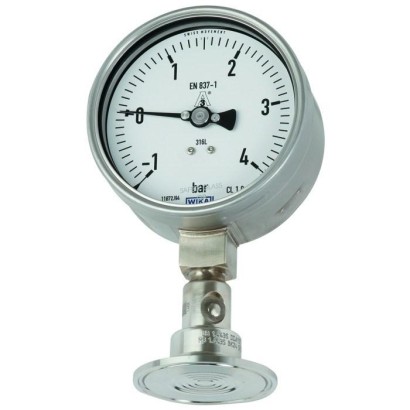

مقياس ضغط وفق EN 837-1 مع مانع/حاجز غشاء مركّب

The scale range of a pressure gauge defines the scale start value and full scale value of the scale printed on the dial of the pressure gauge. The correct scale range depends on the process pressure of the respective application and the process conditions. There are predefined standard scale ranges for pressure gauges in accordance with European and American standards. For special display ranges, please contact WIKA support. Ideally, the process pressure of the application should be approx. 2/3 of the full scale value of the pressure gauge. Example: For a process pressure of 40 bar, for example, a pressure gauge with a scale range of 0 to 60 bar would therefore be recommended.

This configuration feature defines the dimensions of process connections. In relation to the flange connection, this is the nominal diameter of the flange. In EN 1092-1 these are labelled with DN and in ASME B16.5 with inch.
