WIKA · تقنية المعايرة · العائلة CPC
منظّم ضغط
جهاز تحكم بالضغط معياري مع ما يصل إلى قناتين مستقلتين ودقة عالية لمختبرات المعايرة وبيئات الإنتاج.
النطاق
-1…211 bar
الحماية
IP20
CERoHSUKCA
السعر
حسب الطلب
يعتمد على التكوين
الوصف

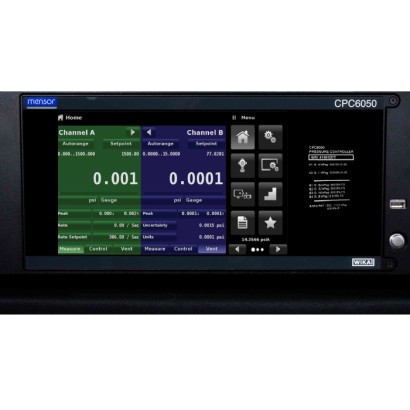

جهاز التحكم بالضغط CPC6050 من WIKA هو جهاز معياري (modular) يولّد ويضبط ضغط الهواء بدقة عالية، مع ما يصل إلى قناتين مستقلتين. يعتمد على مقياس IntelliScale لتحقيق دقة تصل إلى 0.008 % IS، وسرعة تحكم تبلغ 15 ثانية واستقرار تحكم أقل من 0.003 % FS. يُختار هذا الجهاز لمختبرات المعايرة وبيئات الإنتاج التي تتطلب مصدر ضغط مرجعيًا قابلًا للتكوين بدرجة كبيرة.
المزايا
- مدى الضغط: -1 ... 210 bar [-15 ... 3,045 psi]
- سرعة التحكم 15 ثانية
- ثبات التحكم < 0.003 % FS
- دقة تصل إلى 0.008 % IS (IntelliScale)
- دقة 0.004 % FS
الأسئلة والأجوبة
ما هي مدى الضغط المتاحة في جهاز CPC6050؟
يغطي الجهاز مجموعة من المدى تشمل -1 ... 210 bar [-15 ... 3,045 psi]، بالإضافة إلى مدى أخرى مثل 0 ... 211 bar و0 ... 210 bar ومدى منخفضة مثل -0.012 ... 0.012 bar و0 ... 0.025 bar و0 ... 0.5 bar.
ما مستوى الدقة الذي يمكن تحقيقه؟
تبلغ الدقة (Accuracy) حتى 0.008 % IS باستخدام تقنية IntelliScale، بينما تبلغ الدقة (Precision) 0.004 % FS.
ما مدى سرعة واستقرار التحكم بالضغط؟
تبلغ سرعة التحكم 15 ثانية، ويكون استقرار التحكم أقل من 0.003 % FS.
ما الوسيط المناسب لهذا الجهاز؟
الوسيط المحدد في البيانات الفنية هو الهواء.
ما نطاق درجة حرارة التشغيل المحيط؟
يعمل الجهاز ضمن مدى درجة حرارة بيئية من 0 °C إلى +50 °C.
هل الجهاز مناسب للمناطق الخطرة (Explosion-proof)؟
لا، لا تتوفر أي شهادات حماية من الانفجار لهذا الطراز؛ الشهادات المتوفرة هي CE وRoHS وUKCA فقط.
ما الذي يميز CPC6050 عن غيره في السلسلة؟
هو جهاز معياري (modular) يدعم ما يصل إلى قناتين مستقلتين، وهو قابل للتكوين بدرجة كبيرة لتلبية متطلبات العملاء، مما يجعله مناسبًا لمختبرات المعايرة وبيئات الإنتاج على حد سواء.
هل يمكن تتبع نتائج المعايرة جهات اعتماد معتمدة؟
نعم، توفر البيانات الفنية إمكانية التتبع عبر A2LA وDAkkS.
التعريف
| الطراز | CPC6050 |
| السلسلة | CPC |
| النوع الفرعي | Pressure controller |
نطاق القياس
| نطاق الضغط | -1…210 bar · 0…211 bar · 0…0.025 bar · 0…210 bar · -0.012…0.012 bar · 0…0.5 bar |
| نطاق درجة الحرارة | +0…+50 °C · −20…+70 °C · +15…+45 °C |
دقة القياس
| عدم اليقين | 0.008 % IS (IntelliScale) |
ظروف العملية
| وسيط التشغيل | air |
| نوع المعايرة | electronic |
بيئة التشغيل
| حرارة المحيط | +0…+50 °C |
| تصنيف IP | IP20 |
| الوزن | 22.7 kg |
الشهادات والموافقات
| الشهادات | CERoHSUKCA |
| إمكانية التتبع | A2LA · DAkkS |
تفاصيل إضافية
| محمول | لا |
| لغات ورقة البيانات | EN, DE, ES, FR, IT, NL, PL, PT, RO, SV, RU, EL, JA, ZH |
جداول من ورقة البيانات
Reference pressure transducer model CPR6050
| Pressure range | Standard | ||
|---|---|---|---|
| Accuracy 1) | 0.01%FS 2) | ||
| Gauge pressure 6) | 0 ... 0.025 to 0 ... 210 bar [0 ... 0.36 to 0 ... 3,045 psi] | ||
| Bidirectional pressure 6) | -0.012 ... +0.012 to -1 ... 210 bar [-0.18 ... +0.18 to -15 ... 3,045 psi] | ||
| Absolute pressure 7) | 0 ... 0.5 to 0 ... 211 bar abs. [0 ... 7.5 to 0 ... 3,060 psi abs.] | ||
| Precision 8) | 0.004%FS | ||
| Calibration interval | 365 days 9) | ||
| Pressure range | Optional | ||
| Accuracy 1) | 0.008%FS | ■ 0.008 %IS-50 3) ■ 0.01 %IS-50 4) | 0.008 %IS-33 5) |
| Gauge pressure 6) | 0 ... 0.025 to 0 ... 210 bar [0 ... 0.36 to 0 ... 3,045 psi] | 0 ... 1 to 0 ... 210 bar [0 ... 15 to 0 ... 3,045 psi] | 0 ... 1 to 0 ... 100 bar [0 ... 15 to 0 ... 1,500 psi] |
| Bidirectional pressure 6) | -0.012 ... +0.012 to -1 ... 210 bar [-0.18 ... +0.18 to -15 ... 3,045 psi] | -1 ... 10 to -1 ... 210 bar [-15 ... 145 to -15 ... 3,045 psi] | -1 ... 10 to -1 ... 100 bar [-15 ... 145 to -15 ... 1,500 psi] |
| Absolute pressure 7) | 0 ... 0.5 to 0 ... 211 bar abs. [0 ... 7.5 to 0 ... 3,060 psi abs.] | 0 ... 1 to 0 ... 211 bar abs. [0 ... 15 to 0 ... 3,060 psi abs.] | 0 ... 1 to 0 ... 101 bar [0 ... 15 to 0 ... 1,515 psi] |
| Calibration interval | 365 days | 365 days | 365 days |
| Precision 8) | 0.004%FS | 0.004%FS | 0.004%FS |
Barometric reference, optional
| Measuring range | ■ 552 ... 1,172 mbar abs. ■ 8 ... 17 psi abs. ■ 552 ... 1,172 hPa abs. |
|---|---|
| Accuracy 1) | 0.01 %of reading |
| Function | The barometric reference can be used to switch pressure types 2) , absolute <=> gauge.With gauge pressure transducers, the measuring range of the transducers must begin with -1 bar [-15 psi] in order to carry out a complete absolute pressure emulation. |
Pressure controller CPC6050
| Instrument | |
|---|---|
| Instrument version | ■ Desktop case ■ 19" rack-mounting kit |
| Dimensions | See technical drawings |
| Weight | Approx. 22.7 kg [50 lb] incl. all internal options |
| Warm-up time | Approx. 15 min |
| Digital display | |
| Type of display | 10.1" colour LC display with capacitive touchscreen |
| Display resolution | 4 ... 6 digits depending on range and units |
| Measuring range | -0.012 ... +0.012 to -1 ... 210 bar [-0.18 ... +0.18 to -15 ... 3,045 psi] Depending on the reference pressure transducer model CPR6050 |
| Pressure type | ■ Gauge ■ Absolute ■ Bidirectional |
| Unit | 39 and two freely programmable pressure units |
| Pressure limitation (vacuum and overpressure) | |
| Measure/Control port | 100 %of the primary sensor range |
| Supply port | 110 %of primary sensor range |
| Reference port | Atmosphere |
| Vent port | Atmosphere |
| Exhaust port | Ambient pressure down to full vacuum |
| Overpressure limit | |
| Measure/Control port | 105 %of primary sensor range |
| Supply port | 110 %of CPMrange |
| Reference port | Atmosphere ±350 mbar [±5 psi] |
| Vent port | Atmosphere |
| Exhaust port | Full vacuum |
| Control parameter | SVR module 1) | LPPump module |
|---|---|---|
| Control stability | < 0.003 %FSof the active range (typical 0.001%FS 2) ) | |
| Control mode | Precision, high speed and customised | External supply ON/OFF |
| Control speed | 15 s 3) | 25 s 3) |
| Control range | 0 ...100%FS | |
| Minimum control pressure | 0.0017 bar [0.025 psi] over exhaust pressure or 0.05 %FSwhichever is greater | 0.0034 bar [0.05 psi] over exhaust pressure or 0.05 %FSwhichever is greater |
| Overshoots | < 1 %FSin high-speed control mode (typical < 0.05 %FSin precision control mode) | < 1 %FSin high-speed control mode (< 0.1 %FSin pump only mode) |
| Test volume | 50 ... 1,000 ccm | 50 ... 300 ccm |
عرض الكل (15)
Communication
| Interface | ■ Ethernet ■ IEEE-488 ■ USB ■ RS-232 |
|---|---|
| Communication protocol | 10/100Based-T |
| Baud rate | ■ 9600 ■ 19200 ■ 38400 ■ 57600 ■ 115200 |
| Command sets | ■ Mensor ■ WIKA SCPI ■ Others on request |
| Response time | Approx. 100 ms |
| Measuring rate | 30 ... 60 ms |
| Internal program | Up to 24 sequences with up to 99 steps each |
Pressure connection on the CPC6050
| Connections | ■ Up to 8 ports with 7/16"- 20 F SAE ■ Up to 2 ports with 1/8" F NPT ■ 1 port with 10-32 UNF female | ||
|---|---|---|---|
| Filter elements | All pressure ports have 40-micron filters. | ||
| Pressure port adapters | ■ Without ■ 6 mmtube fitting ■ ¼" tube fitting | ■ ¼NPT, female thread ■ ⅛NPT, female thread ■ ⅛BSP, female thread | |
| Barometer port adapters | ■ Barb fitting ■ 6 mmtube fitting ■ ¼" tube fitting | ||
| Wetted parts | ■ Aluminium ■ Brass ■ Buna N ■ Urethane ■ FKM/FPM | ■ PCTFE ■ PEEK ■ PTFE ■ PPS | ■ RTV ■ Ceramic ■ Silicone ■ Silicone grease ■ Stainless steel 316 and 316L ■ Glass-filled epoxy |
| Overpressure protection | Safety relief valve fixed to reference pressure transducer and adjusted to customised |
Voltage supply
| Operating voltage | ■ AC 100 ... 120 V, 50/60 Hz ■ AC 220 ... 240 V, 50/60 Hz |
|---|---|
| Power consumption | Max.210VA |
| Overvoltage resistance | Category II |
| Electrical safety | Protection class 1 (PE connected) |
| Fuse | 1.6 A, 250V;SLO-BLO5x20mm |
| Power cord | ■ For Europe ■ For USA/Canada ■ For UK ■ For India ■ For China |
Operating conditions
| Altitude | Up to 3,048 m[10,000 ft] above sea level |
|---|---|
| Place of use | Indoor |
| Operating temperature | 0 ... 50 °C [32 ... 122 °F] |
| Compensated temperature range | 15 ... 45 °C [59 ... 113 °F] |
| Storage temperature range | -20 ...+70 °C [-4 ...+158 °F] |
| Relative humidity, condensation | 5 …95%r.h.(non-condensing) |
| Permissible media | ■ Dry, clean air ■ Nitrogen (ISO 8573-1:2010 class 5.5.4 or better) |
| Mounting position | Horizontal |
| EMC (HF field) | EN 61326-1 emission (group 1, class A) and immunity (industrial application) |
| Logo | Description | Region |
|---|---|---|
| EU declaration of conformity | European Union | |
| EMCdirective 1) EN 61326-1 emission (group 1, class A) and immunity (industrial application) | ||
| Low voltage directive | ||
| RoHS directive | ||
| United Kingdom | UKCA | |
| Electromagnetic compatibility regulations | ||
| Electrical equipment designed for use within certain voltage limits in support of the electrical equipment (safety) regulations | ||
| Restriction of hazardous substances (RoHS) | regulations |
| Logo | Description | Region |
|---|---|---|
| - | MChS Permission for commissioning | Kazakhstan |
Certificate
| Calibration 1) | |
|---|---|
| Reference pressure transducer model CPR6050 | ■ A2LA calibration certificate (traceable and accredited in accordance with ISO/IEC 17025) ■ DAkkS calibration certificate - gauge pressure (traceable and accredited in accordance with ISO/IEC 17025) ■ DAkkS calibration certificate - absolute pressure (traceable and accredited in accordance with ISO/IEC 17025) |
| Barometric reference | ■ Without ■ A2LA calibration certificate (traceable and accredited in accordance with ISO/IEC 17025) ■ DAkkS calibration certificate for barometric reference (traceable and accredited in accordance with ISO/IEC 17025) |
| Recommended calibration interval | 1 year (dependent on conditions of use) |
Model A-CPS
| Operating conditions | |
|---|---|
| Maximum operating pressure | 211 bar abs. [3,065 psi abs.] |
| Maximum operating temperature | 80 °C [176 °F] |
| Voltage supply | |
| Power supply | DC 12V |
| Power consumption | 13VA |
| Pressure connection | |
| To the Measure/Control port of CPC6050 | 1 port with ¼" tube adapted to 7/16"- 20 F SAE |
| To the test item | 2 ports: ■ 7/16" - 20 F SAE ■ 6 mmtube fitting ■ ¼' tube fitting ■ ¼NPT, female thread ■ ⅛NPT, female thread ■ ⅛BSP, female thread |
| Dimensions | |
| Dimensions (W x H x D) | 139.7 x 266.7 x 139.7 mm[5.5 x 10.5 x 5.5 in] |
| Weight | 3.9 kg [8.8 lb] |
| Cal-Template (demo version) | Cal-Template (light version) | Cal-Template (full version) | Log-Template (full version) |
|---|---|---|---|
| Fully automatic calibration | Semi-automatic calibration | Fully automatic calibration | ■ Live measured value recording for a certain period of time with selectable interval, duration and start time ■ Creation of logger protocols with graphic and/or tabular representation of the measuring results in PDF format ■ Possibility of exporting measuring results as CSV file |
| Limitation to two measuring points | No limitation of the measuring points approached | ||
| ■ Creation of 3.1 inspection certificates per DIN EN 10204 ■ Calibration data can be exported to Excel ® template or XML file ■ Calibration of pressure measuring instruments | |||
| Ordering information for your enquiry for a single licence: | |||
| Is available for a cost-free download | WIKA-CAL-LZ-Z-Z | WIKA-CAL-CZ-Z-Z | WIKA-CAL-ZZ-L-Z |
| Ordering information for your enquiry for a pair licence: | |||
| Cal-Template (light version) together with Log-Template (full version) | WIKA-CAL-LZ-L-Z | ||
| Cal-Template (full version) together with Log-Template (full version) | WIKA-CAL-CZ-L-Z |
| Order code | |
|---|---|
| CPX-A-C5 | |
| 19" built-in case With side pieces,NAM With side pieces, EU | -U- -T- |
| Barometric reference Measuring range: 8 ... 17 psi abs. Accuracy to 0.01 %of reading | -3- |
| Measuring range: 552 ... 1,172 mbar abs. Accuracy to 0.01 %of reading | -K- |
| Measuring range: 552 ... 1,172 hPa abs. Accuracy to 0.01 %of reading | -L- |
| Calibration adapter For reference pressure sensor, voltage supply and software | -4- |
| Calibration adapter For barometric reference, voltage supply and software | -5- |
| Transport case | -6- |
| Adapter set Consisting of: 4 adapters with ⅛BSPG, female thread Material: brass | -B- |
| Adapter set Consisting of: 4 adapters with ¼" tube fitting Material: brass | -I- |
| Adapter set Consisting of: 4 adapters with 6 mmSwagelok ® male thread Material: brass | -M- |
| Adapter set Consisting of: 4 adapters with ¼NPT, female thread Material: brass | -N- |
| Adapter set Consisting of: 4 adapters with ⅛NPT, female thread Material: brass | -S- |
| Block and bleed valve Pressure range: ≤ 400 bar [6,000 psi] | -8- |
| Coalescing filter Pressure range: ≤ 240 bar [3,600 psi] | -9- |
| Accessories for CPC6050 1) | Order code | |
|---|---|---|
| Description | CPX-A-C5 | |
| Automatic contamination protection (A-CPS) Pressure range: ≤ 100 bar [1,500 psi] | -A- | |
| Pressure range: ≤ 210 bar [3,045 psi] | -O- | |
| Replacement filters for automatic CPS | -2- | |
| Vacuum regulator for low-pressure ranges | -1- | |
| Ordering information for your enquiry: | ||
| 1. Order code: CPX-A-C5 2. Option: | ⇓ [ ] |
