WIKA · قياس الضغط · العائلة 981
حاجز غشاء مدمج مع وصلة معقمة
للتطبيقات الصحية، توصيل معقم وفقًا لـ DIN 11864
النطاق
0…40 bar
EHEDG3-ACRNEAC3-A Sanitary StandardEU Pressure Equipment DirectiveCE
السعر
حسب الطلب
يعتمد على التكوين
الوصف
تُستخدم أغطية/حواجز الغشاء (Diaphragm seals) لحماية أجهزة قياس الضغط في التطبيقات التي تتعامل مع وسائط صعبة. في أنظمة أغطية الغشاء، يقوم غشاء غطاء الغشاء بفصل الجهاز عن الوسط. يتم نقل الضغط إلى جهاز القياس عبر سائل التعبئة (system fill fluid) الموجود داخل نظام غطاء الغشاء.
لتنفيذ تطبيقات العملاء المتطلبة، تتوفر مجموعة واسعة من التصاميم والمواد وسوائل التعبئة الخاصة بالنظام.
لمزيد من المعلومات التقنية حول أغطية الغشاء وأنظمة أغطية الغشاء، راجع IN 00.06 "Application, operating principle, designs".
للموافقات الإضافية، راجع الصفحة 5

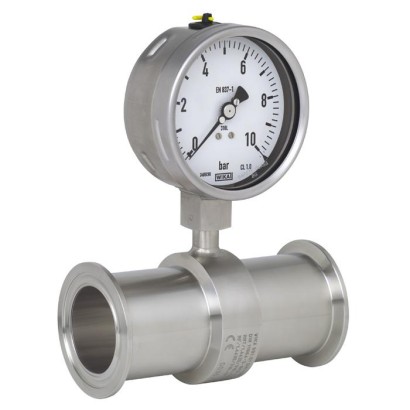

غطاء/حاجز غشاء مُركّب على الخط (In-line diaphragm seal)، الطراز 981.51
بفضل وصلة العملية الصحية (hygienic process connection)، فإن أغطية الغشاء لطراز 981.51 مناسبة على نحو مثالي للاستخدام في إنتاج الأغذية وتطبيقات المستحضرات الدوائية وتطبيقات التكنولوجيا الحيوية. يمكن لأغطية الغشاء تحمل درجات حرارة بخار التنظيف التي تحدث في عمليات SIP، وبالتالي تضمن وصلة معقمة بين الوسط المراد قياسه وغطاء الغشاء.
يمكن تركيب غطاء الغشاء على أجهزة القياس عبر توصيل مباشر، أو عند درجات الحرارة المرتفعة عبر عنصر تبريد، أو عبر شعيرة/أنبوب شعيري مرن.
إن توفر أغطية الغشاء لمعايير الأنابيب الشائعة والأعماق الاسمية (nominal widths) يُسهّل عملية الدمج داخل مقاطع الأنابيب الموجودة بالفعل.
المزايا
- تركيب مباشر خالٍ من الفراغات الميتة في الأنابيب
- سهل الفتح، تصريف ذاتي في جميع أوضاع التركيب
- تنظيف سريع دون بقايا
- مناسب لعمليات COP وSIP وCIP
- نسخة قابلة للتعقيم بالبخار (Autoclavable)
الأسئلة والأجوبة
ما هو نطاق ضغط حاجز الغشاء 981.51؟
تتوفر نطاقات قياس من 0 … 0.6 bar وحتى 0 … 40 bar (بالمكافئ: 0 … 8.7 psi حتى 0 … 580 psi).
ما نوع توصيل العملية المتاح؟
التوصيلات الصحية وفق DIN 11864-1 وDIN 11864-2 وDIN 11864-3 form A مع حلقة O-ring، بالإضافة إلى التوصيلات الملولبة G 1/2 وG 1/4 و1/2 NPT و1/4 NPT.
ما المواد المتوفرة للأجزاء الملامسة للوسط؟
Stainless steel 1.4435 (316L) وStainless steel 1.4539 (904L) وHastelloy C22 (2.4602) وHastelloy C276 (2.4819)، مع توفر نسخ مُصقولة كهربائيًا من 1.4435 (316L).
لماذا يُختار طراز 981.51 في تطبيقات SIP؟
يمكن لحاجز الغشاء تحمل درجات حرارة بخار التنظيف في عمليات SIP، وهو مناسب أيضًا لعمليات COP وCIP، ويُصفّى ذاتيًا وخالٍ من الفراغات الميتة، مما يضمن وصلة معقمة بين الوسط والحاجز.
ما الشهادات التي يحملها المنتج؟
حسب البيانات المتاحة: EHEDG و3-A Sanitary Standard وCRN وEAC وتوجيه معدات الضغط الأوروبي (EU Pressure Equipment Directive) وعلامة CE.
ما الذي يميز التركيب المدمج (in-line)؟
يُركَّب الحاجز مباشرةً داخل مقطع الأنبوب دون الحاجة إلى توصيل نقطة قياس، وتوفر أغطية الغشاء لمعايير الأنابيب الشائعة والأعماق الاسمية يسهّل دمجه في مقاطع الأنابيب الموجودة بالفعل.
التعريف
| الطراز | 981.51 |
| السلسلة | 981 |
| النوع الفرعي | Diaphragm seal |
نطاق القياس
| نطاق الضغط | 0…0.6 bar · 0…40 bar · 0…8.7 psi · 0…580 psi |
ظروف العملية
| وصلة العملية | DIN 11864-1 form A (O-ring)DIN 11864-2 form A (O-ring)DIN 11864-3 form A (O-ring)G 1/2G 1/41/2 NPT1/4 NPT |
| درجة حرارة العملية | ≤ +400 °C |
المواد
| مادة العلبة | Stainless steel 1.4435 (316L), Stainless steel 1.4539 (904L), Hastelloy C22 (2.4602), Hastelloy C276 (2.4819), Stainless steel 1.4435 (316L), electropolished |
| مادة الأجزاء الملامسة | Hastelloy C22 (2.4602), Hastelloy C276 (2.4819), Stainless steel 1.4435 (316L), Stainless steel 1.4539 (904L), Stainless steel 1.4435 (316L), electropolished, 1.4435 (316L), 1.4435 (316L), electropolished, 1.4539 (904L) |
| مادة الإحكام | O-ring |
الشهادات والموافقات
| الشهادات | EHEDG3-ACRNEAC3-A Sanitary StandardEU Pressure Equipment DirectiveCE |
تفاصيل إضافية
| لغات ورقة البيانات | EN |
جداول من ورقة البيانات
Basic information
| Version | In-line diaphragm seal |
|---|---|
| Pressure range ¹⁾ | 0 ... 0.6 bar to 0 ... 40 bar [0 ... 8.7 psi to 0 ... 580 psi] or all other equivalent vacuum or combined pressure and vacuum ranges |
| Connection to the measuring instrument | ■ Axial gauge adapter for weld seam ■ Axial gauge adapter with female thread (e.g.G½, G¼, ½NPTor ¼NPT) |
| Mounting type | ■ Direct mounting ■ Capillary ■ Cooling element |
| Level of cleanliness of wetted parts | ■ Oil- and grease-free per ASTM G93-03 level F (< 1,000 mg/m 2 ) ■ Oil- and grease-free per ASTM G93-03 level D and ISO 15001 (< 220 mg/m2) ■ Oil- and grease-free per ASTM G93-03 level C and ISO 15001 (< 66 mg/m 2 ) |
| Origin of wetted parts | ■ International ■ EU, CH, USA |
| Surface roughness of wetted parts | ■ Ra ≤ 0.76 μm [30 μin] per ASME BPE SF3 (except for weld seam) ■ Ra ≤ 0.38 μm [15 μin] per ASME BPE SF4, only with electropolished surface (except for weld seam) |
| Vacuum service (see IN 00.25) | ■ Basic service ■ Advanced service ■ Premium service |
Process connection
| Standard | |
|---|---|
| Aseptic threaded pipe connection DIN 11864-1 form A (O-ring) | ■ Pipe standard per DIN 11866 row A or DIN 11850 row 2 ■ Pipe standard per DIN 11866 row B or DIN ISO 1127 row 1 ■ Pipe standard per DIN 11866 row C or ASME BPE 1997 |
| Aseptic threaded pipe connection DIN 11864-2 form A (O-ring) | ■ Pipe standard per DIN 11866 row A or DIN 11850 row 2 ■ Pipe standard per DIN 11866 row B or DIN ISO 1127 row 1 ■ Pipe standard per DIN 11866 row C or ASME BPE 1997 |
| Aseptic threaded pipe connection DIN 11864-3 form A (O-ring) | ■ Pipe standard per DIN 11866 row A or DIN 11850 row 2 ■ Pipe standard per DIN 11866 row B or DIN ISO 1127 row 1 ■ Pipe standard per DIN 11866 row C or ASME BPE 1997 |
| Material | Maximum permissible process temperature ¹⁾ in °C [°F] | |
|---|---|---|
| Body of diaphragm seal | Wetted parts 1) | |
| Stainless steel 1.4435 (316L) | Stainless steel 1.4435 (316L) | 400 [752] |
| Stainless steel 1.4435 (316L), electropolished 2) | Stainless steel 1.4435 (316L), electropolished 2) | |
| Stainless steel 1.4539 (904L) | Stainless steel 1.4539 (904L) | |
| Hastelloy C22 (2.4602) | Hastelloy C22 (2.4602) | |
| Hastelloy C276 (2.4819) | Hastelloy C276 (2.4819) |
Instrument labelling
| Marking of the diaphragm seal | ■ Without ■ Per valid 3-A standard |
|---|
عرض الكل (20)
| Logo | Description | Country |
|---|---|---|
| EU declaration of conformity Pressure equipment directive | European Union | |
| ® | 3-A Sanitary Standard | USA |
| FEBRUARY 2021 TYPE EL CLASS I | EHEDG 1) Hygienic Equipment Design | European Union |
| - | CRN Safety (e.g. electr. safety, overpressure, ...) | Canada |
| Logo | Description | Country |
|---|---|---|
| EAC Pressure equipment directive | Eurasian Economic Community | |
| - | MTSCHS Permission for commissioning | Kazakhstan |
Certificates
| Certificates | ■ 2.2 test report per EN 10204 - State-of-the-art manufacturing, material proof, indication accuracy for diaphragm seal systems - FDA conformity of the system fill fluid - 3-A conformity of the diaphragm seal, based on a third party verification - Manufacturer's declaration for food contact materials per regulation (EC) no. 1935/2004 ■ 3.1 inspection certificate per EN 10204 - Material proof, wetted metal parts - Indication accuracy for diaphragm seal systems ■ Manufacturer's declaration for food contact materials per regulation (EC) no. 1935/2004 |
|---|
| DN | PN | G | Dimensions in mm[in] | |||||
|---|---|---|---|---|---|---|---|---|
| Pipe outer Ø x wall thickness | L | D₁ | D₂ | Mb | Aseptic O-ring | |||
| 25 | 40 | RD 52 x 1/6 | 29 x 1.5 [1.142 x 0.059] | 128 [5.039] | 52 [2.047] | 63 [2.48] | 26 [1.024] | 28 x 3.5 [1.102 x 0.138] |
| 32 | 40 | RD 58 x 1/6 | 35 x 1.5 [1.378 x 0.059] | 128 [5.039] | 58 [2.283] | 70 [2.756] | 32 [1.26] | 34 x 5 [1.339 x 0.197] |
| 40 | 40 | RD 65 x 1/6 | 41 x 1.5 [1.614 x 0.059] | 160 [6.299] | 65 [2.559] | 78 [3.071] | 38 [1.496] | 40 x 5 [1.575 x 0.197] |
| 50 | 25 | RD 78 x 1/6 | 53 x 1.5 [2.087 x 0.059] | 170 [6.693] | 78 [3.071] | 92 [3.622] | 50 [1.969] | 52 x 5 [2.047 x 0.197] |
| 65 | 25 | RD 96 x 1/6 | 70 x 2 [2.756 x 0.079] | 182 [7.165] | 95 [3.74] | 112 [4.409] | 66 [2.362] | 68 x 5 [2.677 x 0.197] |
| 80 | 25 | RD 110x¼ | 85 x 2 [3.346 x 0.079] | 182 [7.165] | 110 [4.331] | 127 [5] | 81 [3.189] | 83 x 5 [3.268 x 0.197] |
| 100 | 25 | RD 130x¼ | 104 x 2 [4.094 x 0.079] | 182 [7.165] | 130 [5.118] | 148 [5.827] | 100 [3.937] | 102 x 5 [4.016 x 0.197] |
| DN | PN | G | Dimensions in mm[in] | |||||
|---|---|---|---|---|---|---|---|---|
| Pipe outer Ø x wall thickness | L | D₁ | D₂ | Mb | Aseptic O-ring | |||
| 26.9 | 40 | RD 52 x 1/6 | 26 x 1.6 [1.024 x 0.059] | 128 [5.039] | 52 [2.047] | 63 [2.48] | 23.7 [0.933] | 28 x 3.5 [1.102 x 0.138] |
| 33.7 | 40 | RD 58 x 1/6 | 33.7 x 2 [1.327 x 0.079] | 128 [5.039] | 58 [2.283] | 70 [2.756] | 29.7 [1.169] | 34 x 5 [1.339 x 0.197] |
| 42.4 | 25 | RD 65 x 1/6 | 42.4 x 2 [1.669 x 0.079] | 160 [6.299] | 65 [2.559] | 78 [3.071] | 38.4 [1.512] | 40 x 5 [1.575 x 0.197] |
| 48.3 | 25 | RD 78 x 1/6 | 48.3 x 2 [1.902 x 0.079] | 170 [6.693] | 78 [3.071] | 92 [3.622] | 44.3 [1.744] | 52 x 5 [2.047 x 0.197] |
| 60.3 | 25 | RD 96 x 1/6 | 60.3 x 2 [2.374 x 0.079] | 182 [7.165] | 95 [3.74] | 112 [4.409] | 56.3 [2.217] | 68 x 5 [2.677 x 0.197] |
| 76.1 | 25 | RD 110x¼ | 76.1 x 2 [2.996 x 0.079] | 182 [7.165] | 110 [4.331] | 127 [5] | 72.1 [2.839] | 83 x 5 [3.268 x 0.197] |
| 88.9 | 25 | RD 130x¼ | 88.9 x 2 [3.5 x 0.079] | 182 [7.165] | 130 [5.118] | 148 [5.827] | 84.3 [3.319] | 102 x 5 [4.016 x 0.197] |
| DN | PN | G | Dimensions in mm[in] | |||||
|---|---|---|---|---|---|---|---|---|
| Pipe outer Ø x wall thickness | L | D₁ | D₂ | Mb | Aseptic O-ring | |||
| 1" | 40 | RD 52 x 1/6 | 25.4 x 1.65 [1 x 0.059] | 128 [5.039] | 52 [2.047] | 63 [2.48] | 22.1 [0.87] | 24 x 3.5 [0.945 x 0.138] |
| 1 ½" | 40 | RD 65 x 1/6 | 42.4 x 1.65 [1.669 x 0.059] | 160 [6.299] | 65 [2.559] | 78 [3.071] | 34.8 [1.37] | 37 x 5 [1.457 x 0.197] |
| 2" | 25 | RD 78 x 1/6 | 48.3 x 1.65 [1.902 x 0.059] | 170 [6.693] | 78 [3.071] | 92 [3.622] | 47.5 [1.87] | 50 x 5 [1.969 x 0.197] |
| 2 ½" | 25 | RD 95 x 1/6 | 60.3 x 1.65 [2.374 x 0.059] | 182 [7.165] | 95 [3.74] | 112 [4.409] | 60.2 [2.37] | 62 x 5 [2.441 x 0.197] |
| 3" | 25 | RD 110x¼ | 76.1 x 1.65 [2.996 x 0.059] | 182 [7.165] | 110 [4.331] | 127 [5] | 72.9 [2.87] | 75 x 5 [2.953 x 0.197] |
| 4" | 25 | RD 130x¼ | 88.9 x 2.11 [3.5 x 0.083] | 182 [7.165] | 130 [5.118] | 148 [5.827] | 97.4 [3.835] | 100 x 5 [3.937 x 0.197] |
| DN | PN | Dimensions in mm[in] | ||||
|---|---|---|---|---|---|---|
| Pipe outer Ø x wall thickness | L | D₁ | Mb | Aseptic O-ring | ||
| 25 | 25 | 29 x 1.5 [1.142 x 0.059] | 114 [4.489] | 70 [2.756] | 26 [1.024] | 28 x 3.5 [1.102 x 0.138] |
| 32 | 25 | 35 x 1.5 [1.378 x 0.059] | - | 76 [2.992] | 32 [1.26] | 34 x 5 [1.339 x 0.197] |
| 40 | 25 | 41 x 1.5 [1.614 x 0.059] | - | 82 [7.228] | 38 [1.496] | 40 x 5 [1.575 x 0.197] |
| 50 | 16 | 53 x 1.5 [2.087 x 0.059] | 156 [6.142] | 94 [3.701] | 50 [1.969] | 52 x 5 [2.047 x 0.197] |
| 65 | 16 | 70 x 2 [2.756 x 0.079] | - | 113 [4.449] | 66 [2.362] | 68 x 5 [2.677 x 0.197] |
| 80 | 16 | 85 x 2 [3.346 x 0.079] | - | 133 [5.236] | 81 [3.189] | 83 x 5 [3.268 x 0.197] |
| 100 | 16 | 104 x 2 [4.094 x 0.079] | - | 159 [6.26] | 100 [3.937] | 102 x 5 [4.016 x 0.197] |
| DN | PN | Dimensions in mm[in] | ||||
|---|---|---|---|---|---|---|
| Pipe outer Ø x wall thickness | L | D₁ | Mb | Aseptic O-ring | ||
| 26.9 | 25 | 26 x 1.6 [1.024 x 0.059] | - | 69 [2.717] | 23.7 [0.933] | 26 x 3.5 [1.024 x 0.138] |
| 33.7 | 25 | 33.7 x 2 [1.327 x 0.079] | 114 [4.489] | 74 [2.913] | 29.7 [1.169] | 32 x 5 [1.26 x 0.197] |
| 42.4 | 16 | 42.4 x 2 [1.669 x 0.079] | - | 82 [3.228] | 38.4 [1.512] | 40.5 x 5 [1.594 x 0.197] |
| 48.3 | 16 | 48.3 x 2 [1.902 x 0.079] | - | 88 [3.465] | 44.3 [1.744] | 46.5 x 5 [1.831 x 0.197] |
| 60.3 | 16 | 60.3 x 2 [2.374 x 0.079] | 156 [6.142] | 103 [4.055] | 56.3 [2.217] | 58.5 x 5 [2.303 x 0.197] |
| 76.1 | 16 | 76.1 x 2 [2.996 x 0.079] | - | 125 [4.921] | 72.1 [2.839] | 73.5 x 5 [2.894 x 0.197] |
| 88.9 | 16 | 88.9 x 2 [3.5 x 0.079] | 156 [6.142] | 137 [5.394] | 84.3 [3.319] | 86.5 x 5 [3.406 x 0.197] |
| DN | PN | Dimensions in mm[in] | ||||
|---|---|---|---|---|---|---|
| Pipe outer Ø x wall thickness | L | D₁ | Mb | Aseptic O-ring | ||
| 1" | 25 | 25.4 x 1.65 [1 x 0.059] | 114 [4.489] | 50.5 [1.988] | 22.1 [0.87] | 24 x 3.5 [0.945 x 0.138] |
| 1 ½" | 25 | 42.4 x 1.65 [1.669 x 0.059] | - | 64 [2.52] | 34.8 [1.37] | 37 x 5 [1.457 x 0.197] |
| 2" | 16 | 48.3 x 1.65 [1.902 x 0.059] | - | 77.5 [3.051] | 47.5 [1.87] | 50 x 5 [1.969 x 0.197] |
| 2 ½" | 16 | 60.3 x 1.65 [2.374 x 0.059] | - | 91 [3.583] | 60.2 [2.37] | 62 x 5 [2.441 x 0.197] |
| 3" | 16 | 76.1 x 1.65 [2.996 x 0.059] | - | 106 [4.173] | 72.9 [2.87] | 75 x 5 [2.953 x 0.197] |
| 4" | 16 | 88.9 x 2.11 [3.5 x 0.083] | - | 130 [5.118] | 97.4 [3.835] | 100 x 5 [3.937 x 0.197] |
| DN | PN | Dimensions in mm[in] | ||||
|---|---|---|---|---|---|---|
| Pipe outer Ø x wall thickness | L | D₁ | Mb | Aseptic O-ring | ||
| 25 | 40 | 29 x 1.5 [1.142 x 0.059] | 114 [4.489] | 50.5 [1.988] | 26 [1.024] | 28 x 3.5 [1.102 x 0.138] |
| 32 | 40 | 35 x 1.5 [1.378 x 0.059] | - | 50.5 [1.988] | 32 [1.26] | 34 x 5 [1.339 x 0.197] |
| 40 | 40 | 41 x 1.5 [1.614 x 0.059] | - | 64 [2.52] | 38 [1.496] | 40 x 5 [1.575 x 0.197] |
| 50 | 25 | 53 x 1.5 [2.087 x 0.059] | 156 [6.142] | 77.5 [3.051] | 50 [1.969] | 52 x 5 [2.047 x 0.197] |
| 65 | 25 | 70 x 2 [2.756 x 0.079] | - | 91 [3.583] | 66 [2.362] | 68 x 5 [2.677 x 0.197] |
| 80 | 25 | 85 x 2 [3.346 x 0.079] | - | 106 [4.173] | 81 [3.189] | 83 x 5 [3.268 x 0.197] |
| 100 | 25 | 104 x 2 [4.094 x 0.079] | - | 130 [5.118] | 100 [3.937] | 102 x 5 [4.016 x 0.197] |
| DN | PN | Dimensions in mm[in] | ||||
|---|---|---|---|---|---|---|
| Pipe outer Ø x wall thickness | L | D₁ | Mb | Aseptic O-ring | ||
| 26.9 | 40 | 26 x 1.6 [1.024 x 0.059] | - | 50.5 [1.988] | 23.7 [0.933] | 26 x 3.5 [1.024 x 0.138] |
| 33.7 | 40 | 33.7 x 2 [1.327 x 0.079] | - | 50.5 [1.988] | 29.7 [1.169] | 32 x 5 [1.26 x 0.197] |
| 42.4 | 25 | 42.4 x 2 [1.669 x 0.079] | - | 64 [2.52] | 38.4 [1.512] | 40.5 x 5 [1.594 x 0.197] |
| 48.3 | 25 | 48.3 x 2 [1.902 x 0.079] | - | 64 [2.52] | 44.3 [1.744] | 46.5 x 5 [1.831 x 0.197] |
| 60.3 | 25 | 60.3 x 2 [2.374 x 0.079] | - | 91 [3.583] | 56.3 [2.217] | 58.5 x 5 [2.303 x 0.197] |
| 76.1 | 25 | 76.1 x 2 [2.996 x 0.079] | - | 106 [4.173] | 72.1 [2.839] | 73.5 x 5 [2.894 x 0.197] |
| 88.9 | 25 | 88.9 x 2 [3.5 x 0.079] | - | 119 [4.685] | 84.3 [3.319] | 86.5 x 5 [3.406 x 0.197] |
| DN | PN | Dimensions in mm[in] | ||||
|---|---|---|---|---|---|---|
| Pipe outer Ø x wall thickness | L | D₁ | Mb | Aseptic O-ring | ||
| 1" | 40 | 25.4 x 1.65 [1 x 0.059] | 114 [4.489] | 50.5 [1.988] | 22.1 [0.87] | 24 x 3.5 [0.945 x 0.138] |
| 1 ½" | 40 | 38.1 x 1.65 [1.5 x 0.059] | - | 64 [2.52] | 34.8 [1.37] | 37 x 5 [1.457 x 0.197] |
| 2" | 25 | 50.8 x 1.65 [2 x 0.059] | - | 77.5 [3.051] | 47.5 [1.87] | 50 x 5 [1.969 x 0.197] |
| 2 ½" | 25 | 63.5 x 1.65 [2.5 x 0.059] | - | 91 [3.583] | 60.2 [2.37] | 62 x 5 [2.441 x 0.197] |
| 3" | 25 | 76.2 x 1.65 [3 x 0.059] | - | 106 [4.173] | 72.9 [2.87] | 75 x 5 [2.953 x 0.197] |
| 4" | 25 | 101.6 x 2.11 [4 x 0.083] | - | 130 [5.118] | 97.4 [3.835] | 100 x 5 [3.937 x 0.197] |
| Model | Description | Order number |
|---|---|---|
| 910.16 1) | Instrument mounting bracket form H per DIN 16281, 100 mm, aluminium, black | 9091858 |
| Instrument mounting bracket form H per DIN 16281, 100 mm, stainless steel | 9091882 | |
| Instrument mounting bracket for pipe mounting, for pipe Ø20 ...80 mm, electrogalvanised steel | 9091904 |
| Material | Unified numbering system (UNS) |
|---|---|
| Stainless steel 316L (1.4404 or 1.4435) | S31603 |
| Stainless steel 904L (1.4539) | N08904 |
| Stainless steel 321 (1.4541) | S32100 |
| Stainless steel 316Ti (1.4571) | S31635 |
| Stainless steel 1.4466 (urea grade) | S31050 |
| Duplex 2205 (1.4462) | S31803 |
| Superduplex 1.4410 | S32750 |
| Tantalum (also lining) | R05200 |
| Hastelloy C276 (2.4819) | N01276 |
| Hastelloy C22 (2.4602) | N06022 |
| Inconel 600 (2.4816) | N06600 |
| Incoloy 825 (2.4858) | N08825 |
| Inconel 625 (2.485) | N06625 |
| Monel 400 (2.4360) | N04400 |
| Nickel 200 (2.4066) | N02200 |
| Nickel 201 (2.4068) | N02201 |
| Titanium 3.7035 (class 2) | R50400 |
| Titanium 3.7235 (class 7) | R52400 |
| Zirconium GR702 | R60702 |
| Designation | Identi- fication number | Solidi- fication point | Boiling/ degradation point | Density at 25 °C | Kin.Viscosity at 25 °C | Remark |
|---|---|---|---|---|---|---|
| KN | °C | °C | g/cm³ | cSt | ||
| Silicone oil | 2 | -45 | +300 | 0.96 | 54.5 | Universal application |
| Glycerine | 7 | -35 | +240 | 1.26 | 759.6 | FDA 21 CFR 182.1320 |
| Silicone oil | 17 | -90 | +200 | 0.92 | 4.4 | Low temperatures |
| Halocarbon | 21 | -60 | +175 | 1.89 | 10.6 | Oxygen 1) and chlorine |
| Methylcyclopentane | 30 | -130 | +60 | 0.74 | 0.7 | For very low temperatures |
| High-temperature silicone oil | 32 | -25 | +400 | 1.06 | 47.1 | For high temperatures |
| Neobee® M-20 | 59 | -35 | +260 | 0.92 | 10.0 | FDA 21 CFR 172.856, 21 CFR 174.5 |
| DI water | 64 | +4 | +85 | 1.00 | 0.9 | For ultrapure media |
| Silicone oil | 68 | -75 | +250 | 0.93 | 10.3 | |
| DI water/propanol mixture | 75 | -30 | +60 | 0.92 | 3.6 | For ultrapure media |
| Medicinal white mineral oil | 92 | -15 | +260 | 0.85 | 45.3 | FDA 21 CFR 172.878, 21 CFR 178.3620(a); USP, EP, SP |
| Maximum temperature | Maximum oxygen pressure |
|---|---|
| to 60 °C | 50 bar |
| > 60 °C to 100 °C | 30 bar |
| > 100 °C to 175 °C | 25 bar |
القطاع
كيمياء / صيدلة
صناعة الأدوية، صناعة التقنية الحيوية، إنتاج المكونات الفعالة · المنشآت المعقّمة أو إنتاج مواد أولية معقّمة في الصناعة الكيميائية
القطاع
الصناعات الميكانيكية
الغازات والهواء المضغوط والأبخرة؛ الوسائط السائلة والشبه الصلبة والبلورية والجارية والنقية
لم تجد الإجابة في الوثائق؟ سيرد المهندس خلال يوم عمل.
اسأل المهندس →
