SIREC DS
- Permits the recording of up to 6 analog and 2 binary inputs
- Output on 5" color LC display (STN)
- Storage of data on 1.44 Mbyte diskette
- Ethernet interface as standard
- Data evaluation using the SIREC D-Viewer PC program (included in scope of delivery)
- Programming from the front panel or using the SIREC D-Manager PC program (option)
- Full network functionality (FTP, real-time Trendbus, Modbus) with the SIREC D Server PC program (option)
Область применения
The SIREC DS recorder is used to record and display electrical variables. The measured data in the main memory are available on the display for direct observation of the trend. The measured data on the interchangeable data memory (diskette) are evaluated on a PC.
- The input variables can be freely adjusted within wide ranges. The unit is therefore suitable for almost all process engineering sectors.
- The binary inputs and binary outputs permit control of the unit or also the output of signals.
- The recorder can be connected to a PC via Ethernet to permit central acquisition of the measured data.
Дизайн
The SIREC DS has a housing for panel mounting. Front dimensions: 144 x 144 mm.
The unit is operated and set using a short-stroke keypad on the front panel. The diskette drive for data storage is accessible by lifting up the keypad.
The electric connections are made at the rear of the recorder:
- Power supply connection: appliance plug for 90 to 250 V AC version
- Power supply connection: screw terminals for 24 V DC version
- Process signal connections: plug-in screw terminals
- Ethernet TCP/IP interface connection: 8-pin RJ45 connector
Функции
The process variables are measured, and displayed as trend curves, bargraphs or digital displays in various combinations.
The internal memory of 4 Mbyte is operated as a ring buffer. The oldest data in each case are overwritten by the newest data.
The following data storage possibilities exist:
- Selective data storage per channel. Individual selection of storage method and rate
- Optional data compression using fuzzy logging mode (selectable per channel)
Display of measured data

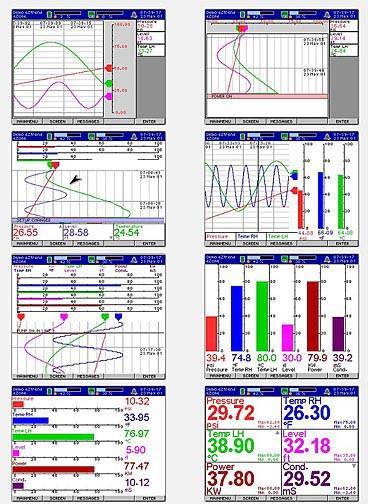

SIREC DS display modes
The display of the measured data can be freely adjusted within wide ranges, permitting:
- Analog trend display up to 1200 mm/h
- Horizontal or vertical analog display
- Horizontal or vertical bargraph
- Detailed alarm and event reports
- Numerical display of values
- Event marking with I&C number, time and date
- Status line with date, time, occupation of RAM and diskette in percent
Further important features
- Simple and fast configuration on the device or using software
- Operating menu in German, English, French, Italian, Spanish, Portuguese, Polish, Hungarian, Slovakian, Czech, Romanian, Turkish
- User-defined access coding with password protection. There are four access levels; up to 10 different passwords are possible.
- Real-time clock with calendar function
- Options:
- 6 relay outputs / 2 binary inputs
- Fundamental mathematical functions, summation, 6 additional recording channels
Технические данные
| Analog inputs | |
|---|---|
| Quantity | 6 input channels |
| Sampling rate | 100 ms (with RTD/TC: 500 ms) |
| Measured-value memory | Measured value, mean value, min./max. |
| Input variables | Voltages (mV, V, mA), thermocouple, resistance thermometer (current via external shunt) |
| Resolution | 16 bits (0.0015%) |
| Input impedance | Current loop resistance (DC): 10 Ω ± 5% (external)All others: 1 MΩ |
| Source resistance | Resistance thermometer:max. 40 Ω per conductor |
| Insulation resistance | > 9.9 MΩ between any terminal and ground terminal |
| Input filter | Simple low-pass filter, adjustable by software between 1 and 15 s |
| Electrical isolation | Common-mode: 250 V ACSeries-mode: 250 V AC |
| Linear scaling | -999999 to +999999 Scale factors from 1 to 9999;automatic positioning of decimal point or fixed setting. Freely-definable technical dimensions (5 characters) |
| Logarithmic scaling | 1 to 9 decades |
| Square-root extraction | For all input modes |
| Recording | |
| Types | Measured value, mean value, min./max. |
| Interval modes | Continuous, event and fuzzy |
| Interval | 100/500 ms to 4 days selectable per channel |
| Display | STN QVGA |
| Size | 5" (12.7 cm) diagonal, color |
| Resolution | QVGA (320 x 240 pixels) |
| Refresh rate | Values are updated every 250 ms |
| Conditions for use | |
| Installation conditions | |
| Mounting | Vertical panel mounting, max. ± 20° out of vertical;panel thickness: 2 ... 20 mm |
| Ambient conditions | |
| Permissible ambient temperature | |
| - Operation | 15 ... 40 °C |
| - Storage | -10 ... +60 °C |
| Relative humidity | 10 ... 90% (no condensation) |
| Vibration | 0 ... 70 Hz, 0.1 g |
| Shock | 1 g/30 ms |
| Degree of protection of housing (front) | IP54Terminals IP20 |
| Design | |
| Weight | 2.5 kg |
| Materials | |
| - Housing | Galvanized sheet-steel |
| - Front frame | Unbreakable polycarbonate plastic with scratchproof window |
| Dimensions (H x W x D) in mm | 144 x 144 x 224 Recommendation: provide additional 30 mm for mains cable and signal plug. |
| Power supply | |
| Supply voltage | 90 ... 250 V AC24 V DC (18 ... 30 V) |
| Line frequency | 47 ... 64 Hz |
| Power consumption | Max. 20 VA |
| Safety and EMC standards | |
| Safety standard | Corresponds to EN 61 010-1 (2001) |
| Noise immunity | Corresponds to EN 61 326-1 (1997) |
| Overvoltage protection | Category II: EN 61 010-1 |
| EC declaration of conformity | No. 3540.000CE marking: 07/03Compliance with following directives: 89/336/EEC, 73/23/EEC |
| Measured variables and measuring range limits | |
| Thermocouples | Temperature range |
| - B | 0 ... 600 °C600 ... 1750 °C |
| - C (W5) | 0 ... 2300 °C |
| - E | -200 ... +1000 °C |
| - J | -200 ... 0 °C0 ... 1190 °C |
| - K | -200 ... 0 °C0 ... 1000 °C1000 ... 1350 °C |
| - L | -200 ... +100 °C100 ... 900 °C |
| - N (Nicrosil Nisil) | -200 ... 0 °C0 ... 1300 °C |
| - R | 0 ... 300 °C300 ... 1750 °C |
| - S | 0 ... 300 °C300 ... 1750 °C |
| - T | -200 ... 0 °C0 ... 400 °C |
| - W | 1000 ... 1800 °C1800 ... 2300 °C |
| - Chromel/Copel | -50 ... +600 °C |
| Resistance thermometers | Temperature range |
| - Pt100, 100 Ω | -200 ... +650 °C |
| - Pt200, 200 Ω | -200 ... +180 °C |
| - Ni120 | -80 ... +240 °C |
| Measuring range limits | |
| Voltage input | ± 100 mV; ± 200 mV; ± 1 V; ± 10 V |
| Current input | ± 10 mA; ± 20 mAwith external 10 Ω shuntThe accuracy depends on the used resistor, e.g. 0.1%. |
Опции
Чертеж

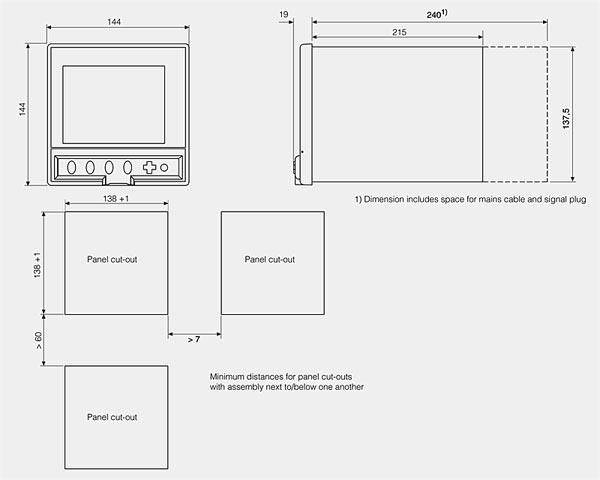

SIREC DS, dimensions

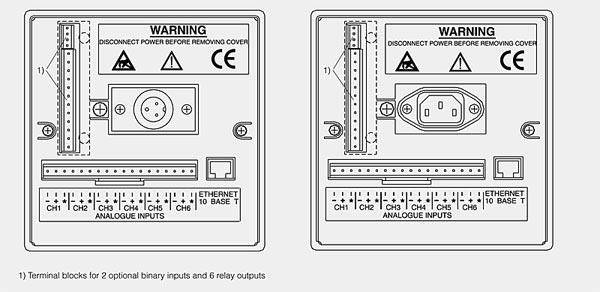

SIREC DS, rear of unit with terminal assignments; left: 24 V DC version; right: 90 to 240 V AC version
Схема подключения
Дальнейшая информация
Заказные данные
| Заказной № | Описание | Вес (кг) | Доставка | Мин. зак. (шт) |
|---|---|---|---|---|
| 7ND4121-.....-.... | ЦИФРОВОЙ ДИСПЛЕЙНЫЙ САМОПИСЕЦ SIREC D200, ФРОНТАЛЬНЫЕ РАЗМЕРЫ 144 X 144 MM, ДЛЯ ВСЕХ СТАНДАРТНЫХ ПРИЛОЖЕНИЙ, ИНТЕРФЕЙС ETHERNET (НА ЗАДНЕЙ ПАНЕЛИ) И USB- INTERFACE (НА ЛИЦЕВОЙ ПАНЕЛИ) | 2.5 | по запросу (D) | 1 |
Аксессуары
| Заказной № | Описание | Вес (кг) | Доставка | Мин. зак. (шт) |
|---|---|---|---|---|
| 7ND4800-8AA | SOFTWARE: ПРОГРАММА ПЕРЕДАЧИ ДАННЫХ SIREC D VIEWER, ОПИСАНИЕ НА CD НА АНГЛ./НЕМ. | 0.1 | 6 - 8 недель (C) | 1 |
| 7ND4800-8BA | SIREC D ПРОГРАММНОЕ ОБЕСПЕЧЕНИЕ ОПЦИИ АКТИВИЗАЦИИ SIREC D-MANAGER PRO (ТРЕБУЕТСЯ УКАЗАТЬ НОМЕР РЕГИСТРАТОРА) | 0.1 | 6 - 8 недель (C) | 1 |
| 7ND4800-8CA | SIREC D АКТИВИЗАЦИЯ SIREC D-SERVER PRO(ТРЕБУЕТСЯ УКАЗАТЬ КОД БАЗОВОЙ ПРОГРАММЫ) | 0.1 | 6 - 8 недель (C) | 1 |
| 7ND4800-8EA | SIREC D SOFTWARE: UPGRADING OF SIREC D-MANAGER TO SIREC D SERVER | 0.1 | 6 - 8 недель (C) | 1 |
| 7ND4801-8AD | ОПЦИИ МИКРОПРОГРАММНОГО ОБЕСПЕЧЕНИЯ ДЛЯ SIREC D200, 10 КРЕДИТОВ | 0.1 | 6 - 8 недель (C) | 1 |
| 7ND4801-8BD | ОПЦИИ МИКРОПРОГРАММНОГО ОБЕСПЕЧЕНИЯ ДЛЯ SIREC D200, 20 КРЕДИТОВ | 0.1 | 6 - 8 недель (C) | 1 |
| 7ND4801-8CD | ОПЦИИ МИКРОПРОГРАММНОГО ОБЕСПЕЧЕНИЯ ДЛЯ SIREC D200, 30 КРЕДИТОВ | 0.1 | 6 - 8 недель (C) | 1 |
| 7ND4801-8DD | ОПЦИИ МИКРОПРОГРАММНОГО ОБЕСПЕЧЕНИЯ ДЛЯ SIREC D200, 40 КРЕДИТОВ | 0.1 | 6 - 8 недель (C) | 1 |
