WIKA · Измерение давления · Семейство PBV_FS

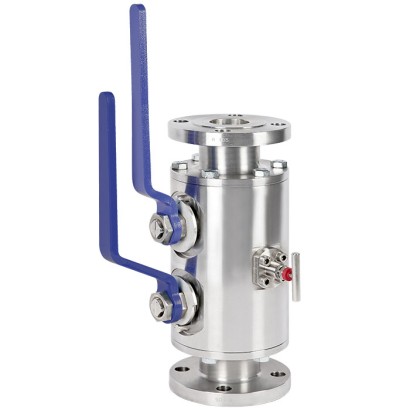

Шаровой кран для трубопроводов, конструкция с разъёмным корпусом

Name: Шаровой кран для трубопроводов, конструкция с разъёмным корпусом
Brand: WIKA
SKU: PBV-FS

Запорный клапан с одинарным или двойным блокированием и продувкой (bleed)

CEEACNACERoHSREACHNACE MR0175 / ISO 15156API 598ISO 15848-2API 6D

Цена

По запросу

Зависит от конфигурации

Заказать расчёт

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Описание

Запорный трубопроводный клапан поставляется с плавающим шаром, а также с полнопроходным или уменьшенным проходом.

Шаровой клапан трубопроводной арматуры разработан с учётом требований технологической отрасли, особенно для применения с природным газом и агрессивными средами.

Клапаны серии PBV-FS применяются для технологического отключения или отбора давления. Компактная конструкция объединяет один или два запорных клапана и продувочный (вентиляционный) клапан. Это позволяет использовать компоновку из шаровых и игольчатых клапанов в исполнении одинарного или двойного блок-и-продувка (block-and-bleed).

Особенности

Высококачественная обработка гарантирует плавный ход с низким износом и низким моментом переключения
Компактная сборка снижает массу и габариты, уменьшает количество мест утечки и обеспечивает простое обслуживание
Соответствует требованиям по фугитивным выбросам согласно ISO 15848-1, класс герметичности B
Испытания на пожаробезопасность по API 607
По запросу — заказная комбинация клапанов и средств измерения (instrument hook-up)

Вопросы и ответы

Какое исполнение блокировки доступно для PBV-FS?

Клапан выпускается как одинарный или двойной блок-и-продувка (block-and-bleed): конструкция объединяет один или два запорных шаровых клапана и продувочный (вентиляционный) клапан.

Какие варианты прохода шара предусмотрены?

Доступен плавающий шар с полнопроходным или уменьшенным проходом.

Какие присоединения к процессу возможны?

Фланцевые: ½" … 2" / class 150 … class 2500 и DN 15 … DN 50 / PN 16 … PN 420; резьбовое: ½ … ¾ NPT. Фланцы выполняются по ASME B16.5, внутренняя резьба ½ NPT — по ASME B1.20.1.

Из каких материалов изготавливается корпус?

Корпус — из нержавеющей стали 316/316L, нержавеющей стали Duplex F51 или углеродистой стали ASTM A350 LF2.

Какие материалы уплотнений применяются?

PEEK, RTFE, графит и FKM; эти же материалы входят в состав частей, контактирующих со средой.

Для каких температур среды рассчитан клапан?

Диапазон температуры среды составляет от −46 до +180 °C.

Какие подтверждения по герметичности и безопасности есть у серии?

Соответствие требованиям по фугитивным выбросам ISO 15848-1 (класс герметичности B), типовые испытания на пожаробезопасность по API 607, а также сертификаты CE, EAC, NACE MR0175 / ISO 15156, RoHS, REACH, API 598, API 6D и ISO 15848-2.

Можно ли заказать клапан вместе с измерительным прибором?

Да, по запросу предлагается комбинация клапанов и измерительных приборов под требования клиента (instrument hook-up).

Идентификация

Подтип

Ball valve

Технологические условия

Технологическое присоединение	Flange ½" … 2" / class 150 … class 2500Flange DN 15 … DN 50 / PN 16 … PN 420Thread ½ ... ¾ NPTFlange per ASME B16.5½ NPT female per ASME B1.20.1
Темп. процесса	−46…+180 °C

Материалы

Материал корпуса	Stainless steel 316/316L, Stainless steel Duplex F51, Carbon steel ASTM A350 LF2
Материал смачиваемых частей	Stainless steel 316/316L, Stainless steel Duplex F51, Carbon steel ASTM A350 LF2, class 2, Carbon steel ASTM A350 LF2, PEEK, RTFE, Graphite, FKM
Материал уплотнения	PEEK, RTFE, Graphite, FKM

Сертификаты и одобрения

Сертификаты

CEEACNACERoHSREACHNACE MR0175 / ISO 15156API 598ISO 15848-2API 6D

Дополнительные характеристики

Языки datasheet

Таблицы из даташита

Piping valve, models PBV-FS2 and PBV-FS3

Standards used
Design	■ EEMUA publication 182, specification for integral block-and-bleed valve manifolds ■ ASME B16.34, valves - flanged, threaded and welding end ■ ASME B16.5, pipe flanges and flange fittings ■ EN 1092-1, flanges and their joints ■ ASMEVIII Div.1, rules for construction of pressure vessels
Production tests	■ API 598, valve inspection and testing ■ ISO 15848-2, valve test and qualification for fugitive emissions (option) ■ API 6D, specification for pipeline and piping valves (option)
Material requirements	NACE MR0175 / ISO 15156, use in H₂S-containing environments in oil and gas production (option)
Marking	MSS SP-25, standard marking system for valves, fittings, flanges, and unions
Temperature limits	The limits for operating pressure and temperature depend on the sealing material. → For diagram, see page 6
Function	■ Model PBV-FS2: block-and-bleed (shut-off and vent), 2 piece split valve body ■ Model PBV-FS3: double block-and-bleed (2 x shut-off and 1 x vent), 3 piece split valve body
Arrangement	Shut-off valve(s): ball valve(s) Vent valve: needle valve or ball valve
Pipe connection
Per ASME B16.5	Flange ½" …2" / class 150 …class 2500
Per EN 1092-1	FlangeDN15…DN50/PN16…PN420
Per ASME B1.20.1	Thread ½...¾NPT
Surface roughness Ra of the sealing face
Per ASME B16.5	■ RF: 3.2 ... 6.3 μm [125 ... 250 μin] (spiral surface) ■ RJ: 1.6 μm [63 μin]
Per EN 1092-1	■ Form B1: 3.2 ... 12.5 μm [125 ... 500 μin]
Vent connection	■ ½NPTfemale;plug screw is included in delivery, though not prefitted. ■ ½" blind flange; pre-fitted including sealing and threaded bolts.
Ball bore 1)	■ 15 mm[0.59 in] ■ 38 mm[1.5 in] Full or reduced bore	■ 20 mm[0.79 in] ■ 42 mm[1.65 in]	■ 25 mm[0.98 in] ■ 49 mm[1.93 in]
Vent bore 1)	5 ... 10 mm[0.20 ... 0.39 in]
Ball valve design	■ Antistatic design ■ Blow-out-proof valve stem ■ Self-relieving valve seat
Needle valve design	■ Non-rotating spindle tip ■ Blow-out-proof spindle tip ■ Design with back seat seal ■ Back seat seal

Material
Wetted parts
Valve body and closures	■ Stainless steel 316/316L ■ Stainless steel Duplex F51 ■ Carbon steel ASTM A350 LF2, class 2 1)
Ball, valve stem, bonnet body, spindle tip	■ Stainless steel 316/316L ■ Stainless steel Duplex F51
Valve seats and packings	■ PEEK (ball valve seat) ■ RTFE (ball valve seat) ■ Graphite (needle valve sealing packing)
O-rings	■ FKM with resistance against explosive decompression (AED) 2) ■ FKM for low temperatures with resistance against explosive decompression (AED) 2)
Non-wetted parts
Handle	■ With ball bore 15 mm:stainless steel, PVC coated (blue) ■ With ball bore ≥ 20 mm:carbon steel, painted (blue)
Bonnet, spindle, locking plate, locking pin, product label, screws	Stainless steel
Threaded bolts and nuts	■ Carbon steel A320 GrL7M/A194 Gr7M + HDG(hot-dip galvanised) ■ Stainless steel A193 GrB8MCl2/A194 Gr8M ■ Optional: PTFE-coated
Paints
Stainless steel	Corrosivity category C4 per ISO 12944 with colour RAL 7038 (agate grey) Epoxy primer + epoxy intermediate + polyurethane finish
Carbon steel	Corrosivity category C4 per ISO 12944 with colour RAL 7038 (agate grey) Zinc rich primer + Epoxy intermediate + polyurethane finish

O-rings	Max. allowable operating pressure at defined temperatures
	Minimum temperature	Temperature of 0 °C [32 °F]	Temperature of 20 °C [68 °F]	Maximum temperature
FKM (AED)	100 bar at -29 °C	100 bar	100 bar	75 bar at 180 °C
1,450 psi at -20 °F	1,450 psi	1,450 psi	1,100 psi at 356 °F
FKM for low temperatures (AED)	100 bar at -46 °C	100 bar	100 bar	90 bar at 120 °C
1,450 psi at -51 °F	1,450 psi	1,450 psi	1,300 psi at 248 °F

O-rings	Max. allowable operating pressure at defined temperatures
	Minimum temperature	Temperature of 0 °C [32 °F]	Temperature of 20 °C [68 °F]	Maximum temperature
FKM (AED)	420 bar at -29 °C	420 bar	420 bar	340 bar at 180 °C
6,000 psi at -20 °F	6,000 psi	6,000 psi	4,950 psi at 356 °F
FKM for low temperatures (AED)	420 bar at -46 °C	420 bar	420 bar	380 bar at 120 °C
6,000 psi at -51 °F	6,000 psi	6,000 psi	5,500 psi at 248 °F

Смотреть все (14)

DN	class	Dimensions in mm[in]	x 1)	Weight kg
A	B	C	Ø D	E	G	J	K		[lb]
½"	150	275 [10.8]	11.2 [0.44]	9.7 [0.38]	90 [3.5]	229 [9]	101 [4]	116 [4.5]	83 [3.3]	4	5 [11]
300	278 [10.9]	14.2 [0.56]	12.7 [0.5]	95 [3.7]	235 [9.2]	101 [4]	116 [4.5]	83 [3.3]	4	5 [11]
600	284 [11.2]	30.6 [1.2]	14.2 [0.56]	95 [3.7]	247 [9.7]	101 [4]	116 [4.5]	83 [3.3]	4	6 [13.2]
900/1500	317 [12.5]	28.8 [1.13]	22.4 [0.88]	121 [4.7]	309 [12.1]	104 [4.1]	124 [4.9]	91 [3.6]	4	10.5 [23.2]
2500	324 [12.7]	36.6 [1.44]	30.2 [1.19]	135 [5.3]	323 [12.7]	104 [4.1]	147 [5.8]	107 [4.2]	4	13 [28.6]
¾"	150	312 [12.3]	12.7 [0.5]	11.2 [0.44]	99 [3.9]	257 [10.1]	104 [4.1]	128 [5]	96 [3.8]	4	7 [15.4]
300	319 [12.5]	15.7 [0.62]	14.2 [0.56]	117 [4.6]	271 [10.7]	104 [4.1]	128 [5]	96 [3.8]	4	8 [17.6]
600	326 [12.8]	22.1 [0.87]	15.7 [0.62]	117 [4.6]	285 [11.2]	104 [4.1]	128 [5]	96 [3.8]	4	9 [19.8]
900/1500	468 [18.4]	31.8 [1.25]	25.4 [1]	130 [5.1]	348 [13.7]	105 [4.1]	138 [5.4]	97 [3.8]	4	13.5 [29.8]
2500	474 [18.6]	38.2 [1.5]	31.8 [1.25]	140 [5.5]	360 [14.2]	105 [4.1]	150 [5.9]	110 [4.3]	4	16 [35.3]
1"	150	431 [16.9]	14.2 [0.56]	12.7 [0.5]	108 [4.2]	279 [11]	114 [4.5]	143 [5.6]	102 [4]	4	11.5 [25.3]
300	438 [17.2]	17.2 [0.68]	15.7 [0.62]	124 [4.9]	293 [11.5]	114 [4.5]	143 [5.6]	102 [4]	4	13 [28.6]
600	445 [17.5]	23.9 [0.94]	17.5 [0.69]	124 [4.9]	307 [12.1]	114 [4.5]	143 [5.6]	102 [4]	4	14 [30.8]
900/1500	501 [19.7]	34.8 [1.37]	28.4 [1.12]	150 [5.9]	419 [16.5]	122 [4.8]	145 [5.7]	112 [4.4]	4	27.5 [60.6]
2500	508 [20]	41.5 [1.63]	35.1 [1.38]	159 [6.2]	433 [17]	122 [4.8]	145 [5.7]	112 [4.4]	4	30.5 [67.2]
1½"	150	470 [18.5]	17.4 [0.68]	15.9 [0.62]	127 [5]	326 [12.8]	125 [4.9]	155 [6.1]	114 [4.5]	4	19.5 [43]
300	481 [18.9]	20.5 [0.81]	19 [0.75]	155 [6.1]	348 [13.7]	125 [4.9]	155 [6.1]	114 [4.5]	4	22 [48.5]
600	490 [19.3]	28.8 [1.13]	22.4 [0.88]	155 [6.1]	366 [14.4]	125 [4.9]	155 [6.1]	114 [4.5]	4	24.5 [54]
900/1500	822 [32.3]	38.2 [1.5]	31.8 [1.25]	178 [7]	527 [20.7]	162 [6.4]	199 [7.8]	150 [5.9]	4	84.5 [186.3]
2500	838 [33]	50.8 [2]	44.4 [1.75]	203 [8]	559 [22]	162 [6.4]	199 [7.8]	150 [5.9]	4	94.5 [208.3]
2"	150	512 [20.1]	19 [0.75]	17.5 [0.69]	152 [6]	364 [14.3]	142 [5.6]	182 [7.1]	138 [5.4]	4	35 [77.1]
300	515 [20.3]	22.1 [0.87]	20.6 [0.81]	165 [6.5]	370 [14.5]	142 [5.6]	182 [7.1]	138 [5.4]	8	36.5 [80.4]
600	524 [20.6]	31.8 [1.25]	25.4 [1]	165 [6.5]	388 [15.3]	142 [5.6]	182 [7.1]	138 [5.4]	8	39.5 [87.1]
900/1500	667 [26.2]	44.5 [1.75]	38.1 [1.5]	216 [8.5]	472 [18.6]	142 [5.6]	184 [7.2]	138 [5.4]	8	61.5 [135.6]
2500	939 [36.9]	57.2 [2.25]	50.8 [2]	235 [9.2]	579 [22.8]	166 [6.5]	247 [9.7]	175 [6.9]	8	119 [262.3]

DN	class	Ball bore, full bore 1)
½"	150 ... 2500	15 mm[0.59 in]
¾"	150 ... 2500	20 mm[0.79 in]
1"	150 ... 2500	25 mm[0.98 in]
1½"	150 ... 2500	38 mm[1.5 in]
2"	150 ... 1500	49 mm[1.93 in]
	2500	42 mm[1.65 in]

DN	class	Dimensions in mm[in]	x 1)	Weight kg [lb]
A	B	C	Ø D	E	G	J	K
½"	300	282 [11.1]	18.3 [0.72]	12.7 [0.5]	95 [3.7]	243 [9.5]	101 [4]	116 [4.5]	83 [3.3]	4	5.5 [12.1]
600	283 [11.1]	19.8 [0.78]	14.2 [0.56]	95 [3.7]	245 [9.6]	101 [4]	116 [4.5]	83 [3.3]	4	6 [13.2]
900/1500	317 [12.5]	28.8 [1.13]	22.4 [0.88]	121 [4.7]	309 [12.1]	104 [4.1]	124 [4.9]	91 [3.6]	4	10.5 [23.2]
2500	324 [12.7]	36.6 [1.44]	30.2 [1.19]	135 [5.3]	323 [12.7]	104 [4.1]	147 [5.8]	107 [4.2]	4	13 [28.6]
¾"	300	324 [12.7]	20.6 [0.81]	14.2 [0.56]	117 [4.6]	281 [11]	104 [4.1]	128 [5]	96 [3.8]	4	9 [19.8]
600	326 [12.8]	22.1 [0.87]	15.7 [0.62]	117 [4.6]	285 [11.2]	104 [4.1]	128 [5]	96 [3.8]	4	9 [19.8]
900/1500	468 [18.4]	31.8 [1.25]	25.4 [1]	130 [5.1]	348 [13.7]	105 [4.1]	138 [5.4]	97 [3.8]	4	13.5 [29.8]
2500	474 [18.6]	38.2 [1.5]	31.8 [1.25]	140 [5.5]	360 [14.2]	105 [4.1]	150 [5.9]	110 [4.3]	4	16 [35.3]
1'	150	436 [17.1]	19.1 [0.75]	12.7 [0.5]	108 [4.2]	289 [11.4]	114 [4.5]	143 [5.6]	102 [4]	4	12.5 [27.5]
300	443 [17.4]	22.1 [0.87]	15.7 [0.62]	124 [4.9]	303 [11.9]	114 [4.5]	143 [5.6]	102 [4]	4	13.5 [29.7]
600	445 [17.5]	23.9 [0.94]	17.5 [0.69]	124 [4.9]	307 [12.1]	114 [4.5]	143 [5.6]	102 [4]	4	14 [30.8]
900/1500	501 [19.7]	34.8 [1.37]	28.4 [1.12]	150 [5.9]	419 [16.5]	122 [4.8]	145 [5.7]	112 [4.4]	4	27.5 [60.6]
2500	508 [20]	41.5 [1.63]	35.1 [1.38]	159 [6.2]	433 [17]	122 [4.8]	145 [5.7]	112 [4.4]	4	30.5 [67.2]
1½'	150	475 [18.7]	22.3 [0.88]	15.9 [0.62]	127 [5]	336 [13.2]	125 [4.9]	155 [6.1]	114 [4.5]	4	20.5 [45.2]
300	486 [19.1]	25.4 [1]	19 [0.75]	155 [6.1]	358 [14.1]	125 [4.9]	155 [6.1]	114 [4.5]	4	23.5 [51.8]
600	490 [19.3]	28.8 [1.13]	22.4 [0.88]	155 [6.1]	366 [14.4]	125 [4.9]	155 [6.1]	114 [4.5]	4	24.5 [54]
900/1500	822 [32.3]	38.2 [1.5]	31.8 [1.25]	178 [7]	527 [20.7]	162 [6.4]	199 [7.8]	150 [5.9]	4	84.5 [186.3]
2500	840 [33.1]	52.4 [2]	44.4 [1.75]	203 [8]	563 [22.1]	162 [6.4]	199 [7.8]	150 [5.9]	4	95 [209.4]
2'	150	517 [20.3]	23.9 [0.94]	17.5 [0.69]	152 [6]	374 [14.7]	142 [5.6]	182 [7.1]	138 [5.4]	4	36 [79.3]
300	521 [20.5]	28.6 [1.12]	20.6 [0.81]	165 [6.5]	382 [15]	142 [5.6]	182 [7.1]	138 [5.4]	8	38.5 [84.9]
600	526 [20.7]	33.4 [1.31]	25.4 [1]	165 [6.5]	392 [15.4]	142 [5.6]	182 [7.1]	138 [5.4]	8	40 [88.2]
900/1500	688 [27.1]	46.1 [1.81]	38.1 [1.5]	216 [8.5]	474 [18.6]	142 [5.6]	184 [7.2]	138 [5.4]	8	62 [136.7]
2500	940 [37]	58.8 [2.31]	50.8 [2]	235 [9.2]	581 [22.9]	166 [6.5]	247 [9.7]	175 [6.9]	8	120 [264.5]

DN	class	Ball bore, full bore 1)
½"	300 ... 2500	15 mm[0.59 in]
¾"	300 ... 2500	20 mm[0.79 in]
1"	150 ... 2500	25 mm[0.98 in]
1½"	150 ... 2500	38 mm[1.5 in]
2"	150 ... 1500	49 mm[1.93 in]
	2500	42 mm[1.65 in]

DN	class	Dimensions in mm[in]	x 1)	Weight kg [lb]
A	B	C	Ø D	E	G	J	K
½"	150	275 [10.8]	11.5 [0.5]	10 [0.4]	89 [3.5]	229 [9]	95 [3.7]	116 [4.6]	83 [3.3]	4	4,5 [9,92]
300	284 [11.2]	16 [0.6]	15.5 [0.6]	95 [3.7]	242 [9.6]	95 [3.7]	116 [4.6]	83 [3.3]	4	5 [11,02]
600	284 [11.2]	21 [0.8]	15.5 [0.6]	95 [3.7]	247 [9.7]	95 [3.7]	116 [4.6]	83 [3.3]	4	5 [11,02]
900/1500	317 [12.5]	29 [1.1]	22.5 [0.9]	121 [4.8]	309 [12.2]	98 [3.9]	124 [4.9]	91 [3.6]	4	8,5 [18,74]
2500	324 [12.8]	37 [1.5]	30.5 [1.2]	133 [5.2]	323 [12.7]	98 [3.9]	124 [4.9]	91 [3.6]	4	9,5 [20,94]
¾"	150	276 [10.9]	13 [0.5]	11.5 [0.5]	99 [3.9]	218 [8.6]	95 [3.7]	116 [4.6]	83 [3.3]	4	4,5 [9,92]
300	290 [11.4]	17.5 [0.7]	16 [0.6]	117 [4.6]	227 [9]	95 [3.7]	116 [4.6]	83 [3.3]	4	5,5 [12,13]
600	290 [11.4]	22.5 [0.9]	16 [0.6]	117 [4.6]	232 [9.1]	95 [3.7]	116 [4.6]	83 [3.3]	4	5,5 [12,13]
900/1500	320 [12.6]	32 [1.3]	25.5 [1]	130 [5.1]	274 [10.8]	98 [3.9]	124 [4.9]	91 [3.6]	4	9 [19,84]
2500	326 [12.8]	38.5 [1.5]	32 [1.3]	140 [5.5]	280 [11]	98 [3.9]	124 [4.9]	91 [3.6]	4	10 [22,05]
1"	150	278 [10.9]	14.5 [0.6]	13 [0.5]	108 [4.3]	220 [8.7]	95 [3.7]	116 [4.6]	83 [3.3]	4	5 [11,02]
300	292 [11.5]	19 [0.8]	17.5 [0.7]	124 [4.9]	229 [9.1]	95 [3.7]	116 [4.6]	83 [3.3]	4	6 [13,23]
600	292 [11.5]	24 [0.9]	17.5 [0.7]	124 [4.9]	234 [9.2]	95 [3.7]	116 [4.6]	83 [3.3]	4	6 [13,23]
900/1500	327 [12.9]	35 [1.4]	28.5 [1.1]	149 [5.9]	281 [11.1]	98 [3.9]	124 [4.9]	91 [3.6]	4	10,5 [23,15]
2500	304 [12]	42 [1.7]	35.5 [1.4]	159 [6.3]	288 [11.3]	98 [3.9]	124 [4.9]	91 [3.6]	4	12 [26,46]
1½"	150	281 [11.1]	17.5 [0.7]	16 [0.6]	127 [5]	223 [8.8]	95 [3.7]	116 [4.6]	83 [3.3]	4	5,5 [12,13]
300	301 [11.9]	25 [1]	22.5 [0.9]	155 [6.1]	238 [9.4]	95 [3.7]	116 [4.6]	83 [3.3]	4	8 [17,64]
600	301 [11.9]	30 [1.2]	22.5 [0.9]	155 [6.1]	243 [9.6]	95 [3.7]	116 [4.6]	83 [3.3]	4	8 [17,64]
900/1500	335 [13.2]	38.5 [1.5]	32 [1.3]	178 [7]	289 [11.4]	98 [3.9]	124 [4.9]	91 [3.6]	4	13 [28,66]
2500	351 [13.8]	51 [2]	44.5 [1.8]	203 [8]	305 [12]	98 [3.9]	124 [4.9]	91 [3.6]	4	18 [39,68]
2"	150	287 [11.3]	19 [0.7]	17.5 [0.7]	152 [6]	229 [9]	95 [3.7]	116 [4.6]	83 [3.3]	4	6,5 [14,33]
300	299 [11.8]	27 [1.1]	25.5 [1]	165 [6.5]	236 [9.3]	95 [3.7]	116 [4.6]	83 [3.3]	8	9 [19,84]
600	299 [11.8]	32 [1.3]	25.5 [1]	165 [6.5]	241 [9.5]	95 [3.7]	116 [4.6]	83 [3.3]	8	9 [19,84]
900/1500	337 [13.3]	44.5 [1.8]	38.5 [1.5]	216 [8.5]	291 [11.5]	98 [3.9]	124 [4.9]	91 [3.6]	8	17 [37,48]
2500	354 [13.9]	57.5 [2.3]	51 [2]	235 [9.3]	308 [12.1]	98 [3.9]	175 [6.9]	91 [3.6]	8	24 [52,91]

DN	class	Ball bore
½"	150 ... 2500	15 mm[0.59 in], full bore
1" ... 2"	150 ... 2500	15 mm[0.59 in], reduced bore 1)

DN	class	Dimensions in mm[in]	x 1)	Weight kg [lb]
A	B	C	Ø D	E	G	J	K
½"	300/600	284 [11.2]	20 [0.8]	15.5 [0.6]	95 [3.7]	245 [9.6]	95 [3.7]	116 [4.6]	83 [3.3]	4	5 [11.02]
900/1500	317 [12.5]	29 [1.1]	22.5 [0.9]	121 [4.8]	309 [12.2]	98 [3.9]	124 [4.9]	91 [3.6]	4	8.5 [18.74]
2500	324 [12.8]	37 [1.5]	30.5 [1.2]	133 [5.2]	323 [12.7]	98 [3.9]	124 [4.9]	91 [3.6]	4	9.5 [20.94]
¾"	300/600	290 [11.4]	22.5 [0.9]	16 [0.6]	117 [4.6]	232 [9.1]	95 [3.7]	116 [4.6]	83 [3.3]	4	5.5 [12.13]
900/1500	320 [12.6]	32 [1.3]	25.5 [1]	130 [5.1]	274 [10.8]	98 [3.9]	124 [4.9]	91 [3.6]	4	9 [19.84]
2500	326 [12.8]	38.5 [1.5]	32 [1.3]	140 [5.5]	280 [11]	98 [3.9]	124 [4.9]	91 [3.6]	4	10 [22.05]
1"	150	278 [10.9]	19.5 [0.8]	13 [0.5]	108 [4.3]	225 [8.9]	95 [3.7]	116 [4.6]	83 [3.3]	4	5 [11.02]
600	292 [11.5]	24 [0.9]	17.5 [0.7]	124 [4.9]	234 [9.2]	95 [3.7]	116 [4.6]	83 [3.3]	4	6 [13.23]
900/1500	327 [12.9]	35 [1.4]	28.5 [1.1]	149 [5.9]	281 [11.1]	98 [3.9]	124 [4.9]	91 [3.6]	4	10.5 [23.15]
2500	304 [12]	42 [1.7]	35.5 [1.4]	159 [6.3]	288 [11.3]	98 [3.9]	124 [4.9]	91 [3.6]	4	12 [26.46]
1½"	150	281 [11.1]	22.5 [0.9]	16 [0.6]	127 [5]	228 [9]	95 [3.7]	116 [4.6]	83 [3.3]	4	5.5 [12.13]
600	301 [11.9]	30 [1.2]	22.5 [0.9]	155 [6.1]	243 [9.6]	95 [3.7]	116 [4.6]	83 [3.3]	4	8 [17.64]
900/1500	335 [13.2]	38.5 [1.5]	32 [1.3]	178 [7]	289 [11.4]	98 [3.9]	124 [4.9]	91 [3.6]	4	13 [28.66]
2500	351 [13.8]	52.5 [2.1]	44.5 [1.8]	203 [8]	307 [12.1]	98 [3.9]	124 [4.9]	91 [3.6]	4	18 [39.68]
2"	150	287 [11.3]	24 [0.9]	17.5 [0.7]	152 [6]	234 [9.2]	95 [3.7]	116 [4.6]	83 [3.3]	4	6.5 [14.33]
600	299 [11.8]	33.5 [1.3]	25.5 [1]	165 [6.5]	243 [9.6]	95 [3.7]	116 [4.6]	83 [3.3]	8	9 [19.84]
900/1500	337 [13.3]	46.5 [1.8]	38.5 [1.5]	216 [8.5]	292 [11.5]	98 [3.9]	124 [4.9]	91 [3.6]	8	17.5 [38.58]
2500	354 [13.9]	59 [2.3]	51 [2]	235 [9.3]	309 [12.2]	98 [3.9]	175 [6.9]	91 [3.6]	8	24 [52.91]

DN	class	Ball bore
½"	300 ... 2500	15 mm[0.59 in], full bore
¾"	300 ... 2500	15 mm[0.59 in], reduced bore 1)
1" ... 2"	150 ... 2500	15 mm[0.59 in], reduced bore 1)

Logo	Description	Region
	EU declaration of conformity (option) Pressure equipment directive Up to category III	European Union
	EAC Machinery directive	Eurasian Economic Community

Logo	Description
-	Type test for fire safety in accordance with API 607, ISO 10497
-	Type test for fugitive emissions in accordance with EN ISO 15848-1
-	Positive material identification (PMI) test certificate (option)
-	Dye penetrant inspection (DPI) test certificate (option)
-	Magnetic particles inspection (MPI) test certificate (option)
-	Ultrasonic test (UT) certificate (option)

Шаровой кран для трубопроводов, конструкция с разъёмным корпусом

Описание

Особенности

Вопросы и ответы

1 стандартных артикулов семейства PBV_FS
