WIKA CPK-MM — Испытательные соединения «MINIMESS® system»

Name: Испытательные соединения «MINIMESS ® system»
Brand: WIKA
SKU: CPK-MM

Вопросы и ответы

Какие диапазоны давления поддерживают испытательные соединения CPK-MM?

Соединения рассчитаны на давление до 400 бар или до 630 бар в зависимости от исполнения.

Для каких приборов WIKA предназначены эти испытательные соединения?

Они используются с различными адаптерами для калибровочных приборов серий 1620 и 1215.

Можно ли подключать и отсоединять соединение под давлением без утечек?

Да, интегрированный обратный клапан обеспечивает монтаж и демонтаж без утечек.

Какие резьбовые присоединения входят в комплект?

Комплекты содержат присоединения M10x1, M16x2, G⅛, G¼, G½, а также ¼ NPT и ¼ NPTF; установка резьбовых соединений выполняется без инструмента.

В каком температурном диапазоне допускается эксплуатация?

Допустимая температура окружающей среды и среды составляет от -20 до +100 °C.

Из каких материалов изготовлены соединения?

Корпус и детали, контактирующие со средой, выполнены из стали 1.0718 (цинк-/никелированной), также используются полиамид, полиэфирное волокно и уплотнения из NBR (Perbunan).

Где применяются комплекты CPK-MM?

Их используют калибровочные сервисные компании и службы технического обслуживания для калибровки непосредственно на месте и для испытаний давлением.

Идентификация

Модель	CPK-MM
Серия	CPK
Подтип	Test coupling / Adapter set

Измерительный диапазон

Диапазон давления

0…400 bar · 0…630 bar

Технологические условия

Технологическое присоединение	Fixing thread 12M10x1M16x2G ⅛G ¼¼ NPTFG ½¼NPTG1/8G1/41/4NPTFG1/21/4NPT
Темп. процесса	−20…+100 °C

Материалы

Материал корпуса	Steel 1.0718 (zinc-/nickel-coated)
Материал смачиваемых частей	Steel 1.0718 (zinc-/nickel-coated), Polyamide, Polyester fibre
Материал уплотнения	NBR (Perbunan)

Условия эксплуатации

Темп. окружающей среды

−20…+100 °C

Дополнительные характеристики

Языки datasheet

EN, DE

Таблицы из даташита

Test coupling, direct connection and hose adapter

Material
Coupling body	Steel 1.0718 (zinc-/nickel-coated)
Metal cap	Steel 1.0718 (zinc-/nickel-coated)
Seals	NBR (Perbunan)
Ambient conditions
Operating temperature	-20 ...+100 °C [-4 ...+212 °F]

Thread G	Type of sealing	Torque in Nm	Pressure ( Pmax )	Dimensions in mm[in]
			in bar [psi]	H	i	ø	SW
1620 series
ISO 228-G⅛	Form F	20	400 [5,800]	38 [1.50]	8 [0.31]	20 [0.79]	17 [0.67]
ISO 228-G¼	Form F	60	630 [9,130]	36 [1.42]	10 [0.39]	20 [0.79]	19 [0.75]
M10 x 1	FormG	20	630 [9,130]	37.5 [1.48]	8.5 [0.34]	20 [0.79]	17 [0.67]
¼NPTF	Form H	-	630 [9,130]	33 [1.30]	16.5 [1.50]	20 [0.79]	17 [0.67]
1215 series
ISO 228-G⅛	Form F	18	400 [5,800]	30 [1.18]	8 [0.31]	17 [0.67]	14 [0.55]
ISO 228-G¼	Form F	40	630 [9,130]	29 [1.14]	10 [0.39]	17 [0.67]	19 [0.75]
M10 x 1	FormG	20	630 [9,130]	30 [1.18]	8.5 [0.34]	17 [0.67]	14 [0.55]
¼NPTF	Form H	-	630 [9,130]	26 [1.02]	15 [0.59]	17 [0.67]	14 [0.55]

Thread G	Pressure ( Pmax )	Dimensions in mm[in]
	in bar [psi]	L	SW
1620 series / 1215 series
G½	630 [9,130]	17 [0.67]	27 [1.02]
¼NPT	630 [9,130]	-	19 [0.75]

Thread G	Pressure ( Pmax )	Dimensions in mm[in]
	in bar [psi]	L	SW
1620 series
M16 x 2	630 [9,130]	42 [1.65]	17 [0.67]
1215 series
Fixing thread 12	630 [9,130]	29 [1.14]	14 [0.55]

Смотреть все (16)

Thread G	Pressure ( Pmax )	Dimensions in mm[in]	Through bore
	in bar [psi]	L	SW A	Diameter in mm[in]
1620 series
G½	630 [9,130]	42.5 [1.67]	27 [1.02]	18 [0.71]
G ¼	630 [9,130]	38 [1.50]	19 [0.75]	18 [0.71]
¼ NPT	630 [9,130]	-	19 [0.75]	18 [0.71]

Thread G	Type of sealing	Dimensions in mm[in]
		d	a	b	t
ISO 228-G ¼	Form F	20.0 [0.79]	1.5 [0.06]	12.0 [0.47]	18.5 [0.73]
ISO 228-G⅛	Form F	15.0 [0.59]	1.0 [0.04]	8.0 [0.31]	13.0 [0.51]
M10 x 1	FormG	11.5 [0.45]	-	9.0 [0.35]	13.0 [0.51]
¼ NPTF	Form H	-	-	-	17.5 [0.69]
⅛NPTF	Form H	-	-	-	12.0 [0.47]

Thread T	Type of sealing	Dimensions in mm[in]
		h1	h2	SW
G½	Form F	10.5 [0.41]	14 [0.55]	27 [1.06]
G⅜	Form F	10.5 [0.41]	12 [0.47]	22 [0.87]

Measuring hose
Dimensions
Nominal width	DN 2
Internal diameter 1)	2 mm[0.08 in]
Outer diameter 1)	5 mm[0.20 in]
Minimum bending radius	20 mm[0.79 in]
Application	Perforated hose 2)
Operating pressure	630 bar [9,130 psi]
Burst pressure	1,950 bar [28,282 psi]
Material
Inner tube	Polyamide
Pressure carrier	Polyester fibre
Jacket	Polyamide
Connections	Steel 1.0718 (zinc-/nickel-coated)
Ambient conditions
Operating temperature	-20 ...+100 °C [-4 ...+212 °F]
Storage temperature	15 ... 25 °C [59 ... 77 °F]
Pressure utilisation 3)	■ 0 °C [32 °F]⇒122% ■ 30 °C [86 °F]⇒110% ■ 50 °C [122 °F]⇒100% ■ 80 °C [176 °F]⇒86% ■ 100 °C [212 °F]⇒77% ■ 120 °C [248 °F]⇒68%

No.	Description
1	Direct connection for measuring instrument G½, female thread
2	Direct connection for measuring instrument ¼NPT, female thread
3	Test coupling ISO 228-G ¼, male thread
4	Test coupling ISO 228-G ⅛, male thread
5	Test coupling ¼NPTF, male thread

No.	Description
1	Direct connection for measuring instrument G½, female thread
2	Direct connection for measuring instrument ¼NPT, female thread
3	Hose adapter (without check valve)
4	Measuring hose DN 2, length 0.5 m[1.64 ft]
5	Test coupling ISO 228-G ¼, male thread
6	Test coupling ISO 228-G ⅛, male thread
7	Test coupling ¼NPTF, male thread

No.	Description
1	Test coupling ISO 228-G ¼, male thread
2	Test coupling ISO 228-G ¼, male thread
3	Test coupling ISO 228-G ¼, male thread
4	Measuring hose DN 2, length 0.5 m[1.64 ft]

No.	Description
1	Direct connection for measuring instrument G½, female thread
2	Direct connection for measuring instrument ¼NPT, female thread
3	Hose adapter (without check valve)
4	Measuring hose DN 2, length 0.5 m[1.64 ft]
5	Test coupling ISO 228-G ¼, male thread

No.	Description	No.	Description
1	Test coupling ISO 228-G ¼, male thread	3	Test coupling ¼NPTF, male thread
2	Test coupling ISO 228-G ⅛, male thread	4	Measuring hose DN 2, length 0.5 m[1.64 ft]

For 1620 series		Order number
	Direct connection for measuring instrument G½, female thread	9072306
	Direct connection for measuring instrument G¼, female thread	14615956
	Direct connection for measuring instrument ¼NPT, female thread	14340206
	Pressure gauge connection G½, female thread	14615963
	Pressure gauge connection G¼, female thread	14615961
	Pressure gauge connection ¼NPT, female thread	14615962
	Test coupling ISO 228-G ¼, male thread	9072284
	Test coupling ISO 228-G ⅛, male thread	14340208
	Test coupling ISO 228-M10 x 1, male thread	14615966
	Test coupling ¼NPTF, male thread	14340207
	Reduction nozzle G⅜, male thread to M10 x 1, female thread	14615968
	Reduction nozzle G½, male thread to M10 x 1, female thread	14615970
	Hose adapter (without check valve)	14340209
	Measuring hose DN 2, length 0.5 m[1.64 ft]	14340220
	Measuring hose DN 2, length 1 m[3.28 ft]	11403306
	Measuring hose DN 2, length 2 m[6.56 ft]	14349940

For 1215 series		Order number
	Direct connection for measuring instrument G½, female thread Direct connection for measuring instrument G¼, female thread	14340210 14615974
	Direct connection for measuring instrument ¼NPT, female thread	14340215
	Pressure gauge connection G½, female thread gauge connection G¼, female thread	14615978 14615976
	Pressure
	Pressure gauge connection ¼NPT, female thread	14615977
	Test coupling ISO 228-G ¼, male thread	14340211
	Test coupling ISO 228-G ⅛, male thread	14340218
	Test coupling ISO 228-M10 x 1, male thread	14615979
	Test coupling ¼NPTF, male thread	14340217
	Reduction nozzle G⅜, male thread to M10 x 1, female thread	14615968
	Reduction nozzle G½, male thread to M10 x 1, female thread	14615970
	Hose adapter (without check valve)	14340219
	Measuring hose DN 2, length 0.5 m[1.64 ft]	14340222
	Measuring hose DN 2, length 1 m[3.28 ft]	14349976
	Measuring hose DN 2, length 2 m[6.56 ft]	14349986

Description	Order code
	CPK-MM-

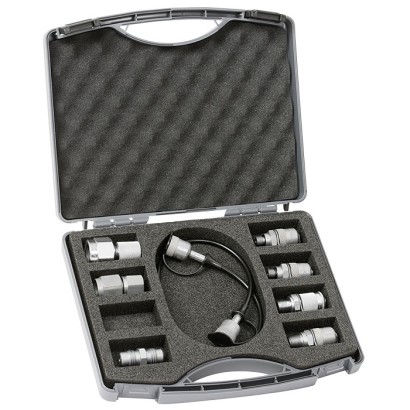

1620 series adapter set in storage case Consisting of: 1 x direct connection G½, female thread;P max 400 bar [5,800 psi] 1 x direct connection ¼NPT, female thread;P max 630 bar [9,130 psi] 1 x test coupling ISO 228-G ¼, male thread;P max 630 bar [9,130 psi] 2 x test couplings ISO 228-G ⅛, male thread;P max 400 bar [5,800 psi] 1 x test coupling ¼NPTF, male thread;P max 630 bar [9,130 psi] 1 x hose adapter (without check valve);P max 630 bar [9,130 psi] 1 x measuring hose DN 2, length 0.5 m[1.64 ft];P max 630 bar [9,130 psi]	-1SZ-
1215 series adapter set in storage case Consisting of: 1 x direct connection G½, female thread;P max 400 bar [5,800 psi] 1 x direct connection ¼NPT, female thread;P max 630 bar [9,130 psi] 1 x test coupling ISO 228-G ¼, male thread;P max 630 bar [9,130 psi] 2 x test couplings ISO 228-G ⅛, male thread;P max 400 bar [5,800 psi] 1 x test coupling ¼NPTF, male thread;P max 630 bar [9,130 psi] 1 x hose adapter (without check valve);P max 630 bar [9,130 psi] 1 x measuring hose DN 2, length 0.5 m[1.64 ft];P max 630 bar [9,130 psi]	-2SZ-
1. Order code:CPK-MM 2. Option:	⇓ [ ]
