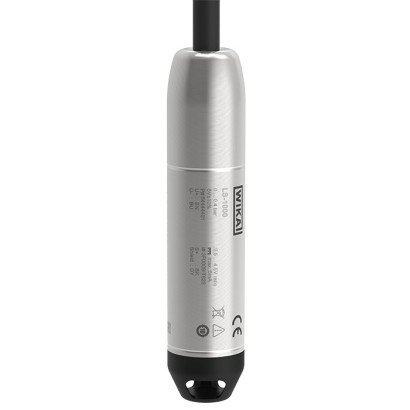

WIKA LS-1000 — חיישן לחץ טבול

Name: חיישן לחץ טבול
Brand: WIKA
SKU: LS-1000
Price: 287.10 EUR
Availability: BackOrder

שאלות ותשובות

מהו טווח המדידה של ה-LS-1000?

החיישן מודד מפלסים הידרוסטטיים בטווח של 1 ... 10 m [3.28 ... 32.81 ft].

מהו הדיוק של החיישן?

הדיוק הוא ≤ ±0.5 % of span.

אילו אותות פלט זמינים?

החיישן מספק אות 4 ... 20 mA או 0.5 ... 4.5 V ratiometric.

האם החיישן מתאים לאזורים מסוכנים?

כן. הוא מאושר להגנה מפני פיצוץ, למשל II 1G Ex ia IIC T6 ... T4 Ga ו-II 2G Ex ia IIC T6 ... T4 Gb.

מהי דרגת ההגנה מפני חדירה?

החיישן מדורג IP68 ומתאים להשקיה קבועה בנוזל.

מהם חומרי החלקים במגע עם התווך?

Stainless steel 316L, epoxy resin, PVDF, PVC, FEP ו-PE (polyethylene).

מהם גבולות הטמפרטורה?

טמפרטורת הסביבה: -30 ... +80 °C; טמפרטורת התהליך: -10 ... +50 °C.

מה מבדיל את ה-LS-1000 מדגמים אחרים?

הוא משלב אטימות הרמטית קבועה, צריכת זרם נמוכה ועלות בעלות כוללת נמוכה, מה שהופך אותו לבחירה אידיאלית עבור לקוחות OEM.

זיהוי

דגם	LS-1000
סדרה	LS
תת-קטגוריה	submersible pressure sensor

טווח מדידה

טווח גובה מילוי

1…10 m

תנאי תהליך

טמפ׳ תהליך	−10…+50 °C
לחץ תהליך מירבי	2 bar
טכנולוגיית מדידה	hydrostatic

מאפיינים חשמליים

אות יציאה	4 ... 20 mA · 0.5 ... 4.5 V ratiometric
הזנה	DC 8 ... 35 V (Ex: DC 14 ... 30 V), DC 5 V ± 10 %
חיבור חשמלי	Cable, shielded, 7.5 mm diameter, 0.24 mm² wire cross-section

חומרים

חומר חלקים רטובים

Stainless steel 316L, epoxy resin, PVDF, PVC, FEP, PVCFEP, PE (polyethylene)

סביבת הפעלה

טמפ׳ סביבה	−30…+80 °C
דרגת הגנה IP	IP68
משקל	0.2 kg

תקנים ואישורים

תקנים	CERoHSPressure Equipment DirectiveEMC Directive EN 61326China RoHS
הגנת התפוצצות	II 1G Ex ia IIC T6 ... T4 GaII 2G Ex ia IIC T6 ... T4 GbEx ia IIC T6 ... T4 GaEx ia IIC T6 ... T4 GbEx ia IIC T6 ... T4 GcII 1G Ex ia IIC T4 GaII 2G Ex ia IIC T4 GbEx ia IIC T4 GaEx ia IIC T4 GbEx ia IIC T4 Gc

פרטים נוספים

שפות גיליון נתונים

טבלאות מגיליון הנתונים

Accuracy specifications per IEC 62828-1	Max. measured error ≤ ±0.5 %of span	Max. measured error ≤ ±1.0 %of span
Non-linearity per BFSL	≤ ±0.25 %of span	≤ ±0.5 %of span
Long-term stability	≤ ±0.2 %of span/year	≤ ±0.2 %of span/year

Further details on: accuracy specifications

Accuracy	→ See max. measured error per IEC 62828-1, above
Total probable error per IEC 62828-2	→ See table "Total probable error per IEC 62828-2" below
Non-repeatability per IEC 62828-1	≤ 0.1 %of span (0.2 %of span with measuring range 0 ... 100 mbar)
Reference conditions	Per IEC 62828-1

Total probable error per IEC 62828-2	Max. measured error ≤ ±0.5 %of span	Max. measured error ≤ ±1.0 %of span
Temperature range -10 ... +5 °C [+14 ... +41 °F]
Measuring range ≤ 0.1 bar	2.0%	2.2%
Measuring range < 0.4 bar [5.8 psi]	1.3%	1.6%
Measuring range ≥ 0.4 bar [5.8 psi]	1.0%	1.3%
Temperature range +5 …+35 °C [+41 ... +95 °F]
Measuring range ≤ 0.1 bar	1.1%	1.4%
Measuring range < 0.4 bar [5.8 psi]	0.7%	1.1%
Measuring range ≥ 0.4 bar [5.8 psi]	0.6%	1.1%
Temperature range +35 …+50 °C [+95 ... +122 °F]
Measuring range ≤ 0.1 bar	2.0%	2.2%
Measuring range < 0.4 bar [5.8 psi]	1.3%	1.6%
Measuring range ≥ 0.4 bar [5.8 psi]	1.0%	1.3%

bar
0 ... 0.1	0 ... 0.4
0 ... 0.16	0 ... 0.6
0 ... 0.25	0 ... 1

הצגת הכול (20)

psi

0 ... 5	0 ... 15
0 ... 10	-

inWC

0 ... 50	0 ... 250
0 ... 100	0 ... 400
0 ... 150	-

bar

0 ... 1.25	0 ... 1.6
0 ... 1.4	0 ... 2

Further details on: measuring range

Units	■ bar ■ psi ■ inWC ■ mH₂O ■ mbar ■ kPa
Max. working pressure	→ Corresponds to the upper measuring range value / measuring range full scale value → Any permanent operation above the maximum working pressure is not permissible
Overpressure limit per IEC 62828-2	1.5 times

Output signal	Current (2-wire)	Ratiometric
Signal type	4 ...20mA	0.5 ...4.5V
Load
Non-Ex version	≤ (auxiliary power - 8 V) / 0.023 A - (cable length in mx0.0942 Ω/m)	≥ 4.5 kΩ
Ex version	≤ (auxiliary power - 14 V) / 0.023 A - (cable length in mx0.0942 Ω/m)	≥ 4.5 kΩ
Signal clamping
Min.	3.8mA	0.45V
Max.	20.5mA	4.85V
Voltage supply
Auxiliary power	DC 8 ...35V (with Ex approval:DC 14 ... 30 V)	DC5V±10%
Current supply	Max.25mA	Max.5mA
Overvoltage resistance	DC 40V	DC 30V
Diagnostic function
Max. permissible vacuum/overpressure	21.5mA	5 %of auxiliary power
Max. permissible undertemperature/ overtemperature	21.5mA	5 %of auxiliary power
Sensor defect	3.6mA	3 %of auxiliary power
Sensor short-circuit	3.6mA	3 %of auxiliary power
EEPROM error	3.6mA	3 %of auxiliary power
Auxiliary power outside specification	< 3.0mA	< 2 %of auxiliary power
Dynamic behaviour
Switch-on time	≤ 50 ms	≤ 50 ms

Electrical connection

Connection type	Cable, shielded
Wire cross-section	0.24 mm² [0.47 MCM]
Cable diameter	7.5 mm[0.3 in]
Pin assignment	See "Pin assignment" auf Seite 4.
Tension force of cable	400 N
Cable length	■ 3m	■ 10 ft
	■ 5m	■ 20 ft
	■ 10m	■ 30 ft
	■ 15m	■ 40 ft
	■ 20m	■ 50 ft
	■ 25m	■ 75 ft
	■ 30m	■ 100 ft
	→ Other cable lengths on request.

Electrical connection

Lead resistance	0.0942 Ω/m
Short-circuit resistance	S+ vs. U-
Reverse polarity protection	U+ vs. U-
Insulation voltage	DC 750V

Operating conditions
Medium temperature limit	-10 ...+50 °C [+14 ...+122 °F]
Ambient temperature limit	-30 ...+80 °C [-22 ...+176 °F]
Storage temperature limit	-40 ...+80 °C [-40 ...+176 °F]
Operating altitude	≤ 2,000 m[6,562 ft]
Pollution degree	2
Overvoltage category	I
Vibration resistance per IEC 60068-2-6	4g (25 - 100 Hz)
Shock resistance per IEC 60068-2-6	10g (6 ms)
Free fall per IEC 60068-2-31
Without packaging	1 m[3.28 ft]
With individual packaging	0.5 m[1.64 ft]
Mounting position	Calibrated in vertical mounting position with process connection facing down- wards.
Ingress protection (IP code) per IEC 60529	IP68 (permanently, max. 15 m[49.2 ft])
Service life	10 million load cycles
Weight
Submersible pressure sensor	Max. 200 g [0.441 lb]
Cable	■ PVC approx. 75 g/m [2.64 lb/ft] ■ FEP approx. 90 g/m [3.17 lb/ft]

Packaging and instrument labelling

Packaging	Individual packaging
Instrument labelling	■ WIKA product label, lasered (incl. marking of measuring locations with product label) ■ Customer-specific product label on request

Logo	Description	Region
	EU declaration of conformity	European Union
	EMCDirective EN 61326 emission (group 1, class B) and immunity (industrial environments)
	Pressure Equipment Directive
	RoHS directive

Logo	Description		Region
	EU declaration of conformity	European Union
	ATEX directive Hazardous areas 4 ...20mA
	- Ex i Zone 0 gas	II 1G Ex ia IIC T6 ...T4 Ga II 2G Ex ia IIC T6 ...T4 Gb
	Zone 1 gas 0.5 ...4.5V ratiometric	II 1G Ex ia IIC T4 Ga
	- Ex i Zone 0 gas Zone 1 gas	II 2G Ex ia IIC T4 Gb
	IECEx Hazardous areas 4 ...20mA	International
	- Ex i Zone 0 gas	Ex ia IIC T6 ...T4 Ga
	Zone 1 gas	Ex ia IIC T6 ...T4 Gb
	Zone 2 gas 0.5 ...4.5V ratiometric Ex i	Ex ia IIC T6 ...T4 Gc
	- Zone 0 gas	Ex ia IIC T4 Ga
	Zone 1 gas	Ex ia IIC T4 Gb
	Zone 2 gas	Ex ia IIC T4 Gc

Logo	Description
-	China RoHS directive

Certificates

Certificates	■ 2.2 test report per EN 10204 (e.g. state-of-the-art manufacturing, material proof, indica- tion accuracy)

Safety-related characteristic values (Ex)

Output signal	4 ... 20 mA	0.5 ... 4.5 V ratiometric
Max.medium temperature range	-10 °C ≤T m ≤ +50 °C	-10 °C ≤T m ≤ +50 °C
Connection values
Max. voltage U i	DC 30V	DC 12V
Max. current I i	130mA	400mA
Max. power P i (at the sensor)	1,000mW	550mW
Effective internal capacitance C i	4.1 nF + 0.32 nF/m cable	800 nF + 0.78 nF/m cable
Effective internal inductance L i	0 µH + 1,77 µH/m cable	0 µH + 1,77 µH/m cable

Further specifications on safety-related characteristic values (Ex)

Output signal	Temperature class	Ambient temperature range
4 ... 20 mA	T4 ...T1	-30 °C …+80 °C
	T6	-30 °C …+60 °C
0.5 ... 4.5 V ratiometric	T4 ...T1	-30 °C …+80 °C

Model	Description	Order number
	Additional weight The additional weight increases the dead weight of the submersible pressure sensor. It simplifies the lowering in monitoring wells, narrow shafts and deep wells. It effectively reduces negative environmental influences of the medium (e.g. turbulent flows) on the measuring result. Stainless steel 316L, approx. 300 g [0.661 lb], length 115 mm[4.53 in]	14131008
	Cable strain relief clamp The cable strain relief clamp ensures easy and secure mechanical fastening of the submersible pressure sensor's cable. It serves to guide the cable to prevent mechani- cal damage and to reduce the action of tensile stresses.	14052336
	Cable socket The cable socket, with IP67 ingress protection and waterproof ventilation element, provides a moisture-free electrical termination for the submersible pressure sensor. It should be mounted in a dry environment, outside any shafts or vessels, or directly in the control cabinet. Not suitable for hazardous areas!	14052339
	Filter element The filter element prevents dirt and moisture from entering the capillary tube.The waterproof diaphragm also offers a reliable protection for the submersible pressure sensor in the harshest environments.	14052344
