מתג לחץ עם צינור בורדון
תיאור
מתגי לחץ באיכות גבוהה אלה פותחו במיוחד עבור יישומים בעלי חשיבות בטיחותית קריטית. האיכות הגבוהה של המוצרים והייצור בהתאם ל-ISO 9001 מבטיחים ניטור אמין של המפעל שלך. במהלך הייצור, המתגים עוברים עקיבה באמצעות תוכנת בקרת איכות בכל שלב ולאחר מכן נבדקים ב-100 %. כל החלקים הרטובים הם, כברירת מחדל, מפלדת אל-חלד.
כדי להבטיח פעולה גמישה ככל האפשר, מתגי הלחץ מצוידים במיקרו-מתגים, המאפשרים מיתוג של עומס חשמלי עד AC 250 V, 20 A ישירות. עבור ערכי הספק מיתוג נמוכים יותר, כגון עבור יישומי PLC, ניתן לבחור מיקרו-מתגים מלאי גז ארגון עם מגעים מצופים זהב.
ללא אישורים נוספים, ראה עמוד 5
סדרת ביצועי תהליך

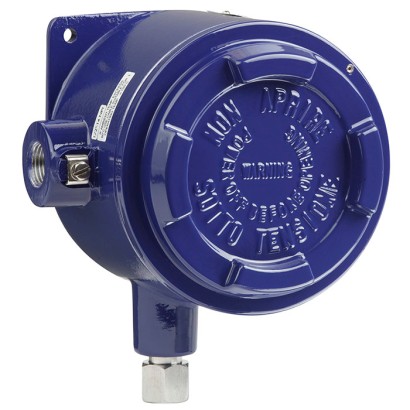

מתג לחץ עם צינור בורדון, דגם BA
בהתאם ליישום, ניתן לבחור את הגרסה המתאימה עבור גרסת המגע והחיבור החשמלי; למשל, פס מת (dead band) מתכוונן במקום פס מת קבוע הוא לעיתים מאפיין הכרחי לתהליכי בקרה.
עבור יישומים עם דרישות מיוחדות לחלקים הרטובים, קיימת גרסה עם Monel .
באמצעות מערכת מדידה עם צינור בורדון, מתג הלחץ מדגמים BA ו-BAX הוא עמיד במיוחד ומבטיח מאפייני פעולה אופטימליים וביצועי מדידה גבוהים ביותר, עם חזרתיות הנמוכה מ-0.5 % מהטווח.
ליישומי בטיחות, מתג הלחץ זמין באופן אופציונלי בגרסה מאושרת SIL 2 או בגרסה מאושרת SIL 3.
תכונות מיוחדות
- אין צורך במתח אספקה להפעלת עומסים חשמליים
- תיבת מפסק עמידה מ-316L, IP66, NEMA 4X
- טווחי הגדרה מ- 0 ... 2.5 bar ועד 0 ... 1,000 bar, טווחי ואקום
- חזרתיות נקודת המיתוג < 0.5 %
- נקודת הפעלה אחת או שתיים בלתי תלויות, SPDT או DPDT, הספק מיתוג גבוה עד AC 250 V, 20 A
שאלות ותשובות
מהו טווח המדידה של מתג הלחץ?
טווחי הכיול נעים מ-0 … 2.5 bar ועד 0 … 1,000 bar, וקיימים גם טווחי ואקום עד -1 … 15 bar.
מהו הדיוק של המתג?
הדיוק הוא ≤ 0.5 % מהטווח, בהתאם לתקן IEC 61298-2:2008, וחזרתיות נקודת המיתוג קטנה מ-0.5 %.
אילו חיבורי תהליך זמינים?
חיבור סטנדרטי הוא ¼ NPT הרשת; באמצעות מתאמים ניתן לקבל ½ NPT הרשת או זכר, G ¼ הרשת, G ½ A זכר ו-G ¼ A זכר.
לאילו תווכים המתג מתאים?
המתג מתאים לתווך גזי, נוזלי ואגרסיבי, גם בסביבה אגרסיבית. החלקים הרטובים עשויים כברירת מחדל מפלדת אל-חלד AISI 316L, עם אפשרות ל-Inconel 718 (2.4668), Monel 400 או 17-4PH (1.4542).
מהן טמפרטורות ההפעלה?
טמפרטורת הסביבה: -60 … +85 °C; טמפרטורת התווך: -40 … +85 °C.
מהי רמת ההגנה מפני חדירה?
המעטפת מדורגת IP66 ועומדת גם ב-NEMA 4X.
אילו אישורי אזורים מסוכנים קיימים?
המתג מאושר ל-ATEX ו-IECEx: Ex db IIC T6/T4 ו-Ex tb IIIC T85/T135. דגם BA מדורג II 2 GD (Gb/Db), ודגם BAX מדורג II 1/2 GD (Ga/Gb, Db).
מה מבדיל בין דגם BA לדגם BAX?
שני הדגמים זהים במבנה, אך דגם BAX מדורג לרמת הגנה גבוהה יותר — II 1/2 GD עם Ga/Gb — בעוד דגם BA מדורג II 2 GD. ליישומי בטיחות זמינה גרסה מאושרת SIL 2 או SIL 3. ---
| דגם | BA, BAX |
| סדרה | BA |
| תת-קטגוריה | Pressure switch |
| טווח לחץ | -1…1.5 bar · -1…5 bar · -1…15 bar · 0…2.5 bar · 0…6 bar · 0…16 bar · 0…40 bar · 0…100 bar · 0…160 bar · 0…250 bar · 0…400 bar · 0…600 bar · 0…1000 bar |
| מחלקת דיוק | ≤ 0.5 % of span |
| תקן דיוק | IEC 61298-2:2008 |
| רמת בטיחות תפקודית (SIL) | SIL 2-qualified, SIL 3-qualified |
| חיבור תהליך | ¼ NPT, female thread½ NPT, female thread via adapter½ NPT, male thread via adapterG ¼, female thread via adapterG ½ A, male thread via adapterG ¼ A, male thread via adapter1/4 NPT, female thread1/2 NPT, female thread via adapter1/2 NPT, male thread via adapterG1/4, female thread via adapterG1/2A, male thread via adapterG1/4A, male thread via adapter |
| טמפ׳ תהליך | −40…+85 °C |
| חיבור חשמלי | ½ NPT female |
| פונקציית מתג | SPDT, DPDT |
| מגעי מתג | 2 |
| חומר מארז | Aluminium alloy, copper-free, painted with acrylic paint |
| חומר חלקים רטובים | Stainless steel AISI 316L, Inconel 718 (2.4668), Monel 400, 17-4PH (1.4542), Stainless steel 17-4PH (1.4542), Stainless steel 17-4PH® (1.4542), Monel®400 |
| טמפ׳ סביבה | −60…+85 °C |
| דרגת הגנה IP | IP66 |
| משקל | 2.4 kg |
| תקנים | RoHSPEDLow voltage directiveUKCAEACEx UkraineCCCINMETROKCsECASCENACE |
| הגנת התפוצצות | II 1/2 GD (model BAX)II 2 GD (model BA)Ex db IIC T6/T4Ex tb IIIC T85/T135GbGa/GbDbATEXIECExEx db IIC T6/T4 Ga/Gb, Ex tb IIIC T85/T135 Db (model BAX)Ex db IIC T6/T4 Gb, Ex tb IIIC T85/T135 Db (model BA) |
| שפות גיליון נתונים | EN, DE |
| Basic information | |
|---|---|
| Version | Bourdon tube pressure switch, flameproof enclosure Ex d |
| Special design feature | ■ For oxygen, oil- and grease-free ■ Per NACE 1) MR0175 / ISO 15156, use in H₂S-containing environments in oil and gas production ■ Per NACE 1) MR0103 / ISO 17945, metals resistant to sulphide stress cracking ■ Version for hydrogen (H 2 ) applications ■ Drying of wetted parts ■ Offshore version ■ Tropical version (suitable for environments with increased air humidity) ■ Version for ammonia applications ■ Geothermal version ■ Low-temperature version to -60 °C ■ Assembled as a diaphragm seal system |
| Contact version | →See table 'Contact version' |
| Function | ■ 1 x SPDT (single pole double throw) ■ 2 x SPDT (single pole double throw) ■ 1 x DPDT (double pole double throw) The DPDT function is realised with 2 simultaneously triggering SPDT microswitches, within 0.2 %of span. |
| Dead band | ■ 1 or 2 contacts with fixed dead band ■ 1 or 2 contacts with adjustable dead band ■ 1 contact with fixed dead band and 1 contact with adjustable dead band |
| Dielectric strength | Safety class I (IEC 61298-2: 2008) |
| Switch enclosure | |
| Design | Housing cover can be secured against unauthorised access with screw locking. Laser-engraved product label from stainless steel. |
| Material | Aluminium alloy, copper-free, painted with acrylic paint |
| Mounting 2) | ■ Direct mounting ■ Mounting bracket for 2" pipe mounting from stainless steel AISI 304 ■ Wall mounting (only available for model BA) ■ Wall bracket from stainless steel AISI 304 (only available for model BAX) |
| Contact version | Electrical rating (resistive load) | ||
|---|---|---|---|
| AC | DC | ||
| With fixed dead band | |||
| UN | 1 x SPDT, silver | 250 V, 15 A | 24 V, 2 A, 125 V, 0.5 A, 220 V, 0.25 A |
| US | 1 x SPDT, silver, hermetically sealed, argon gas filling 1) | 250 V, 15 A | 24 V, 2 A, 220 V, 0.5 A |
| UO | 1 x SPDT, gold-plated, hermetically sealed, argon gas filling 1) | 125 V, 1 A | 24 V, 0.5 A |
| UG | 1 x SPDT, gold-plated | 125 V, 1 A | 24 V, 0.5 A |
| DN | 2 x SPDT or 1 x DPDT, silver | 250 V, 15 A | 24 V, 2 A, 125 V, 0.5 A, 220 V, 0.25 A |
| DS | 2 x SPDT or 1 x DPDT, silver, hermetically sealed, argon gas filling 1) | 250 V, 15 A | 24 V, 2 A, 220 V, 0.5 A |
| DO | 2 x SPDT, or 1 x DPDT gold-plated, hermetically sealed, argon gas filling 1) | 125 V, 1 A | 24 V, 0.5 A |
| DG | 2 x SPDT or 1 x DPDT, gold-plated | 125 V, 1 A | 24 V, 0.5 A |
| With adjustable dead band | |||
| UR | 1 x SPDT, silver | 250 V, 20 A | 24 V, 2 A, 220 V, 0.5 A |
| RR 2) | 2 x SPDT or 1 x DPDT, silver | 250 V, 15 A | 24 V, 2 A, 220 V, 0.5 A |
| With fixed dead band and adjustable dead band | |||
| DR 2) | 2 x SPDT, silver (1 x UN + 1 x UR) | 250 V, 15 A | 24 V, 2 A, 220 V, 0.5 A |
| Set point repeatability | ≤ 0.5 %of span of setting range |
|---|---|
| Dead band | →See table 'Setting range' |
| Model | Setting range (=working range) | Proof pressure | Fixed dead band | Adjustable dead band | ||
|---|---|---|---|---|---|---|
| in bar | in bar | 1 contact, UN, US, UO, UG in bar | 2 contacts, DN, DS, DO, DG in bar | 1 contact, UR in bar | ||
| Model BA | Model BAX | |||||
| BA | -1 ... +1.5 | 4.5 | ≤ 0.15 | ≤ 0.30 | - | 0.35 ... 1.10 |
| -1 ...+5 | 12 | ≤ 0.20 | ≤ 0.30 | - | 0.55 ... 1.70 | |
| -1 ...+15 | 30 | ≤ 0.30 | ≤ 0.40 | - | 1.40 ... 3.10 | |
| 0 ... 2.5 | 4.5 | ≤ 0.15 | ≤ 0.30 | - | 0.35 ... 1.10 | |
| 0 ... 6 | 12 | ≤ 0.20 | ≤ 0.30 | - | 0.55 ... 1.70 | |
| 0 ... 16 | 30 | ≤ 0.30 | ≤ 0.40 | - | 1.40 ... 3.10 | |
| BA, BAX | 0 ... 40 | 75 | ≤ 0.80 | ≤ 0.70 | ≤ 1.2 | 2.10 ... 6.00 |
| 0 ... 100 | 160 | ≤ 2 | ≤ 2 | ≤ 5 | 6 ... 17 | |
| 0 ... 160 | 210 | ≤ 3 | ≤ 3 | ≤ 7 | 13 ... 35 | |
| 0 ... 250 | 330 | ≤ 5 | ≤ 5 | ≤ 10 | 21 ... 65 | |
| 0 ... 400 | 480 | ≤ 8 | ≤ 8 | ≤ 12 | 26 ... 93 | |
| 0 ... 600 | 720 | ≤ 12 | ≤ 12 | ≤ 20 | 40 ... 115 | |
| BAX | 0 ... 1,000 1) | 1,200 | ≤ 20 | - | ≤ 50 | 75 ... 190 |
הצגת הכול (13)
| Process connection | |
|---|---|
| Standard | ■ ANSI/ASME B1.20.1 ■ DIN EN ISO 228 |
| Size | |
| ANSI/ASME B1.20.1 | ■ ¼NPT, female thread ■ ½NPT, female thread via adapter ■ ½NPT, male thread via adapter |
| DIN EN ISO 228 | ■ G¼, female thread via adapter ■ G½A,male thread via adapter ■ G¼A,male thread via adapter |
| Material (wetted) | |
| Sensor element | Depending on the selected version |
| Process connection | →See table 'Wetted parts' |
| Version | Bourdon tube | Process connection |
|---|---|---|
| Standard | Stainless steel AISI 316L | |
| Setting range: 0 ... 1,000 bar | Stainless steel 17-4PH (1.4542) | Stainless steel AISI 316L |
| NACE Setting range: 0 ... 40 to 0 ... 400 bar | Monel 400 | Stainless steel AISI 316L |
| Monel Setting range: 0 ... 40 to 0 ... 400 bar | Monel 400 |
| Connection type | ■ ½NPTfemale (standard) ■ ¾NPT, Gk ½, Gk ¾, M20 x 1.5 female ■ Cable gland non-armoured, Ex d, nickel-plated brass ■ Cable gland non-armoured, Ex d, AISI 304 ■ Cable gland armoured, Ex d, nickel-plated brass ■ Cable gland armoured, Ex d, AISI 304 |
|---|---|
| Wire cross-section | Use 0.5 ... 1.5 mm² (20 ... 16 AWG) for internal terminal block (also suitable for cable lugs). For the grounding cable connection to the protective conductor use max. 4 mm² for the internal and external screw. |
| Pin assignment | Connection details are given on the product label of the instrument. Connection terminals and the ground terminal are appropriately marked. |
| Medium temperature range | -40 ...+85 °C |
|---|---|
| Ambient temperature range | T6/T85°C T a -60 ...+60 |
| T4/T135°C T a -60 ...+85 | |
| Ingress protection of the complete instrument | IP66 per EN/IEC 60529 (NEMA 4X) |
| Weight | Approx. 2.4 kg for model BA Approx. 3.7 kg for model BAX |
| Logo | Description | Region |
|---|---|---|
| EU declaration of conformity Pressure equipment directive PED, annex 1, category IV, safety accessories, module B + D Low voltage directive RoHS directive ATEX directive 1) | European Union | |
| IECEx 1) Ex db IIC T6/T4 2) Ga/Gb, Ex tb IIIC T85/T135 2) Db (model BAX) Ex db IIC T6/T4 2) Gb, Ex tb IIIC T85/T135 2) Db (model BA) | International |
| Logo | Description | Region |
|---|---|---|
| UKCA | United Kingdom | |
| Pressure equipment (safety) regulations | ||
| Electrical equipment designed for use within certain voltage limits in support of the electrical equipment (safety) regulations | ||
| Restriction of hazardous substances (RoHS) regulations | ||
| Equipment and protective systems intended for use in potentially explosive atmospheres regulations 1) | ||
| EAC Hazardous areas 1) | Eurasian Economic Community | |
| Ex Ukraine Hazardous areas 1) | Ukraine | |
| CCC Hazardous areas 1) | China | |
| INMETRO Hazardous areas 1) (only available for model BA) | Brazil | |
| KCs Hazardous areas 1) | South Korea | |
| - | ECAS Hazardous areas 1) | United Arab Emirates |
| Logo | Description |
|---|---|
| SIL3 IEC 61508 / IEC 61511 | SIL 3-capable (option) Functional safety per IEC 61508 Contains performance level calculation per ISO 13849-1 |
| Certificates | ■ 2.2 test report per EN 10204 (e.g. state-of-the-art manufacturing, indication accuracy) ■ 3.1 inspection certificate per EN 10204 (e.g. indication accuracy) |
|---|---|
| Recommended calibration interval | 1 year (dependent on conditions of use) |
| Model | Description | |
|---|---|---|
| 910.15 | Syphons →See data sheet AC 09.06 | |
| 910.13 | Overpressure protector →See data sheet AC 09.04 | |
| IV10, IV11 | Needle valve and multiport valve →See data sheet AC 09.22 | |
| IV20, IV21 | Block-and-bleed valve →See data sheet AC 09.19 | |
| IVM | Monoflange, process and instrument version →See data sheet AC 09.17 | |
| BV | Ball valve, process and instrument version →See data sheet AC 09.28 |
