WIKA · Temperature measurement · Family TFS

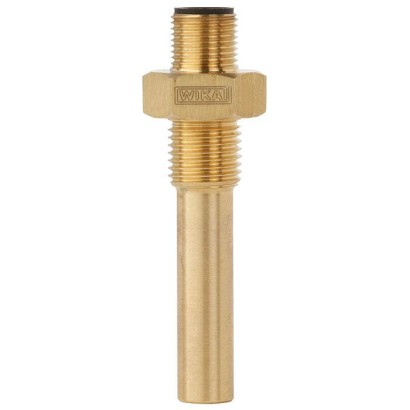

Bimetal temperature switch
For switching voltages up to 250 V
Protection
IP65
RoHSEACULCECULUS
Price
On request
Depends on configuration
Description
Temperature switches are generally used in industry for limiting temperature. They monitor the temperature of machinery and equipment and, for example, switch off machinery if it overheats or switch on a fan to cool the equipment.
Special features
- Fixed switching temperature
- Automatic reset
- No additional voltage supply
- Switching voltages up to AC 250 V / 2.5 A
- 2 switching contacts or Pt1000/Pt100 (option)
Identification
| Model | TFS135 |
| Product family | TFS |
| Subcategory | Temperature switch |
Operating environment
| Ambient temperature | −30…+85 °C |
| IP rating | IP65 |
Certifications and approvals
| Certifications | RoHSEACULCECULUS |
Additional details
| Datasheet languages | EN |
Tables from datasheet
| Logo | Description | Country |
|---|---|---|
| EU declaration of conformity ■ Low voltage directive ■ RoHS directive | European Union | |
| UL Component certification | USA and Canada | |
| EAC Import certificate | Eurasian Economic Community |
Industry
Machinery
Machine building · Compressors
Industry
Heating / Utilities
Cooling and heating circuits
