TF58, TF59 1
TF58, TF59
On order
WIKA · Temperature measurement · Family TF

Expansion thermometer

Expansion thermometers with capillary for remote temperature indication, suitable for food and beverage, HVAC, and compressors.
Range
-40…250 °C
Accuracy
±2 % to ±4 % of measuring range
Protection
IP65
Price
On request
Depends on configuration
Request a quote
+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

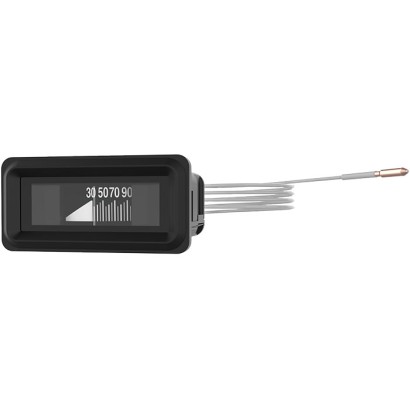

The TF58 and TF59 expansion thermometers are temperature measuring instruments in plastic cases with drum dials.

An expansion thermometer measures temperature based on the principle of thermal expansion. This principle involves the expansion of materials when heated and their contraction when cooled.

The design of each model varies depending on indication accuracy, scale length, dimensions, mounting type, and panel frame design.

Special features

  • Temperature indication independent from measuring point
  • With capillary
  • Universally applicable
  • Plastic case for panel mounting
Identification
ModelTF58, TF59
Product familyTF
SubcategoryExpansion thermometer with capillary
Measuring range
Temperature ranges−40…+250 °C
Accuracy
Accuracy class±2 % to ±4 % of measuring range
Process conditions
Process connection
6 mm8.5 mm
Process temperature−100…+350 °C
Materials
Probe materialCopper alloy
Operating environment
Ambient temperature−20…+70 °C
IP ratingIP65
Weight0.08 kg
Additional details
Sensor typebimetal
Probe diameter6 mm
ThermowellNo
Datasheet languagesEN, DE
Tables from datasheet
Process connection
Stem
Diameter■ 6 mm[0.24 in] ■ 8.5 mm[0.34 in]
→ Others on request
Material (wetted)Copper alloy
Operating conditions
Medium temperature range
Capillary, plastic-covered-40 ...+120 °C [-40 ...+248 °F]
Capillary, copper alloy-100 ...+350 °C [-148 ...+662 °F]
Operating temperature
Case-20 ...+70 °C [-4 ...+158 °F]
Capillary, plastic-covered-40 ...+120 °C [-40 ...+248 °F]
Capillary, copper alloy-100 ...+350 °C [-148 ...+662 °F]
Storage temperature range-20 ...+60 °C [-4 ...+140 °F]
