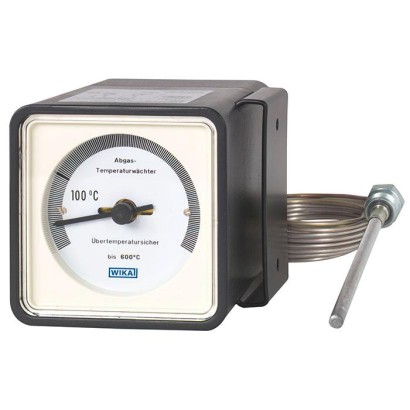

STW15 1
STW15
On order
WIKA · Temperature measurement · Family STW

Expansion thermometer

Exhaust gas temperature controller
Discontinued by WIKA — supplied on request
WIKA has withdrawn this model from its current range. We keep the datasheet and specifications here. Write to us and we will check availability and propose a current replacement.
Range
-20…600 °C
Accuracy
±6 K
Protection
IP53
CEEACGOST
Price
On request
Depends on configuration
Request a quote
+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The safety temperature controller model STW15 has been designed for the operating medium of air (flue gas). It will open a control circuit when the temperature on the temperature sensor exceeds the non-adjustable set point.

Damage to the measuring system also leads to an interruption of the circuit, as required by the enhanced safety. The measuring system is coupled with a pointer which displays the respective temperature status on a scale.

Exhaust gas temperature controller, model STW15

Special features

  • High switching reliability
  • Temperature indicator and safety temperature monitor in a single instrument
  • Version per DIN EN 14597
  • Overtemperature safe up to 600 °C
Identification
ModelSTW15
Product familySTW
SubcategoryExhaust gas temperature controller
Measuring range
Temperature ranges−20…+600 °C
Accuracy
Accuracy class±6 K
Process conditions
Process connection
Steel, galvanisedSteel, galvanised threaded connection
Process temperature≤ +600 °C
Electrical characteristics
Electrical connection0.8 x 6.3 mm blade terminal or terminal connection
Materials
Probe material1.4571 stainless steel
Operating environment
IP ratingIP53
Certifications and approvals
Certifications
CEEACGOST
Additional details
Sensor typebimetal
Probe length1500 mm
Probe diameter2 mm
ThermowellNo
Datasheet languagesEN, DE
Tables from datasheet
LogoDescriptionCountry
EC declaration of conformity ■ Pressure equipment directive ■ Low voltage directiveEuropean Community
EAC (option) Electromagnetic compatibilityEurasian Economic Community
GOST (option) Metrology, measurement technologyRussia
