F4802 1
F4802
On order
WIKA · Force measurement · Family F4800

Single point load cell

Single point load cell made from aluminium, suitable for precision scales, industrial scales, belt weighers, bench scales, and dosing systems.
Range
0…10 kg
Output
2.0 ±0.2 mV/V
Accuracy
±0.02 % Fnom
Protection
IP65
RoHSCE
Price
On request
Depends on configuration
Request a quote
+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The model F4802 single point load cells are a series of aluminium single point load cells suitable for a wide range of applications. Thanks to their standardised geometry and simple design, they can be easily installed in all types of scales.

The model F4802 load cells are used in various areas such as industry, commerce, medicine and research.

The most common application area is in precision, industry and bench scales as well as belt weighers, to measure the weight of products (e.g., food, bulk material, feed). Load cells are also used in the packaging industry, manufacturing as well as material testing.

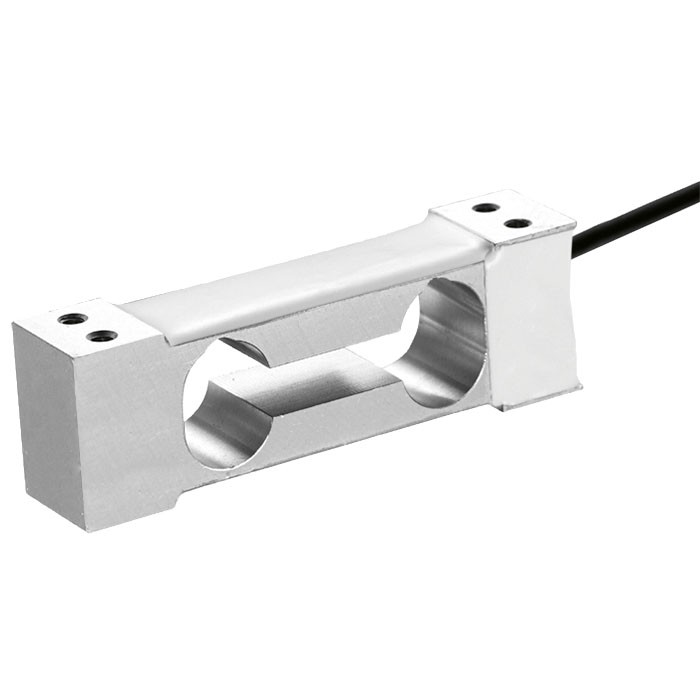

Single point load cell, model F4802

The single point load cells feature high accuracy and a quick reponse. Moreover, they are insensitive to lateral and corner loads.

The load cells are easy to handle due to their simple force introduction. This is made perpendicular to the geometry.

Special features

  • Measuring ranges 0 ... 0.3 kg to 0 ... 10 kg [0 ... 0.7 lbs to 0 ... 22 lbs]
  • Load cell made from aluminium
  • High accuracy and quick reponse
  • Insensitive to lateral and corner load
  • Simple design, easy installation
Configurator · Step by step

Build a SPP-F4802 for your task

The article number is assembled automatically. If unsure — ask an engineer; we'll match the line's parameters.

Step 1 of 1
Configuration structure· click a highlighted segment to jump to that parameter
Your configuration
  • ModelF4802 Single point load cell aluminium 0...0.3kg to 0...10kg
  • Force directioncompression
  • Rated force/Rated load—
  • Relative linearity error±0.02% Fnom
  • Output signal2.0 ±0.2 mV/V
  • Electrical connectionCable output, free wires
  • Cable length0.45 m
  • Cable diameterØ3 mm
