F3203 1
F3203
On order
WIKA · Force measurement · Family F3203

Bending beam

Bending beam load cell for industrial and laboratory weighing applications, hermetically sealed with IP68/IP69K protection.
Range
0…500 kg
Output
mV/V
Accuracy
OIML R60 Class C
Protection
IP68/IP69K
RoHSOIML R60 Class CEU declaration of conformityCEOIML
Price
On request
Depends on configuration
Request a quote
+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

Bending beams are suitable for static and dynamic measuring requirements. They serve for determining forces in diverse fields of application.

They are used in industrial weighing and laboratory technology, and also in the process industry.

The F3203 bending beams are made of stainless steel, whose properties are particularly suitable for the fields of area in scales and process technology. An mV/V signal is provided as the output signal.

The F3203 bending beams are certified by the International Organisation of Legal Metrology (OIML) with 3,000 intervals R60 Class C.

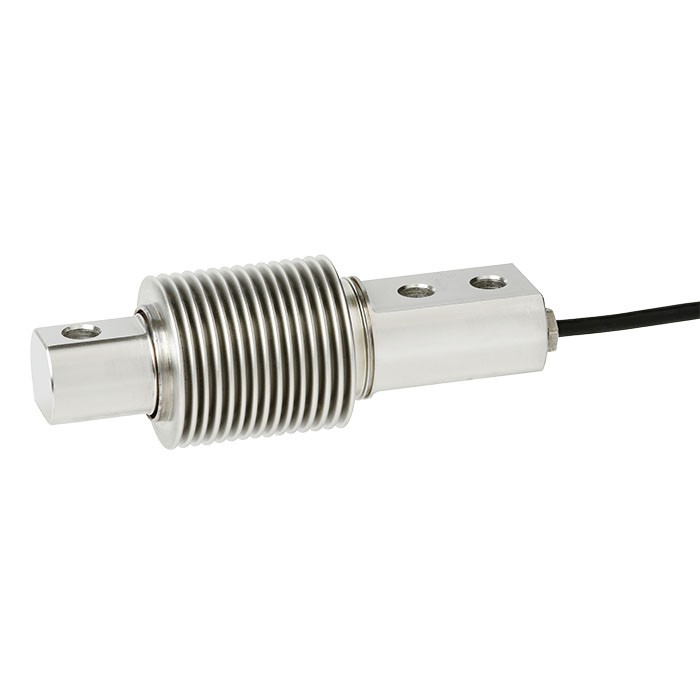

Bending beam, model F3203

Special features

  • Measuring ranges 0 ... 20 kg to 0 ... 500 kg
  • 3,000 intervals per OIML R60 Class C
  • Stainless steel, hermetically sealed and welded bellows
  • Ingress protection: IP68 and IP69K
Identification
ModelF3203
SubcategoryBending beam
Measuring range
Force ranges0…20 kg · 0…50 kg · 0…100 kg · 0…200 kg · 0…500 kg
Accuracy
Accuracy classOIML R60 Class C
Process conditions
Process temperature−10…+40 °C
Mounting typeBending beam
Electrical characteristics
Output signalmV/V
Materials
Cell materialStainless steel
Operating environment
Ambient temperature−30…+70 °C
IP ratingIP68/IP69K
Weight0.5 kg
Certifications and approvals
Certifications
RoHSOIML R60 Class CEU declaration of conformityCEOIML
Additional details
Overload protection150 %
Cable length3 m
Datasheet languagesEN
Tables from datasheet
Model F3203
Rated load F nom kg20, 50, 100, 200, 500
Relative linearity error d lin0.017%F nom
Accuracy class3,000 intervals per OIML R60 Class C
Relative creep, 30 min.< ±0.016 %Fnom
Relative reversibility error v±0.015 %Fnom
Temperature effect on zero signalTK 0≤ ±0.02 %/10 K
Temperature effect on characteristic value TK C≤ ±0.012 %/10 K
Force limit F L150%F nom
Breaking force F B200%F nom
Material of the measuring bodyStainless steel
Rated temperature range B T, nom-10 …+40 °C
Operating temperature range B T, G-30 …+70 °C
Input resistance R e400 ±20 Ω
Output resistance R a350 ±3 Ω
Insulation resistance R is≥ 5,000MΩ
Output signal (rated characteristic value) C nom
20 kg2.0 ±0.2 %mV/V
50 kg bis 500 kg2.0 ±0.1 %mV/V
Electrical connectionMeasuring cable∅4x3m
Excitation voltage B U, nomDC 10V ...15V
Ingress protection (per IEC/EN 60529)IP68 and IP69K
Weight0.5 kg
LogoDescriptionCountry
EU declaration of conformityEuropean Union
International Organization of Legal MetrologyWorldwide
Electrical connection
Excitation voltage (Exc+)Green
Excitation voltage (Exc-)Black
Signal (Sig+)Red
Signal (Sig-)White
ShieldShield
