PSD-4-ECO

On order

WIKA · Pressure measurement · Family PSD

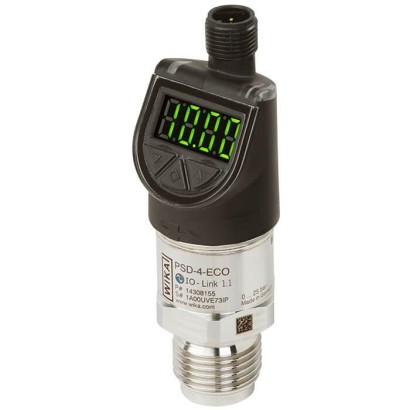

OEM pressure switch with display

Name: OEM pressure switch with display
Brand: WIKA
SKU: PSD-4-ECO

OEM pressure switch with display, programmable electronic pressure switch with IO-Link 1.1 for machine tools, hydraulics, pneumatics and automation engineering.

Range

-1…1000 bar

Output

4-20 mA (3-wire) · PNP

Accuracy

1.0

Protection

IP65/IP67

CERoHSUL

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The model PSD-4-ECO is a programmable electronic pressure switch designed specifically for OEM customers. With IO-Link 1.1, the cost-effective and reliable model PSD-4-ECO is a future-proof automation solution. Through individual factory pre-configuration, the pressure switch can also be quickly and simply integrated into the machine without any programming effort.

Special features

Good/bad indication through parameterisable digital display (red/green)
Compact size enables easy installation in narrow spaces
Optimised design makes OEM machine integration easier
Designed for rough demands of up to 50 g shock and -40 ... +125 °C [-40 ... +257 °F]

Identification

Model	PSD-4-ECO
Product family	PSD
Subcategory	Electronic pressure switch

Measuring range

Pressure ranges

0…0.4 bar · 0…0.6 bar · 0…1 bar · 0…1.6 bar · 0…2.5 bar · 0…4 bar · 0…6 bar · 0…10 bar · 0…16 bar · 0…25 bar · 0…40 bar · 0…60 bar · 0…100 bar · 0…160 bar · 0…250 bar · 0…400 bar · 0…600 bar · 0…1000 bar · 0…10 psi · 0…15 psi · 0…25 psi · 0…30 psi · 0…50 psi · 0…100 psi · 0…160 psi · 0…200 psi · 0…300 psi · 0…500 psi · 0…1000 psi · 0…1500 psi · 0…2000 psi · 0…3000 psi · 0…5000 psi · 0…7500 psi · -1…0 bar · -1…0.6 bar · -1…1.5 bar · -1…3 bar · -1…5 bar · -1…9 bar · -1…15 bar · -1…24 bar · -14.5…0 psi · -14.5…15 psi · -14.5…30 psi · -14.5…50 psi · -14.5…100 psi · -14.5…160 psi · -14.5…200 psi · -14.5…300 psi

Accuracy

Accuracy class	1.0
Accuracy standard	IEC 61298-2

Process conditions

Process connection	G ¼ AG ½ AG ¼ BG ½ B¼ NPT½ NPTR ¼PT ¼G ¼ female (Ermeto compatible)G¼female
Process temperature	−40…+125 °C

Electrical characteristics

Output signal	4-20 mA (3-wire) · PNP · NPN · IO-Link · DC 0-10 V (3-wire) · 0-10 V DC (3-wire)
Power supply	15...32 V DC
Electrical connection	M12 4-pin, M12 5-pin
Switching function	Normally open, normally closed, window, hysteresis (adjustable)
Switching contacts	2

Materials

Case material	304L
Wetted parts material	316L, PH grade steel
Sealing material	NBR, FPM/FKM, Copper, Stainless steel

Operating environment

Ambient temperature	−20…+85 °C
IP rating	IP65/IP67
Weight	0.13 kg

Certifications and approvals

Certifications

CERoHSUL

Additional details

Datasheet languages

EN, DE

Tables from datasheet

Gauge pressure

bar	0 ... 0.4	0 ... 0.6	0 ... 1	0 ... 1.6	0 ... 2.5	0 ... 4	0 ... 6	0 ... 10
	0 ... 16	0 ... 25	0 ... 40	0 ... 60	0 ... 100	0 ... 160	0 ... 250	0 ... 400
	0 ... 600	0 ... 1,000
psi	0 ... 10	0 ... 15	0 ... 25	0 ... 30	0 ... 50	0 ... 100	0 ... 160	0 ... 200
	0 ... 300	0 ... 500	0 ... 1,000	0 ... 1,500	0 ... 2,000	0 ... 3,000	0 ... 5,000	0 ... 7,500
Absolute pressure
bar	0 ... 0.4	0 ... 0.6	0 ... 1	0 ... 1.6	0 ... 2.5	0 ... 4	0 ... 6	0 ... 10
	0 ... 16	0 ... 25
psi	0 ... 10	0 ... 15	0 ... 25	0 ... 30	0 ... 50	0 ... 100	0 ... 160	0 ... 200
	0 ... 300
Vacuum and +/- measuring range
bar	-1 ... 0	-1 ... +0.6	-1 ... +1.5	-1 ...+3	-1 ...+5	-1 ...+9	-1 ...+15	-1 ...+24
psi	-14.5 ... 0	-14.5 ...+15	-14.5 ...+30	-14.5 ...+50	-14.5 ...+100	-14.5 ...+160	-14.5 ...+200	-14.5 ...+300

Switching	output	Analogue signal
SP1	SP2
PNP	PNP	-
PNP	-	4 ... 20 mA(3-wire)
PNP	-	DC 0 ...10V (3-wire)
PNP	PNP	4 ... 20 mA(3-wire)
PNP	PNP	DC 0 ...10V (3-wire)

	Standard	Option
Medium	-25 ...+85 °C [-13 ...+185 °F]	-40 ...+125 °C [-40 ...+257 °F) 1)
Ambient	-20 ...+85 °C [-4 ...+185 °F]
Storage	-40 ...+70 °C [-40 ...+158 °F]
Nominal temperature	-20 ...+80 °C [-4 ...+176 °F]

Standard	Thread size	Max. nominal presure	Sealing
DIN EN ISO 1179-2 (formerly DIN 3852-E)	G¼A	600 bar [8,700 psi]	NBR (options: Without, FPM/FKM)
G½A	400 bar [5,800 psi]	NBR (options: Without, FPM/FKM)
EN 837	G¼B 1)	1,000 bar [14,500 psi]	Without (options: Copper, stainless steel)
G¼female 1)	1,000 bar [14,500 psi]	Without (option: Copper, stainless steel)
G½B 1)	1,000 bar [14,500 psi]	Without (options: Copper, stainless steel)
ANSI/ASME B1.20.1	¼NPT 1)	1,000 bar [14,500 psi]	-
½NPT 1)	1,000 bar [14,500 psi]	-
ISO 7	R¼ 1)	1,000 bar [14,500 psi]	-
KS	PT¼ 1)	1,000 bar [14,500 psi]	-
-	G¼female (Ermeto compatible)	1,000 bar [14,500 psi]	Without (options: Copper, stainless steel)

View all (10)

U+	1
U-	3
S+	5
SP1 / C	4
SP2	2

G	L1
¼NPT	13 [0.51]
½NPT	19 [0.75]
R¼	13 [0.51]
PT¼	13 [0.51]

Sealings

	Description	Order number
	NBR profile sealing G¼ADINENISO1179-2 (formerly DIN 3852-E)	1537857
	FPM/FKM profile sealing G¼ADINENISO1179-2 (formerly DIN 3852-E)	1576534
	NBR profile sealing G½ADINENISO1179-2 (formerly DIN 3852-E)	1039067
	FPM/FKM profile sealing G½ADINENISO1179-2 (formerly DIN 3852-E)	1039075
	CopperG¼BEN837	11250810
	Stainless steelG¼BEN837	11250844
	CopperG½BEN837	11250861
	Stainless steelG½BEN837	11251042

Description	Temperature range	Cable diameter	Order number
Straight version, cut to length, 4-pin, 2 m[6.6 ft] PUR cable, UL listed, IP67	-20 ...+80 °C [-4 ... 176 °F]	4.5mm [0.18 in]	14086880
Straight version, cut to length, 4-pin, 5 m[16.4 ft] PUR cable, UL listed, IP67	-20 ...+80 °C [-4 ... 176 °F]	4.5mm [0.18 in]	14086883
Straight version, cut to length, 4-pin, 10 m[32.8 ft] PUR cable, UL listed, IP67	-20 ...+80 °C [-4 ... 176 °F]	4.5mm [0.18 in]	14086884
Straight version, cut to length, 5-pin, 2 m[6.6 ft] PUR cable, UL listed, IP67	-20 ...+80 °C [-4 ... 176 °F]	5.5mm [0.22 in]	14086886
Straight version, cut to length, 5-pin, 5 m[16.4 ft] PUR cable, UL listed, IP67	-20 ...+80 °C [-4 ... 176 °F]	5.5mm [0.22 in]	14086887
Straight version, cut to length, 5-pin, 10 m[32.8 ft] PUR cable, UL listed, IP67	-20 ...+80 °C [-4 ... 176 °F]	5.5mm [0.22 in]	14086888
Angled version, cut to length, 4-pin, 2 m[6.6 ft] PUR cable, UL listed, IP67	-20 ...+80 °C [-4 ... 176 °F]	4.5mm [0.18 in]	14086889
Angled version, cut to length, 4-pin, 5 m[16.4 ft] PUR cable, UL listed, IP67	-20 ...+80 °C [-4 ... 176 °F]	4.5mm [0.18 in]	14086891
Angled version, cut to length, 4-pin, 10 m[32.8 ft] PUR cable, UL listed, IP67	-20 ...+80 °C [-4 ... 176 °F]	4.5mm [0.18 in]	14086892
Angled version, cut to length, 5-pin, 2 m[6.6 ft] PUR cable, UL listed, IP67	-20 ...+80 °C [-4 ... 176 °F]	5.5mm [0.22 in]	14086893
Angled version, cut to length, 5-pin, 5 m[16.4 ft] PUR cable, UL listed, IP67	-20 ...+80 °C [-4 ... 176 °F]	5.5mm [0.22 in]	14086894
Angled version, cut to length, 5-pin, 10 m[32.8 ft] PUR cable, UL listed, IP67	-20 ...+80 °C [-4 ... 176 °F]	5.5mm [0.22 in]	14086896

Logo	Description	Country
	EU declaration of conformity ■ EMCdirective ■ Pressure equipment directive ■ RoHS directive	European Union
	UL Safety (e.g. electr. safety, overpressure, ...)	USA and Canada

Logo	Description
-	China RoHS directive
-	MTTF > 100 years
