Purge-gas control panel

Name: Purge-gas control panel
Brand: WIKA

Purge-gas control panel for connecting high-temperature thermocouples with gas supply lines, designed for harsh conditions in oil, gas, and chemical industries.

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The model PP82 purge-gas control panel connects high-temperature thermocouples with gas supply lines.

Through purging thermocouples with, for example, nitrogen, the occurrence of poisoning is effectively delayed and thus the operating life of the thermocouple is reliably extended and the accuracy of the measurement increased.

With its extremely robust stainless steel version with liquidfilled pressure display, the purge-gas control panel has been designed for harsh operating conditions, such as occur, for example, in refineries.

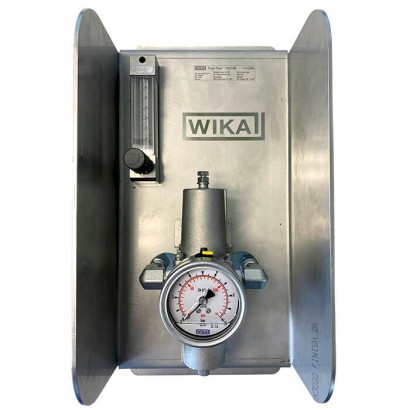

Purge-gas control panel, model PP82

Special features

Heavy-duty stainless steel version
High mechanical stability through side protection
For wall and pipe mounting, 2"
Pressure gauge with liquid dampening

Identification

Model	PP82
Product family	PP
Subcategory	Purge-gas control panel

Process conditions

Process connection

¼ NPT female thread1/4 NPT female thread1/4 NPT angle connectionPipe mounting 2"

Materials

Probe material

Stainless steel

Operating environment

Ambient temperature	−40…+80 °C
Weight	6 kg

Additional details

Datasheet languages

Tables from datasheet

Purge-gas control panel, model PP82

Sheet thickness	3mm
Material	Stainless steel
Ambient temperature	-40 ...+80 °C
Operating pressure	10 bar
Connections	¼NPTfemale thread
Filter regulator with secondary venting and manual condensate drain
Adjustable pressure range	0.5 ... 8.5 bar
Pressure range pressure gauge	0 ... 10 bar
Flow meter with float body
Scale range	2.89 ... 18.19 nl/h
Weight	6 kg
Dimensions	400 x 180 x 175mm
Order number	14327396
