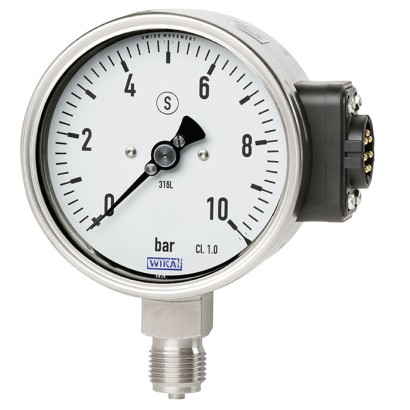

PGU23.100 1
PGU23.100
On order
WIKA · Pressure measurement · Family PGU2x

Bourdon tube pressure gauge for connection to WIKA radio unit model Typ NETRIS®3

Bourdon tube pressure gauge for connection to WIKA radio unit, Safety version, NS 100 [4"]
Range
-1…1600 bar
Output
Unified WIKA interface (UWI)
Accuracy
1.0
Protection
IP54
CERoHSATEXIECExEMCPressure Equipment DirectiveEx ia IIC T4 GbEx i Zone 1 gas II 2GEx i Zone 1 gas Ex ia IIC T4 Gb
Price
On request
Depends on configuration
Request a quote
+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The model PGU2x.100 pressure gauge in combination with the model NETRIS ® 3 radio unit is used wherever web-based remote monitoring of the process pressure is desired in addition to on-site indication.

The model PGU2x.100 combines a mechanical measuring system with electronic signal processing and is intended for connection to the WIKA model NETRIS®3 radio unit. In this way, cloud based process and plant monitoring can be realised in industrial applications. Condition-based and preventive maintenance through centralised big data analysis is thus possible.

for further approvals, see page 6

Bourdon tube pressure gauge for connection to WIKA radio unit, model PGU23.100

The model PGU2x.100 pressure gauge fulfils safety-related requirements of the relevant standards and regulations for the on-site indication of the operating pressure of pressure vessels.

The model PGU2x is based upon a model 2xx.30 high-quality, safety pressure gauge with a nominal size of 100, which corresponds to the S3 safety version of the EN 837-1.

The WIKA measuring instrument PGU2x.100 is part of the WIKA IIoT solution. With this, WIKA offers a holistic solution for your digitalisation strategy.

Special features

  • IIoT-capable measuring instrument in combination with model NETRIS ® 3 radio unit
  • Mechanical on-site indication with integrated digital interface
  • Intrinsically safe version Ex i per ATEX, IECEx
  • Measuring ranges from 0 … 0.6 to 0 … 1,600 bar [0 ... 10 to 0 ... 20,000 psi] as well as vacuum and +/- measuring ranges
Configurator · Step by step

Build a PGU2X for your task

The article number is assembled automatically. If unsure — ask an engineer; we'll match the line's parameters.

Step 1 of 4
Configuration structure· click a highlighted segment to jump to that parameter

The unit of the main scale of a pressure gauge is the unit of measurement in which the measured pressure value is displayed. Typical units for the main scale of a pressure gauge are: - Bar (bar) - Pascal (Pa) - Kilopascal (kPa) - Pounds per square inch (psi) - Kilograms per square metre (kg/cm²) The selection of the unit for the main scale depends on the specific requirements of the application and the region. Further information can be found in the following video: <iframe width="560" height="315" src="https://www.youtube.com/embed/b70uwtUaGs8?si=FfeEgrudrktswQta" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" referrerpolicy="strict-origin-when-cross-origin" allowfullscreen></iframe>

Your configuration
  • ModelPGU23
  • Nominal size100
  • Explosion protectionATEX / IECEx / Ex-Ukraine
  • Ignition protection typeEx ia - intrinsically safe
  • ZoneZone 1 gas [II 2G Ex ia IIC T4 Gb]
  • Output signalUWI (Unified WIKA Interface via plug connection for angular connectors)
  • Liquid Damping (case filling)without filling
  • Casesolid front design EN837 "S3"
  • Mounting optionwithout
  • Unit of outer Scale—
  • Measuring range—
  • Scale range—
  • 2nd Scale or Special Scalewithout
  • Process connection—
  • Connection locationlower mount
  • Windowlaminated safety glass
  • Restrictorwithout
  • Pointeradjustable pointer
  • Special design featureswithout
  • Certificateswithout
  • Approvalswithout
  • Assembly accessorywithout
  • Additional ordering informationWithout
