WIKA · Pressure measurement · Family PGT63HP
Capsule pressure gauge with output signal
For the process industry, high overload safety
Range
0…100 mbar
Output
4 ... 20 mA · 0 ... 20 mA
Accuracy
1.6
Protection
IP54
RoHSEACCEATEXIECExGOSTCRNBelGIMUkrSEPROUzstandardII 2G Ex ia IIC T6/T5/T4 GbEx ia IIC T6/T5/T4 Gb[II 2G Ex ia IIC T6/T5/T4 Gb][Ex ia IIC T6/T5/T4 Gb]
Price
On request
Depends on configuration
Description

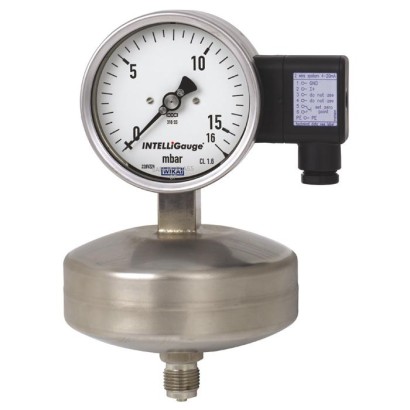

Wherever very low pressures have to be indicated locally and, at the same time, a signal transmission to the central control or remote centre is desired, the model PGT63HP intelliGAUGE ® (patent, property right: e.g. DE 202007019025) can be used.
The robust capsule measuring system has an overload safety of up to 50 times the full scale value.
An electronic angle encoder, proven in safety-critical automotive applications, determines the position of the pointer shaft - it is a non-contact sensor and therefore completely free from wear and friction. From this, the electrical output signal proportional to the pressure, e.g. 4 ... 20 mA, is produced.
for further approvals see page 5
intelliGAUGE ® model PGT63HP .100
The measuring span (electrical output signal) is adjusted automatically along with the mechanical display, i.e. the scale over the full display range corresponds to 4 ... 20 mA. The electrical zero point can also be set manually.
The electronic WIKA sensor, integrated into the high-quality capsule pressure gauge, combines the advantages of electrical signal transmission with a local mechanical display that remains readable during a power failure.
An additional measuring point for mechanical pressure display can thus be saved.
Special features
- No configuration necessary due to "plug-and-play"
- High overload safety up to 50 x full scale value
- Easy-to-read analogue display with nominal sizes 100 and 160
- Low measuring error and influence on function from medium pollution
- Measuring chamber protected against unauthorised intervention
Identification
| Model | PGT63HP.100 |
| Product family | PGT63HP |
| Subcategory | Capsule pressure gauge with output signal |
Measuring range
| Pressure ranges | 0…2.5 mbar · 0…100 mbar |
Accuracy
| Accuracy class | 1.6 |
| Accuracy standard | EN 837 |
Process conditions
| Process connection | M20 x 1.5G ½ B½ NPTG1/2B1/2NPT |
| Process temperature | −20…+100 °C |
Electrical characteristics
| Output signal | 4 ... 20 mA · 0 ... 20 mA · 0 ... 10 V |
| Power supply | 12...30 V DC |
| Electrical connection | Cable socket PA 6, black; Cable gland M20 x 1.5; 6 screw terminals + PE for conductor cross-section 2.5 mm² |
Materials
| Case material | Stainless steel |
| Wetted parts material | Stainless steel 316Ti |
| Sealing material | PTFE |
Operating environment
| Ambient temperature | −20…+60 °C |
| IP rating | IP54 |
| Weight | 1.6 kg |
Certifications and approvals
| Certifications | RoHSEACCEATEXIECExGOSTCRNBelGIMUkrSEPROUzstandard |
| Explosion protection | II 2G Ex ia IIC T6/T5/T4 GbII 2D Ex ia IIIB T85°C/T100°C/T135°C DbEx ia IIC T6/T5/T4 GbEx ia IIIB T85°C/T100°C/T135°C Db[II 2G Ex ia IIC T6/T5/T4 Gb][II 2D Ex ia IIIB T85°C/T100°C/T135°C Db][Ex ia IIC T6/T5/T4 Gb][Ex ia IIIB T85°C/T100°C/T135°C Db] |
Additional details
| Dial size | 100 mm |
| Datasheet languages | EN |
Tables from datasheet
Models PGT63HP.100 and PGT63HP.160
| Nominal size inmm | ■ 100 ■ 160 |
|---|---|
| Accuracy class | 1.6 Option: ■ 1.0 ¹⁾ ■ 0.6 ¹⁾ |
| Scale ranges | 0 ... 2.5 mbar to 0 ... 100 mbar other units e.g. psi, kPa available or all other equivalent vacuum or combined pressure and vacuum ranges |
| Scale | Single scale Option: Dual scale |
| Zero point setting | By means of adjustment appliance |
| Pressure limitation | |
| Steady | Full scale value |
| Fluctuating | 0.9 x full scale value |
| Overload safety | 50 x full scale value Higher overload safety on request ¹⁾ |
| Process connection with lower measuring flange | ■ G½B ■ ½NPT ■ M20 x 1.5 others on request |
| Permissible temperature 2) | |
| Medium | +100 °C [+212 °F] maximum |
| Ambient | -20 ...+60 °C [-4 ... 140 °F] |
| Temperature effect | When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.6 %/10 K of full scale value |
| Case | Version S1 per EN 837:With blow-out device in case back |
| Case filling | Without |
| Wetted materials | |
| Process connection, media cham- ber, capsule element (pressure element) | Stainless steel 316Ti |
| Sealing | PTFE |
| Non-wetted materials | |
| Case, movement, bayonet ring | Stainless steel |
| Dial | Aluminium, white, black lettering |
| Instrument pointer | Aluminium, black |
| Set pointer | Aluminium, red |
| Window | Laminated safety glass |
| Ingress protection per IEC/EN 60529 | IP54 |
| Mounting | Rigid measuring line Option: ■ Instrument mounting bracket for wall or pipe mounting ■ Mounting flange |
Models PGT63HP.100 and PGT63HP.160
| Output signal | Variant 1: 4 …20mA, 2-wire, passive, per NAMUR NE 43 Variant 2: 4 ... 20 mA, 2-wire, for hazardous areas Variant 3: 0 ... 20 mA, 3-wire Variant 4: 0 ... 10 V, 3-wire |
|---|---|
| Supply voltage U B | DC 12V < U B ≤ 30V (variant 1 and 3) DC 14V < U B ≤ 30V (variant 2) DC 15V < U B ≤ 30V (variant 4) |
| Influence of supply voltage | ≤ 0.1 %of full scale/10V |
| Permissible residual ripple of U B | ≤ 10 %ss |
| Permissible max. load R A | Variant 1, 2, 3:R A ≤ (U B - 12 V)/0.02 A with R A in Ωand U B in V, however max.600Ω Variant 4:R A = 100 kΩ |
| Effect of load (variant 1, 2, 3) | ≤ 0.1 %of full scale |
| Impedance at voltage output | 0.5Ω |
| Electrical zero point | Through a jumper across terminals 5 and 6 (see operating instructions) |
| Long-term stability of electronics | < 0.3 %of full scale per year |
| Electr. output signal | ≤ 1 %of measuring span |
| Linear error | ≤ 1 %of measuring span (terminal method) |
| Resolution | 0.13 %of full scale (10 bit resolution at 360°) |
| Refresh rate (measuring rate) | 600 ms |
| Electrical connection | Cable socket PA 6, black PerVDE 0110 insulation group C/250V Cable gland M20 x 1.5 Strain relief 6 screw terminals + PE for conductor cross-section 2.5 mm² |
| Designation of connection termi- nals, 2-wire (variant 1 and 2) | Do not use this terminal U B +/I+ Terminals 3 and 4: For internal use only Terminals 5 and 6: Reset zero point |
| Designation of connection terminals for 3-wire (variant 3 and 4), see operating instructions | +0V/GND |
| Logo | Description | Country |
|---|---|---|
| EU declaration of conformity ■ EMCdirective ■ Pressure equipment directive ■ RoHS directive ■ ATEX directive (option) Hazardous areas - Ex ia Gas [II 2G Ex ia IIC T6/T5/T4 Gb] Dust [II 2D Ex ia IIIB T85°C/T100°C/T135°C Db] | European Union | |
| IECEx (option) Hazardous areas - Ex ia Gas [Ex ia IIC T6/T5/T4 Gb] Dust [Ex ia IIIB T85°C/T100°C/T135°C Db] | International | |
| EAC (option) ■ EMCdirective ■ Pressure equipment directive ■ Low voltage directive ■ Hazardous areas | Eurasian Economic Community | |
| GOST (option) Metrology, measurement technology | Russia | |
| - | MTSCHS (option) Permission for commissioning | Kazakhstan |
| BelGIM (option) Metrology, measurement technology | Belarus | |
| UkrSEPRO (option) Metrology, measurement technology | Ukraine | |
| Ex Ukraine (option) Hazardous areas | Ukraine | |
| Uzstandard (option) Metrology, measurement technology | Uzbekistan | |
| - | CRN Safety (e.g. electr. safety, overpressure, ...) | Canada |
| NS | Dimensions inmm | Weight in kg | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| a | b | c | d 1 | D 1 | D 2 | e | G | h ±1 | SW | ||
| 100 | 25 | 59.5 | 94 | 133 | 101 | 99 | 17 | G½B | 170 | 22 | 1.6 |
| 160 | 25 | 65 | 124 | 133 | 161 | 159 | 17 | G½B | 200 | 22 | 2.1 |
