WIKA · Pressure measurement · Family PGT23

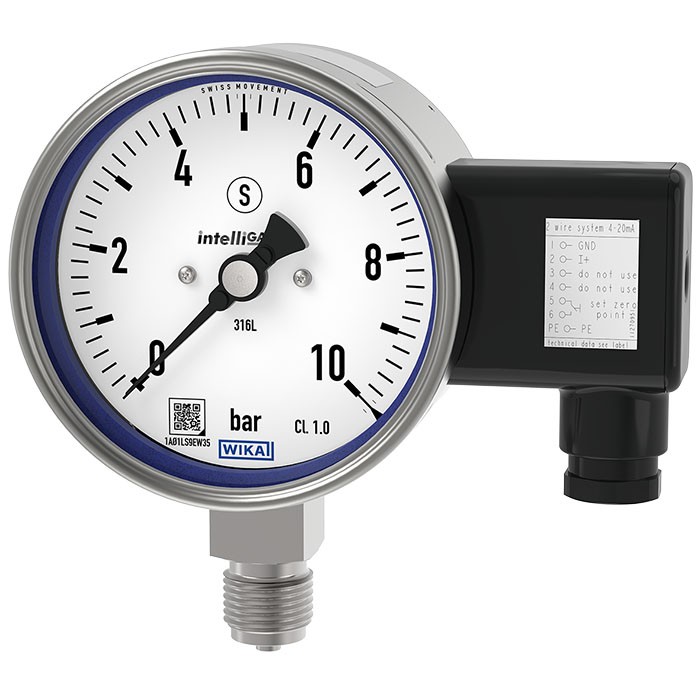

Bourdon tube pressure gauge with electrical output signal
Bourdon tube pressure gauge with electrical output signal, stainless steel, safety version, NS 100 [4"] and 160 [6"]
Range
-100…100000 kPa
Output
4 … 20 mA · 0 ... 20 mA
Accuracy
1.0
Protection
IP65
CERoHSII 2G Ex ia IIC T6/T5/T4 GbII 2D Ex ia IIIB T135°C DbEx ia IIC T6/T5/T4 GbEx ia IIIB T135°C DbGas II 2G Ex ia IIC T6/T5/T4 GbDust II 2D Ex ia IIIB T135℃ DbGas Ex ia IIC T6/T5/T4 GbDust Ex ia IIIB T135℃ Db
Price
On request
Depends on configuration
Special features
- No configuration necessary due to “plug-and-play”
- Model PGT26: wetted parts from Monel 400 (2.4360)
- Measuring ranges 0 ... 0.6 bar to 0 ... 1,600 bar or 0 ... 10 to 0 ... 30,000 psi
- Safety version with solid baffle wall (Solidfront) available
- QR code on dial links to instrument-specific information
