WIKA · Pressure measurement · Family PEU

Pressure transmitter for connection to radio unit

Name: Pressure transmitter for connection to radio unit
Brand: WIKA
SKU: PEU-2X

Pressure sensor for connection to radio unit NETRIS® 3 for IIoT-capable remote monitoring in industrial applications

Range

-1…1600 bar

Output

Unified WIKA Interface (UWI)

Accuracy

0.5 % of span

Protection

IP65

CERoHSEACREACHPressure Equipment DirectiveEx i per ATEXEx i per IECExEx i IIC T6...T1 GaEx i IIC T6...T1 Ga/GbEx i IIC T6...T1 GbEx i IIC T135°C DaEx i IIC T135°C Da/DbEx i IIC T135°C Db

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The model PEU-2x in combination with the model NETRIS ® 3 radio unit is used wherever web-based remote monitoring of the process pressure of liquids and gases is desired. Typical applications include mobile parts of plants or remote measuring locations. The connection to NETRIS ® 3 allows for cloudbased process and plant monitoring in industrial applications.

Via retrofit, machinery or moving parts can be configured smartly - without having to plan and document cable routing. Particularly when no continuous measurement is needed, cost advantages can be realised.

For further approvals, see page 7

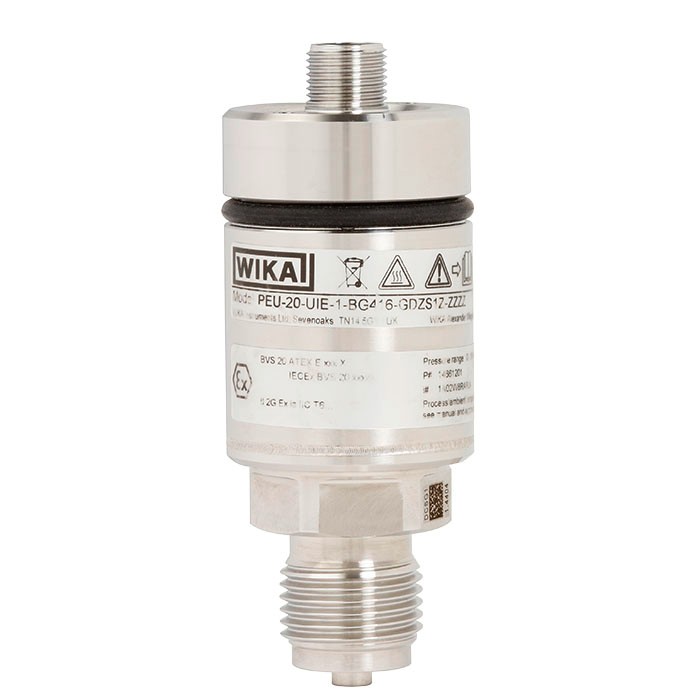

Pressure sensor for connection to radio unit, model PEU-20

The pressure sensor enables simple condition monitoring. A temperature indication inside the case, in addition to the pressure value, reveals possible malfunctions due to wear or system faults at an early stage and thus reduces the risk of downtime and damage.

The PEU-2x pressure sensor is part of the WIKA IIoT solution. With this, WIKA offers a holistic solution for your digitalisation strategy.

Model PEU-2x with radio unit, model NETRIS ® 3

Special features

IIoT-capable measuring instrument in combination with model NETRIS ® 3 radio unit
Intrinsically safe version Ex i per ATEX, IECEx
Measuring ranges from 0 … 1 to 0 ... 1,600 bar [0 ... 15 to 0 ... 20,000 psi] as well as vacuum and +/- measuring ranges

Configurator · Step by step

Build a PEU-2X for your task

The article number is assembled automatically. If unsure — ask an engineer; we'll match the line's parameters.

Step 1 of 1

Configuration structure· click a highlighted segment to jump to that parameter

0.5 % of span0.25 % of span

Your configuration

Process connection typeStandard connection with pressure port
Explosion protectionATEX / IECEx / Ex-Ukraine
Ignition protection typeEx ia - intrinsically safe
ZoneZone 0 gas [II 1G Ex ia IIC T4…T1 Ga]
Output signalLow power UART (via plug connection M12x1)
Unitbar
Pressure typegauge
Measuring range0 ... 1 bar gauge
Process connectionG 1/2 B
Sealingwithout
Wetted partsstainless steel
Accuracy—
Special design featureswithout
Type of certificatewithout
Certificates/Approvalswithout
Approvalswithout
Additional ordering informationWithout

AI suggestion by parameters

Finish your configuration

Select every option to submit the request.

Send request

Your configuration

Process connection typeStandard connection with pressure port
Explosion protectionATEX / IECEx / Ex-Ukraine
Ignition protection typeEx ia - intrinsically safe
ZoneZone 0 gas [II 1G Ex ia IIC T4…T1 Ga]
Output signalLow power UART (via plug connection M12x1)
Unitbar
Pressure typegauge
Measuring range0 ... 1 bar gauge
Process connectionG 1/2 B
Sealingwithout
Wetted partsstainless steel
Accuracy—
Special design featureswithout
Type of certificatewithout
Certificates/Approvalswithout
Approvalswithout
Additional ordering informationWithout

Send request

Identification

Model	PEU-20
Product family	PEU
Subcategory	Pressure transmitter

Measuring range

Pressure ranges

0…1 bar · 0…1.6 bar · 0…2.5 bar · 0…4 bar · 0…6 bar · 0…10 bar · 0…16 bar · 0…25 bar · 0…40 bar · 0…60 bar · 0…100 bar · 0…160 bar · 0…250 bar · 0…400 bar · 0…600 bar · 0…1000 bar · 0…1600 bar · 0…1 bar abs. · 0…1.6 bar abs. · 0…2.5 bar abs. · 0…4 bar abs. · 0…6 bar abs. · 0…10 bar abs. · 0…16 bar abs. · 0…25 bar abs. · 0…40 bar abs. · -0.2…0.2 bar · -1…0 bar · -1…0.6 bar · -1…1.5 bar · -1…3 bar · -1…5 bar · -1…10 bar · -1…15 bar · -1…25 bar · -1…40 bar · -14.5…0 psi · -14.5…15 psi · -14.5…300 psi · 0…15 psi · 0…30 psi · 0…100 psi · 0…500 psi · 0…1500 psi · 0…5000 psi · 0…10000 psi · 0…15000 psi · 0…20000 psi · 0…15 psi abs. · 0…20 psi abs. · 0…30 psi abs. · 0…50 psi abs. · 0…100 psi abs. · 0…150 psi abs. · 0…200 psi abs. · 0…300 psi abs. · 0…500 psi abs.

Accuracy

Accuracy class	0.5 % of span
Accuracy standard	IEC 62828-2

Process conditions

Process connection	G ⅜ BG ½ BM20 x 1.5½ NPT¼ NPTM16 x 1.5, female thread with sealing coneM20 x 1.5, female thread with sealing cone9/16-18 UNF, female thread F 250-C½ NPT, ¼ female thread
Process temperature	−40…+150 °C

Electrical characteristics

Output signal	Unified WIKA Interface (UWI)
Power supply	DC 6.7V
Electrical connection	M12 connector

Materials

Wetted parts material	Stainless steel 1.4404 / 316L, Elgiloy ® 2.4711, Stainless steel 1.4534 / 904L, Hastelloy ® HC276 / 2.4819, Gold-plated
Sealing material	NBR, EPDM, FKM

Operating environment

Ambient temperature	−40…+80 °C
IP rating	IP65

Certifications and approvals

Certifications	CERoHSEACREACHPressure Equipment Directive
Explosion protection	Ex i per ATEXEx i per IECExEx i IIC T6...T1 GaEx i IIC T6...T1 Ga/GbEx i IIC T6...T1 GbEx i IIC T135°C DaEx i IIC T135°C Da/DbEx i IIC T135°C Db

Additional details

Datasheet languages

EN, DE

Tables from datasheet

Overview of versions

Model	Description
PEU-20	With pressure port
PEU-21	With flush connection

Accuracy specifications

Accuracy	■ 0.5 % of span ■ 0.25 % of span (≤ 1,000 bar [15,000 psi]) ■ 0.1 % of span (≤ 1,000 bar [15,000 psi]) → 0.1 % of span at < 1.6 bar [23 psi], gauge and bar abs. not possible
Zero point setting	-20 ... 95 % (limited by 0 bar absolute)
Non-repeatability per IEC 62828-2
Measuring ranges ≤ 1,000 bar [15,000 psi]	≤ 0.1 % of span
Measuring ranges > 1,000 bar [15,000 psi]	≤ 0.5 % of span
Total probable error per IEC 62828-2	Rated temperature range per DIN 16086: -40 ... +80 °C [-104 ... +176 °F]
	Ambient temperature range whose specification limits must not be exceeded.
Long-term stability per IEC 62828-1
Measuring ranges < 1 bar [15 psi]	Max. 0.35 % of span/year
Measuring ranges ≥ 1 ... < 1.6 bar [≥ 15 ... < 20 psi]	Max. 0.15 % of span/year
Measuring ranges ≥ 1.6 ... ≤ 40 bar [≥ 20 ... ≤ 500 psi]	Max. 0.10 % of span/year
Measuring ranges > 40 bar [> 500 psi]	Max. 0.05 % of span/year
Reference conditions	Per IEC 62828-1

bar
0 ... 1	0 ... 60
0 ... 1.6	0 ... 100
0 ... 2.5	0 ... 160
0 ... 4	0 ... 250
0 ... 6	0 ... 400
0 ... 10	0 ... 600
0 ... 16	0 ... 1000
0 ... 25	0 ... 1600
0 ... 40	-

psi
0 ... 15	0 ... 5,000
0 ... 30	0 ... 10,000
0 ... 100	0 ... 15,000
0 ... 500	0 ... 20,000
0 ... 1,500	-

View all (20)

bar abs.

0 ... 1	0 ... 10
0 ... 1.6	0 ... 16
0 ... 2.5	0 ... 25
0 ... 4	0 ... 40
0 ... 6	-

psi abs.

0 ... 15	0 ... 150
0 ... 20	0 ... 200
0 ... 30	0 ... 300
0 ... 50	0 ... 500
0 ... 100	-

bar
-0.2 ... +0.2	-1 ... 5
-1 ... 0	-1 ... 10
-1 ... 0.6	-1 ... 15
-1 ... 1.5	-1 ... 25
-1 ... 3	-1 ... 40

psi

-14.5 ... 0	-14.5 ... 300
-14.5 ... 15	-

Further details on: Measuring range

Units	■ bar ■ psi ■ bar abs. ■ psi abs.
Maximum working pressure	→ Corresponds to the upper measuring range value / measuring range full scale value
Overpressure limit	The overpressure limit is based on the measuring range. Depending on the selected process connection and the seal, restrictions in overpressure limit can result. Use of the instrument in the range between the upper measuring range value / measuring range full scale value and the overpressure limit is not considered normal operation and is only permissible for a short time.
Measuring ranges ≤ 40 bar [500 psi]	3 times
Measuring ranges 40 ... 1,000 bar [500 .... 15,000 psi]	2 times
Measuring range 1,600 bar [20,000 psi]	1.5 times
Vacuum resistance	Yes (not for oxygen applications)

Process connection

Per standard	Thread size	Possible measuring ranges
Model PEU-20
EN 837	G ⅜ B	≤ 0 ... 1,000 bar [0 ... 15,000 psi]
G ½ B	≤ 0 ... 1,000 bar [0 ... 15,000 psi]
M20 x 1.5	≤ 0 ... 1,000 bar [0 ... 15,000 psi]
ANSI / ASME B1.20.1	½ NPT	≤ 0 ... 1,000 bar [0 ... 15,000 psi]
½ NPT, ¼ female thread	≤ 0 ... 1,000 bar [0 ... 15,000 psi]
¼ NPT	≤ 0 ... 1,000 bar [0 ... 15,000 psi]
-	M16 x 1.5, female thread with sealing cone	≥ 0 ... 100 bar [0 ... 1,500 psi]
M20 x 1.5, female thread with sealing cone	≥ 0 ... 1,600 bar [0 ... 20,000 psi]
9/16-18 UNF, female thread F 250-C	≥ 0 ... 100 bar [0 ... 1,500 psi]
Model PEU-21
-	G ½ B	0 ... 6 to 0 ... 600 bar [0 ... 100 to 0 ... 5,000 psi]
G 1 B	≤ 0 ... 1.6 bar [0 ... 30 psi]
G 1 ½ B	≤ 0 ... 1.6 bar [0 ... 30 psi]
G 1 hygienic 1) 2)	≤ 0 ... 16 bar [0 ... 100 psi]
G 1 hygienic with cooling element 2)	≤ 0 ... 16 bar [0 ... 100 psi]

Process connection

Per standard	Thread size	Possible measuring ranges
TRI-CLAMP ®	DN 1½ with cooling element for 150 °C [302 °F]	≤ 0 ... 40 bar [0 ... 500 psi]
DN 2 with cooling element for 150 °C [302 °F]	≤ 0 ... 40 bar [0 ... 500 psi]
Clamp DIN 32676	DN 40 with cooling element for 150 °C [302 °F]	≤ 0 ... 40 bar [0 ... 500 psi]
DN 50 with cooling element for 150 °C [302 °F]	≤ 0 ... 40 bar [0 ... 500 psi]
Grooved union nut DIN 11851 with conical coupling	DN 25 with cooling element for 150 °C [302 °F]	≤ 0 ... 40 bar [0 ... 500 psi]
DN 40 with cooling element for 150 °C [302 °F]	≤ 0 ... 25 bar [0 ... 500 psi]
DN 50 with cooling element for 150 °C [302 °F]	≤ 0 ... 25 bar [0 ... 500 psi]
NEUMO BioConnect ®	DN 40 form V with cooling element for 150 °C [302 °F]	≤ 0 ... 16 bar [0 ... 500 psi]
VARINLINE ®	Form N with cooling element for 150 °C [302 °F], DN 40 ... 50	≤ 0 ... 16 bar [0 ... 500 psi]
Form F with cooling element for 150 °C [302 °F], DN 25	≤ 0 ... 16 bar [0 ... 500 psi]

Digital interface

Signal type	Unified WIKA Interface (UWI)
Digital signal resolution	< 0.01 % of measuring span
Connection type	Plug connection for NETRIS ® 3 M12 connector

Material

Materials (wetted)
PEU-20
≤ 40 bar [500 psi]	All process connections	Stainless steel 1.4404 / 316L Sensor: stainless steel 1.4404 / 316L
> 40 bar [500 psi]	All process connections	Process connection: stainless steel 1.4404 / 316L Sensor: Elgiloy ® 2.4711
> 1,000 bar [15,000 psi]	All process connections	Process connection: stainless steel 1.4534 / 904L Sensor: stainless steel 1.4534 / 904L
PEU-21
All measuring ranges	All process connections	Process connection: stainless steel 1.4435 / 316L Diaphragm: stainless steel 1.4435 / 316L
■ G ½ ■ G 1	Process connection: Hastelloy ® HC276 / 2.4819 Diaphragm: Hastelloy HC276 / 2.4819
■ G ½ ■ G 1	Process connection: gold-plated Diaphragm: gold-plated 1)
Seal	■ NBR ■ EPDM ■ FKM
→ For PEU-21 with G-thread up to max. +105 °C [221 °F]

Material

Surface roughness with hygienic connec- tions	■ Unpolished surface R a ≤ 0.5 µm ■ Polished surface R a ≤ 0.38 µm
Pressure transmission medium
PEU-20	Measuring range ≤ 40 bar [500 psi]	Synthetic oil
	Measuring range > 40 bar [500 psi]	Dry measuring cell
PEU-21	All measuring ranges	■ Synthetic oil ■ NEOBEE M-20 FDA

Version for special media

Food	FDA-listed , food-compatible system fill fluid
Oil- and grease-free	Per G93:2019 level D (< 220 mg/m²)
Oxygen, oil- and grease-free	■ Per G93:2019 level D (< 220 mg/m²) ■ Particle < 1,000 μm
Hydrogen	Measuring ranges	≥ 100 bar [1,450 psi]
	Material (wetted)	316L and Elgiloy (2.4711)
	With the measurement of hydrogen, preferably, a gold-plated diaphragm should be used. If this is not technically possible, a higher long-term drift should be expected. Use with pres- sures ≥1,000 bar [≥14,500 psi] is not permissible.

Operating conditions

Medium temperature limit	→ See 'Safety-related characteristic values (Ex)'
Oxygen application	-20 ... +60 °C [-4 ... +140 °F]
Hydrogen application	Max. 30 °C [86 °F]
Medium temperature limit due to sealing material (only for model PEU-21)
NBR	-20 ... +105 °C [-4 ... +221 °F]
FKM	-20 ... +105 °C [-4 ... +221 °F]
FKM	-20 ... +150 °C [-4 ... +302 °F]	1)
EPDM	-40 ... +105 °C [-40 ... +221	°F]
EPDM	-40 ... +150 °C [-40 ... +302 °F]	2)
Ambient temperature limit	-40 ... +80 °C [-40 ... +176 °F]	2)
Storage temperature limit	-40 ... +80 °C [-40 ... +176	°F]
Relative humidity per IEC 62828-1	50 ... 70 % relative humidity (non-condensing)
Vibration resistance per DNVGL-CG-0339
For instruments without cooling element	4g (5 ... 100 Hz)
For instruments with cooling element	0.7g (5...100 Hz)
Shock resistance per IEC 60068-2-27
For instruments without cooling element	100g [6 ms]
For instruments without cooling element	50g [6 ms]
For instruments with measuring range 1,000 bar [15,000 psi]	20g [6 ms]
Mounting position	Vertical, diaphragm points	downward
Ingress protection per IEC 60529	IP66/67
	The ingress protection only applies with a correct plug connection with model NETRIS ® 3

Logo	Description
-	Manufacturer's declaration regarding EU regulation 1935/2004 EC
-	Manufacturer's declaration GB 4806.1-2016 China National Food Safety Standard - Good Manufacturing Practice GB 31603- 2015 (GMP)

Description

Certificates	■ Without ■ 2.2 test report per EN 10204 (e.g. state-of-the-art manufacturing, material proof, meas- urement accuracy) ■ 3.1 inspection certificate per EN 10204 (e.g. material proof for wetted metal parts)
Calibration	■ Without ■ 3.1 inspection certificate per EN 10204 (factory calibration) ■ DAkkS calibration certificate (traceable and accredited in accordance with ISO/IEC 17025)
Recommended calibration interval	1 year (dependent on conditions of use)

Safety-related characteristic values (Ex)

Effective internal inductance L i	Negligible
Max. output voltage U o 1)	DC 6.7 V
Max. output current I o 1)	400 mA
Temperature range	→ Applies for temperature classes T1 ... T4 and max. surface temperature T135 for dust Ex atmosphere
Ambient temperature	-40 ... +80 °C [-40 ... +176 °F]
Medium temperature 2)	-40 ... +80 °C [-40 ... +176 °F] → For increased medium temperatures, see table 'Further specifications on: Safety-related characteristic values (Ex)'.

Further specifications on: Safety-related characteristic values (Ex)

Temperature class	Max. medium temperature	Ambient temperature
Without cooling element
T4	120 °C [248 °F]	-40 ≤ Ta ≤ +30 °C [-40 ≤ Ta ≤ +86 °F]
T4	105 °C [221 °F]	-40 ≤ Ta ≤ +40 °C [-40 ≤ Ta ≤ +104 °F]
T4	85 °C [185 °F]	-40 ≤ Ta ≤ +80 °C [-40 ≤ Ta ≤ +176 °F]
T5	85 °C [185 °F]	-40 ≤ Ta ≤ +80 °C [-40 ≤ Ta ≤ +176 °F]
T6	70 °C [158 °F]	-40 ≤ Ta ≤ +70 °C [-40 ≤ Ta ≤ +158 °F]
With cooling element
T3	150 °C [302 °F]	-40 ≤ Ta ≤ +40 °C [-40 ≤ Ta ≤ +104 °F]
T4	120 °C [248 °F]	-40 ≤ Ta ≤ +50 °C [-40 ≤ Ta ≤ +122 °F]
T4	105 °C [221 °F]	-40 ≤ Ta ≤ +50 °C [-40 ≤ Ta ≤ +122 °F]
T4	85 °C [185 °F]	-40 ≤ Ta ≤ +80 °C [-40 ≤ Ta ≤ +176 °F]
T5	85 °C [185 °F]	-40 ≤ Ta ≤ +80 °C [-40 ≤ Ta ≤ +176 °F]
T6	70 °C [158 °F]	-40 ≤ Ta ≤ +70 °C [-40 ≤ Ta ≤ +158 °F]

Pressure transmitter for connection to radio unit

Description

Special features

Finish your configuration

2 standard articles of family PEU
