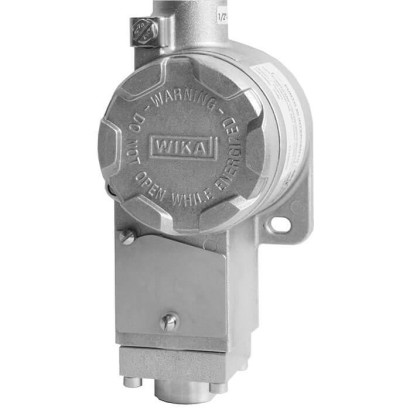

Compact pressure switch, flameproof enclosure Ex d
Compact pressure switch with flameproof enclosure Ex d for safety-critical applications in process industries, featuring robust design, high switching power, and optional SIL 2/3 qualification.
Range
-1…1000 bar
Accuracy
≤ 1 % of end of setting range
Protection
IP66
RoHSPEDLow voltage directiveATEXEACINMETROCCCKCsPESOLow Voltage DirectiveCENACE MR0175/ISO 15156NACE MR0103/ISO 17945EN 1854Ex db I MbI M2II 1/2 GDII 2 GDEx db IIC T6/T4 Ga/GbEx tb IIIC T85/T135 DbEx db IIC T6/T4 2) Ga/GbEx tb IIIC T85/T135 2) DbEx db IIC T6/T4 2) GbATEX II 1/2G DATEX II 2G DIECEx Ex db I MbIECEx Ex db IIIC T6/T4 GbIECEx Ex tb IIIC T85/T135 DbEACEx
Price
On request
Depends on configuration
Description
The pressure switches have been developed especially for safety-critical applications with limited space.
The high quality of the products and manufacturing in accordance with ISO 9001 ensure reliable monitoring of your plant. In production, the switches are traced by quality assurance software at every step and subsequently are 100 % tested.
The robust switch enclosure from aluminium alloy or stainless steel 316L can withstand the rough and corrosive operating conditions of the process industry with working ranges of up to 1,000 bar. The access to the terminal block for the electrical connection is protected by a screw-on lid, which is secured with a screw-type lock against unauthorised intervention.
Special features
- No power supply needed for switching of electrical loads
- Robust switch enclosure from aluminium alloy or stainless steel with identical dimensions, IP66, NEMA 4X
- Setting ranges from 0.2 ... 1.2 to 200 ... 1,000 bar, vacuum ranges
- Repeatability of the set point ≤ 1 % of span
- 1 set point, SPDT or DPDT, high switching power up to AC 250 V, 15 A
Identification
| Model | PCA |
| Product family | Process Compact Series |
| Subcategory | Pressure switch |
Measuring range
| Pressure ranges | -1…-0.2 bar · 0.1…2.5 bar · 0.2…1.2 bar · 0.5…2.5 bar · 0.8…6 bar · 1.6…10 bar · 3…25 bar · 3.5…70 bar · 4…25 bar · 8…40 bar · 10…40 bar · 16…100 bar · 20…100 bar · 20…220 bar · 40…250 bar · 60…250 bar · 80…400 bar · 100…600 bar · 100…700 bar · 200…1000 bar |
Accuracy
| Accuracy class | ≤ 1 % of end of setting range |
| Accuracy standard | IEC 61298-2:2008 |
| Safety integrity level (SIL) | SIL 3-capable (option) |
Process conditions
| Process connection | ¼ NPT, female thread½ NPT, female thread via adapter½ NPT, male thread via adapterG ¼, female thread via adapterG ½ A, male thread via adapterG ¼ A, male thread via adapter1/4 NPT, female thread1/2 NPT, female thread via adapter1/2 NPT, male thread via adapterG1/4, female thread via adapterG1/2A, male thread via adapterG1/4A, male thread via adapter |
| Process temperature | −40…+200 °C |
Electrical characteristics
| Electrical connection | Female thread ½ NPT, M20 x 1.5, ¾ NPT, cable gland non-armoured/armoured (nickel-plated brass or stainless steel) |
| Switching function | SPDT or DPDT |
| Switching contacts | 1 |
Materials
| Case material | Aluminium alloy, copper-free, painted with acrylic, Stainless steel 316L |
| Wetted parts material | NBR, PTFE, Inconel, Stainless steel 316L, Hastelloy C276, FPM, EPDM |
| Sealing material | FPM, NBR, EPDM, O-ring:FPM, O-ring:NBR, O-ring:EPDM, PTFE |
Operating environment
| Ambient temperature | −60…+85 °C |
| IP rating | IP66 |
| Weight | 0.8 kg |
Certifications and approvals
| Certifications | RoHSPEDLow voltage directiveATEXEACINMETROCCCKCsPESOCENACE MR0175/ISO 15156NACE MR0103/ISO 17945EN 1854 |
| Explosion protection | Ex db I MbI M2II 1/2 GDII 2 GDEx db IIC T6/T4 Ga/GbEx tb IIIC T85/T135 DbEx db IIC T6/T4 2) Ga/GbEx tb IIIC T85/T135 2) DbEx db IIC T6/T4 2) GbEx tb IIIC T85/T135 2) Db (version with sensor element 'P')ATEX II 1/2G DATEX II 2G DIECEx Ex db I MbIECEx Ex db IIIC T6/T4 GbIECEx Ex tb IIIC T85/T135 DbEACEx |
Additional details
| Datasheet languages | EN |
Tables from datasheet
| Basic information | |
|---|---|
| Version | Compact pressure switch, flameproof enclosure Ex d |
| Special design feature | ■ For oxygen, oil- and grease-free ■ Per NACE 1) MR0175 / ISO 15156, use in H₂S-containing environments in oil and gas production ■ Per NACE 1) MR0103 / ISO 17945, metals resistant to sulphide stress cracking ■ Version compliant with EN 1854, pressure sensing devices for gas burners and gas burning appliances ■ Drying of wetted parts ■ Offshore version ■ Tropical version (suitable for environments with increased air humidity) ■ Version for ammonia applications ■ Geothermal version |
| Contact version | ■ 1 x SPDT (single pole double throw) ■ 1 x DPDT (double pole double throw) Microswitch with fixed dead band The DPDT function is realised with 2 simultaneously triggering SPDT microswitches. →See table 'Contact version' |
| Dielectric strength | Safety class I (IEC 61298-2: 2008) |
| Switch enclosure | |
| Design | Tamper-proof due to access cover plate with lead seal option Laser-engraved product label from stainless steel |
| Material | ■ Aluminium alloy, copper-free, painted with acrylic ■ Stainless steel 316L |
| Mounting 2) | ■ Direct mounting ■ Wall bracket from stainless steel ■ Mounting bracket for 2" pipe mounting |
| Contact version | Electrical rating (resistive load) | ||
|---|---|---|---|
| AC | DC | ||
| A | 1 x SPDT, silver | 250 V, 15 A | 24 V, 2 A, 125 V, 0.5 A, 220 V, 0.25 A |
| B | 1 x SPDT, silver, hermetically sealed, argon gas filling 1) | 250 V, 15 A | 24 V, 2 A, 220 V, 0.5 A |
| C | 1 x SPDT, gold-plated, hermetically sealed, argon gas filling 1) | 125 V, 1 A | 24 V, 0.5 A |
| G | 1 x DPDT, silver | 250 V, 5 A | 24 V, 0.5 A |
| H | 1 x DPDT, silver, hermetically sealed, air filling | 250 V, 5 A | 24 V, 0.5 A |
| Sensor element | Wetted parts | Permissible medium temperature | ||
|---|---|---|---|---|
| Sensor element | Sealing | |||
| V | Diaphragm element with antag- onist spring | NBR | - | -30 ...+110 °C |
| T | Diaphragm element with antag- onist spring | PTFE | - | -30 ...+110 °C |
| M | Diaphragm element with antag- onist spring | Inconel | O-ring:FPM | -30 ...+200 °C |
| Sensor element | Wetted parts | Permissible medium temperature | ||
|---|---|---|---|---|
| Sensor element | Sealing | |||
| P | Piston with antagonist spring 2) | Stainless steel 316L | O-ring:FPM | 0 ... 200 °C |
| O-ring:NBR | -10 ...+110 °C | |||
| O-ring:EPDM | -40 ...+110 °C | |||
| G | Piston with antagonist spring and welded diaphragm element | Hastelloy C276 | - | -40 ...+140 °C |
View all (14)
Accuracy specifications
| Set point repeatability | ≤ 1 %of end of setting range |
|---|---|
| Dead band | →See table 'Setting range of set point' |
| Setting range | Sensor element | Working range 1) | Proof pressure 2) | Max. dead band for contact version | ||
|---|---|---|---|---|---|---|
| A, B, C | G | H | ||||
| in bar | in bar | in bar | in bar | in bar | in bar | |
| -1 ... -0.2 | V | -1 ... 6 | 10 | 0.03 | 0.06 | 0.12 |
| 0.1 ... 2.5 | M | -1 ... 30 | 40 | 0.05 | 0.1 | 0.4 |
| 0.2 ... 1.2 | T | 0 ... 6 | 10 | 0.03 | 0.06 | 0.12 |
| 0.5 ... 2.5 | M | -1 ... 10 | 40 | 0.05 | 0.1 | 0.4 |
| 0.8 ... 6 | M | -1 ... 10 | 40 | 0.06 | 0.2 | 0.8 |
| 1.6 ... 10 | M | -1 ... 25 | 40 | 0.2 | 0.4 | 1.6 |
| 3 ... 25 | P,G | 0 ... 250 | 400 | 2 | 4 | 16 |
| 3.5 ... 70 | P,G | 0 ... 140 | 500 | 7 | 7 | 21 |
| 4 ... 25 | M | -1 ... 25 | 60 | 0.25 | 0.75 | 3 |
| 8 ... 40 | P,G | 0 ... 100 | 400 | 2 | 4 | 16 |
| 10 ... 40 | M | -1 ... 60 | 100 | 1 | 2 | 8 |
| 16 ... 100 | P,G | 0 ... 250 | 400 | 5 | 5 | 20 |
| 20 ... 100 | M | 0 ... 100 | 150 | 7 | 9 | 20 |
| 20 ... 220 | P,G | 0 ... 350 | 500 | 8 | 15 | 24 |
| 40 ... 250 | P,G | 0 ... 400 | 600 | 12 | 20 | 80 |
| 60 ... 250 | P,G | 0 ... 400 | 600 | 5 ... 12 to 12 ... 20 3) | - | - |
| 80 ... 400 | P,G | 0 ... 600 | 600 | 20 | 20 | 80 |
| 100 ... 600 | P,G | 0 ... 600 | 700 | 30 | 30 | 120 |
| 100 ... 700 | P | 0 ... 700 | 1,050 | 30 ... 100 3) | 30 ... 100 3) | 30 ... 100 3) |
| 200 ... 1,000 | P | 0 ... 1,000 | 1,500 | 40 ... 110 3) | 40 ... 110 3) | 40 ... 110 3) |
| Process connection | |
|---|---|
| Standard | ■ ANSI/ASME B1.20.1 ■ DIN EN ISO 228 |
| Size | |
| ANSI/ASME B1.20.1 | ■ ¼NPT, female thread ■ ½NPT, female thread via adapter ■ ½NPT, male thread via adapter |
| DIN EN ISO 228 | ■ G¼, female thread via adapter ■ G½A,male thread via adapter ■ G¼A,male thread via adapter |
| Material (wetted) | |
| Process connection | Stainless steel 316L |
| Other materials on request | |
| Sensor element | Depending on the selected sensor element →See table 'Sensor element' |
Electrical connection
| Connection type | ■ Female thread½NPT ■ Female thread M20 x 1.5 ■ Female thread¾NPT ■ Cable gland non-armoured, nickel-plated brass ■ Cable gland non-armoured, stainless steel (AISI 304) ■ Cable gland armoured, nickel-plated brass ■ Cable gland armoured, stainless steel (AISI 304) |
|---|---|
| Wire cross-section | 0.5 ... 1.5 mm² (20 ... 16 AWG) For the grounding cable connection to the protective conductor use max. 2.5 mm² for the internal screw and max.4 mm² for the external screw. |
| Pin assignment | Connection details are given on the product label of the instrument. Connec- tion terminals and the ground terminal are appropriately marked. |
Operating conditions
| Medium temperature range | Depending on sensor element and sealing →See table 'Sensor element' |
|---|---|
| Ambient temperature range | T6/T85°C T a -60 ...+60 °C |
| T4/T135°C T a -60 ...+85 °C | |
| Ingress protection of the complete instrument | IP66 per EN/IEC 60529 (NEMA 4X) |
| Weight | ■ 0.8 kg, switch enclosure aluminium alloy ■ 1.5 kg, switch enclosure stainless steel |
| Logo | Description | Region |
|---|---|---|
| EU declaration of conformity | European Union | |
| Pressure equipment directive PED, annex 1, category IV, safety accessories, module B + D | ||
| Low voltage directive | ||
| RoHS directive | ||
| IECEx 1) Ex db I Mb (only available with stainless steel 316L switch enclosure) Ex db IIC T6/T4 2) Ga/Gb, Ex tb IIIC T85/T135 2) Db Ex db IIC T6/T4 2) Gb, Ex tb IIIC T85/T135 2) Db (version with sensor element 'P') | International |
| Logo | Description | Region |
|---|---|---|
| EAC Hazardous areas 1) | Eurasian Economic Community | |
| Ex Ukraine Hazardous areas 1) | Ukraine | |
| INMETRO Hazardous areas 1) | Brazil | |
| CCC Hazardous areas 1) | China | |
| KCs Hazardous areas 1) | South Korea | |
| - | PESO Hazardous areas 1) | India |
| Logo | Description |
|---|---|
| SIL3 IEC 61508 / IEC 61511 | SIL 3-capable (option) Functional safety per IEC 61508 Contains performance level calculation per ISO 13849-1 |
Certificates
| Certificates | ■ 2.2 test report per EN 10204 (e.g. state-of-the-art manufacturing, indication accuracy) ■ 3.1 inspection certificate per EN 10204 (e.g. indication accuracy) |
|---|---|
| Recommended recalibration interval | 1 year (dependent on conditions of use) |
| Model | Description | |
|---|---|---|
| 910.15 | Syphons →See data sheet AC 09.06 | |
| 910.13 | Overpressure protector →See data sheet AC 09.04 | |
| IV10, IV11 | Needle valve and multiport valve →See data sheet AC 09.22 | |
| IV20, IV21 | Block-and-bleed valve →See data sheet AC 09.19 | |
| IVM | Monoflange, process and instrument version →See data sheet AC 09.17 | |
| BV | Ball valve, process and instrument version →See data sheet AC 09.28 |
