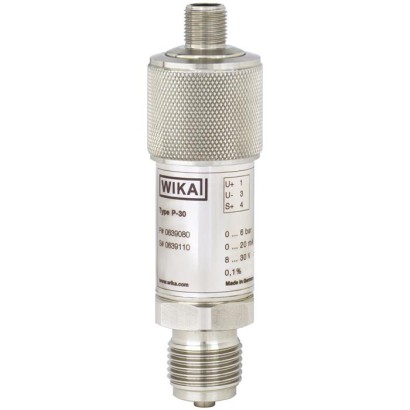

Pressure sensor

Name: Pressure sensor
Brand: WIKA

Precision pressure sensors for test benches, calibration, laboratories, and industrial applications with high accuracy and fast measuring rates up to 1 kHz.

Range

-1…1000 bar

Output

USB · CANopen

Accuracy

0.05 % of span

Protection

IP65/IP67

RoHSEACCEEN 10204 2.2EN 10204 3.1EMC directivePressure equipment directiveCRN

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Special features

Accuracy 0.1 %, without additional temperature error in a range of 10 ... 60 °C
Optional accuracy of 0.05 % (full scale) available
Fast measuring rates up to 1 kHz
Analogue, USB and CANopen ® output signals available
On-site calibration possible using product software

Identification

Model	P-30, P-31
Product family	P-30
Subcategory	Pressure sensor

Measuring range

Pressure ranges

0…0.25 bar · 0…0.4 bar · 0…0.6 bar · 0…1 bar · 0…1.6 bar · 0…2.5 bar · 0…4 bar · 0…6 bar · 0…10 bar · 0…16 bar · 0…25 bar · 0…40 bar · 0…60 bar · 0…100 bar · 0…160 bar · 0…250 bar · 0…400 bar · 0…600 bar · 0…1000 bar · 0…5 psi · 0…10 psi · 0…15 psi · 0…25 psi · 0…30 psi · 0…50 psi · 0…100 psi · 0…160 psi · 0…200 psi · 0…300 psi · 0…500 psi · 0…1000 psi · 0…1500 psi · 0…2000 psi · 0…3000 psi · 0…5000 psi · 0…10000 psi · -1…0 bar · -1…1 bar · -1…15 bar · -0.6…0 bar · -1…1.5 bar · -0.4…0 bar · -1…3 bar · -0.25…0 bar · -1…5 bar · -1…0.6 bar · -1…9 bar · -30…0 inHg · -30…160 inHg · -30…15 inHg · -30…200 inHg · -30…30 inHg · -30…50 inHg · -30…100 inHg · 0.8…1.2 bar

Accuracy

Accuracy class	0.05 % of span
Accuracy standard	IEC 61298-2

Process conditions

Process connection	G 1 B with flush diaphragmG ¼ BG ½ BG ¼ A¼ NPT½ NPTM18 x 1.5 male with G ¼ femaleG ½ male with G ¼ femaleG ½ B with flush diaphragmG¼femaleG 1/4 BG 1/2 BG 1/4 A1/4 NPT1/2 NPTM18 x 1.5 male with G 1/4 femaleG 1/2 male with G 1/4 femaleG 1/2 B with flush diaphragm
Process temperature	−20…+105 °C

Electrical characteristics

Output signal	USB · CANopen · 4-20 mA · 0-20 mA · 0-10 V · 0-5 V · DC 0...10V · DC 0...5V
Power supply	DC 9 ... 30 V
Electrical connection	M12 x 1 (4-pin), M16 x 0.75 (5-pin), DIN 175301-803 A, Bayonet connector, Cable outlet, USB

Materials

Case material	Stainless steel
Wetted parts material	Stainless steel, Elgiloy, Elgiloy (for ranges > 25 bar)
Sealing material	Cu, Stainless steel, NBR, FPM/FKM

Operating environment

Ambient temperature	−20…+80 °C
IP rating	IP65/IP67

Certifications and approvals

Certifications

RoHSEACCEEN 10204 2.2EN 10204 3.1EMC directivePressure equipment directiveCRN

Additional details

Datasheet languages

EN, DE

Tables from datasheet

Relative pressure

bar	0 ... 0.25	0 ... 0.4	0 ... 0.6	0 ... 1	0 ... 1.6	0 ... 2.5	0 ... 4
	0 ... 6	0 ... 10	0 ... 16	0 ... 25	0 ... 40	0 ... 60	0 ... 100
	0 ... 160	0 ... 250	0 ... 400	0 ... 600	0 ... 1,000 1)
psi	0 ... 5	0 ... 10	0 ... 15	0 ... 25	0 ... 30	0 ... 50	0 ... 100
	0 ... 160	0 ... 200	0 ... 300	0 ... 500	0 ... 1,000	0 ... 1,500	0 ... 2,000
	0 ... 3,000	0 ... 5,000	0 ... 10,000

Absolute pressure

bar	0 ... 0.25 2)	0 ... 0.4	0 ... 0.6	0 ... 1	0.8 ... 1.2 2)	0 ... 1.6	0 ... 2.5
	0 ... 4	0 ... 6	0 ... 10	0 ... 16	0 ... 25
psi	0 ... 5	0 ... 10	0 ... 15	0 ... 25	0 ... 30	0 ... 50	0 ... 100
	0 ... 160	0 ... 200	0 ... 300

Vacuum and +/- measuring range

bar	-1…0	-0.6…0	-0.4…0	-0.25…0	-1 …+0.6
	-1…+1	-1 …+1.5	-1…+3	-1…+5	-1…+9
	-1 …+15
psi	-30 inHg ... 0	-30 inHg ...+15	-30 inHg ...+30	-30 inHg ...+50	-30 inHg ...+100
	-30 inHg ...+160	-30 inHg ...+200

Signal type	Signal
Current (2-wire)	4 ...20mA
Current (3-wire)	4 ...20mA 0 ...20mA
Voltage (3-wire)	DC 0 ...10V DC 0 ...5V
USB	per P-30/P-31 interface protocol
CANopen	per CiA DS404

View all (20)

Accuracy

Standard	≤ ±0,1 %of span
Option	≤ ±0,05 %of span

■ Angular	connector DIN 175301-803 A: IP65
■ Circular connector M12 x 1 (4-pin):	IP67
■ Circular connector M16 x 0.75 (5-pin):	IP67
■ Bayonet connector:	IP67
■ CANopen M12 x 1 (5-pin):	IP67
■ USB:	IP67

Circular connector M12 x 1 (4-pin)

	2-wire	3-wire
U+	1	1
U-	3	3
S+	-	4

	2-wire	3-wire
U+	1	1
U-	2	2
S+	-	3

	2-wire	3-wire
U+	3	3
U-	1	4
S+	-	1

	2-wire	3-wire
U+	A	A
U-	B	B
S+	-	C

Circular connector M12 x 1	(5-pin), CANopen 2-wire
	U+ U- Shield	2
		3
		1
	CAN-High	4
	CAN-Low	5

	2-wire	3-wire
U+	brown	brown
U-	blue	blue
S+	-	black

Standard	Thread size
EN 837	G¼B
	G¼female
	G½B
ISO 1179-2 (formerly DIN 3852-E)	G¼A
ANSI/ASME B1.20.1	¼NPT
	½NPT
-	M18 x 1.5 male with G¼female
	G½male with G¼female

Standard	Thread size
EN 837	G½Bwith flush diaphragm
	G1Bwith flush diaphragm

Thread size	Standard	Option
G¼B	Without	Cu Stainless steel
G½B	Without	Cu Stainless steel
G¼A	Without	NBR FPM/FKM

Logo	Description	Country
	EU declaration of conformity ■ EMCdirective, EN 61326 emission (group 1, class B) and interference immunity (industrial application) ■ Pressure equipment directive, PS > 200 bar; module A, pressure accessory ■ RoHS directive	European Union
	EAC EMCdirective	Eurasian Economic Community
-	CRN Safety (e.g. electr. safety, overpressure, ...)	Canada

G	L1
G¼BEN837	13
G½BEN837	20

G	L1
¼NPT	13
½NPT	19

Designation	Order number
Y-connector (M12 x 1 female connector, male/female connector)	2344526
Terminating resistor (120 Ω, M12 x 1 connector)	2308274
Bus cable 0.5 m(M12 x 1 male/female connector)	2308240
Bus cable 2 m(M12 x 1 male/female connector)	2308258
PCAN-USB adapter, cable set and power supply	7483167

Designation	Order number
P-30/P-31 USB service interface, incl.WIKA software CD	13193075
