Optoelectronic level switch
Description
The model OLS-C05 optoelectronic level switch is used for monitoring the level of liquids. The optoelectronic sensor consists of an infrared LED and a light receiver.
The light from the LED is directed at a prism which forms the tip of the sensor. So long as the tip is not immersed in liquid, the light is reflected within the prism to the receiver.

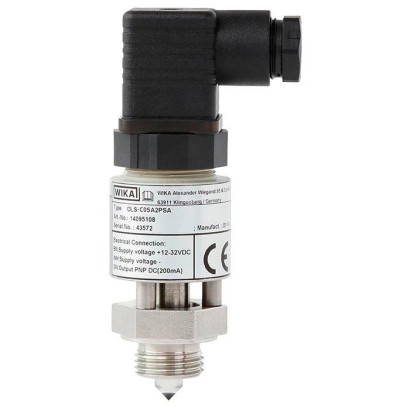

Optoelectronic level switch, model OLS-C05, with angular connector
When the liquid rises within the vessel and surrounds the tip, the light beam is refracted by the liquid, so that the receiver is no longer or only weakly reached by the light and reacts to this change by triggering a switching operation.
With variants fitted with a trimmer, the switching status can be read directly on the sensor (internal red LED).
The model OLS-C05 level switch is designed for use with liquids at high temperatures of up to 170 °C [338 °F].
Special features
- Use at temperatures of up to +170 °C [+338 °F]
- Mounting position as required
- Accuracy ±2 mm
- Choice of electrical connections: PUR, PVC cable, circular connector M12 x 1 or angular connector EN 175301-803 A
Build a OLS-C05 for your task
The article number is assembled automatically. If unsure — ask an engineer; we'll match the line's parameters.
- Process connectionG 1/2"
- Sealingwithout
- Output Signalone switching output (PNP)
- Switch functionClosed in media (SPST n.o.)
- Electrical connection—
- Unit cable lengthwithout
- Cable length0
- Trimmer (adjustable sensitivity)—
- Approvalwithout
Finish your configuration
Select every option to submit the request.
| Model | OLS-C05 |
| Product family | OLS |
| Subcategory | High-temperature version |
| Process connection | G ½M16 x 1.5M16 x 1G1/2 |
| Process temperature | −40…+170 °C |
| Max process pressure | 50 bar |
| Measurement technology | vibration_fork |
| Output signal | PNP transistor, 200 mA switching current · PNP transistor · Switching output (SP) |
| Power supply | DC 12 ... 32 V |
| Electrical connection | PUR, PVC cable; circular connector M12 x 1; angular connector EN 175301-803 A |
| Wetted parts material | Borosilicate glass, Stainless steel 316Ti |
| Ambient temperature | −30…+80 °C |
| IP rating | IP65 |
| Weight | 0.17 kg |
| Certifications | RoHSEU declaration of conformity EMC Directive EN 61326UL ListedCEEMC Directive EN 61326 |
| Datasheet languages | EN |
| Thread size / Size | ■ G½ ■ M16 x |
|---|
| Current supply | 40mA |
|---|---|
| Auxiliary power | |
| Supply voltage | DC 12 ...32V |
| Responsiveness | ■ Preset for the detection of aqueous media and oils ■ Adjustable responsiveness (trimmer) for other liquids and foaming media |
|---|---|
| Storage temperature range | -40 …+70 °C [-40 …+158 °F] |
| Medium temperature range | -40 …+170 °C [-40 …+338 °F] |
| Ambient temperature range | -30 …+80 °C [-22 …+176 °F] |
| Max. operating pressure | 0 …50bar [0 …5MPa/0...725 psi] |
| Ingress protection of the complete instrument | IP65 |
| Number of switches | 1 |
|---|---|
| Switch(ing) technology | PNP transistor, protected against reverse polarity, 200 mAswitching current |
| Switching function | Normally open (closed in medium) or normally closed (open in medium) |
| Response time 1) | 0.5 s |
View all (9)
| 4-pin | Level | |
|---|---|---|
| 1 | U+ | |
| 2 | - | |
| 3 | U- | |
| 4 | SP |
| Level | |
|---|---|
| 1 2 3 | 1 |
| 2 | |
| 3 |
| Logo | Description | Region |
|---|---|---|
| EU declaration of conformity | European Union |
| Logo | Description |
|---|---|
| - | China RoHS directive |
| Description | Temperature range | Cable diameter | Cable length | Order num- ber | |
|---|---|---|---|---|---|
| Circular connector M12 x 1 with moulded cable | |||||
| Straight version, cut to length, 4-pin, PUR cable, | -20 ...+80 °C [-4 ...+176 °F] | 4.5 mm[0.18 in] | 2 m[6.6 ft] | 14086880 | |
| UL Listed, IP67 | 5 m[16.4 ft] | 14086883 | |||
| 10 m[32.8 ft] | 14086884 | ||||
| Angled version, cut to length, 4-pin, PUR cable, UL Listed, IP67 | -20 ...+80 °C [-4 ...+176 °F] | 4.5 mm[0.18 in] | 2 m[6.6 ft] | 14086889 | |
| 5 m[16.4 ft] | 14086891 | ||||
| 10 m[32.8 ft] | 14086892 | ||||
| Connection cable M12 x 1 with integrated LED display | |||||
| Connection cable, 4-pin, PUR cable, UL Listed, IP67 1 x LED green, 2 x LED yellow | -20 ...+80 °C [-4 ...+176 °F] | 4.5 mm[0.18 in] | 2m [6.6 ft] | 14252834 | |
| Connection cable, 4-pin, PUR cable, UL Listed, IP67 1 x LED green, 2 x LED yellow | -20 ...+80 °C [-4 ...+176 °F] | 4.5 mm[0.18 in] | 5m [16.4 ft] | 14252835 |
