Optoelectronic level switch

Optoelectronic level switch for the shipbuilding industry, resistant to vibration and shocks, operable up to 130 °C and 25 bar, approved per DNV GL.
Range
0…0.002 m
Output
PNP transistor
Accuracy
±2mm
Protection
IP65
RoHSDNV GLEMC directive EN 61326China RoHSCE
Price
On request
Depends on configuration
Request a quote
+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The model OLS-5200 optoelectronic level switch is used for monitoring the level of liquids in the shipbuilding industry. The optoelectronic sensor consists of an infrared LED and a light receptor.

The light from the LED is directed at a prism which forms the tip of the sensor. So long as the tip is not immersed in liquid, the light is reflected within the prism to the receiver.

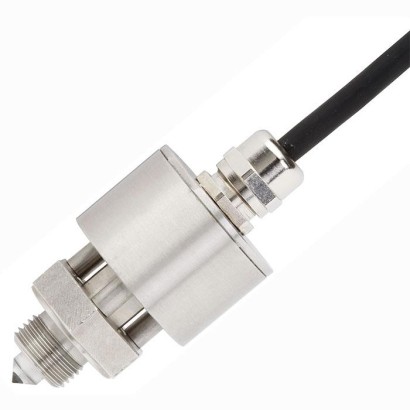

Optoelectronic level switch, model OLS-5200

When the liquid rises within the vessel and surrounds the tip, the light beam is refracted by the liquid, so that the receiver is no longer or only weakly reached by the light and reacts to this change by triggering a switching operation.

The model OLS-5200 has been developed for use in maritime applications and has thus been designed physically to be particularly resistant to both vibration and shocks.

Special features

  • Resistant to vibration and shocks
  • High reliability
  • Operable up to 130 °C and 25 bar
  • Approved per DNV GL
Identification
ModelOLS-5200
Product familyOLS
Subcategoryoptoelectronic
Measuring range
Level ranges0…0.002 m
Process conditions
Process connection
M18 x 1.5 (male)G1/2" male
Process temperature−40…+130 °C
Max process pressure25 bar
Measurement technologyvibration_fork
Electrical characteristics
Output signalPNP transistor
Power supplyDC 12 ... 32 V
Electrical connectionPolyolefin cable, 2 x 2 x 0.75 mm2 (twisted pair), cable length up to 20 m
Materials
Wetted parts materialBorosilicate glass, Stainless steel 1.4571, Silicone adhesive
Operating environment
Ambient temperature−30…+80 °C
IP ratingIP65
Weight0.27 kg
Certifications and approvals
Certifications
RoHSDNV GLEMC directive EN 61326China RoHSCE
Additional details
Datasheet languagesEN
Tables from datasheet
General data
Measurement accuracy±2mm
Minimum distance from the glass tip to an opposite surface≥10mm ≥ 20 mmwith electropolished surface
Mounting positionas required
Process connectionG1/2" male or M18 x 1.5 (male)
Design data
ResponsivenessPreset for the detection of aqueous media and oils
Medium temperature-40…+130°C
Ambient temperature-30 …+80 °C
Operating pressure0 …2.5 MPa (0 …25bar)
Vibration resistance10 ... 5,000 Hz, 0 ... 60 g
Materials ■ Light guideBorosilicate glass, fixed with silicone adhesive (Option: Fixed with epoxy resin)
■ Case und process connectionStainless steel 1.4571
Electrical data
Power supplyDC 12 ...32V
Max. current supply40mA
Electrical connection■ Polyolefin cable ■ Cable length freely definable, up to 20 m(longer lengths on request) ■ Diameter: 2 x 2 x 0.75mm 2 (twisted pair) ■ Cable end: Cut to length
Output signalPNP transistor, protected against reverse polarity, 200 mAswitching current
Switching functionNormally open (closed in medium) or normally closed (open in medium)
Ingress protectionIP65
Number of switch points1
Cable assignment
1 (WH)U +
2 (BU)U -
3 (WH)SP
4 (BU)U -
View all (6)
LogoDescriptionCountry
EU declaration of conformity ■ EMCdirective EN 61326 emission (group 1, class B) and interference immunity (industrial application) ■ RoHS directiveEuropean Union
DNV GL Ships, shipbuilding (e.g. offshore) (previous model designation:OPG 052)International
LogoDescription
-China RoHS directive
