WIKA · Level measurement · Family NETRIS

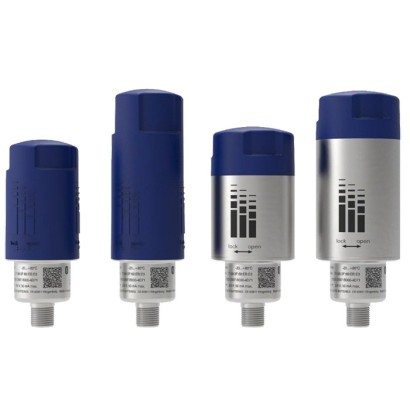

WIKA radio unit with LPWAN for WIKA measuring instruments

For applications in areas with standard signals
Protection
IP65
RoHSCSAREDCE
Price
On request
Depends on configuration
Request a quote
+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The model NETRIS ® 1 is a radio unit to which standard sensors can be connected in order to bring the measured data wirelessly to a cloud for big-data analysis. It uses the licence-free LoRaWAN ® , mioty ® and Bluetooth ® radio standards and is used, for example, on mobile equipment and remote measuring points. Thanks to intelligent measurement and transmission control and a replaceable battery, the radio unit can be operated over a long battery runtime.

The radio unit receives the data via connected measuring instruments with a 0 ... 10 V or 4 ... 20 mA standard signal or an RTD in accordance with the Pt100/Pt1000 standard in 2- or 3-wire technology. The fully encapsulated instrument with IP65 ingress protection transmits the received data continuously to a cloud via configurable data packets with LPWAN or Bluetooth ® .

The LPWAN technology ('Low Power Wide Area Network') enables long transmission ranges and a long battery life.

Special features

  • IIoT-capable with LPWAN transmission
  • High transmission range for the measured values (up to 10 km [6.2 mi]) with long battery life (up to 10 years)
  • Battery-operated or external power supply for radio transmission possible
  • Easy integration thanks to several radio standards
Identification
ModelNETRIS®1
Product familyNETRIS
SubcategoryRadio unit / IIoT gateway
Operating environment
Ambient temperature−40…+60 °C
IP ratingIP65
Certifications and approvals
Certifications
RoHSCSAREDCE
Additional details
Datasheet languagesEN
Tables from datasheet
Radio standard
LoRaWAN ®
Protocol1.0.3
Functions■ Registration ■ Configuration ■ Sending measured values ■ Alarm management ■ Battery status
Range in free fieldTypically 10 km [6 mi] → Depending on the ambient conditions, such as topography and building structures.
AntennaPCB antenna, internal
Transmission powerMax.+14 dBm
Transmission intervalStandard 30 minutes Minimum 1 minute (maximum transmission interval limited per ETSI EN 300 220) → Limitation of the transmission interval in accordance with ETSI EN 300 220 possible.The maximum transmission frequency and duty cycle
SafetyFull end-to-end encryption → For details on security, see website: https://lora-alliance.org
mioty ®
SpecificationRegional Profile EU1
Functions■ Registration ■ Sending measured values ■ Alarm management ■ Battery status
Range in free fieldTypically 10 km [6 mi] → Depending on the ambient conditions, such as topography and building structures.
AntennaPCB antenna, internal
Transmission powerMax. 14 dBm
Bluetooth ®
VersionBluetooth ® 5.0 or newer → Compatible with all Bluetooth ® Low Energy versions 4.2 or newer
Functions■ Registration ■ Configuration ■ Sending measured values ■ Alarm management ■ Battery status ■ Data logger
Radio standard
Range in free fieldTypically 10 m[32.8 ft] → Depending on the ambient conditions, such as topography and building structures.
AntennaChip antenna, internal
Transmission powerMax. 4 dBm
Transmission interval1.25 seconds
→ An update of the measured value only occurs in the set measurement interval.
Voltage supply and performance data
Battery
Battery packLithium thionyl chloride battery and hybrid layer capacitor (model Tadiran HLC1020L) as an assembly with connection cable assembled, see 'Spare parts'.
Model Tadiran SL860/S
Battery voltageDC 3.6V
Battery life> 5 years
Reference conditions: ■ Measurement interval 30 min. ■ Transmission interval 60 min.
Current supplyMax.250mA
External power supply
Voltage supplyDC 18 ...30V
Current supplyMax.250mA
Power supply of connected sensors
Voltage supplyDC 14V
Current supplyMax.21mA
M12 x 1 female connector (5-pin), A-coded
1
2
3
4
5
View all (10)
Operating conditions
Ambient temperature range
Plastic versionBattery-20 ...+60 °C [-4 ...+140 °F]
External power supply-20 ...+60 °C [-4 ...+140 °F]
Metal versionBattery-20 ...+60 °C [-4 ...+140 °F]
External power supply-40 ...+60 °C [-40 ...+140 °F]
Storage temperature range-40 ...+70 °C [-40 ...+158 °F]
Relative humidity20 ...90%
CondensingNon-condensing
Operating altitude2,000 m[6,562 ft] above sea level
Pollution degree per EN 61010-12
Overvoltage categoryI
Vibration resistance per IEC 60068-2-6a = 1 g (7 ... 18 Hz)
A = 0.8 mm(18 ... 50 Hz)
a = 5 g (10 ... 200 Hz)
Shock resistance per IEC 60068-2-2710 g, 11 ms
Free fall per IEC 60068-2-31
Individual packaging1.2 m[3.94 ft]
Ingress protection■ IP65
Alarms
Settable alarmsVarious alarms can be set. →SeeWIKA radio unit operating instructions; item number 14614412
Packaging and instrument labelling
PackagingIndividual packaging
Instrument labelling■ WIKA product label, lasered ■ Customer-specific product label on request
LogoRegion
European Union
USA and Canada
DescriptionOrder number
LoRaWAN ® gateway, preconfigured for WIKA network server
Gateway for indoor useOn request
Gateway for outdoor useOn request
DescriptionOrder number
Battery packLithium thionyl chloride battery and hybrid layer capacitor (model Tadiran HLC1020L) as an assembly with connection cable assembled. Model Tadiran SL860/S14392747
Y cable1 m[3.23 ft]14495101
3 m[9.84 ft]14495102
Direct cable1 m[3.23 ft]14468149
3 m[9.84 ft]14468303
Mounting kitWall mounting14492895
Pipe diameter 25 ... 45 mm[0.98 ... 1.77 in]14492926
Pipe diameter 70 ... 92 mm[2.76 ... 3.62 in]14492927
Pipe diameter 146 ... 168 mm[5.75 ... 6.61 in]14492933
