WIKA · Pressure measurement · Family M-10

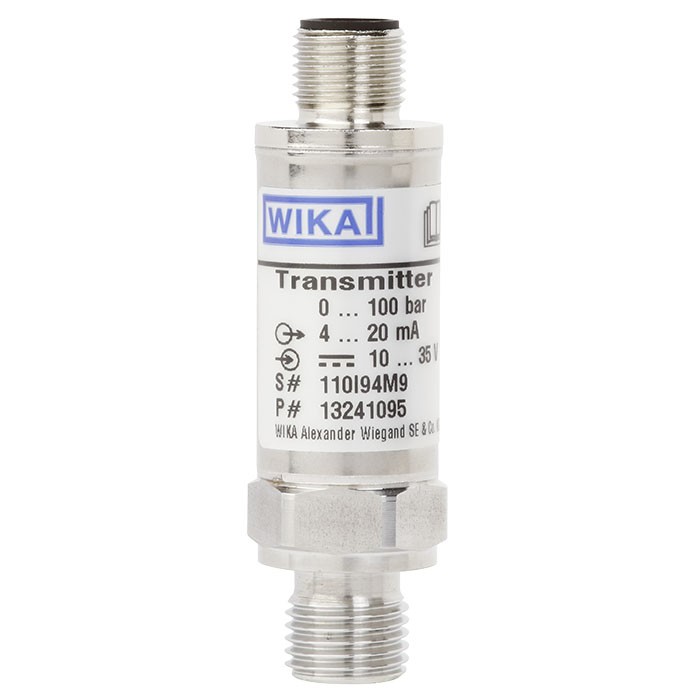

Miniature pressure sensor

Name: Miniature pressure sensor
Brand: WIKA
SKU: M-1X

Miniaturised pressure sensor with measuring ranges from 0 ... 6 to 0 ... 1,000 bar, available with current and voltage outputs, IP65/IP67 ingress protection, and stainless steel wetted parts.

Range

0…1000 bar

Output

4-20mA · 1-5V DC

Accuracy

0.5 %

Protection

IP65/IP67

CERoHSEACCRNCSAGOSTKazInMetrBelGIMUzstandard

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Special features

Measuring ranges from 0 ... 6 to 0 ... 1,000 bar [0 ... 500 to 0 ... 15,000 psi]
Current and voltage outputs
Ingress protection IP65 or IP67
Wetted parts and case from stainless steel
Vacuum-tight

Identification

Model	M-10
Subcategory	pressure transmitter

Measuring range

Pressure ranges

0…6 bar · 0…1000 bar · 0…10 bar · 0…16 bar · 0…25 bar · 0…40 bar · 0…160 bar · 0…250 bar · 0…400 bar · 0…600 bar · 0…500 psi · 0…1000 psi · 0…3000 psi · 0…5000 psi · 0…10000 psi · 0…15000 psi · 0…60 bar · 0…100 bar

Accuracy

Accuracy class	0.5 %
Accuracy standard	IEC 61298-2

Process conditions

Process connection	G ¼ B¼ NPTG ¼ AG 1/4 BG 1/4 A1/4 NPTG 1/4 B flush
Process temperature	−40…+100 °C

Electrical characteristics

Output signal	4-20mA · 1-5V DC · 0.1-10V DC · DC 1 ...5V · DC 0.1 ...10V
Power supply	DC 10 ... 35 V
Electrical connection	Circular connector M12 x 1 (4-pin), Angular connector DIN EN 175301-803 C, Cable outlet

Materials

Case material	316Ti
Wetted parts material	316Ti, PH grade steel
Sealing material	FPM/FKM, NBR

Operating environment

Ambient temperature	−40…+100 °C
IP rating	IP65/IP67

Certifications and approvals

Certifications

CERoHSEACCRNCSAGOSTKazInMetrBelGIMUzstandard

Additional details

Datasheet languages

Tables from datasheet

Signal type	Signal
Current (2-wire)	4 ...20mA
Voltage (3-wire)	DC 1 ...5V
	DC 0.1 ...10V

Standard	Thread size
EN 837	G¼B
DIN EN ISO 1179-2 (formerly DIN 3852-E)	G¼A 1)
ANSI/ASME B1.20.1	¼NPT

Standard	Thread size
-	G¼Bflush 1)

Designation	Ingress protection	Wire cross- section	Cable dia- meter	Cable material
Circular connector M12 x 1 (4-pin)	Measuring range < 100 bar (3,000 psi): IP65 1) Measuring range ≥ 100 bar (3,000 psi): IP67	-	-	-
Angular connector DIN EN 175301- 803 C	IP65 2)	-	1.5 ...6.0mm	-
Cable outlet, 1.5 m(4.92 ft) 3 ) 4 )	Measuring range < 100 bar (3,000 psi): IP65 1) Measuring range ≥ 100 bar (3,000 psi): IP67	3 x 0.14 mm² 5)	4.5 ...5.0mm	PUR

View all (12)

Circular connector M12 x 1 (4-pin)

		2-wire	3-wire
4 3 1 2	U B	1	1
0V	3	3
S+	-	4

Angular connector DIN 175301-803 C

	2-wire	3-wire
U B	1	1
0V	2	2
S+	-	3

Cable outlet,2m

	2-wire	3-wire
U B	brown	brown
0V	green	green
S+	-	white

Logo	Description	Country
	EU declaration of conformity ■ EMCdirective EN 61326 emission (group 1, class B) and interference immunity (industrial application) ■ Pressure equipment directive ■ RoHS directive	European Union
	CSA Safety (e.g. electr. safety, overpressure, ...)	USA and Canada
	EAC EMCdirective	Eurasian Economic Community
	GOST Metrology, measurement technology	Russia
	KazInMetr Metrology, measurement technology	Kazakhstan
	BelGIM Metrology, measurement technology	Belarus
	Uzstandard Metrology, measurement technology	Uzbekistan
-	CRN Safety (e.g. electr. safety, overpressure, ...)	Canada

Logo	Description
-	MTTF: > 100 years
-	China RoHS directive

Designation	Order number
	without cable	with 2 mcable	with 5 mcable
Angular connector DIN 175301-803 C	1439081	11225823 2)	11250194 2)
Circular connector M12 x 1, 4-pin
■ straight	2421262 1)	11250780 3)	11250259 3)
■ angled	2421270 1)	11250798 3)	11250232 3)

Designation	Order number
Angular connector DIN 175301-803 C	11437881

Designation	Order number
G¼Bflush, O-ring	0477940
G¼Bflush, form seal	1537857 1)
G¼ADINENISO1179-2 (formerly DIN 3852-E)	14045531
