WIKA · Pressure measurement · Family M-10

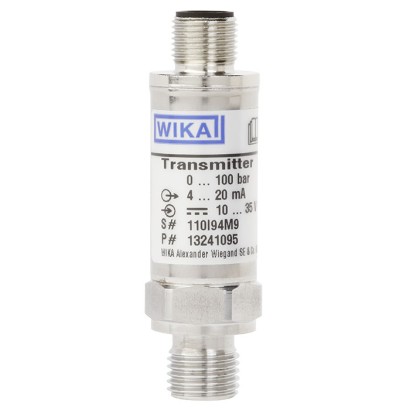

Miniature pressure sensor
Standard version or with flush diaphragm
Range
0…1000 bar
Output
4 ... 20 mA · DC 1 ... 5 V
Accuracy
0.5 %
Protection
IP65/IP67
CERoHSCSAEACCRNGOSTKazInMetrBelGIMUzstandard
Price
On request
Depends on configuration
Special features
- Measuring ranges from 0 ... 6 to 0 ... 1,000 bar [0 ... 500 to 0 ... 15,000 psi]
- Current and voltage outputs
- Ingress protection IP65 or IP67
- Wetted parts and case from stainless steel
- Vacuum-tight
