WIKA · Pressure measurement · Family IV3, IV5

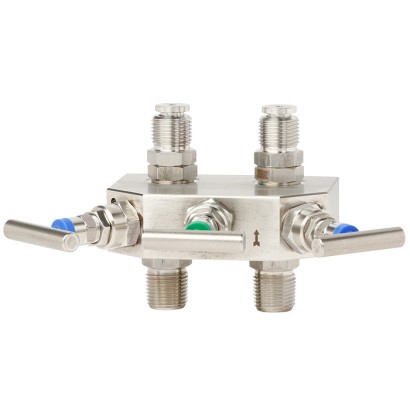

Valve manifold for differential pressure measuring instruments

Name: Valve manifold for differential pressure measuring instruments
Brand: WIKA
SKU: IV3X
Price: 352.60 EUR
Availability: BackOrder

Valve manifold for differential pressure measuring instruments, 3- and 5-valve manifold for gaseous and liquid aggressive media in oil and gas, petrochemical, chemical, power generation, water and wastewater industries.

Range

0…690 bar

NACE MR0175 / ISO 15156ASME B31.1ISO 10497API 6FAAPI 607TA-Luft (VDI 2440)ISO 15848-1API 598ISO 5208EAC

Price

From €353

Confirm at order time

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Special features

Low-wear design due to non-rotating spindle tip in the bonnet
Low torque and smooth operation of valve handle even at high pressure
Standardised centre distances of 37 mm and 54 mm, suitable for WIKA differential pressure gauges and commonly used process transmitters
Valve seat tested for leak tightness per ISO 5208 leak rate A
Enhanced working safety due to blow-out proof bonnet design, especially in applications with high pressure loading

Configurator · Step by step

Build a IV3X for your task

The article number is assembled automatically. If unsure — ask an engineer; we'll match the line's parameters.

Step 1 of 1

Configuration structure· click a highlighted segment to jump to that parameter

With bracket holesSS Mounting bracket and bolts provided separately for vertical impulse line installation

Your configuration

Version3-Valve Manifold
DesignStandard pattern, C-2-C instrument: 37mm
Valve positionAngled, Differential Pressure Gauge
Connection process side + instrument side1/2 NPT female - G 1/2 female swivel
Material bodyStainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
Mounting—
Vent connectionwithout
Nominal pressure6000 psi / 420 bar
Material packingPTFE
Bonnet designStandard
Bonnet optionswithout
with padlockwithout
Special design featureswithout
Bolt for manifoldswithout

AI suggestion by parameters

Finish your configuration

Select every option to submit the request.

Send request

Your configuration

Version3-Valve Manifold
DesignStandard pattern, C-2-C instrument: 37mm
Valve positionAngled, Differential Pressure Gauge
Connection process side + instrument side1/2 NPT female - G 1/2 female swivel
Material bodyStainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
Mounting—
Vent connectionwithout
Nominal pressure6000 psi / 420 bar
Material packingPTFE
Bonnet designStandard
Bonnet optionswithout
with padlockwithout
Special design featureswithout
Bolt for manifoldswithout

Send request

Identification

Model	IV3
Product family	IV3, IV5
Subcategory	Valve manifold

Measuring range

Pressure ranges

0…206 bar · 0…420 bar · 0…690 bar

Process conditions

Process connection	1/2 NPTG 1/2 BM20x1.5flange connection per IEC 61518G 1/2flange per IEC 61518
Process temperature	−70…+538 °C

Materials

Case material	stainless steel 316/316L (1.4401/1.4404), carbon steel, stainless steel 316Ti (1.4571), stainless steel 303 (1.4305), Stainless steel 321 (1.4541), Monel 400 (2.4360), Hastelloy C276 (2.4819), Stainless steel 6Mo (1.4547), Duplex F51 (1.4462), Super Duplex F55 (1.4501), Inconel 625 (2.4856), Incoloy 825 (2.4858)
Wetted parts material	stainless steel 316/316L (1.4401/1.4404), carbon steel, stainless steel 316Ti (1.4571), Stainless steel 321 (1.4541), Monel 400 (2.4360), Hastelloy C276 (2.4819), Stainless steel 6Mo (1.4547), Duplex F51 (1.4462), Super Duplex F55 (1.4501), Inconel 625 (2.4856), Incoloy 825 (2.4858)
Sealing material	PTFE, graphite, Polar PTFE, SIGRAFLEX® ZX graphite, FKM, FKM AED, RTFE

Certifications and approvals

Certifications

NACE MR0175 / ISO 15156ASME B31.1ISO 10497API 6FAAPI 607TA-Luft (VDI 2440)ISO 15848-1API 598ISO 5208EAC

Additional details

Datasheet languages

EN, DE

Tables from datasheet

Model		Description	Functional diagram
IV304	■ 3-valve manifold ■ Centre distance on instrument side: 37 mm[1.46 in] ■ Angled bonnet position	Equalise	Shut off Shut off
IV315	■ 3-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Radial bonnet position	Equalise	Shut off Shut off
	IV319 ■ ■	3-valve manifold Centre distance on instrument side: 54 mm[2.12 in] ■ Angled bonnet position	Equalise Shut off Shut off
	IV313	■ 3-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Side-by-side bonnet position	Equalise Shut off Shut off
	IV316	■ 3-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Angled bonnet position ■ Direct flange mounting	Equalise Shut off Shut off
	IV318	■ 3-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Angled bonnet position, equalising valve under 45° ■ Direct flange mounting	Equalise Shut off Shut off
	IV31V	■ 3-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Centre distance on process side: 110 mm[4.33 in] ■ Angled bonnet position ■ Direct flange mounting	Equalise Shut off Shut off
	IV31E	■ 3-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Radial bonnet position ■ Direct flange mounting	Equalise Shut off Shut off

Model	Description	Functional diagram
	■ 3-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Angled bonnet position ■ H-shaped design ■ Direct flange mounting	Equalise Shut off Shut off
	■ 3-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Angled bonnet position ■ T-shaped design ■ Direct flange mounting	Equalise Shut off Shut off
	■ 3-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Angled bonnet position, equalising valve under 90° ■ Direct flange mounting with 90° angle connections	Equalise Shut off Shut off
	■ 3-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Angled bonnet position ■ Direct flange mounting with 90° angle connections ■ Special design for protective enclosures	Equalise Shut off Shut off
	■ 3-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Radial bonnet position ■ Integral flange mounting	Equalise Shut off Shut off
	■ 3-valve manifold ■ Double block-and-bleed setup ■ Angled bonnet position	Shut off Shut off Vent

Model	Description	Functional diagram
IV504	■ 5-valve manifold ■ Centre distance on instrument side: 37 mm[1.46 in] ■ Angled bonnet position	Equalise Vent off	Vent Shut Shut off
IV515	■ 5-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Radial bonnet position	Vent off	Equalise Vent Shut Shut off
IV519	■ 5-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in]	■ Angled bonnet position	Equalise Vent Vent Shut off Shut off
	IV513 ■	5-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Side-by-side bonnet position	Equalise Vent Vent Shut off Shut off
	IV516	■ 5-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Angled bonnet position ■ Direct flange mounting	Equalise Vent Vent Shut off Shut off
	IV518	■ 5-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Angled bonnet position, vent and equalising valves under 45° ■ Direct flange mounting	Equalise Vent Vent Shut off Shut off
	IV51V	■ 5-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Centre distance on process side: 110 mm[4.33 in] ■ Angled bonnet position ■ Direct flange mounting	Equalise Vent Vent Shut off Shut off
	IV51E	■ 5-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Radial bonnet position ■ Direct flange mounting	Equalise Vent Vent Shut off Shut off

	Description	Functional diagram
IV51G	■ 5-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Radial bonnet position, equalising valve under 45° ■ Direct flange mounting	Equalise Vent Vent Shut off Shut off
IV51H	■ 5-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Angled bonnet position ■ H-shaped design ■ Direct flange mounting	Equalise Vent Vent Shut off Shut off
IV51T	■ 5-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Angled bonnet position ■ T-shaped design ■ Direct flange mounting	Equalise Vent Vent Shut off Shut off
IV51D	■ 5-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Radial bonnet position, equalising valve under 90° ■ Direct flange mounting with 90° angle connections	Equalise Vent Vent Shut off Shut off
IV51S	■ 5-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Radial bonnet position, equalising valve under 90° ■ Direct flange mounting with 90° angle connections ■ Special design for protective enclosures	Equalise Vent Vent Shut off Shut off
IV51R	■ 5-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Radial bonnet position ■ Integral flange mounting	Equalise Vent Vent Shut off Shut off

View all (17)

Model		Description	Functional diagram
IV529	■ 5-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Angled bonnet position	Vent Shut off off Equalise	Shut
IV52V	■ 5-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Centre distance on process side: 110 mm[4.33 in] ■ Angled bonnet position ■ Direct flange mounting	Vent Shut off Equalise	Shut off
IV52G	■ 5-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Radial bonnet position, vent valve under 45° ■ Direct flange mounting	Vent Shut off Equalise	Shut off
IV52H	■ 5-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Angled bonnet position ■ H-shaped design ■ Direct flange mounting	Vent Shut off	Shut off Equalise
IV52T	■ 5-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Angled bonnet position ■ T-shaped design ■ Direct flange mounting	Vent Shut off Equalise	Shut off
IV52N	■ 5-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Angled bonnet position ■ H-shaped design ■ Direct flange mounting ■ Soft-seat through-bore bonnets for natural gas	Vent Shut off Equalise	Shut off
IV52N	■ 5-valve manifold ■ Centre distance on instrument side: 54 mm[2.12 in] ■ Angled bonnet position ■ T-shaped design ■ Direct flange mounting ■ Soft-seat through-bore bonnets for natural gas	Vent Shut off	Shut off Equalise

Basic information
Basic features	■ Blow-out proof valve spindle ■ Non-rotating, low-wear spindle tip ■ Metal-to-metal back seat design
Special design features	■ Without ■ For oxygen, oil- and grease-free ■ ASME B31.1, power piping (only available with graphite sealing packing) ■ Dielectric design 1) ■ Short process adapter, non-stabilised 1) ■ Long process adapter, stabilised 1)
Centre distance on instrument side	■ 37 mm[1.46 in] ■ 54 mm[2.12 in], standard pattern ■ 54 mm[2.12 in], gas metering pattern
Standards used
Basic design	■ MSS SP-99, valves for measuring instruments ■ MSS SP-105, instrument valves for code applications ■ ASME B16.34, valves - flanged, threaded and welding end ■ ASME B1.20.1, pipe threads, general purpose (inch) ■ ASME B31.3, process piping ■ ASME BPVC, section VIII, division 1
Special design	■ Without ■ ISO 10497, API 6FA and API 607, type test for fire safety ■ TA-Luft (VDI 2440) and ISO 15848-1, type test for fugitive emissions
Tests	MSS SP-61, pressure testing of valves
Special tests	■ Without ■ API 598, valve inspection and testing ■ ISO 5208, pressure testing of metallic valves with leakage rate A
Material requirements	NACE MR0175 / ISO 15156, use in H₂S-containing environments in oil and gas production
Special material requirements	■ Without ■ NORSOK M-630, specification for use in pipelines (Norway)
Marking	MSS SP-25, standard marking system for valves
Mounting	■ Without mounting holes ■ Suitable for mounting bracket, with mounting holes 2)

Bonnet

Bonnet position

■ Angled ■ Angled, equalising valve under 45° ■ Angled, vent and equalising valves under 45° ■ Radial ■ Radial, equalising valve under 45° ■ Radial, vent valve under 45° ■ Radial, equalising valve under 90° ■ Side-by-side

Bonnet design

■ Screwed bonnet, 4 mm[0.16 in] bore size ■ Bonnet with extended handle, 4 mm[0.16 in] bore size ■ Miniature bonnet, 4 mm[0.16 in] bore size ■ Cryogenic bonnet for medium temperatures to -196 °C [-320 °F], 4 mm[0.16 in] bore size ■ OS&Y bonnet, bolted, 6 mm[0.24 in] bore size 1) ■ Bolted bonnet, 8 mm[0.31 in] bore size ■ Soft-seat through-bore bonnet for natural gas, only for model IV52N → For bonnet design, see page 10

Bonnet

Bonnet variant

■ Without ■ Anti-tamper for shut-off, pressure equalising and vent valve, padlock not included ■ Anti-tamper for shut-off, pressure equalising and vent valve, padlock included ■ Anti-tamper for pressure equalising and vent valve, padlock not included ■ Anti-tamper for pressure equalising and vent valve, padlock included ■ Anti-tamper for vent valve, padlock not included ■ Anti-tamper for vent valve, padlock included ■ Small T-handle ■ T-handle from stainless steel 316L (1.4404)

Process connection / Instrument connection
Standard	■ Threaded connection per ANSI B1.20.1, code NPT ■ Threaded connection per ISO 228-1, codeG ■ Swivel connection ■ Weld-in connection ■ Compression fitting ■ Flange connection per IEC 61518, Form A or Form B 1) ■ Special design for protective enclosures ■ 90° angle connections Direct flange mounting
Size	■ ¼NPT ■ ⅜NPT ■ ½NPT ■ ¾NPT	■ G¼ ■ G⅜ ■ G½ ■ G¾
Vent connection	■ ¼NPTfemale, plug screw included ■ ½NPTfemale, plug screw included ■ ¼NPTfemale with installed bleeder screw ■ G¼female, plug screw included ■ G½female, plug screw included ■ ¼NPTfemale, plug screw included and bleeder screw installed

Operating conditions

Permissible operating pressure	■ ≤ 3,000 psi or ≤ 206 bar ■ ≤ 6,000 psi or ≤ 420 bar ■ ≤ 10,000 psi or ≤ 690 bar 1)
Pressure and temperature limits	The limits for operating pressure and temperature depend on the version and the sealing material. → For diagram, see page 12

Material

Wetted parts
Valve body, bonnet body	■ Stainless steel 316/316L (1.4401/1.4404) ■ Stainless steel 321 (1.4541) ■ Monel 400 (2.4360) ■ Hastelloy C276 (2.4819)	■ Stainless steel 6Mo (1.4547) ■ Duplex F51 (1.4462) ■ Super Duplex F55 (1.4501) ■ Inconel 625 (2.4856) ■ Incoloy 825 (2.4858)
Spindle tip	■ Stainless steel 316/316L (1.4401/1.4404) ■ Monel 400 (2.4360) ■ Hastelloy C276 (2.4819)	■ Duplex F51 (1.4462) ■ Inconel 625 (2.4856) ■ Hardfaced with Stellite 6
Sealing packing	■ PTFE, temperature range: -55 ...+210 °C [-67 ...+410 °F] ■ Polar PTFE, temperature range: -70 ...+210 °C [-94 ...+410 °F] ■ Graphite, temperature range: -55 ...+538 °C [-67 ... +1,000 °F] ■ SIGRAFLEX ® ZX graphite, nuclear quality, temperature range: -55 ...+538 °C [-67 ... +1,000 °F] ■ FKM 1) , temperature range: -29 ...+180 °C [-20 ...+356 °F] ■ FKM AED 1) 2) , temperature range: -46 ...+180 °C [-50 ...+356 °F] ■ RTFE 3) , temperature range: -55 ...+180 °C [-67 ...+356 °F]
Non-wetted parts
Gland nut, valve spindle, sealing bush, locking nut, locking pin	Stainless steel
Handle	■ Stainless steel 303 (1.4305)

Sealing packing	Max. allowable operating pressure at defined temperatures
Minimum temperature	Temperature of 0 °C [32 °F]	Temperature of 20 °C [68 °F]	Maximum temperature
PTFE	690 bar at -55 °C	690 bar	690 bar	276 bar at 210 °C
10,000 psi at -67 °F	10,000 psi	10,000 psi	4,000 psi at 410 °F
Polar PTFE	690 bar at -70 °C	690 bar	690 bar	276 bar at 210 °C
10,000 psi at -94 °F	10,000 psi	10,000 psi	4,000 psi at 410 °F
Graphite or SIGRAFLEX® ZX graphite	420 bar at -55 °C	420 bar	420 bar	206 bar at 538 °C
6,000 psi at -67 °F	6,000 psi	6,000 psi	2,987 psi at 1,000 °F
FKM	206 bar at -29 °C	206 bar	206 bar	206 bar at 180 °C
2,987 psi at -20 °F	2,987 psi	2,987 psi	2,987 psi at 356 °F
FKM AED	206 bar at -46 °C	206 bar	206 bar	206 bar at 180 °C
2,987 psi at -50 °F	2,987 psi	2,987 psi	2,987 psi at 356 °F
RTFE 1)	420 bar at -55 °C	420 bar	420 bar	276 bar at 180 °C
6,000 psi at -67 °F	6,000 psi	6,000 psi	4,000 psi at 356 °F

Logo	Description	Country
	EAC Pressure Equipment Directive	Eurasian Economic Community
-	Bureau Veritas Ships, shipbuilding (e.g. offshore)	International
-	CRN Safety (e.g. electr. safety, overpressure, ...)	Canada

Logo	Description
-	Information on Pressure Equipment Directive (PED) Design, manufacturing and testing carried out in accordance with sound engineering practise
-	PMI 1) test certificate Valve body
-	Hydrogen for general use 2) Suitable for general hydrogen applications under the following conditions: - Material proof for all wetted parts per MR0175 - Temperature range -55 ...+210 °C [-67 ...+410 °F] - Max. allowable operating pressure: 6,000 psi [420 bar] at 20 °C [68 °F] - With fugitive emission protection in accordance with TA-Luft (VDI 2440) and ISO 15848-1
-	Oil- and grease-free per ASTM G93-03 level C (< 66 mg/m 2 ) - Sealing packing and lubricants in accordance with BAM requirements - Suitable for oxygen applications under the following temperature and pressure conditions (BAM): PTFE sealing packing: T ≤ 150 °C [302 °F] p ≤ 20 bar [290 psi] Graphite sealing packing: T ≤ 250 °C [482 °F] p ≤ 150 bar [2,175 psi]
-	Type tested for fire safety in accordance with API 607, ISO 10497, BS 6755-2 3)
-	Fugitive emission protection in accordance with TA-Luft (VDI 2440) and ISO 15848-1 - Tightness class:AH - Endurance class:C01 - Temperature class: -29 ...+180 °C [-20 ...+356 °F]

Certificates

Certificates	3.1 inspection certificate per EN 10204 - Material proof for all wetted parts per NACE MR0175 - Confirmation of pressure tests per MSS SP-61 1) - Confirmation of pressure tests per API 598or API 6D

Mounting kit

For models	Centre distance on instrument side	Pipe alignment (models shown are examples)	Order number
IV316, IV318, IV31V, IV516, IV518, IV519, IV51G, IV51V	54 mm[2.12 in]	Horizontal Horizontal	14267553
IV315, IV316, IV318, IV31V, IV516, IV518, IV519, IV51G, IV51V	54 mm[2.12 in]		14289800
IV304, IV504	37 mm[1.46 in]	Horizontal or vertical	81509393
IV504	37 mm[1.46 in]	Vertical	14474946
IV31H, IV31T, IV52H, IV52T	54 mm[2.12 in]	Horizontal or vertical	81509385
IV51H, IV51T	54 mm[2.12 in]	Horizontal or vertical	81509391
IV31R, IV51R	54 mm[2.12 in]	Horizontal	81509395
IV319	54 mm[2.12 in]	Vertical	81653990
IV313	54 mm[2.12 in]	Vertical	81509384
IV31E, IV51E	54 mm[2.12 in]	Vertical	81647826
IV31R, IV51R	54 mm[2.12 in]	Vertical	81509387
IV515	54 mm[2.12 in]	Vertical	81509389
IV529	54 mm[2.12 in]	Vertical	81509396

Description	Order number
Anti-tamper key, stainless steel 303 (1.4305)	81640006
Adapter ½NPT, female - ¾NPT, male, stainless steel 316/316L (1.4401/1.4404)	81655622
Adapter ½NPT, male - ¼NPT;female, stainless steel 316/316L (1.4401/1.4404)	81655620
Bleeder screw ¼NPT, stainless steel 316/316L (1.4401/1.4404)	81652317
Plug screw ½NPT, stainless steel 316/316L (1.4401/1.4404)	81652353
Plug screw ¼NPT, stainless steel 316/316L (1.4401/1.4404)	81652350
Plug screw G¼, male, stainless steel 316/316L (1.4401/1.4404)	81652351
2 x PTFE seal forG½	81657706
2 x PTFE seal for flange connection per IEC 61518, Form A	81657688
2 x PTFE seal for flange connection per IEC 61518, Form B	81657693
2 x Graphite seal forG½	81657707
2 x Graphite seal for flange connection per IEC 61518, Form A	81657692
2 x Graphite seal for flange connection per IEC 61518, Form B	81657696
4 x threaded bolt 7/16" UNF - 1", stainless steel 316/316L (1.4401/1.4404)	81655985
4 x threaded bolt 7/16" UNF - 1 ¾", stainless steel 316/316L (1.4401/1.4404)	81655988
4 x threaded bolt 7/16" UNF - 2", stainless steel 316/316L (1.4401/1.4404)	81655982
4 x threaded bolt 7/16" UNF - 2 ¾", stainless steel 316/316L (1.4401/1.4404)	81655984
Adapter Minimess 1215 - ¼NPT, male, carbon steel	81655625
Adapter Minimess 1620 - G¼, male, stainless steel 316Ti (1.4571)	14503075
Swivel adapter ½NPT, male - ½NPT, female, max. pressure 10,000 psi [690 bar], stainless steel 316/316L (1.4401/1.4404)	81655619
Swivel adapter ½NPT, male - G½, female, with retaining ring, max. pressure 6,000 psi [420 bar], stainless steel 316/316L (1.4401/1.4404)	81655624
Swivel adapter G⅜A,male - G½A,male, max. pressure 6,000 psi [420 bar], stainless steel 316/316L (1.4401/1.4404)	81655618
Swivel adapter G⅜A,male - G¼A,male, max. pressure 6,000 psi [420 bar], stainless steel 316/316L (1.4401/1.4404)	81655617
Swivel adapter G⅜A,male - G½, female, with retaining ring, max. pressure 6,000 psi [420 bar], stainless steel 316/316L (1.4401/1.4404)	81655621
Swivel adapter G½, male - G½, female, with retaining ring, max. pressure 6,000 psi [420 bar], stainless steel 316/316L (1.4401/1.4404)	81655623
Adapter tube fitting 6 mmOD-¼NPT,male, stainless steel 316/316L (1.4401/1.4404)	81643499
Adapter tube fitting 10 mmOD-⅜NPT,female, stainless steel 316/316L (1.4401/1.4404)	81643536
Adapter tube fitting 6 mmOD-½NPT,female, stainless steel 316/316L (1.4401/1.4404)	81643562
Adapter tube fitting 12 mmOD-⅜NPT,male, stainless steel 316/316L (1.4401/1.4404)	81643526

Valve manifold for differential pressure measuring instruments

Special features

Finish your configuration

2 standard articles of family IV3, IV5
