IV1

In stock at WIKA

WIKA · Pressure measurement · Family IV1

Needle valve and multiport needle valve

Name: Needle valve and multiport needle valve
Brand: WIKA
SKU: IV1X
Price: 93.03 EUR
Availability: BackOrder

Needle valve and multiport needle valve for separating process from pressure measuring instruments, with options for venting and instrument hook-up.

Range

0…690 bar

EACCECRNDNVBureau VeritasNACE MR0175/ISO 15156API 607ISO 10497TA-Luft (VDI 2440)ISO 15848-1ASME B31.1MSS SP-99MSS SP-105ASME B16.34ASME B1.20.1ASME B31.3MSS SP-61API 598ISO 5208

Price

From €93

Confirm at order time

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

Needle valves and multiport needle valves separate the process from measuring instruments such as pressure gauges, switches or transmitters. By closing this valve the instrument can be safely dismounted for service work like calibration or replacement. Versions with an additional vent connection are able to vent the instrument to the atmosphere by means of the needle valve. The multiport needle valve is already equipped with two additional connections. These can be used either as vent connections or for the connection of additional instruments.

Through the non-rotating spindle tip, the wear of the sealing elements is reduced. This results, particularly with frequent opening and closing, in a noticeable increase in the service life.

For further approvals, see page 8

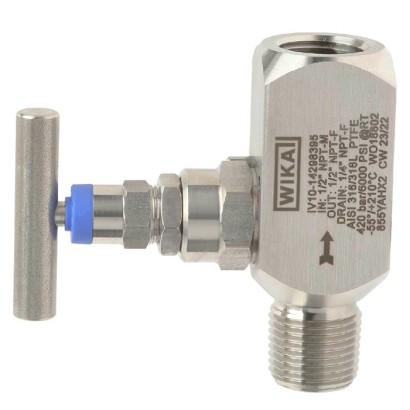

Fig. left: Model IV10, needle valve Fig right: Model IV11, multiport needle valve

Through the blow-out proof design of the valve, working safety is improved, especially in applications with high pressure loading.

The natural gas design, model IV1N is available with a metering valve that enables both, instrument shut-off and flow control.

On request, WIKA offers the professional assembly of valves and pressure measuring instruments and also other accessories into a ready-to-install instrument hook-up. To ensure the performance of the complete system, an additional leak test is carried out on the instrument hook-up.

Special features

Low-wear design due to non-rotating spindle tip in the bonnet
Low torque and smooth operation of valve handle even at high pressure
Enhanced safety due to blow-out proof bonnet design
Valve seat tested for leak tightness per BS 6755 / ISO 5208 leak rate A
Customer-specific combination of valves and instruments (instrument hook-up) on request

Configurator · Step by step

Build a IV1X for your task

The article number is assembled automatically. If unsure — ask an engineer; we'll match the line's parameters.

Step 1 of 1

Configuration structure· click a highlighted segment to jump to that parameter

We do offer the option of different packaging. Be sure to choose according to your process requirements. For temperature ranges and other operating conditions of the individual packaging, please refer to the data sheet.

GraphiteGraphite nuclear application - SIGRAFLEX® ZXPTFE

Your configuration

Version1-Valve Needle Valve
DesignNeedle valve
Connection process side + instrument side1/4 NPT female - 1/4 NPT female
Material bodyStainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
Vent connectionwithout
Test connectionwithout
Nominal pressure6000 psi / 420 bar
Material packing—
Bonnet designStandard
Bonnet optionswithout
with padlockwithout
Special design featureswithout
Certificates accessoryNACE MR0175 Sour Gas Service & Inspection certificate 3.1, EN 10204, all wetted parts material
Certificates accessorywithout

AI suggestion by parameters

Finish your configuration

Select every option to submit the request.

Send request

Your configuration

Version1-Valve Needle Valve
DesignNeedle valve
Connection process side + instrument side1/4 NPT female - 1/4 NPT female
Material bodyStainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
Vent connectionwithout
Test connectionwithout
Nominal pressure6000 psi / 420 bar
Material packing—
Bonnet designStandard
Bonnet optionswithout
with padlockwithout
Special design featureswithout
Certificates accessoryNACE MR0175 Sour Gas Service & Inspection certificate 3.1, EN 10204, all wetted parts material
Certificates accessorywithout

Send request

Identification

Model	IV1
Subcategory	Needle valve

Measuring range

Pressure ranges

0…206 bar · 0…420 bar · 0…690 bar · 0…3000 psi · 0…6000 psi · 0…10000 psi

Process conditions

Process connection	Swivel connectionWeld-in connectionCompression fittingFlange connection per IEC 61518, Form A or Form B¼ NPT⅜ NPT½ NPT¾ NPTG ¼G ⅜G ½G ¾Connection for EMICOgauge
Process temperature	−70…+538 °C

Materials

Case material	Stainless steel 316/316L (1.4401/1.4404), Stainless steel 321 (1.4541), Monel 400 (2.4360), Hastelloy C276 (2.4819), Stainless steel 6Mo (1.4547), Duplex F51 (1.4462), Super Duplex F55 (1.4501), Inconel 625 (2.4856), Incoloy 825 (2.4858)
Wetted parts material	Stainless steel 316/316L (1.4401/1.4404), Stainless steel 321 (1.4541), Monel 400 (2.4360), Hastelloy C276 (2.4819), Stainless steel 6Mo (1.4547), Duplex F51 (1.4462), Super Duplex F55 (1.4501), Inconel 625 (2.4856), Incoloy 825 (2.4858)
Sealing material	PTFE, Polar PTFE, Graphite, FKM, FKM AED, RTFE, SIGRAFLEX ZX graphite, SIGRAFLEX ® ZX graphite

Certifications and approvals

Certifications

EACCECRNDNVBureau VeritasNACE MR0175/ISO 15156API 607ISO 10497TA-Luft (VDI 2440)ISO 15848-1ASME B31.1MSS SP-99MSS SP-105ASME B16.34ASME B1.20.1ASME B31.3ASME BPVC Section VIII Division 1MSS SP-61API 598ISO 5208

Additional details

Datasheet languages

Tables from datasheet

	Description	Functional diagram
IV10	Needle valve	Vent Shut off
IV11	Multiport needle valve	off
IV19	Needle valve, angled connections 90°	Vent
IV1A	Needle valve, extended valve body, 75 mm[2.95 in]	Vent
IV1B	Needle valve, extended valve body, 100 mm[3.94 in]	Vent Shut off
IV1N	Needle valve, natural gas design	Shut off

Basic information
Basic features	■ Blow-out proof valve spindle ■ Non-rotating, low-wear spindle tip ■ Metal-to-metal back seat design
Special design features	■ Without ■ For oxygen, oil- and grease-free ■ ASME B31.1, power piping (only available with graphite sealing packing) ■ Dielectric design (only available for model IV1N)
Standards used
Basic design	■ MSS SP-99, valves for measuring instruments ■ MSS SP-105, instrument valves for code applications ■ ASME B16.34, valves - flanged, threaded and welding end ■ ASME B1.20.1, pipe threads, general purpose (inch) ■ ASME B31.3, process piping ■ ASME BPVC, section VIII, division 1
Special design	■ Without ■ ISO 10497, API 6FA and API 607, type test for fire safety ■ TA-Luft (VDI 2440) and ISO 15848-1, type test for fugitive emissions
Tests	MSS SP-61, pressure testing of valves
Special tests	■ Without ■ API 598, valve inspection and testing ■ ISO 5208, pressure testing of metallic valves with leakage rate A
Material requirements	NACE MR0175 / ISO 15156, use in H₂S-containing environments in oil and gas production
Special material requirements	■ Without ■ NORSOK M-630, specification for use in pipelines (Norway)
Marking	MSS SP-25, standard marking system for valves

Bonnet

Bonnet design

■ Screwed bonnet, 4 mm[0.16 in] bore size ■ Bonnet with extended handle, 4 mm[0.16 in] bore size ■ Miniature bonnet, 4 mm[0.16 in] bore size ■ Cryogenic bonnet for medium temperatures to -196 °C [-320 °F],4mm [0.16 in] bore size ■ OS&Y bonnet, bolted, 6 mm[0.24 in] bore size 1) ■ Bolted bonnet, 8 mm[0.31 in] bore size ■ Bolted bonnet, 10 mm[0.39 in] bore size ■ Bonnet for panel mounting, 4 mm[0.16 in] bore size ■ Metering bonnet for natural gas, 9.5 mm[0.375 in] bore size

Bonnet variant

■ Without ■ Anti-tamper for shut-off valve, padlock not included ■ Anti-tamper for shut-off valve, padlock included ■ Small T-handle ■ T-handle from stainless steel 316L (1.4404)

Process connection / Instrument connection

Standard	■ Threaded connection per ANSI B1.20.1, code NPT ■ Threaded connection per ISO 228-1, codeG ■ Swivel connection ■ Weld-in connection ■ Compression fitting ■ Flange connection per IEC 61518, Form A or Form B (only available for model IV1N)
Size	■ ¼NPT ■ ⅜NPT ■ ½NPT ■ ¾NPT	■ G¼ ■ G⅜ ■ G½ ■ G¾
Vent connection	■ Without ■ Lateral bleeder screw, plug screw included ■ ¼NPTfemale, plug screw included ■ ½NPTfemale, plug screw included ■ ¼NPTfemale with installed bleeder screw ■ G¼female, plug screw included
Test connection	■ Without

View all (11)

Operating conditions

Permissible operating pressure	■ ≤ 3,000 psi or ≤ 206 bar ■ ≤ 6,000 psi or ≤ 420 bar ■ ≤ 10,000 psi or ≤ 690 bar 1)
Pressure and temperature limits	The limits for operating pressure and temperature depend on the version and the sealing material. →For diagram, see page 7

Material

Wetted parts
Valve body, bonnet body	■ Stainless steel 316/316L (1.4401/1.4404) ■ Stainless steel 321 (1.4541) ■ Monel 400 (2.4360) ■ Hastelloy C276 (2.4819)	■ Stainless steel 6Mo (1.4547) ■ Duplex F51 (1.4462) ■ Super Duplex F55 (1.4501) ■ Inconel 625 (2.4856) ■ Incoloy 825 (2.4858)
Spindle tip	■ Stainless steel 316/316L (1.4401/1.4404) ■ Monel 400 (2.4360) ■ Hastelloy C276 (2.4819)	■ Duplex F51 (1.4462) ■ Inconel 625 (2.4856) ■ Hardfaced with Stellite 6
Sealing packing	■ PTFE, temperature range: -55 ...+210 °C [-67 ...+410 °F] ■ Polar PTFE, temperature range: -70 ...+210 °C [-94 ...+410 °F] ■ Graphite, temperature range: -55 ...+538 °C [-67 ... +1,000 °F] ■ SIGRAFLEX ® ZX graphite, nuclear quality, temperature range: -55 ...+538 °C [-67 ... +1,000 °F] ■ FKM, temperature range: -29 ...+180 °C [-20 ...+356 °F] ■ FKM AED 1) , temperature range: -46 ...+180 °C [-50 ...+356 °F] ■ RTFE 2) , temperature range: -55 ...+180 °C [-67 ...+356 °F]
Non-wetted parts
Gland nut, valve spindle, sealing bush, locking nut, locking pin	Stainless steel
Handle	■ Stainless steel 303 (1.4305)

Sealing packing	Max. allowable operating pressure at defined temperatures
Minimum temperature	Temperature of 0 °C [32 °F]	Temperature of 20 °C [68 °F]	Maximum temperature
PTFE	690 bar at -55 °C	690 bar	690 bar	276 bar at 210 °C
10,000 psi at -67 °F	10,000 psi	10,000 psi	4,000 psi at 410 °F
Polar PTFE	690 bar at -70 °C	690 bar	690 bar	276 bar at 210 °C
10,000 psi at -94 °F	10,000 psi	10,000 psi	4,000 psi at 410 °F
Graphite or SIGRAFLEX ® ZX graphite	420 bar at -55 °C	420 bar	420 bar	206 bar at 538 °C
206 bar at -67 °F	6,000 psi	6,000 psi	2,987 psi at 1,000 °F
FKM	206 bar at -29 °C	206 bar	206 bar	206 bar at 180 °C
2,987 psi at -20 °F	2,987 psi	2,987 psi	2,987 psi at 356 °F
FKM AED	206 bar at -46 °C	206 bar	206 bar	206 bar at 180 °C
2,987 psi at -50 °F	2,987 psi	2,987 psi	2,987 psi at 356 °F
RTFE 1)	420 bar at -55 °C	420 bar	420 bar	276 bar at 180 °C
6,000 psi at -67 °F	6,000 psi	6,000 psi	4,000 psi at 356 °F

Logo	Description	Country
	EAC Pressure Equipment Directive	Eurasian Economic Community
	DNV Ships, shipbuilding (e.g. offshore)	International
-	Bureau Veritas Ships, shipbuilding (e.g. offshore)	International
-	CRN Safety (e.g. electr. safety, overpressure, ...)	Canada

Logo	Description
-	Information on Pressure Equipment Directive (PED) Design, manufacturing and testing carried out in accordance with sound engineering practise
-	PMI 1) test certificate Valve body
-	Hydrogen for general use 2) Suitable for general hydrogen applications under the following conditions: - Material proof for all wetted parts per NACE MR0103/MR0175 - Temperature range -55 ...+210 °C [-67 ...+410 °F] - Max. allowable operating pressure: 6,000 psi [420 bar] at 20 °C [68 °F] - With fugitive emission protection in accordance with TA-Luft (VDI 2440) and ISO 15848-1
-	Oil- and grease-free per ASTM G93-03 level C (< 66 mg/m 2 ) - Sealing packing and lubricants in accordance with BAM requirements - Suitable for oxygen applications under the following temperature and pressure conditions (BAM): PTFE sealing packing: T ≤ 150 °C [302 °F] p ≤ 20 bar [290 psi] Graphite sealing packing: T ≤ 250 °C [482 °F] p ≤ 150 bar [2,175 psi]
-	Type tested for fire safety in accordance with API 607, ISO 10497, BS 6755-2 3)
-	Fugitive emission protection in accordance with TA-Luft (VDI 2440) and ISO 15848-1 - Tightness class:AH - Endurance class:C01 - Temperature class: -29 ...+180 °C [-20 ...+356 °F]

Certificates

Certificates	■ 3.1 inspection certificate per EN 10204 - Material proof for all wetted parts per NACE MR0103/MR0175 - Confirmation of pressure tests per MSS SP-61 1) - Confirmation of pressure tests per API 598or API 6D

Description	Order number
Anti-tamper key, stainless steel 303 (1.4305)	81640006
Adapter ½NPT, female - ¾NPT, male, stainless steel 316/316L (1.4401/1.4404)	81655622
Adapter ½NPT, male - ¼NPT;female, stainless steel 316/316L (1.4401/1.4404)	81655620
Bleeder screw, stainless steel 316/316L (1.4401/1.4404)	81506704
Plug screw ½NPT, stainless steel 316/316L (1.4401/1.4404)	81652353
Plug screw ¼NPT, stainless steel 316/316L (1.4401/1.4404)	81652350
PTFE seal forG½	81652355
Graphite seal forG½	81652602
Adapter Minimess 1215 - ¼NPT, male, carbon steel	81655625
Adapter Minimess 1620 - G¼, male, stainless steel 316Ti (1.4571)	14503075
Swivel adapter ½NPT, male - ½NPT, female, max. pressure 10,000 psi [690 bar], stainless steel 316/316L (1.4401/1.4404)	81655619
Swivel adapter ½NPT, male - G½, female, with retaining ring, max. pressure 6,000 psi [420 bar], stainless steel 316/316L (1.4401/1.4404)	81655624
Swivel adapter G⅜A,male - G½A,male, max. pressure 6,000 psi [420 bar], stainless steel 316/316L (1.4401/1.4404)	81655618
Swivel adapter G⅜A,male - G¼A,male, max. pressure 6,000 psi [420 bar], stainless steel 316/316L (1.4401/1.4404)	81655617
Swivel adapter G⅜A,male - G½, female, with retaining ring, max. pressure 6,000 psi [420 bar], stainless steel 316/316L (1.4401/1.4404)	81655621
Swivel adapter G½, male - G½, female, with retaining ring, max. pressure 6,000 psi [420 bar], stainless steel 316/316L (1.4401/1.4404)	81655623
Adapter tube fitting 6 mmOD-¼NPT,male, stainless steel 316/316L (1.4401/1.4404)	81643499
Adapter tube fitting 10 mmOD-⅜NPT,female, stainless steel 316/316L (1.4401/1.4404)	81643536
Adapter tube fitting 6 mmOD-½NPT,female, stainless steel 316/316L (1.4401/1.4404)	81643562
Adapter tube fitting 12 mmOD-⅜NPT,male, stainless steel 316/316L (1.4401/1.4404)	81643526
