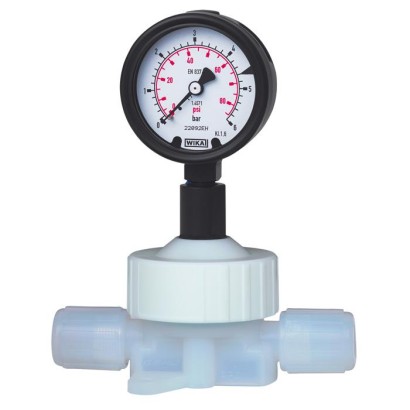

Ultra High Purity Pressure Gauge

Name: Ultra High Purity Pressure Gauge
Brand: WIKA

Ultra High Purity Pressure Gauge with patented double diaphragm, PFA wetted parts, and 360° rotatable gauge for semiconductor and UHP-liquid chemicals applications.

Range

0…6 bar

Accuracy

± 1.6

Protection

IP54

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Special features

Patented double diaphragm
Perfluoroalkoxy (PFA) wetted parts
Stainless steel pressure measurement devices
Gauge is 360° rotatable even after installation
Optional: electrical switch contacts

Identification

Model	HG
Product family	HYDRA-line
Subcategory	Mechanical Pressure Gauge

Measuring range

Pressure ranges

0…2.5 bar · 0…4 bar · 0…6 bar · 0…30 psi · 0…60 psi · 0…100 psi · 0…250 kPa · 0…400 kPa · 0…600 kPa

Accuracy

Accuracy class	± 1.6
Accuracy standard	EN 837-1

Process conditions

Process connection	1/4 NPT femalein-line 3/8" flarein-line 1/2" flarein-line 3/4" flarein-line 1" flaredead-end 1/4" flaredead-end 3/8" flaredead-end 1/2" flare3/8" flare1/2" flare3/4" flare1" flare1 1/4" flare1/4" flarein-line 1 1/4" flaredead-end 1/4 NPT female
Process temperature	+5…+60 °C

Electrical characteristics

Power supply	DC 10 ... 30 V
Switching function	PNP, 1. makes / 2. breaks
Switching contacts	1

Materials

Case material	Stainless steel, black Teflon® coating
Wetted parts material	PFA, TFM (modified PTFE)
Sealing material	PVDF, EPDM, FPM/FKM

Operating environment

Ambient temperature	+5…+60 °C
IP rating	IP54

Additional details

Dial size	63 mm
Datasheet languages	EN

Tables from datasheet

Specifications	Model HG,	HYDRA-Gauge
Pressure ranges	bar	0 …2.5	0…4	0…6
	psi	0 …30	0 …60	0 …100
	kPa	0 …250	0 …400	0 …600
Overpressure safety	bar	40 1)
Process connection		in-line 3/8" flare, ½" flare, ¾" flare, 1" flare, 1 ¼" flare
		dead-end ¼" flare, 3/8" flare, ½" flare
		dead-end ¼NPT female
Pressure measurement device		Design according to EN 837-1
		Nominal size 63 mm(lower mounting / center back mounting)
Accuracy	%of span	± 1.6
Material
Wetted parts		PFA or TFM (modified PTFE)
Other non-wetted parts		PVDF, EPDM, FPM/FKM
Gauge		Stainless steel, black Teflon ® coating
a System fill fluid		KN 75 50/50 mix semiconductor grade IPA (Isopropyl Alcohol/DI Water)
		precision filled and not field refillable
Permissible temperature range
Process	°C	+5 ... +60 (+41 …+140 °F)
Ambient	°C	+5 ... +60 (+41 …+140 °F)
Storage	°C	-20 ... +60 (-4 …+140 °F)
Working range 1)
Steady		3/4 of full scale value
Fluctuating Short time		2/3 of full scale value
		full scale value
Ingress protection per		IP 54

Process connection	Dimensions inmm
	H	L	L 1	F	B 1	B 2	Ød 2
In-line 3/8" flare	156	118	127	16	40	62	5.5
In-line 1/2" flare	156	122	133	16	40	62	5.5
In-line 3/4" flare	162	122	133	19	40	62	5.5
In-line 1" flare	186.5	165	179	25	56	78	6.5
In-line 1 1/4" flare	186.5	224	238	25	56	78	6.5

Process connection	Dimensions inmm
	H 1	SW1	SW2	Ød 2
Dead-end 1/4" flare	194 ± 2	27	11/16"	64
Dead-end 3/8" flare	194 ± 2	27	15/16"	64
Dead-end 1/2" flare	197 ± 2	27	17/16"	64
Dead-end 1/4 NPT female	150 ± 2	27	-	64
