WIKA · Pressure measurement · Family 990

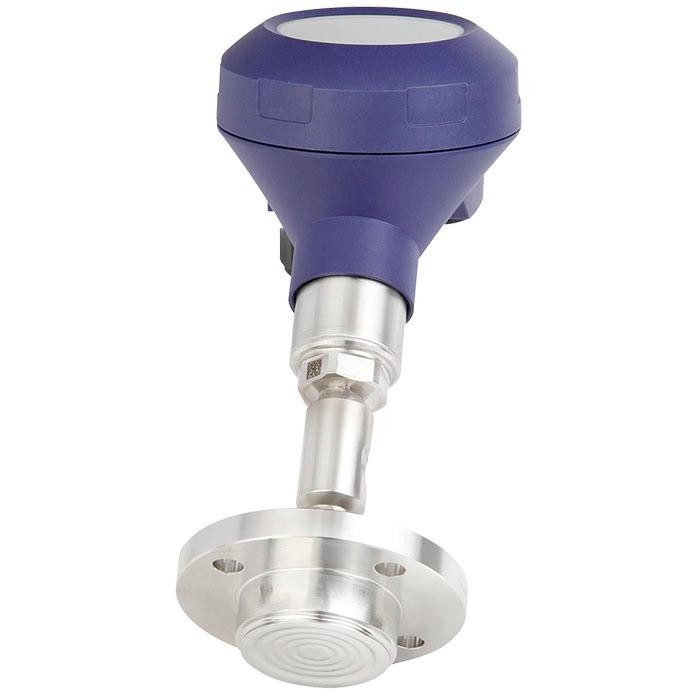

Diaphragm seal with sterile connection

Diaphragm seal with sterile connection for sanitary applications, NEUMO BioConnect®
Range
0…70 bar
3-AEHEDGCRNCEEACFDA
Price
On request
Depends on configuration
Request a quote
+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

Diaphragm seals are used to protect the pressure measuring instrument from aggressive, adhesive, crystallising, corrosive, highly viscous, environmentally hazardous or toxic media. A diaphragm made of the appropriate material provides for the separation from the medium. Thus even the most difficult measuring requirements can be met by combining measuring instruments with diaphragm seals.

A fluid inside the system, which can be explicitly chosen to suit the particular measuring requirement, hydraulically transmits the pressure to the measuring instrument.

Almost limitless application possibilities exist due to the large number of available variants, such as diaphragm seal designs or materials. The type of process connection (flange, threaded and sterile connection) and the basic method of manufacture are important design differentiation criteria.

For further technical information on diaphragm seals and diaphragm seal systems see IN 00.06 'Application, operating principle, designs'.

for further approvals see page 4

Special features

  • Quick cleaning of measuring point, without residue
  • Certified hygienic design
  • Suitable for SIP and CIP
  • EHEDG certified and 3-A compliant
Identification
Model990.50
Product family990
SubcategoryDiaphragm seal
Measuring range
Pressure ranges0…16 bar · 0…70 bar · 0…10 bar
Process conditions
Process connection
Flange, form RFlange, form VThreaded coupling, male threadClamp connection, form RClamp connection, form VNEUMO BioConnectThread with grooved union nutNEUMO BioConnect®G1/2G1/41/2 NPT1/4 NPT
Materials
Case materialStainless steel 1.4435 (316L), Stainless steel 1.4539 (904L), Hastelloy C22 (2.4602), Hastelloy C276 (2.4819), Stainless steel 1.4435 (316L), electropolished
Wetted parts materialStainless steel 1.4435 (316L), Stainless steel 1.4539 (904L), Hastelloy C22 (2.4602), Hastelloy C276 (2.4819), Stainless steel 1.4435 (316L), electropolished
Operating environment
Weight0.2 kg
Certifications and approvals
Certifications
3-AEHEDGCRNCEEACFDA
Additional details
Datasheet languagesEN, DE
Tables from datasheet
Model 990.50StandardOption
Pressure range ¹⁾
Threaded connection0 …0.6 bar to 0 …16bar [0 …8.7 psi to 0 …232 psi]
Flange connection0 …0.6 bar to 0 …70bar [0 …8.7 psi to 0 …1,015 psi]
Clamp connection■ 0 …0.6 bar to 0 …16bar [0 …8.7 psi to 0 …232 psi] (to DN 50) ■ 0 …0.6 bar to 0 …10bar [0 …8.7 psi to 0 …145 psi] (from DN 65)
Nominal pressure
Threaded connectionPN 16 bar [232 psi]
Flange connectionPN 16 bar [232 psi]
Clamp connection■ PN 16 bar [232 psi] (to DN 50) ■ PN 10 bar [145 psi] (from DN 65)
Level of cleanliness of wetted partsOil and grease free per ASTM G93-03 level E (WIKA-Standard) and ISO 15001 (< 550 mg/m 2 )Oil and grease free per ASTM G93-03 level C and ISO 15001 (< 66 mg/m 2 )
Origin of wetted partsInternationalEU, CH, USA
Surface roughness of wetted partsRa ≤ 0.76 μm [30 μin] per ASME BPE SF3 (except for weld seam)Ra ≤ 0.38 μm [15 μin] per ASME BPE SF4, only with electropolished surface (except for weld seam)
Connection to the measuring instrumentAxial weld-in connectionFemale thread: ■ G1/2 ■ G1/4 ■ 1/2 NPT ■ 1/4 NPT
Type of mountingDirect mounting■ Capillary ■ Cooling element
Vacuum service (see IN 00.25)Basic service■ Premium service ■ Advanced service
Process connectionNEUMOBioConnect ® connection ■ Flange, form R ■ Threaded coupling, male thread ■ Clamp connection, form R For pipes per DIN 11866 row A and row B (or DIN 11850 and DIN EN ISO 1127) For exact designs and nominal widths see tables from page 5■ Flange, formV ■ Threaded coupling, male thread ■ Clamp connection, formV
Instrument mounting bracket (only for capillary option)■ Form H per DIN 16281, 100 mm[3.94 in], aluminium, black ■ Form H per DIN 16281, 100 mm[3.94 in], stainless steel ■ Bracket for pipe mounting, for pipe Ø20 …80mm[0.787 …3.15 in], steel (see data sheet
Upper body of diaphragm sealWetted parts 3)
Stainless steel 1.4435 (316L)Stainless steel 1.4435 (316L)
Stainless steel 1.4435 (316L), electropolished 4)Stainless steel 1.4435 (316L), electropolished 4)
Stainless steel 1.4539 (904L)Stainless steel 1.4539 (904L)
Hastelloy C22 (2.4602)Hastelloy C22 (2.4602)
Hastelloy C276 (2.4819)Hastelloy C276 (2.4819)
LogoDescriptionCountry
EU declaration of conformity Pressure equipment directiveEuropean Union
EAC Pressure equipment directiveEurasian Economic Community
®3-A Sanitary StandardUSA
FEBRUARY 2021 TYPE EL CLASS IEHEDG Hygienic Equipment DesignEuropean Union
-MTSCHS Permission for commissioningKazakhstan
-CRN Safety (e.g. electr. safety, overpressure, ...)Canada
DNPN in bar [psi]Dimensions in mm[in]Weight in kg [lbs]
MbDB RKd kd 2
2516 [232]22 [0.87]85 [3.35]12 [0.47]65 [2.56]4 x Ø9[Ø 0.35]32.3 [1.27]0.5 [1.1]
3216 [232]25 [0.98]95 [3.74]12 [0.47]75 [2.95]4 x Ø9[Ø 0.35]38.3 [1.5]0.6 [1.32]
4016 [232]32 [1.26]100 [3.94]12 [0.47]80 [3.15]4 x Ø9[Ø 0.35]44.3 [1.74]0.7 [1.54]
5016 [232]45 [1.77]110 [4.33]14 [0.55]90 [3.54]4 x Ø9[Ø 0.35]56.3 [2.22]0.9 [1.98]
6516 [232]60 [2.36]140 [5.51]16 [0.63]115 [4.53]4 x Ø11 [Ø 0.43]72.3 [2.85]1.8 [3.97]
8016 [232]72 [2.83]150 [5.9]16 [0.63]125 [4.92]4 x Ø11 [Ø 0.43]87.3 [3.44]2.0 [4.4]
10016 [232]90 [3.54]175 [6.89]18 [0.7]150 [5.9]4 x Ø11 [Ø 0.43]106.3 [4.19]3.1 [6.83]
View all (18)
DNPN in bar [psi]Dimensions in mm[in]Weight in kg [lbs]
MbDB RKd kd 2
33.716 [232]25 [0.98]85 [3.35]12 [0.47]65 [2.56]4 x Ø9[Ø 0.35]36.0 [1.42]0.5 [1.1]
42.416 [232]32 [1.26]95 [3.74]12 [0.47]75 [2.95]4 x Ø9[Ø 0.35]44.7 [1.76]0.6 [1.32]
48.316 [232]40 [1.57]100 [3.93]12 [0.47]80 [3.15]4 x Ø9[Ø 0.35]50.6 [1.99]0.7 [1.54]
60.316 [232]52 [2.05]110 [4.33]14 [0.55]90 [3.54]4 x Ø9[Ø 0.35]62.6 [2.46]0.9 [1.98]
76.116 [232]60 [2.36]140 [5.51]16 [0.63]115 [4.53]4 x Ø11 [Ø 0.43]77.8 [3.06]1.8 [3.97]
88.916 [232]72 [2.83]150 [5.9]16 [0.63]125 [4.92]8 x Ø11 [Ø 0.43]90.6 [3.57]2.0 [4.41]
114.316 [232]90 [3.54]175 [6.89]16 [0.63]150 [5.9]8 x Ø11 [Ø 0.43]115.4 [4.54]3.1 [6.83]
DNPN in bar [psi]Dimensions in mm[in]Weight in kg [lbs]
MbDB RKd kd 2
2516 [232]22 [0.87]85 [3.35]10 [0.39]65 [2.56]4 x Ø9[Ø 0.35]32.2 [1.27]0.4 [0.88]
3216 [232]25 [0.98]95 [3.74]10 [0.39]75 [2.95]4 x Ø9[Ø 0.35]38.2 [1.5]0.6 [1.32]
4016 [232]32 [1.26]100 [3.94]10 [0.39]80 [3.15]4 x Ø9[Ø 0.35]44.2 [1.74]0.6 [1.32]
5016 [232]45 [1.77]110 [4.33]12 [0.47]90 [3.54]4 x Ø9[Ø 0.35]56.2 [2.21]0.9 [1.98]
6516 [232]60 [2.36]140 [5.51]14 [0.55]115 [4.53]4 x Ø11 [Ø 0.43]72.2 [2.84]1.7 [3.75]
8016 [232]72 [2.83]150 [5.9]14 [0.55]125 [4.92]8 x Ø11 [Ø 0.43]87.2 [3.43]1.9 [4.19]
10016 [232]90 [3.54]175 [6.89]16 [0.63]150 [5.9]8 x Ø11 [Ø 0.43]106.2 [4.18]3.1 [6.83]
DNPN in bar [psi]Dimensions in mm[in]Weight in kg [lbs]
MbDB RKd kd 2
33.716 [232]25 [0.98]85 [3.35]10 [0.39]65 [2.56]4 x Ø9[Ø 0.35]35.9 [1.41]0.4 [0.88]
42.416 [232]32 [1.26]95 [3.74]10 [0.39]75 [2.95]4 x Ø9[Ø 0.35]44.6 [1.76]0.5 [1.1]
48.316 [232]40 [1.57]100 [3.93]10 [0.39]80 [3.15]4 x Ø9[Ø 0.35]50.5 [1.99]0.6 [1.32]
60.316 [232]52 [2.05]110 [4.33]12 [0.47]90 [3.54]4 x Ø9[Ø 0.35]62.5 [2.46]0.9 [1.98]
76.116 [232]60 [2.36]140 [5.51]14 [0.55]115 [4.53]4 x Ø11 [Ø 0.43]77.7 [3.06]1.7 [3.75]
88.916 [232]72 [2.83]150 [5.9]14 [0.55]125 [4.92]8 x Ø11 [Ø 0.43]90.5 [3.56]2.0 [4.41]
114.316 [232]90 [3.54]175 [6.89]16 [0.63]150 [5.9]8 x Ø11 [Ø 0.43]115.3 [4.54]3.2 [7.05]
DNPN in bar [psi]Dimensions in mm[in]Weight in kg [lbs]
d 1d 2MbG 1Dkh
2516 [232]29 [1.14]26 [1.02]22 [0.87]M42 x 255 [2.17]18 [0.71]20 [0.79]0.3 [0.66]
3216 [232]35 [1.38]32 [1.26]25 [0.98]M52 x 265 [2.56]19 [0.75]20 [0.79]0.4 [0.88]
4016 [232]41 [1.61]38 [1.496]32 [1.26]M56 x 270 [2.76]21 [0.83]20 [0.79]0.5 [1.1]
5016 [232]53 [2.09]50 [1.97]45 [1.77]M68 x 282 [3.23]21 [0.83]20 [0.79]0.7 [1.54]
6516 [232]70 [2.76]66 [2.598]60 [2.36]M90 x 3105 [4.13]27 [1.06]20 [0.79]1.3 [2.87]
8016 [232]85 [3.35]81 [3.19]72 [2.83]M100 x 3115 [4.53]27 [1.06]20 [0.79]1.6 [3.53]
10016 [232]104 [4.09]100 [3.94]90 [3.54]M130 x 4145 [5.71]29 [1.14]20 [0.79]2.6 [5.73]
DNPN in bar [psi]Dimensions in mm[in]Weight in kg [lbs]
d 1d 2MbG 1Dkh
33.716 [232]33.7 [1.33]29.7 [1.17]25 [0.98]M42 x 255 [2.17]18 [0.71]20 [0.79]0.3 [0.66]
42.416 [232]42.4 [1.67]38.4 [1.51]32 [1.26]M52 x 265 [2.56]19 [0.75]20 [0.79]0.4 [0.88]
48.316 [232]48.3 [1.9]44.3 [1.74]40 [1.57]M56 x 270 [2.76]21 [0.83]20 [0.79]0.5 [1.1]
60.316 [232]60.3 [2.37]56.3 [2.22]52 [2.05]M68 x 282 [3.23]21 [0.83]20 [0.79]0.7 [1.54]
76.116 [232]76.1 [2.996]72.1 [2.84]60 [2.36]M90 x 3105 [4.13]27 [1.06]20 [0.79]1.3 [2.87]
88.916 [232]88.9 [3.5]84.3 [3.32]72 [2.83]M100 x 3115 [4.53]27 [1.06]20 [0.79]1.6 [3.53]
114.316 [232]114.3 [4.5]109.7 [4.32]90 [3.54]M130 x 4145 [5.71]29 [1.14]20 [0.79]2.6 [5.73]
DNPN in bar [psi]Dimensions in mm[in]Weight in kg [lbs]
d 1d 2MbG 1Dkh
2516 [232]29 [1.14]26 [1.02]22 [0.87]M42 x 255 [2.17]18 [0.71]20 [0.79]0.2 [0.44]
3216 [232]35 [1.38]32 [1.26]25 [0.98]M52 x 265 [2.56]19 [0.75]20 [0.79]0.25 [0.55]
4016 [232]41 [1.61]38 [1.496]32 [1.26]M56 x 270 [2.76]21 [0.83]20 [0.79]0.3 [0.66]
5016 [232]53 [2.09]50 [1.97]45 [1.77]M68 x 282 [3.23]21 [0.83]20 [0.79]0.5 [1.1]
6516 [232]70 [2.76]66 [2.598]59 [2.32]M90 x 3105 [4.13]27 [1.06]28 [1.1]0.9 [1.98]
8016 [232]85 [3.35]81 [3.19]72 [2.83]M100 x 3115 [4.53]27 [1.06]28 [1.1]1.1 [2.43]
10016 [232]104 [4.09]100 [3.94]89 [3.5]M130 x 4145 [5.71]29 [1.14]30 [1.18]1.9 [4.19]
DNPN in bar [psi]Dimensions in mm[in]Weight in kg [lbs]
d 1d 2MbG 1Dkh
33.716 [232]33.7 [1.33]29.7 [1.17]25 [0.98]M42 x 255 [2.17]18 [0.71]20 [0.79]0.2 [0.44]
42.416 [232]42.4 [1.67]38.4 [1.51]32 [1.26]M52 x 265 [2.56]19 [0.75]20 [0.79]0.25 [0.55]
48.316 [232]48.3 [1.9]44.3 [1.74]40 [1.57]M56 x 270 [2.76]21 [0.83]20 [0.79]0.3 [0.66]
60.316 [232]60.3 [2.37]56.3 [2.22]52 [2.05]M68 x 282 [3.23]21 [0.83]20 [0.79]0.5 [1.1]
76.116 [232]76.1 [2.996]71.5 [2.81]59 [2.32]M90 x 3105 [4.13]27 [1.06]28 [1.1]0.9 [1.98]
88.916 [232]88.9 [3.5]84.3 [3.32]72 [2.83]M100 x 3115 [4.53]27 [1.06]28 [1.1]1.1 [2.43]
114.316 [232]114.3 [4.5]109.1 [4.29]89 [3.5]M130 x 4145 [5.71]29 [1.14]30 [1.18]1.9 [4.19]
DNPN in bar [psi]Dimensions in mm[in]Weight in kg [lbs]
d 1d 2MbDkh
2516 [232]29 [1.14]26 [1.02]22 [0.87]50.5 [1.99]16.5 [0.65]20 [0.79]0.3 [0.66]
3216 [232]35 [1.38]32 [1.26]25 [0.98]50.5 [1.99]16.5 [0.65]20 [0.79]0.3 [0.66]
4016 [232]41 [1.61]38 [1.496]32 [1.26]64 [2.52]16.5 [0.65]20 [0.79]0.4 [0.88]
5016 [232]53 [2.09]50 [1.97]45 [1.77]77.5 [3.05]16.5 [0.65]20 [0.79]0.6 [1.32]
6510 [145]70 [2.76]66 [2.598]60 [2.36]91 [3.58]16.5 [0.65]20 [0.79]0.8 [1.76]
8010 [145]85 [3.35]81 [3.19]72 [2.83]106 [4.17]16.5 [0.65]20 [0.79]1.1 [2.43]
10010 [145]104 [4.09]100 [3.94]90 [3.54]119 [4.69]16.5 [0.65]20 [0.79]1.4 [3.09]
DNPN in bar [psi]Dimensions in mm[in]Weight in kg [lbs]
d 1d 2MbDkh
33.716 [232]33.7 [1.33]29.7 [1.17]25 [0.98]50.5 [1.99]16.5 [0.65]20 [0.79]0.2 [0.44]
42.416 [232]42.4 [1.67]38.4 [1.51]32 [1.26]50.5 [1.99]16.5 [0.65]20 [0.79]0.2 [0.44]
48.316 [232]48.3 [1.9]44.3 [1.74]40 [1.57]64 [2.52]16.5 [0.65]20 [0.79]0.3 [0.66]
60.316 [232]60.3 [2.37]56.3 [2.22]52 [2.05]77.5 [3.05]16.5 [0.65]20 [0.79]0.6 [1.32]
76.110 [145]76.1 [2.996]72.1 [2.84]60 [2.36]91 [3.58]16.5 [0.65]20 [0.79]0.8 [1.76]
88.910 [145]88.9 [3.5]84.3 [3.32]72 [2.83]106 [4.17]16.5 [0.65]20 [0.79]1.0 [2.2]
114.310 [145]114.3 [4.5]109.7 [4.32]90 [3.54]130 [5.12]16.5 [0.65]20 [0.79]1.3 [2.87]
DNPN in bar [psi]Dimensions in mm[in]Weight in kg [lbs]
d 1d 2MbDkh
2516 [232]29 [1.14]26 [1.02]22 [0.87]50.5 [1.99]20 [0.79]17.5 [0.69]0.3 [0.66]
3216 [232]35 [1.38]32 [1.26]25 [0.98]50.5 [1.99]20 [0.79]17.5 [0.69]0.3 [0.66]
4016 [232]41 [1.61]38 [1.496]32 [1.26]64 [2.52]20 [0.79]17.5 [0.69]0.4 [0.88]
5016 [232]53 [2.09]50 [1.97]45 [1.77]77.5 [3.05]20 [0.79]17.5 [0.69]0.6 [1.32]
6510 [145]70 [2.76]66 [2.598]60 [2.36]91 [3.58]20 [0.79]17.5 [0.69]0.8 [1.76]
8010 [145]85 [3.35]81 [3.19]72 [2.83]106 [4.17]20 [0.79]17.5 [0.69]1.1 [2.43]
10010 [145]104 [4.09]100 [3.94]90 [3.54]119 [4.69]20 [0.79]17.5 [0.69]1.4 [3.09]
DNPN in bar [psi]Dimensions in mm[in]Weight in kg [lbs]
d 1d 2MbDkh
33.716 [232]33.7 [1.33]29.7 [1.17]25 [0.98]50.5 [1.99]20 [0.79]17.5 [0.69]0.2 [0.44]
42.416 [232]42.4 [1.67]38.4 [1.51]32 [1.26]50.5 [1.99]20 [0.79]17.5 [0.69]0.2 [0.44]
48.316 [232]48.3 [1.9]44.3 [1.74]40 [1.57]64 [2.52]20 [0.79]17.5 [0.69]0.3 [0.66]
60.316 [232]60.3 [2.37]56.3 [2.22]52 [2.05]77.5 [3.05]20 [0.79]17.5 [0.69]0.6 [1.32]
76.110 [145]76.1 [2.996]72.1 [2.84]60 [2.36]91 [3.58]20 [0.79]17.5 [0.69]0.8 [1.76]
88.910 [145]88.9 [3.5]84.3 [3.32]72 [2.83]106 [4.17]20 [0.79]17.5 [0.69]1.0 [2.2]
114.310 [145]114.3 [4.5]109.7 [4.32]90 [3.54]130 [5.12]20 [0.79]17.5 [0.69]1.3 [2.87]
MaterialUnified numbering system (UNS)
Stainless steel 316L (1.4404 or 1.4435)S31603
Stainless steel 904L (1.4539)N08904
Stainless steel 321 (1.4541)S32100
Stainless steel 316Ti (1.4571)S31635
Stainless steel 1.4466 (urea grade)S31050
Duplex 2205 (1.4462)S31803
Superduplex 1.4410S32750
Tantalum (also lining)R05200
Hastelloy C276 (2.4819)N01276
Hastelloy C22 (2.4602)N06022
Inconel 600 (2.4816)N06600
Incoloy 825 (2.4858)N08825
Inconel 625 (2.485)N06625
Monel 400 (2.4360)N04400
Nickel 200 (2.4066)N02200
Nickel 201 (2.4068)N02201
Titanium 3.7035 (class 2)R50400
Titanium 3.7235 (class 7)R52400
Zirconium GR702R60702
DesignationIdenti- fication numberSolidi- fication pointBoiling/ degradation pointDensity at 25 °CKin.Viscosity at 25 °CRemark
KN°C°Cg/cm³cSt
Silicone oil2-45+3000.9654.5Universal application
Glycerine7-35+2401.26759.6FDA 21 CFR 182.1320
Silicone oil17-90+2000.924.4Low temperatures
Halocarbon21-60+1751.8910.6Oxygen 1) and chlorine
Methylcyclopentane30-130+600.740.7For very low temperatures
High-temperature silicone oil32-25+4001.0647.1For high temperatures
Neobee® M-2059-35+2600.9210.0FDA 21 CFR 172.856, 21 CFR 174.5
DI water64+4+851.000.9For ultrapure media
Silicone oil68-75+2500.9310.3
DI water/propanol mixture75-30+600.923.6For ultrapure media
Medicinal white mineral oil92-15+2600.8545.3FDA 21 CFR 172.878, 21 CFR 178.3620(a); USP, EP, SP
Maximum temperatureMaximum oxygen pressure
to 60 °C50 bar
> 60 °C to 100 °C30 bar
> 100 °C to 175 °C25 bar
