WIKA · Pressure measurement · Family 990

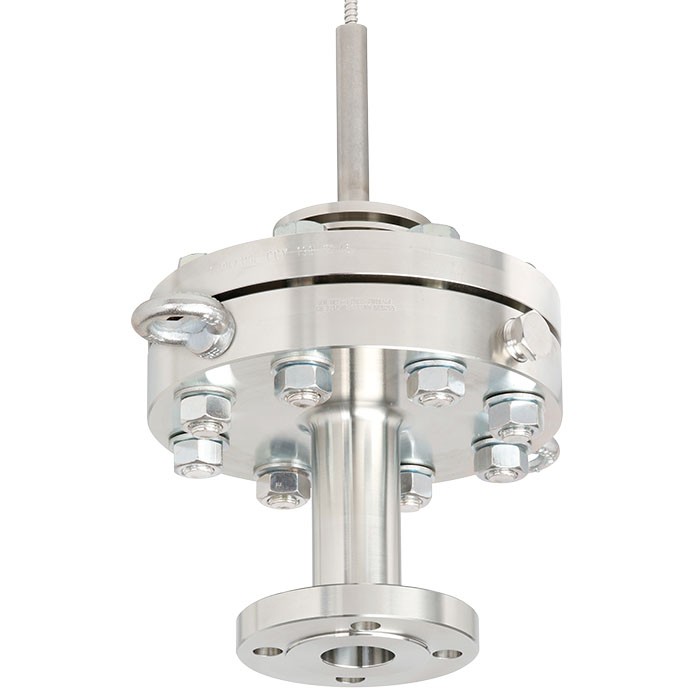

Diaphragm seal with flange connection

Name: Diaphragm seal with flange connection
Brand: WIKA
SKU: H990.27

Diaphragm seal with flange connection and flush diaphragm for aggressive, viscous, crystallising or hot media in chemical, petrochemical and oil and gas industries.

CRNNACENACE MR0175/ISO 15156NACE MR0103/ISO 17945MTSCHSEPL Ga

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

Diaphragm seals are used to protect pressure measuring instruments in demanding applications under difficult conditions. These diaphragm seal systems, consisting of a process transmitter, pressure sensor, pressure gauge or pressure switch with diaphragm seal, can be combined individually for each customer application. For this, a wide range of different designs, process connections, mounting types and wetted materials are available.

Diaphragm seal models with flange connections are available with flush or internal diaphragms, in tubular design or as in-line diaphragm seals. The variants mentioned are also available in a cell-type design.

Special features

Flange with flush welded diaphragm
Common standards and nominal widths available
Wide variety of different materials and material combinations

Identification

Model	990.27
Product family	990
Subcategory	Diaphragm seal with flange connection

Accuracy

Accuracy standard	EN 837-1
Safety integrity level (SIL)	SIL per IEC 61508 / IEC 61511

Process conditions

Process connection	DIN EN 1092-1ASME B16.5-2017GOST 33259API 6ADIN EN 1092-1 DN 25-125ASME B16.5-2017 1"-5"GOST 33259 DN 25-125API 6A 1 1/8"-2 1/16"JIS B2220 DN 25A-100AJIS B2220
Process temperature	−20…+400 °C

Materials

Case material	Stainless steel 1.4404 (316L), Titanium grade 7 (3.7235), Stainless steel 1.4539 (904L), Stainless steel 1.4541 (321), Stainless steel 1.4571 (316Ti), Duplex 2205 (1.4462), Superduplex 2507 (1.4410), Hastelloy C22 (2.4602), Hastelloy C276 (2.4819), Inconel 600 (2.4816), Inconel 625 (2.4856), Incoloy 825 (2.4858), Monel 400 (2.4360), Nickel 200 (2.4066), Nickel 201 (2.4068), Titanium grade 2 (3.7035), Stainless steel 1.4435 (316L), Titanium grade 11 (3.7225), Tantalum
Wetted parts material	Hastelloy C22 (2.4602), Hastelloy C276 (2.4819), Inconel 600 (2.4816), Inconel 625 (2.4856), Incoloy 825 (2.4858), Monel 400 (2.4360), Nickel 200 (2.4066), Nickel 201 (2.4068), Titanium grade 2 (3.7035), Titanium grade 11 (3.7225), Tantalum, ECTFE, Gold, Stainless steel 1.4404 / 1.4435 (316L), Wikaramic®, PFA (perfluoroalkoxy), FDA, PFA (perfluoroalkoxy), anti-static, Wikaramic, PFA, Titanium grade 7 (3.7235), Stainless steel 1.4539 (904L), Stainless steel 1.4541 (321), Stainless steel 1.4571 (316Ti), Duplex 2205 (1.4462), Superduplex 2507 (1.4410), PFA (perfluoroalkoxy)
Sealing material	ECTFE, PFA, Gold, Wikaramic®

Certifications and approvals

Certifications	CRNNACENACE MR0175/ISO 15156NACE MR0103/ISO 17945MTSCHS
Explosion protection	EPL GaModel 910.21 with pre-volume deflagration flame arrester for zone 0 (EPL Ga)

Additional details

Datasheet languages

Tables from datasheet

Data sheet number	Title
IN 00.06	Diaphragm seals and diaphragm seal systems, application - functionality - design
IN 00.25	Diaphragm seal systems for vacuum processes
IN 00.21	General information about NACE standards for sour gas applications
IN 00.41	Specifications of oil- and grease-free instruments

Basic information for diaphragm seal systems

Version	Diaphragm seal with flange connection
Other versions	■ Per NACE 1) MR0175 / ISO 15156, use in H 2 S-containing environments in oil and gas production ■ Per NACE 1) MR0103 / ISO 17945, metals resistant to hydrogen sulphide stress crack - ing ■ With pre-volume deflagration flame arrester 2) for mounting to zone 0 (EPL Ga); model 910.21; see data sheet AC 91.02
Pressure range	The maximum permissible operating pressure must be determined individually for each diaphragm seal system. It is dependent on the operating temperature, the process connec - tion, the joining method, the system fill fluid and the mounted measuring instrument.
Connection to the instrument	■ Axial connection adapter for weld seam ■ Suitable connection adapter to the instrument (e.g.G½, G¼, ½NPTor ¼NPT)
Mounting type 3)	■ Direct mounting ■ Capillary ■ Heat sink
Vacuum service 4)	■ Basic service ■ Advanced service ■ Premium service

Process connection
Standard 1)	■ DIN EN 1092-1 ■ ASME B16.5-2017 ■ GOST 33259 ■ API 6A ■ JIS B2220
Size
DIN EN 1092-1	■ DN 25 ■ DN 80	■ DN 40 ■ DN 100	■ DN 50 ■ DN 125	■ DN 65
ASME B16.5-2017	■ 1" ■ 3"	■ 1 ½" ■ 4"	■ 2" ■ 5"	■ 2 ½"
GOST 33259	■ DN 25 ■ DN 80	■ DN 40 ■ DN 100	■ DN 50 ■ DN 125	■ DN 65
API 6A	■ 1 1/8"	■ 1 1/16"	■ 1 13/16"	■ 2 1/16"
JIS B2220	■ DN 25A ■ DN 100A	■ DN 40A	■ DN 50A	■ DN 80A

Process connection

Sealing face
DIN EN 1092-1	■ Form B1 ■ Form A ■ Form B2 ■ Form C (tongue)	■ Form D (groove) ■ Form E (spigot) ■ Form F (recess)
ASME B16.5-2017	■ RF 125 ... 250 AA ■ RFSF ■ Flat face ■ Small tongue ■ Small male face ■ Small groove	■ Small female face ■ Large tongue ■ Large male face ■ Large groove ■ Large female face ■ RJF groove
GOST 33259	■ Type B ■ Type A (flat face) ■ Type C (tongue)	■ Type D (groove) ■ Type E (spigot, male face) ■ Type F (recess, female face)
API 6A	Ring-joint groove
JIS B2220	RF
Wetted parts	Diaphragm and raised face →See tables below for material selection
Origin of wetted parts	■ International ■ Exclusively from EU, CH, GB, US, CA
Level of cleanliness of wetted parts 2)	■ Oil- and grease-free perWIKA specification (< 1,000 mg/m 2 ) ■ Oil- and grease-free per ASTM G93-03 level D (< 220 mg/m 2 )

View all (19)

Material combination	Maximum permissible temperature 1) in °C [°F]
Upper body of dia -	Wetted parts
phragm seal Stainless steel 1.4404 (316L)	Stainless steel 1.4404 / 1.4435 (316L)	400 [752]
Hastelloy C22 (2.4602) 2)	260 [500]
Hastelloy C276 (2.4819) 2) 3)	400 [752]
Inconel 600 (2.4816) 2)	400 [752]
Inconel 625 (2.4856) 2)	400 [752]
Incoloy 825 (2.4858) 2)	400 [752]
Monel 400 (2.4360) 2)	400 [752]
Nickel 200 (2.4066) 2)	260 [500]
Nickel 201 (2.4068) 2)	260 [500]
Titanium grade 2 (3.7035) 2)	150 [302]
Titanium grade 11 (3.7225) 2)	150 [302]
Tantalum 2) 3)	300 [572]
Titanium grade 7 (3.7235)	Titanium grade 7 (3.7235) / Titanium grade 11 (3.7225)	250 [482]

Material	Maximum permissible 1)
Upper body of diaphragm seal and wetted parts	temperature
Stainless steel 1.4435 (316L)	400 [752]
Stainless steel 1.4539 (904L)	400 [752]
Stainless steel 1.4541 (321)	400 [752]
Stainless steel 1.4571 (316Ti)	400 [752]
Duplex 2205 (1.4462)	250 [482]
Superduplex 2507 (1.4410)	250 [482]
Hastelloy C22 (2.4602)	400 [752]
Hastelloy C276 (2.4819)	400 [752]
Inconel 600 (2.4816)	400 [752]
Inconel 625 (2.4856)	400 [752]
Incoloy 825 (2.4858)	400 [752]
Monel 400 (2.4360)	400 [752]
Nickel 200 (2.4066)	300 [572]
Nickel 201 (2.4068)	400 [752]
Titanium grade 2 (3.7035)	300 [572]

Material of coating 1)	Maximum permissible temperature 2) in °C [°F]
Wetted parts
ECTFE	150 [302]
PFA (perfluoroalkoxy), FDA	260 [500]
PFA (perfluoroalkoxy), anti-static	260 [500]
Gold	400 [752]
Wikaramic ®	400 [752]

Logo	Description	Country
-	CRN Safety (e.g. electr.	Canada

Logo	Description	Country
-	MTSCHS Permission for commissioning	Kazakhstan

Certificates

Certificates	■ 2.2 test report per EN 10204 (e.g. state-of-the-art manufacturing, material proof, indication accuracy for diaphragm seal systems) ■ 3.1 inspection certificate per EN 10204 (e.g. material proof for wetted metal parts, indication accuracy for diaphragm seal systems)

DN	PN	Dimensions in mm[in]	x	Weight in kg [lb]
Mb	D	b	d 2	k	f	d₄
25	10/40	32 [1.26]	115 [4.528]	18 [0.709]	14 [0.551]	85 [3.346]	2 [0.079]	68 [2.677]	4	1.5 [3.3]
63/100	25 [0.984]	140 [0.984]	24 [0.945]	18 [0.709]	100 [3.937]	2 [0.079]	68 [2.677]	4	2.5 [5.5]
40	10/40	45 [1.772]	150 [5.905]	18 [0.709]	18 [0.709]	110 [4.331]	2 [0.079]	88 [3.465]	4	2.6 [5.7]
63/100	45 [1.772]	170 [6.693]	26 [1.024]	22 [0.866]	125 [4.921]	2 [0.079]	88 [3.465]	4	4.0 [8.8]
160	45 [1.772]	170 [6.693]	28 [1.102]	22 [0.866]	125 [4.921]	2 [0.079]	88 [3.465]	4	4.3 [9.5]
250	45 [1.772]	185 [2.283]	34 [1.339]	26 [1.024]	135 [5.315]	2 [0.079]	88 [3.465]	4	6.3 [13.9]
50	10/40	59 [2.323]	165 [6.496]	20 [0.787]	18 [0.709]	125 [4.921]	2 [0.079]	102 [4.016]	4	3.3 [7.3]
63	59 [2.323]	180 [7.087]	26 [1.024]	22 [0.866]	135 [5.315]	2 [0.079]	102 [4.016]	4	5.1 [11.2]
100	59 [2.323]	195 [7.677]	28 [1.102]	26 [1.024]	145 [5.709]	2 [0.079]	102 [4.016]	4	6.5 [14.3]
160	59 [2.323]	195 [7.677]	30 [1.181]	26 [1.024]	145 [5.709]	2 [0.079]	102 [4.016]	4	7.0 [15.4]
250	59 [2.323]	200 [7.874]	38 [1.496]	26 [1.024]	150 [5.906]	2 [0.079]	102 [4.016]	8	9.3 [20.5]
80	10/16	89 [3.504]	200 [7.874]	20 [0.787]	18 [0.709]	160 [6.299]	2 [0.079]	138 [5.433]	8	4.9 [10.8]
25/40	89 [3.504]	200 [7.874]	24 [0.945]	18 [0.709]	160 [6.299]	2 [0.079]	138 [5.433]	8	5.8 [12.8]
63	89 [3.504]	215 [8.465]	28 [1.102]	22 [0.866]	170 [6.693]	2 [0.079]	138 [5.433]	8	7.9 [17.4]
100	89 [3.504]	230 [9.055]	32 [1.26]	26 [1.024]	180 [7.087]	2 [0.079]	138 [5.433]	8	10.4 [22.9]
160	89 [3.504]	230 [9.055]	36 [1.487]	26 [1.024]	180 [7.087]	2 [0.079]	138 [5.433]	8	11.7 [25.8]
250	89 [3.504]	255 [10.039]	46 [1.811]	30 [1.181]	200 [7.874]	2 [0.079]	138 [5.433]	8	18.4 [40.6]
100	10/16	89 [3.504]	220 [8.661]	20 [0.787]	18 [0.709]	180 [7.087]	2 [0.079]	158 [6.22]	8	5.9 [13]
25/40	89 [3.504]	235 [9.252]	24 [0.945]	22 [0.866]	190 [7.480]	2 [0.079]	162 [6.378]	8	8.1 [17.9]
63	89 [3.504]	250 [9.842]	30 [1.181]	26 [1.024]	200 [7.874]	2 [0.079]	162 [6.378]	8	11.5 [25.3]
100	89 [3.504]	265 [10.433]	36 [1.487]	30 [1.181]	210 [8.268]	2 [0.079]	162 [6.378]	8	15.5 [34.2]
160	89 [3.504]	265 [10.433]	40 [1.575]	30 [1.181]	210 [8.268]	2 [0.079]	162 [6.378]	8	17.3 [38.1]
250	89 [3.504]	300 [11.811]	54 [2.126]	33 [1.299]	235 [9.252]	2 [0.079]	162 [6.378]	8	29.9 [65.9]
125	10/16	124 [4.882]	250 [9.842]	22 [0.866]	18 [0.709]	210 [8.268]	2 [0.079]	188 [7.402]	8	8.4 [18.5]
25/40	124 [4.882]	270 [10.63]	26 [1.024]	26 [1.024]	220 [8.661]	2 [0.079]	188 [7.402]	8	11.6 [25.6]
63	124 [4.882]	295 [11.614]	34 [1.339]	30 [1.181]	240 [9.449]	2 [0.079]	188 [7.402]	8	16.5 [36.4]
100	124 [4.882]	315 [12.412]	40 [1.575]	33 [1.299]	250 [9.842]	2 [0.079]	188 [7.402]	8	24.4 [53.8]
160	124 [4.882]	315 [12.412]	44 [1.732]	33 [1.299]	250 [9.842]	2 [0.079]	188 [7.402]	8	26.9 [59.3]
250	124 [4.882]	340 [13.386]	60 [2.342]	33 [1.299]	275 [10.827]	2 [0.079]	188 [7.402]	12	42.7 [94.1]

Flange material	DN	PN	Maximum allowable pressure in bar [psi] at ambient temperature 21 °C [60.8 °F]
Nickel 200 (2.4066)	25, 40, 50, 80, 100, 125	10	7.4 [107]
16	11.9 [172]
25	18.6 [269]
40	29.7 [430]
63	46.8 [678]
100	74.4 [1,078]
160	119 [1,725]
250	186 [2,697]
Nickel 201 (2.4068)	25, 40, 50, 80, 100, 125	10	6.2 [89]
16	10 [145]
25	15.6 [226]
40	25 [362]
63	39.3 [569]
100	62.5 [906]
160	100 [1,450]
250	156.2 [2,264]

DN	Class	Dimensions in mm[in]	x	Weight in kg [lb]
Mb	D	b	d 2	k	f	d 4
1"	150	32 [1.26]	110 [4.331]	14.7 [0.579]	16 [0.63]	79.4 [3.126]	2 [0.079]	51 [2.008]	4	1.4 [3.1]
300	32 [1.26]	125 [4.921]	17.9 [0.705]	19 [0.748]	88.9 [3.5]	2 [0.079]	51 [2.008]	4	1.7 [3.7]
1 ½"	150	45 [1.772]	125 [4.921]	17.9 [0.705]	16 [0.63]	98.4 [3.874]	2 [0.079]	73 [2.874]	4	1.6 [3.5]
300	45 [1.772]	155 [6.102]	21.1 [0.831]	22 [0.866]	114.3 [4.5]	2 [0.079]	73 [2.874]	4	2.5 [5.5]
600	45 [1.772]	155 [6.102]	29.3 [1.154]	22 [0.866]	114.3 [4.5]	7 [0.276]	73 [2.874]	4	3.3 [7.2]
1,500	45 [1.772]	180 [7.087]	38.8 [1.528]	29 [1.142]	123.8 [4.874]	7 [0.276]	73 [2.874]	4	5.9 [13]
2,500	45 [1.772]	205 [8.071]	51.5 [2.078]	32 [1.26]	146 [5.748]	7 [0.276]	73 [2.874]	4	10.4 [22.9]
2"	150	59 [2.323]	150 [5.905]	19.5 [0.768]	19 [0.748]	120.7 [4.752]	2 [0.079]	92 [3.622]	4	2.7 [6]
300	59 [2.323]	165 [6.496]	22.7 [0.894]	19 [0.748]	127 [5]	2 [0.079]	92 [3.622]	8	3.7 [8.1]
600	59 [2.323]	165 [6.496]	32.4 [1.276]	19 [0.748]	127 [5]	7 [0.276]	92 [3.622]	8	5.7 [12.6]
1,500	59 [2.323]	215 [8.465]	45.1[1.776]	26 [1.024]	165.1 [6.5]	7 [0.276]	92 [3.622]	8	13.2 [29]
2,500	59 [2.323]	235 [9.252]	57.9 [2.28]	29 [1.142]	171.4 [6.748]	7 [0.276]	92 [3.622]	8	19.8 [43.7]
3"	150	89 [3.504]	190 [7.482]	24.3 [0.957]	19 [0.748]	152.4 [6]	2 [0.079]	127 [5]	4	5.3 [11.7]
300	89 [3.504]	210 [8.268]	29 [1.142]	22 [0.866]	168.3 [6.626]	2 [0.079]	127 [5]	8	7.8 [17.2]
600	89 [3.504]	210 [8.268]	38.8 [1.528]	22 [0.866]	168.3 [6.626]	7 [0.276]	127 [5]	8	11 [24.3]
900	89 [3.504]	240 [9.449]	45.1 [1.776]	26 [1.024]	190.5 [7.7]	7 [0.276]	127 [5]	8	16.7 [36.8]
1,500	89 [3.504]	265 [10.433]	54.7 [1.799]	32 [1.26]	203.2 [8]	7 [0.276]	127 [5]	8	24.5 [54]
2,500	89 [3.504]	305 [12.007]	73.7 [2.902]	35 [1.378]	228.6 [5.063]	7 [0.276]	127 [5]	8	42.7 [94.1]
4"	150	89 [3.504]	230 [9.055]	24.3 [0.957]	19 [0.748]	190.5 [7.5]	2 [0.079]	157.2 [6.189]	8	7.7 [17]
300	89 [3.504]	255 [10.039]	32.2 [1.268]	22 [0.866]	200 [7.874]	2 [0.079]	157.2 [6.189]	8	12.7 [28]
400	89 [3.504]	255 [10.039]	42 [1.654]	26 [1.024]	200 [7.874]	7 [0.276]	157.2 [6.189]	8	17.4 [38.4]
600	89 [3.504]	275 [10,826]	45.1 [1.776]	26 [1.024]	215.9 [8.5]	7 [0.276]	157.2 [6.189]	8	21.5 [47.4]
900	89 [3.504]	290 [11,417]	51.5 [2.028]	32 [1.26]	235 [9.252]	7 [0.276]	157.2 [6.189]	8	27.7 [61.1]
1,500	89 [3.504]	310 [12.205]	61 [2.402]	35 [1.378]	241.3 [9.5]	7 [0.276]	157.2 [6.189]	8	37 [81.6]
2,500	89 [3.504]	355 [13.976]	83.2 [3.276]	42 [1.654]	273 [10.748]	7 [0.276]	157.2 [6.189]	8	65.7 [144.8]
5"	150	124 [4.882]	255 [10.039]	24.3 [0.957]	22 [0.866]	215.9 [8.5]	2 [0.079]	185.7 [7.311]	8	9.2 [20.3]
	300	124 [4.882]	280 [11.024]	35.4 [1.394]	22 [0.866]	235 [9.25]	2 [0.079]	185.7 [7.311]	8	16.3 [35.9]
	400	124 [4.882]	280 [11.024]	45.1 [2.13]	26 [1.024]	235 [9.25]	7 [0.276]	185.7 [7.311]	8	19.3 [42.5]
	600	124 [4.882]	330 [13]	51.5 [2.028]	29 [1.142]	266.7 [10.5]	7 [0.276]	185.7 [7.311]	8	30.5 [67.2]
	900	124 [4.882]	350 [13.78]	57.8 [2.278]	35 [1.378]	279.4 [11]	7 [0.276]	185.7 [7.311]	8	38 [83.8]
	1,500	124 [4.882]	375 [14.764]	80.1 [3.154]	42 [1.654]	292.1 [11.5]	7 [0.276]	185.7 [7.311]	8	60.1 [132.5]
	2,500	124 [4.882]	420 [16.535]	99.1 [3.902]	48 [1.189]	323.8 [12.75]	7 [0.276]	185.7 [7.311]	8	93.6 [206.4]

DN	PN	Dimensions in mm[in]	x	Weight in kg [lb]
Mb	D	b	d 2	k	f	d 4
50	10/16	59 [2.323]	160 [6.3]	16 [0.63]	18 [0.709]	125 [4.921]	3 [0.118]	102 [4.016]	4	2.4 [5.3]
25/40	59 [2.323]	160 [6.3]	20 [0.787]	18 [0.709]	125 [4.921]	3 [0.118]	102 [4.016]	4	3 [6.6]
63	59 [2.323]	175 [6.89]	26 [1.024]	22 [0.866]	135 [5.315]	3 [0.118]	102 [4.016]	4	4.5 [9.9]
100	59 [2.323]	195 [7.677]	28 [1.102]	26 [1.024]	145 [5.709]	3 [0.118]	102 [4.016]	4	5.6 [12.3]
160	59 [2.323]	195 [7.677]	30 [1.181]	26 [1.024]	145 [5.709]	3 [0.118]	102 [4.016]	4	6.4 [14.1]
200	59 [2.323]	210 [8.268]	40 [1.575]	26 [1.024]	160 [6.299]	3 [0.118]	102 [4.016]	8	9.4 [20.7]
80	10	89 [3.504]	195 [7.677]	18 [0.709]	18 [0.709]	160 [6.299]	3 [0.118]	133 [5.236]	4	4 [8.8]
16	89 [3.504]	195 [7.677]	20 [0.787]	18 [0.709]	160 [6.299]	3 [0.118]	133 [5.236]	4	4.5 [9.9]
25	89 [3.504]	195 [7.677]	22 [0.866]	18 [0.709]	160 [6.299]	3 [0.118]	133 [5.236]	8	4.8 [10.6]
40	89 [3.504]	195 [7.677]	24 [0.945]	18 [0.709]	160 [6.299]	3 [0.118]	133 [5.236]	8	5.2 [11.5]
63	89 [3.504]	210 [7.677]	30 [1.181]	22 [0.866]	170 [6.693]	3 [0.118]	133 [5.236]	8	7.4 [16.3]
100	89 [3.504]	230 [9.055]	34 [1.339]	26 [1.024]	180 [7.087]	3 [0.118]	133 [5.236]	8	9.8 [21.6]
160	89 [3.504]	230 [9.055]	36 [1.417]	26 [1.024]	180 [7.087]	3 [0.118]	133 [5.236]	8	10.4 [22.9]
200	89 [3.504]	290 [11.417]	54 [2.126]	33 [1.299]	230 [9.055]	3 [0.118]	133 [5.236]	8	24.7 [54.5]
100	10/16	89 [3.504]	215 [8.465]	20 [0.787]	18 [0.709]	180 [7.087]	3 [0.118]	158 [6.22]	8	5.3 [11.7]
25	89 [3.504]	230 [9.055]	24 [0.945]	22 [0.866]	190 [7.48]	3 [0.118]	158 [6.22]	8	7.1 [15.7]
40	89 [3.504]	230 [9.055]	26 [1.024]	22 [0.866]	190 [7.48]	3 [0.118]	158 [6.22]	8	7.8 [17.2]
63	89 [3.504]	250 [9.842]	32 [1.26]	26 [1.024]	200 [7.874]	3 [0.118]	158 [6.22]	8	11.1 [24.5]
100	89 [3.504]	265 [10.433]	38 [1.496]	30 [1.181]	210 [8.268]	3 [0.118]	158 [6.22]	8	14.5 [32]
160	89 [3.504]	265 [10.433]	40 [1.575]	30 [1.181]	210 [8.268]	3 [0.118]	158 [6.22]	8	15.3 [33.7]
200	89 [3.504]	360 [14.173]	66 [2.598]	39 [1.535]	292 [11.496]	3 [0.118]	158 [6.22]	8	47.2 [104.1]
125	10/16	89 [3.504]	245 [9.646]	22 [0.866]	18 [0.709]	210 [8.268]	3 [0.118]	184 [7.244]	8	7.7 [17]
25	89 [3.504]	270 [10.63]	26 [1.024]	26 [1.024]	220 [8.661]	3 [0.118]	184 [7.244]	8	10.6 [23.4]
40	89 [3.504]	270 [10.63]	28 [1.102]	26 [1.024]	220 [8.661]	3 [0.118]	184 [7.244]	8	11.4 [25.1]
63	89 [3.504]	295 [11.614]	36 [1.417]	30 [1.181]	240 [9.449]	3 [0.118]	184 [7.244]	8	17.4 [38.4]
100	89 [3.504]	310 [12.205]	42 [1.654]	33 [1.299]	250 [9.842]	3 [0.118]	184 [7.244]	8	22.3 [49.2]
160	89 [3.504]	310 [12.205]	44 [1.732]	33 [1.299]	250 [9.842]	3 [0.118]	184 [7.244]	8	23.4 [51.6]
200	89 [3.504]	385 [15.157]	76 [2.992]	39 [1.535]	318 [12.52]	3 [0.118]	184 [7.244]	8	63.2 [139.3]

DN	PN in psi	Dimensions in mm[in]	x	Groove dimensions in mm[in]	Weight in kg [lb]
Mb	D	d₂	d₄	f	b	k	P₁	P₂	E	F
1 13/16 "	10,000	40 [1.575]	185 [7.283]	23 [0.906]	105 [4.134]	4 [0.157]	42.1 [1.657]	146.1 [5.752]	8	-	77.77 [3.062]	5.56 [21.89]	11.84 [0.466]	7.7 [17]
15,000	40 [1.575]	210 [8.268]	26 [1.024]	106 [4.173]	4 [0.157]	45.3 [1.783]	160.3 [6.311]	8	-	77.77 [3.062]	5.56 [21.89]	11.84 [0.466]	10.5 [23.1]
20,000	40 [1.575]	255 [10.039]	29 [1.142]	117 [4.606]	4 [0.157]	63.5 [2.5]	203.2 [8]	8	-	77.77 [3.062]	5.56 [21.89]	11.84 [0.466]	22.3 [49.2]
2 1/16 "	2,000	52 [2.047]	165 [6.496]	20 [0.787]	108 [4.252]	8 [0.315]	33.4 [1.315]	127 [5]	8	82.55 [3.25]	-	7.9 [0.311]	11.91 [0.469]	4.6 [10.1]
3,000/ 5,000	52 [2.047]	215 [8.465]	26 [1.024]	124 [4.882]	8 [0.315]	46.1 [1.815]	165.1 [6.5]	8	95.25 [3.75]	-	7.9 [0.311]	11.91 [0.469]	10.7 [23.6]
10,000	52 [2.047]	200 [7.874]	23 [0.906]	111 [4.370]	4 [0.157]	44.1 [1.736]	158.8 [6.252]	8	-	86.23 [3.395]	5.95 [0.234]	12.65 [0.498]	9.5 [20.9]
15,000	52 [2.047]	220 [8.661]	26 [1.024]	114 [4.488]	4 [0.157]	50.8 [2]	174.6 [6.874]	8	-	86.23 [3.395]	5.95 [0.234]	12.65 [0.498]	13.2 [29.1]
20,000	52 [2.047]	285 [11.22]	32 [1.26]	132 [5.197]	4 [0.157]	71.5 [2.815]	230.2 [9.063]	8	-	86.23 [3.395]	5.95 [0.234]	12.65 [0.498]	31.6 [69.7]
2 9/16 "	2,000	59 [2.323]	190 [7.48]	23 [0.906]	127 [5]	8 [0.315]	36.6 [1.441]	149.2 [5.874]	8	101.6 [4]	-	7.9 [3.11]	11.91 [0.469]	6.7 [14.8]
3,000/ 5,000	59 [2.323]	245 [9.656]	29 [1.142]	137 [5.394]	8 [0.315]	49.3 [1.941]	190.5 [7.5]	8	107.95 [2.25]	-	7.9 [3.11]	11.91 [0.469]	15 [33.1]
10,000	59 [2.323]	230 [9.055]	26 [1.024]	132 [5.197]	4 [0.157]	51.2 [2.016]	184.2 [7.252]	8	-	102.77 [4.046]	6.75 [0.266]	14.07 [0.579]	14.7 [32.4]
15,000	59 [2.323]	255 [10.039]	29 [1.142]	133 [5.236]	4 [0.157]	57.2 [2.055]	200 [7.874]	8	-	102.77 [4.046]	6.75 [0.266]	14.07 [0.579]	20.1 [44.3]
20,000	59 [2.323]	325 [12.795]	35 [1.378]	151 [5.945]	4 [0.157]	79.4 [3.126]	261.9 [10.311]	8	-	102.77 [4.046]	6.75 [0.266]	14.07 [0.579]	46.3 [102]
3 1/8 "	2,000	89 [3.504]	210 [8.268]	23 [0.906]	146 [5.748]	7.9 [0.311]	39.7 [1.563]	168.3 [6.626]	8	123.83 [4.875]	-	7.9 [0.311]	11.91 [0.469]	9.2 [20.3]
3,000	89 [3.504]	240 [9.449]	26 [1.024]	156 [6.142]	8 [0.315]	46.1 [1.815]	190.5 [7.5]	8	123.83 [4.875]	-	7.9 [0.311]	11.91 [0.469]	13.9 [30.6]
5,000	89 [3.504]	265 [10.433]	32 [1.26]	168 [6.614]	7.9 [0.311]	55.6 [2.189]	203.2 [8]	8	136.53 [5.375]	-	7.9 [0.311]	11.91 [0.469]	20.2 [44.5]

DN	PN	Dimensions in mm[in]	x	Weight in kg [lb]
Mb	D	b	d₂	k	f	d₄
25A	5K	32 [1.26]	95 [3.74]	10 [0.394]	12 [0.472]	75 [2.953]	1 [0.039]	59 [2.323]	4	0.7 [1.5]
10K	32 [1.26]	125 [4.921]	14 [0.551]	19 [0.748]	90 [3.543]	1 [0.039]	67 [2.638]	4	1.4 [3.1]
16K	32 [1.26]	125 [4.921]	14 [0.551]	19 [0.748]	90 [3.543]	1 [0.039]	67 [2.638]	4	1.4 [3.1]
20K	32 [1.26]	125 [4.921]	16 [0.63]	19 [0.748]	90 [3.543]	1 [0.039]	67 [2.638]	4	1.6 [3.5]
30K	32 [1.26]	130 [5.118]	20 [0.787]	19 [0.748]	95 [3.740]	1 [0.039]	70 [2.756]	4	2.1 [4.6]
40K	25 [0.984]	130 [5.118]	22 [0.866]	19 [0.748]	95 [3.740]	1 [0.039]	70 [2.756]	4	2.3 [5.1]
63K	25 [0.984]	140 [5.512]	27 [1.063]	23 [0.906]	100 [3.967]	1 [0.039]	70 [2.756]	4	3.1 [6.9]
50A	5K	59 [2.323]	130 [5.118]	14 [0.551]	15 [0.591]	105 [4.134]	2 [0.079]	85 [3.346]	4	1.5 [3.3]
10K	59 [2.323]	155 [6.102]	16 [0.63]	19 [0.748]	120 [4.724]	2 [0.079]	96 [3.78]	4	2.3 [5.1]
16K	59 [2.323]	155 [6.102]	16 [0.63]	19 [0.748]	120 [4.724]	2 [0.079]	96 [3.78]	8	2.2 [4.9]
20K	59 [2.323]	155 [6.102]	18 [0.709]	19 [0.748]	120 [4.724]	2 [0.079]	96 [3.78]	8	2.4 [5.3]
30K	59 [2.323]	165 [6.496]	22 [0.866]	19 [0.748]	130 [5.118]	2 [0.079]	105 [4.134]	8	3.4 [7.5]
40K	59 [2.323]	165 [6.496]	26 [1.024]	19 [0.748]	130 [5.118]	2 [0.079]	105 [4.134]	8	4.0 [8.8]
63K	59 [2.323]	185 [7.83]	34 [1.339]	23 [0.906]	145 [5.709]	2 [0.079]	105 [4.134]	8	6.4 [14.1]
80A	5K	89 [3.504]	180 [7.087]	14 [0.551]	19 [0.748]	145 [5.709]	2 [0.079]	121 [4.764]	4	2.7 [6]
10K	89 [3.504]	185 [7.83]	18 [0.709]	19 [0.748]	150 [5.905]	2 [0.079]	126 [4.961]	8	3.5 [7.7]
16K	89 [3.504]	200 [7.874]	20 [0.787]	23 [0.906]	160 [6.299]	2 [0.079]	132 [5.197]	8	4.5 [9.9]
20K	89 [3.504]	200 [7.874]	22 [0.866]	23 [0.906]	160 [6.299]	2 [0.079]	132 [5.197]	8	4.9 [10.8]
30K	89 [3.504]	210 [8.268]	28 [1.102]	23 [0.906]	170 [6.693]	2 [0.079]	140 [5.512]	8	7 [15.4]
40K	89 [3.504]	210 [8.268]	32 [1.26]	23 [0.906]	170 [6.693]	2 [0.079]	140 [5.512]	8	8 [17.6]
63K	89 [3.504]	230 [9.055]	40 [1.575]	25 [0.984]	185 [7.83]	2 [0.079]	140 [5.512]	8	11.9 [26.2]
100A	5K	89 [3.504]	200 [7.874]	16 [0.63]	19 [0.748]	165 [6.496]	2 [0.079]	141 [5.551]	8	3.7 [8.2]
10K	89 [3.504]	210 [8.268]	18 [0.709]	19 [0.748]	175 [6.89]	2 [0.079]	151 [5.945]	8	4.6 [10.1]
16K	89 [3.504]	225 [8.858]	22 [0.866]	23 [0.906]	185 [7.83]	2 [0.079]	160 [6.299]	8	6.4 [14.1]
20K	89 [3.504]	225 [8.858]	24 [0.945]	23 [0.906]	185 [7.83]	2 [0.079]	160 [6.299]	8	6.9 [15.2]
30K	89 [3.504]	240 [9.449]	32 [1.26]	25 [0.984]	195 [7.677]	2 [0.079]	160 [6.299]	8	10.4 [22.9]
40K	89 [3.504]	250 [9.852]	36 [1.417]	25 [0.984]	205 [8.071]	2 [0.079]	165 [6.496]	8	12.8 [28.2]
63K	89 [3.504]	270 [10.63]	44 [1.732]	27 [1.063]	220 [8.661]	2 [0.079]	165 [6.496]	8	18.2 [40.1]

Flange material	DN	PN	Maximum allowable pressure in MPa [psi] at ambient temperature 21 °C [60.8 °F]
Nickel 200 (2.4066)	25A, 50A, 80A, 100A	5K	0.4 [63]
10K	0.8 [126]
16K	1.6 [244]
20K	2.1 [308]
30K	3.1 [462]
40K	4.2 [616]
63K	6.6 [969]
Nickel 201 (2.4068)	25A, 50A, 80A, 100A	5K	0.3 [53]
10K	0.7 [106]
16K	1.4 [205]
20K	1.7 [258]
30K	2.6 [388]
40K	3.5 [517]
63K	5.6 [814]
Monel 400 (2.4360)	25A, 50A, 80A, 100A	5K	0.4 [69]
10K	0.9 [138]
16K	1.8 [266]
20K	2.3 [335]
30K	3.4 [502]
40K	4.6 [670]
63K	7.2 [1,055]
Inconel 600 (2.4816)	25A, 50A, 80A, 100A	5K	0.5 [73]
10K	1 [146]
16K	1.9 [281]
20K	2.4 [355]
30K	3.6 [532]
40K	4.8 [710]
63K	7.7 [1,117]
Incoloy 825 (2.4558)	25A, 50A, 80A, 100A	5K	0.6 [89]
10K	1.2 [178]
16K	2.3 [344]
20K	2.9 [433]
30K	4.4 [650]
40K	5.9 [867]
63K	9.4 [1,365]
Titanium grade 2 (3.7035)	25A, 50A, 80A, 100A	5K	0.6 [87]
10K	1.2 [175]
16K	2.3 [337]
20K	2.9 [425]
30K	4.3 [637]
40K	5.8 [850]
63K	9.2 [1,338]

Flange material	DN	PN	Maximum allowable pressure in MPa [psi] at ambient temperature 21 °C [60.8 °F]
Titanium grade 7 (3.7235)	25A, 50A, 80A, 100A	5K	0.6 [87]
10K	1.2 [175]
16K	2.3 [337]
20K	2.9 [425]
30K	4.3 [637]
40K	5.8 [850]
63K	9.2 [1,338]

	Description Order	number
910.27	Flushing ring for flange-connection diaphragm seals →See data sheet AC 09.05	On request
IBF2, IBF3	Monoblock with flange connection →See data sheet AC 09.25	On request
910.16	Instrument mounting bracket form H per DIN 16281, 100 mm, aluminium, black	9091858
	Instrument mounting bracket form H per DIN 16281, 100 mm, stainless steel	9091882
	→See data sheet AC 09.05	On request

Diaphragm seal with flange connection

Description

Special features

1 standard articles of family 990
