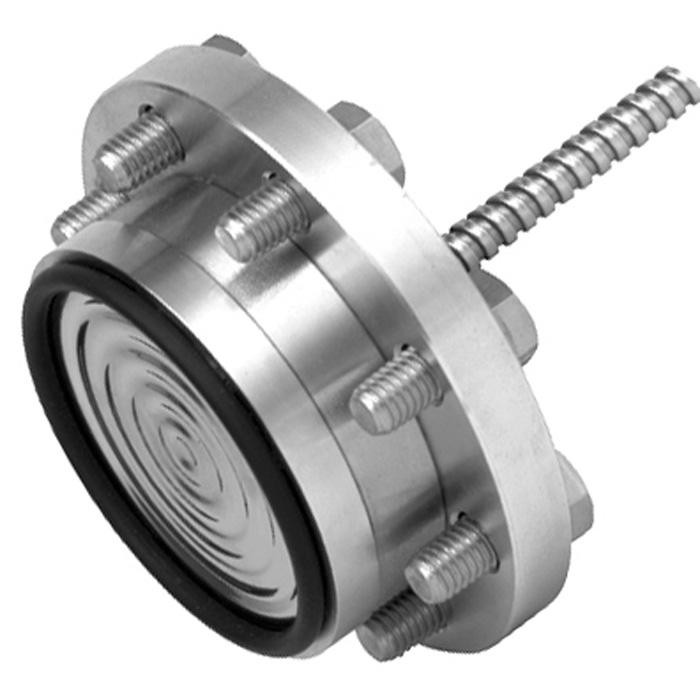

Diaphragm seal with flange connection
Diaphragm seal with flange connection for block or saddle flange, suitable for aggressive, contaminated, highly viscous or hot media in process industry applications.
Range
0…250 bar
EACCRNMTSCHS
Price
On request
Depends on configuration
Description
Diaphragm seals are used for the protection of pressure measuring instruments in applications with difficult media. In diaphragm seal systems, the diaphragm of the diaphragm seal effects the separation of the instrument and the medium. The pressure is transmitted to the measuring instrument via the system fill fluid which is inside the diaphragm seal system.
For the implementation of demanding customer applications, there are a wide variety of designs, materials and system fill fluids available.
For further technical information on diaphragm seals and diaphragm seal systems see IN 00.06 'Application, operating principle, designs'.
Special features
- Flush diaphragm
- Process connection to provide for direct threaded connection with block flange or saddle flange
Configurator · Step by step
Build a H990.15 for your task
The article number is assembled automatically. If unsure — ask an engineer; we'll match the line's parameters.
Step 1 of 3
Your configuration
- Nominal pressure ratingPN 100
- Process connection specificationfor Block flange (plain pipe) Model 910.19 up to and including DN 50
- Upper body material / main body material—
- Diaphragm material—
- Gasket—
- Fastening partsRetainer flange and bolts in stainless steel
- AccessoriesWithout
- Additional ordering informationWithout
AI suggestion by parameters
Finish your configuration
Select every option to submit the request.
Identification
| Model | 990.15 |
| Product family | 990 |
| Subcategory | Diaphragm seal |
Measuring range
| Pressure ranges | 0…0.6 bar · 0…250 bar · 0…8.7 psi · 0…3600 psi |
Process conditions
| Process connection | M 8M 12G1/2 |
| Process temperature | ≤ +400 °C |
Materials
| Case material | Stainless steel 1.4404 (316L), Stainless steel 1.4435 (316L), Stainless steel 1.4539 (904L), Stainless steel 1.4541 (321), Stainless steel 1.4571 (316Ti), Duplex 2205 (1.4462), Superduplex (1.4410), Hastelloy C22 (2.4602), Hastelloy C276 (2.4819), Inconel 600 (2.4816), Inconel 625 (2.4856), Incoloy 825 (2.4858), Monel 400 (2.4360), Nickel 200 (2.4060, 2.4066), Titanium grade 2 (3.7035), Titanium grade 7 (3.7235), Titanium grade 11 (3.7225) |
| Wetted parts material | Stainless steel 1.4539 (904L), Stainless steel 1.4541 (321), Stainless steel 1.4571 (316Ti), ECTFE coating, Gold plating, Hastelloy C22 (2.4602), Hastelloy C276 (2.4819), Inconel 600 (2.4816), Inconel 625 (2.4856), Incoloy 825 (2.4858), Monel 400 (2.4360), Titanium grade 2 (3.7035), Titanium grade 11 (3.7225), Tantalum, Stainless steel 1.4404 / 1.4435 (316L), Nickel 200 (2.4060, 2.4066), PFA (perfluoroalkoxy) coating, Ceramic coating wikaramic®, PFA (perfluoroalkoxy) coating, FDA, PFA (perfluoroalkoxy) coating, antistatic, Ceramic coating wikaramic, Stainless steel 1.4404 (316L), Duplex 2205 (1.4462), Superduplex (1.4410) |
| Sealing material | FPM, PTFE, Metal (1.4571 silver-plated or Inconel silver-plated) |
Certifications and approvals
| Certifications | EACCRNMTSCHS |
Additional details
| Datasheet languages | EN, DE |
Tables from datasheet
| Model 990.15 | Standard | Option |
|---|---|---|
| Pressure ranges | 0 ... 0.6 bar [0 ... 8.7 psi] to 0 ... 250 bar [0 ... 3,600 psi] | |
| Level of cleanliness of wetted parts | Oil and grease free per ASTM G93-03 level FWIKA standard (< 1,000 mg/m²) | ■ Oil and grease free per ASTM G93-03 level D and ISO 15001 (< 220 mg/m 2 ) ■ Oil and grease free per ASTM G93-03 level C and ISO 15001 (< 66 mg/m²) |
| Origin of wetted parts | International | EU, CH, USA |
| Connection to the measuring instrument | Axial adapter G1/2 | - |
| Sealing | FPM to 200 °C [392 °F] | ■ PTFE to 260 °C [500 °F] ■ Metal (1.4571 silver-plated or lnconel silver-plated) to 400 °C [932 °F] |
| Type of mounting | Direct mounting | ■ Capillary ■ Cooling element |
| Assembly parts for process connection | ■ Retainer flange ■ Hexagon screws ■ Pressure ring ■ Sealing | - |
| Design per NACE | - | ■ MR0175 ■ MR0103 |
| Vacuum service (see IN 00.25) | Basic service | ■ Premium service ■ Advanced service |
| Instrument mounting bracket (only for capillary option) | - | ■ Form H per DIN 16281, 100 mm, aluminium, black ■ Form H per DIN 16281, 100 mm, stainless steel ■ Bracket for pipe mounting, for pipe Ø20 ... 80 mm, steel (see data sheet AC 09.07) |
| Upper body of diaphragm seal | Wetted parts | Maximum permissible process temperature ¹⁾ in °C [°F] |
|---|---|---|
| Stainless steel 1.4404 (316L) | Stainless steel 1.4404 / 1.4435 (316L), standard version | 400 [752] |
| Stainless steel 1.4539 (904L) | ||
| Stainless steel 1.4541 (321) | ||
| Stainless steel 1.4571 (316Ti) | ||
| ECTFE coating | 150 [302] | |
| PFA (perfluoroalkoxy) coating, FDA | 260 [500] | |
| PFA (perfluoroalkoxy) coating, antistatic | ||
| Gold plating | 400 [752] | |
| Ceramic coating wikaramic ® | ||
| Hastelloy C22 (2.4602) | 260 [500] | |
| Hastelloy C276 (2.4819) | 400 [752] | |
| Inconel 600 (2.4816) | ||
| Inconel 625 (2.4856) | ||
| Incoloy 825 (2.4858) | ||
| Monel 400 (2.4360) | ||
| Nickel 200 (2.4060, 2.4066) | 260 [500] | |
| Titanium grade 2 (3.7035) | 150 [302] | |
| Titanium grade 11 (3.7225) | ||
| Tantalum | 300 [572] | |
| Stainless steel 1.4435 (316L) | Stainless steel 1.4435 (316L) | 400 [752] |
| Stainless steel 1.4539 (904L) | Stainless steel 1.4539 (904L) | |
| Stainless steel 1.4541 (321) | Stainless steel 1.4541 (321) | |
| Stainless steel 1.4571 (316Ti) | Stainless steel 1.4571 (316Ti) | |
| Duplex 2205 (1.4462) | Duplex 2205 (1.4462) | 300 [572] |
| Superduplex (1.4410) | Superduplex (1.4410) | |
| Hastelloy C22 (2.4602) | Hastelloy C22 (2.4602) | 400 [752] |
| Hastelloy C276 (2.4819) | Hastelloy C276 (2.4819) | |
| Inconel 600 (2.4816) | Inconel 600 (2.4816) | |
| Inconel 625 (2.4856) | Inconel 625 (2.4856) | |
| Incoloy 825 (2.4558) | Incoloy 825 (2.4858) | |
| Monel 400 (2.4360) | Monel 400 (2.4360) | |
| Nickel 200 (2.4060, 2.4066) | Nickel 200 (2.4060, 2.4066) | |
| Titanium grade 2 (3.7035) | Titanium grade 2 (3.7035) | |
| Titanium grade 7 (3.7235) | Titanium grade 11 (3.7225) |
| Logo | Description | Country |
|---|---|---|
| EAC (option) Pressure equipment directive | Eurasian Economic Community | |
| - | CRN Safety (e.g. electr. safety, overpressure, ...) | Canada |
| - | MTSCHS (option) Permission for commissioning | Kazakhstan |
| PN in bar [psi] | Dimensions in mm[in] | G | ||
|---|---|---|---|---|
| D | k | H | ||
| 0 ... 100 [1,450] | 90 [3.543] | 73.5 [2.894] | 10 [0.394] | M8 |
| 100 ... 250 [1,450 ... 3,600] | 108 [4.252] | 84 [3.307] | 16 [0.63] | M12 |
View all (9)
| PN in bar [psi] | Dimensions in mm[in] | G | ||
|---|---|---|---|---|
| D | k | H | ||
| 0 ... 100 [1,450] | 90 [3.543] | 73.5 [2.894] | 10 [0.394] | M8 |
| 100 ... 250 [1,450 ... 3,600] | 108 [4.252] | 84 [3.307] | 16 [0.63] | M12 |
| PN in bar [psi] | Dimensions in mm[in] | G | ||
|---|---|---|---|---|
| D | k | H | ||
| 0 ... 100 [1,450] | 90 [3.543] | 73.5 [2.894] | 10 [0.394] | M8 |
| 100 ... 250 [1,450 ... 3,600] | 108 [4.252] | 84 [3.307] | 16 [0.63] | M12 |
| Material | Unified numbering system (UNS) |
|---|---|
| Stainless steel 316L (1.4404 or 1.4435) | S31603 |
| Stainless steel 904L (1.4539) | N08904 |
| Stainless steel 321 (1.4541) | S32100 |
| Stainless steel 316Ti (1.4571) | S31635 |
| Stainless steel 1.4466 (urea grade) | S31050 |
| Duplex 2205 (1.4462) | S31803 |
| Superduplex 1.4410 | S32750 |
| Tantalum (also lining) | R05200 |
| Hastelloy C276 (2.4819) | N01276 |
| Hastelloy C22 (2.4602) | N06022 |
| Inconel 600 (2.4816) | N06600 |
| Incoloy 825 (2.4858) | N08825 |
| Inconel 625 (2.485) | N06625 |
| Monel 400 (2.4360) | N04400 |
| Nickel 200 (2.4066) | N02200 |
| Nickel 201 (2.4068) | N02201 |
| Titanium 3.7035 (class 2) | R50400 |
| Titanium 3.7235 (class 7) | R52400 |
| Zirconium GR702 | R60702 |
| Designation | Identi- fication number | Solidi- fication point | Boiling/ degradation point | Density at 25 °C | Kin.Viscosity at 25 °C | Remark |
|---|---|---|---|---|---|---|
| KN | °C | °C | g/cm³ | cSt | ||
| Silicone oil | 2 | -45 | +300 | 0.96 | 54.5 | Universal application |
| Glycerine | 7 | -35 | +240 | 1.26 | 759.6 | FDA 21 CFR 182.1320 |
| Silicone oil | 17 | -90 | +200 | 0.92 | 4.4 | Low temperatures |
| Halocarbon | 21 | -60 | +175 | 1.89 | 10.6 | Oxygen 1) and chlorine |
| Methylcyclopentane | 30 | -130 | +60 | 0.74 | 0.7 | For very low temperatures |
| High-temperature silicone oil | 32 | -25 | +400 | 1.06 | 47.1 | For high temperatures |
| Neobee® M-20 | 59 | -35 | +260 | 0.92 | 10.0 | FDA 21 CFR 172.856, 21 CFR 174.5 |
| DI water | 64 | +4 | +85 | 1.00 | 0.9 | For ultrapure media |
| Silicone oil | 68 | -75 | +250 | 0.93 | 10.3 | |
| DI water/propanol mixture | 75 | -30 | +60 | 0.92 | 3.6 | For ultrapure media |
| Medicinal white mineral oil | 92 | -15 | +260 | 0.85 | 45.3 | FDA 21 CFR 172.878, 21 CFR 178.3620(a); USP, EP, SP |
| Maximum temperature | Maximum oxygen pressure |
|---|---|
| to 60 °C | 50 bar |
| > 60 °C to 100 °C | 30 bar |
| > 100 °C to 175 °C | 25 bar |
