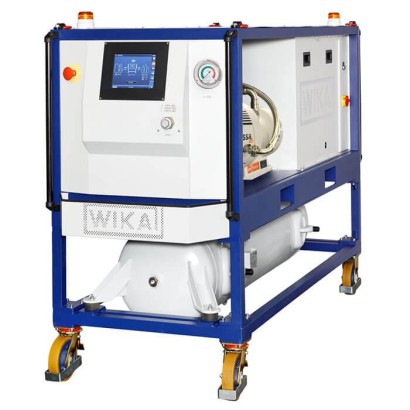

GPU-S-3000 1
GPU-S-3000
On order
WIKA · SF6 gas solutions · Family GPU

SF 6 service equipment

For filling, cleaning and recovery of SF 6 gas
Range
0…50 bar abs.
Protection
IP42
RoHSEMCMachinery DirectiveCE
Price
On request
Depends on configuration
Request a quote
+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Special features

  • Oil-less compressor and vacuum compressor
  • Option for on-site gas filtration to the desired humidity
  • Low maintenance effort
  • SIL2 safety control to reduce the emission of SF 6 gas to the absolute minimum.
  • Fast recovery of SF 6 gas for large gas compartments thanks to high-performance components
Identification
ModelGPU-S-3000
Product familyGPU
SubcategorySF6 service equipment
Measuring range
Pressure ranges0…10 bar abs. · 0…50 bar abs. · 0…1.2 bar abs.
Accuracy
Safety integrity level (SIL)SIL2
Process conditions
Process connectionDN 20
Operating environment
Ambient temperature−10…+40 °C
IP ratingIP42
Weight1000 kg
Certifications and approvals
Certifications
RoHSEMCMachinery DirectiveCE
Additional details
Datasheet languagesEN
Tables from datasheet
Voltage supply
Option 1AC 360 ... 440 V, 3-phase, 50/60 Hz
Option 2AC 220 ... 265 V, 3-phase, 50/60 Hz
Option 3AC 190 ... 230 V, 3-phase, 50/60 Hz
Oil-less compressor (SF₆ gas)
Gas flow rate19 m³/h (with medium suction pressure)
Output pressure50 bar abs.
Oil-less vacuum compressor (SF₆ gas)
Gas flow rateFinal vacuum
Option 115 m³/h< 1 mbar abs.
Option 235 m³/h< 1 mbar abs.
Vacuum pump (air)
Gas flow rateFinal vacuum
Option 125 m³/h< 1 mbar abs.
Option 240 m³/h< 1 mbar abs.
Option 363 m³/h< 1 mbar abs.
Option 4100 m³/h< 1 mbar abs.
View all (11)
Integrated tank, storage capacity
Option 1without tank
Option 2300 litres
Option 3600 litres
Option 4Stowage for 6 gas cylinders
Integrated gas cylinder scales
Option 1without scales
Option 2Measuring range 0 ... 136 kg Tare function Accuracy ±30 g
Connections
Standard1 valve DN 20, pressure range 0 ... 10 bar abs. 2 valves DN 20, pressure range 0 ... 50 bar abs.
Option (additi- onal coupling)1 valve DN 20, pressure range 0 ... 1.2 bar abs. Simultaneous evacuation, recovery or filling
LogoDescriptionCountry
EU declaration of conformity ■ EMC directive, EN 61326 emission (group 1, class B) and immunity (industrial application) ■ RoHS directive ■ Machinery directiveEuropean Union
HosesOrder number
Nominal widthLengthStainless steelRubber
DN 83 m14294449on request
5 m14330878on request
10 m14335098on request
15 m14307929on request
DN 203 m14290070on request
5 m14307900on request
10 m14327574on request
15 m14307926on request
AdapterOrder number
DN 8 (male) to DN 20 (female), brass14096583
DN 8 (female) to DN 20 (male), brass14284870
Spare parts and service kitsOrder number
Oil for vacuum pump, 1 litre14199926
Filter cartridge for GPF-1014118800
Filter cartridge for particle filter14140385
Service kit for compressor (SF₆ gas)on request (serial number of the system is required)
Service kit for vacuum compressor (SF₆ gas)on request (serial number of the system is required)
Service kit for vacuum pump (air)on request (serial number of the system is required)
Rain cover GPU-x-x00014182499
Pavillion with side pieces for outdoor applications14182512
Traileron request
