WIKA · Measurement instruments · Family GPU
SF 6 service equipment
For filling, cleaning and recovery of SF 6 gas
Protection
IP42
Machinery directiveRoHSEMC directive, EN 61326EMC directiveRoHS directiveCEEMC directive EN 61326
Price
On request
Depends on configuration
Special features
- Oil-less compressor and vacuum compressor
- Option for on-site gas filtration to the desired humidity
- Low maintenance effort
- Fast recovery of SF 6 gas for large gas compartments thanks to high-performance components
Identification

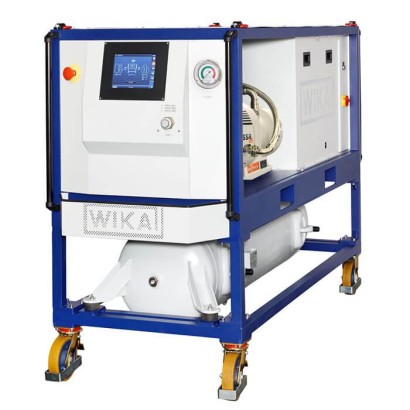

| Model | GPU-B-3000 |
| Product family | GPU |
| Subcategory | SF6 gas handling equipment |
Accuracy
| Safety integrity level (SIL) | SIL2 |
Operating environment
| Ambient temperature | −10…+40 °C |
| IP rating | IP42 |
| Weight | 665 kg |
Certifications and approvals
| Certifications | Machinery directiveRoHSEMC directive, EN 61326EMC directiveRoHS directiveCEEMC directive EN 61326 |
Additional details
| Datasheet languages | EN |
Tables from datasheet
Voltage supply
| Option 1 | AC 360 ... 440 V, 3-phase, 50/60 Hz |
|---|---|
| Option 2 | AC 220 ... 265 V, 3-phase, 50/60 Hz |
| Option 3 | AC 190 ... 230 V, 3-phase, 50/60 Hz |
Oil-less vacuum compressor (SF₆ gas)
| Gas flow rate | Final vacuum | |
|---|---|---|
| Option 1 | 15 m³/h | < 1 mbar abs. |
| Option 2 | 35 m³/h | < 1 mbar abs. |
Vacuum pump (air)
| Gas flow rate | Final vacuum | |
|---|---|---|
| Option 1 | 25 m³/h | < 1 mbar abs. |
| Option 2 | 40 m³/h | < 1 mbar abs. |
| Option 3 | 63 m³/h | < 1 mbar abs. |
| Option 4 | 100 m³/h | < 1 mbar abs. |
Integrated tank, storage capacity
| Option 1 | without tank |
|---|---|
| Option 2 | 300 litres |
| Option 3 | 600 litres |
| Option 4 | Stowage for 6 gas cylinders |
View all (10)
Integrated gas cylinder scales
| Option 1 | without scales |
|---|---|
| Option 2 | Measuring range 0 ... 136 kg Tare function Accuracy ±30 g |
Connections
| Standard | 1 valve DN 20, pressure range 0 ... 10 bar abs. 2 valves DN 20, pressure range 0 ... 50 bar abs. |
|---|---|
| Option (additi - onal coupling) | 1 valve DN 20, pressure range 0 ... 1.2 bar abs. Simultaneous evacuation, recovery or filling |
| Logo | Description | Country |
|---|---|---|
| EU declaration of conformity ■ EMCdirective, EN 61326 emission (group 1, class B) and immunity (industrial application) ■ RoHS directive ■ Machinery directive | European Union |
| Hoses | Order number | ||
|---|---|---|---|
| Nominal width | Length | Stainless steel | Rubber |
| DN 8 | 3m | 14294449 | on request |
| 5m | 14330878 | on request | |
| 10m | 14335098 | on request | |
| 15m | 14307929 | on request | |
| DN 20 | 3m | 14290070 | on request |
| 5m | 14307900 | on request | |
| 10m | 14327574 | on request | |
| 15m | 14307926 | on request |
| Adapter | Order number |
|---|---|
| DN 8 (male) to DN 20 (female), brass | 14096583 |
| DN 8 (female) to DN 20 (male), brass | 14284870 |
| Spare parts and service kits | Order number |
|---|---|
| Oil for vacuum pump, 1 litre | 14199926 |
| Filter cartridge for GPF-10 | 14118800 |
| Filter cartridge for particle filter | 14140385 |
| Service kit for compressor (SF₆ gas) | on request (serial number of the system is required) |
| Service kit for vacuum compressor (SF₆ gas) | on request (serial number of the system is required) |
| Service kit for vacuum pump (air) | on request (serial number of the system is required) |
| Rain cover GPU-x-x000 | 14182499 |
| Pavillion with side pieces for outdoor applications | 14182512 |
| Trailer | on request |
