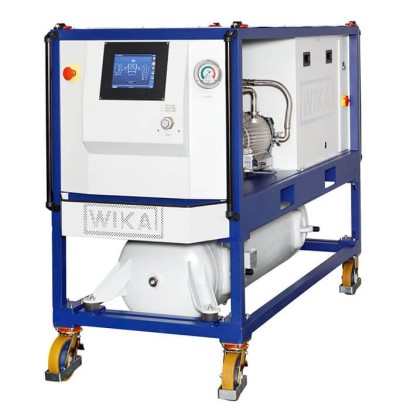

GPU_B_2000_GPU_B_3000 1
GPU_B_2000_GPU_B_3000
On order
WIKA · SF6 gas solutions · Family GPU

SF 6 service equipment

For filling, cleaning and recovery of SF 6 gas
Range
0…50 bar abs.
Protection
IP42
Machinery DirectiveRoHSCEEMCEMC DirectiveRoHS directive
Price
On request
Depends on configuration
Request a quote
+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Special features

  • Oil-less compressor and vacuum compressor
  • Option for on-site gas filtration to the desired humidity
  • Digital filling control to prevent gas cylinders from freezing.
  • Low maintenance effort
  • Highest filling accuracy
Identification
Product familyGPU
SubcategoryHandling equipment
Measuring range
Pressure ranges0…10 bar abs. · 0…50 bar abs. · 0…1.2 bar abs. · 0…10 bar · 0…50 bar · 0…1.2 bar · 0…10 bar abs · 0…50 bar abs · 0…1.2 bar abs
Accuracy
Safety integrity level (SIL)SIL 2
Process conditions
Process connectionDN 20
Operating environment
Ambient temperature+0…+40 °C
IP ratingIP42
Weight800 kg
Certifications and approvals
Certifications
Machinery DirectiveRoHSCEEMCEMC DirectiveRoHS directive
Additional details
Datasheet languagesEN
Tables from datasheet
Basic information
Models
GPU-B-2000SF₆ handling equipment in fully automated basic version
GPU-S-2000SF₆ handling equipment with additional SIL 2 safety control
GPU-B-3000SF₆ handling equipment at the highest performance level
GPU-S-3000SF₆ handling equipment with additional SIL 2 safety control and the highest performance level
Digital display
Type of display10" colour LCD touchscreen
Connections
Gas-insulated switchgear (GIS)1 x valve DN 20Pressure range: 0 ... 10 bar abs. [0 ... 145 psi abs.]
Gas cylinder2 x valve DN 20Pressure range: 0 ... 50 bar abs. [0 ... 725 psi abs.]
Atmosphere1 x valve DN 20Pressure range: 0 ... 1.2 bar abs. [0 ... 17 psi abs.]
Operating voltage■ AC 400 V, 3-phase, 50/60 Hz ±10% ■ AC 240 V, 3-phase, 50/60 Hz ±10% ■ AC 208 V, 3-phase, 50/60 Hz ±10%
Filter element■ Molecular sieve ■ Aluminium oxide ■ Particle filter: 1 μm ■ Max. water absorption: 75 g [2.65 oz] or 2 x 75 g [2.65 oz]
Integrated tank, storage capacity■ Without tank ■ 300 litres ■ 600 litres ■ Stowage for 6 gas cylinders ■ Stowage for 10 gas cylinders
Integrated gas cylinder scalesWithout scales-
Without scales with pull-out, fixed to the GPUMeasuring range 0 ... 120 kg [0 ... 264.56 lb] Accuracy: ±50 g [±1.76 oz]
Mobile scalesMeasuring range 0 ... 136 kg [0 ... 299.83 lb] Accuracy: ±68 g [±2.4 oz]
Extension of function■ Humidity sensor to measure the humidity content and filtering to a target humidity value ■ Additional process connection for the simultaneous evacuation of air from gas compartments.
Tyres■ Solid rubber, ∅200 mm[7.874 in], with rollover protection ■ Chassis with solig rubber wheels, 406 x 103 mm[15.98 x 4.05 in]
Ingress protectionIP42
Weight
Without tankApprox. 800 kg [1,764 lb]
Without tank and wheelsApprox. 800 kg [1,764 lb]
With empty 300-litre tankApprox. 1,250 kg [2,756 lb]
With empty 600-litre tankApprox. 1,300 kg [2,867 lb]
With empty stowage for 6 gas cylindersApprox. 1,050 kg [2,315 lb]
With empty stowage for 10 gas cylindersApprox. 1,175 kg [2,591 lb]
Operating conditions
Operating temperature0 ... 40 °C [32 ... 104 °F]
Storage temperature range-20 ...+60 °C [-4 ...+140 °F]
Humidity< 95 %relative humidity (non-condensing)
Oil-less compressor (SF₆ gas)
Output pressureGas flow rate
50 bar abs.■ 6 m³/h at 50 Hz ■ 7.3 m³/h at 60 Hz
■ 10.2 m³/h at 50 Hz ■ 12.3 m³/h at 60 Hz
■ 15 m³/h at 50 Hz ■ 18.5 m³/h at 60 Hz
Oil-less vacuum compressor (SF₆ gas)
Final vacuumGas flow rate
< 5 mbar abs.■ 4.8 m³/h at 50 Hz ■ 5.8 m³/h at 60 Hz
< 1 mbar abs.10 m³/h at 50/60 Hz
■ 18 m³/h at 50 Hz ■ 21 m³/h at 60 Hz
■ 35 m³/h at 50 Hz ■ 43 m³/h at 60 Hz
View all (9)
Vacuum pump (air) 1)
Final vacuumGas flow rate
< 0.1 mbar abs.■ 40 m³/h at 50 Hz ■ 48 m³/h at 60 Hz
■ 63 m³/h at 50 Hz ■ 76 m³/h at 60 Hz
■ 100 m³/h at 50 Hz ■ 120 m³/h at 60 Hz
LogoDescriptionCountry
EU declaration of conformityEuropean Union
EMCDirective
Machinery Directive
RoHS directive
HosesOrder number
Nominal widthLengthStainless steelRubber
DN 83m [9.84 ft]14294449On request
5 m[16.40 ft]14330878On request
10m [32.81 ft]14335098On request
15m [49.20 ft]14307929On request
DN 203m [9.84 ft]14290070On request
5 m[16.40 ft]14307900On request
10m [32.81 ft]14327574On request
15m [49.20 ft]14307926On request
AdapterOrder number
DN 8 (male) to DN 20 (female), brass14096583
DN 8 (female) to DN 20 (male), brass14284870
Spare parts and service kitsOrder number
Oil for vacuum pump, 1 litreOn request
GPU-x-x000 filter set14418175
Service kit for compressor (SF₆ gas)On request (serial number of the equipment is required)
Service kit for vacuum compressor (SF₆ gas)On request (serial number of the equipment is required)
Service kit for vacuum pump (air)On request (serial number of the equipment is required)
GPU-x-x000 Tarpaulin14182499 (only for version with 300-litre tank)
TrailerOn request
