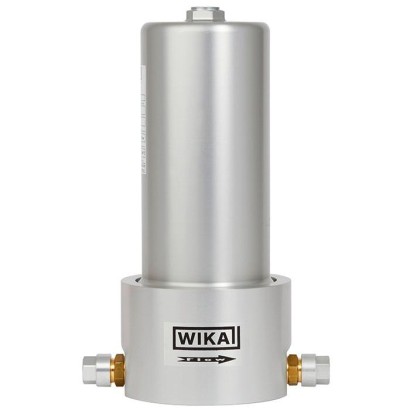

Portable SF 6 filter unit

Name: Portable SF 6 filter unit
Brand: WIKA

Portable SF6 filter unit for treatment of contaminated SF6 gas, with 3-in-1 filter cartridge for particles, decomposition products, and humidity.

Range

0…50 bar

Price

On request

Depends on configuration

Special features

3-in-1 filter cartridge for filtering out particles, reactive decomposition products and humidity
Easily replaceable filter cartridge
High gas flow rate through flow optimisation
Robust and reliable sealing construction
Corrosion protection through anodised filter case

Identification

Measuring range

Pressure ranges

0…50 bar

Process conditions

Process connection

DN 8 (M26 x 1.5)DN 20 (M26 x 1.5)DN 8 (brass, M26 x 1.5)DN 20 (brass, M26 x 1.5)DN8 (brass, M26x1.5), model GCV-08DN20 (brass, M26x1.5), model GCV-20

Materials

Wetted parts material

Anodised aluminium, Molecular sieve, Aluminium oxide, Particle filter 1 μm, Brass

Operating environment

Ambient temperature	−20…+50 °C
Weight	8 kg

Additional details

Datasheet languages

Tables from datasheet

Basic information

Case material	Anodised aluminium, corrosion-resistant
Filter element	■ Molecular sieve, aluminium oxide, particle filter 1 μm [39.37 μin] ■ Max. water absorption: 75 g [0.16 lb]
Connections
Standard	■ 2 valves DN 8 (brass, M26 x 1.5), model GCV-08 ■ 2 protective caps from aluminium, model GCP-08
Optional	■ 2 valves DN 20 (brass, M26 x 1.5), model GCV-20 ■ 2 protective caps from aluminium, model GCP-20

Operating conditions

Permissible operating pressure	Max. 50 bar [725.18 psi]
Storage temperature range	-20 ...+50 °C [-4 ...+122 °F]
Operating temperature range	0 ... 50 °C [32 …122 °F]
Humidity	< 80 %relative humidity (non-condensing)
Weight in kg	Approx. 8 kg [17,6 lb]

Designation	Order number
	Stainless steel	Rubber
Hose with self-sealing valves, DN 8
Length 3 m[9.8 ft]	14225424	14064928
Length 6 m[19.7 ft]	14064923	14064929
Length 12 m[39.4 ft]	14064924	14064931
Length 15 m[49.2 ft]	14064927	14064933
Hose with self-sealing valves, DN 20
Length 3 m[9.8 ft]	14225543	on request
Length 6 m[19.7 ft]	14225579	on request
Length 12 m[39.4 ft]	14225594	on request
Length 15 m[49.2 ft]	14225602	on request

Designation	Order number
Filter cartridge	14340559
